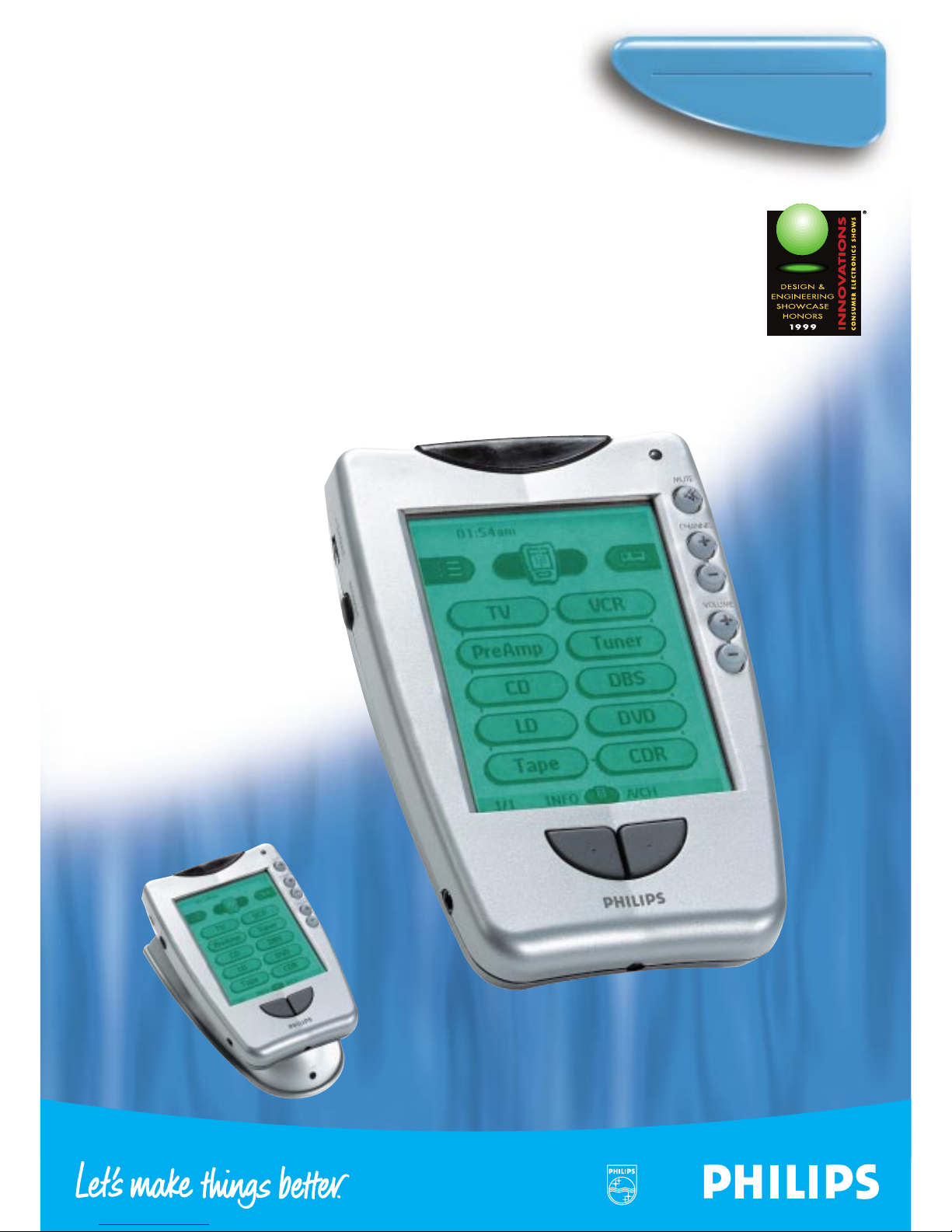

Philips SBCRU890/00 User manual

SBC RU890

• Large touch-screen LCD remote control with backlighting

• Dynamic, intuitive user interface for complete control of all

audio/video products

• 7 hard buttons for easy access to frequently used functions

(Mute,Volume +/-, …)

• Build-in IR commands for the Philips RC5/RC6 products

• Universal learnable for all non-Philips products

• Unlimited macro functionality – multiple IR codes are sent

upon a single button press

Data subject to change without notice

Business Accessories

SBC RU890

Standard product information

Mechanical

• Case ABS

• Keys yes

• Text/Symbol indication - printing on the housing

- wide range of colours available

• IRED protective lens yes

• Max. number of keys 7 hard keys

• LCD high resolution (320 mm x 240 mm)

liquid crystal display with contrast

control

• LCD colour green, 4 grey levels

• Serial port 3 – wire (RC232) serial port for

future expandability

• Weight - ca. 177 g (excl. batteries)

- ca. 250 g (incl. batteries)

• Standard packing - foam bag with retail package in

carton box

- minimum quantities: 5 pcs/box

Electrical

• Transmission/Coding system Philips RC 5 (enlarged), RC 6

• IRED 2

• Wavelength 950 nm

• EL backlight output 1.3 Cd/m2

• Operating voltage range 4.2 – 7V

• Standby current 100 mA

• Transmitting power 120 mW/sr typ.

• Operating distance 10 m typ.With a receiver sensitivity

>0.5 mW/ m2

• Learning frequency up to 56 kHz (no DC codes, no toggle

lits, no EOT codes)

• Batteries 4 x types AA, 1.5 batteries or one

4.8V battery pack

• Battery life approx.6 months

• Approvals FCC, CE, UL

Temperature range

• Operating temperature + 5 to +45 °C

• Storage temperature -25 to +55 °C

Drop test

• The complete unit, incl. batteries, is dropped on a PVC covered stone floor

from a height of 70 cm. Once on each side.After this test, the unit should

perform without failures.

Liquid test

• 55 cc of coffee is poured over the top-side of the RC unit.After 5 sec the

coffee is removed as good as possible and dried in an open space at 20 °C

during 48h.After this test, the unit should perform without failures.

Dimensions

Key layout top part overview
