Philips Optispace BCB500 User manual

Disconnect before servcing

Me re hors tension avant interven on

O en nur apsnnungsfrei

Demonterem voor onderhoud

Togliere tensione prima di fare manutencione

Desconectar antes de manipular

Bryt strömmen fore lampbyte

RG1

Op space

BCB500

ø

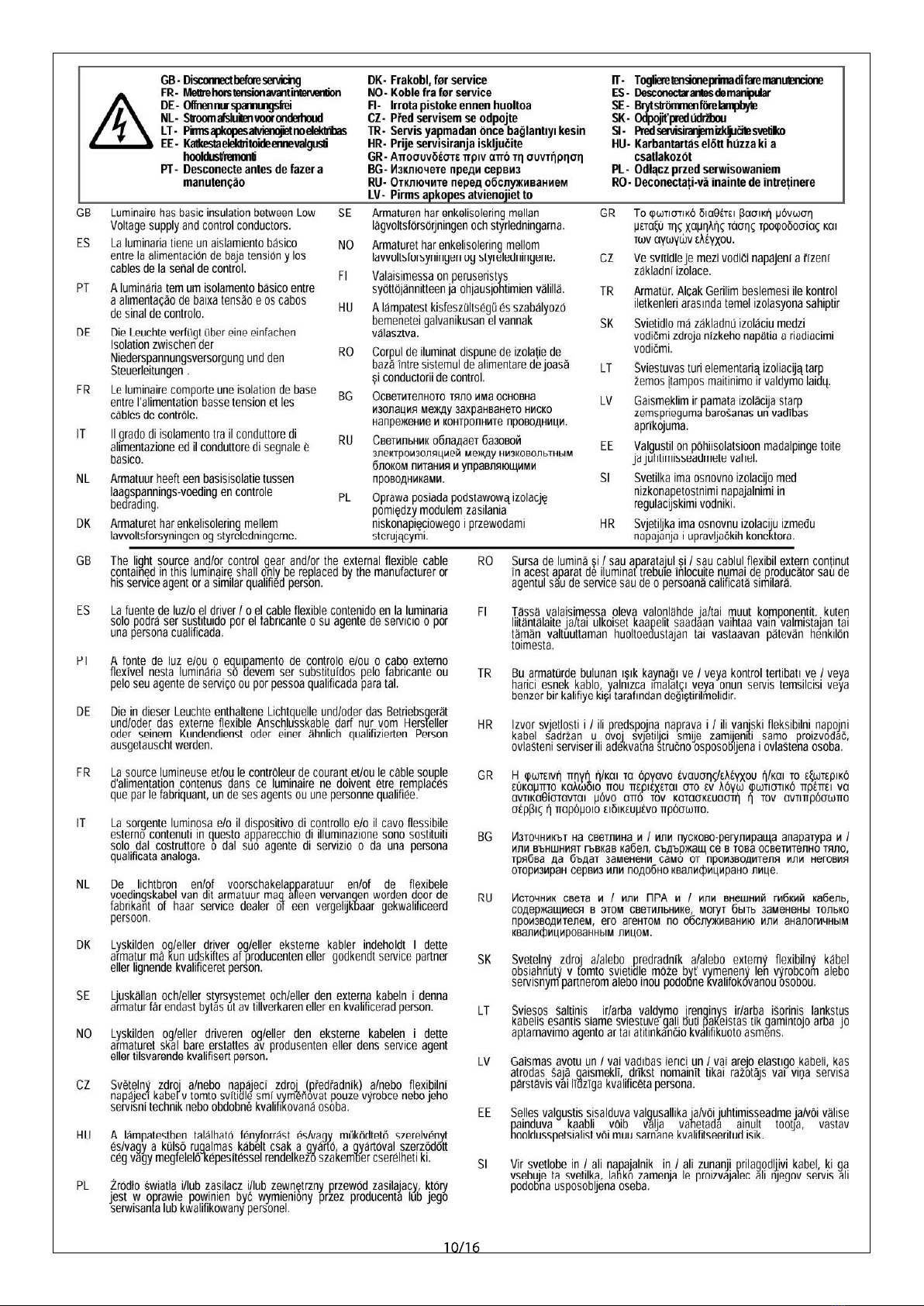

If the external ﬂ exible cable or cord of this luminaire is damaged, it shall

be exclusively replaced by the manufacturer or his service agent or a

similar qualiﬁ ed person in order to avoid a hazard.

OPTIC Inrush

current

Maximun num-

ber luminaires

per MCB16A

type B

BCB500

740 LED16-4S 9 A 1450 12,3 +50˚C -40˚C +50˚C 15A / 360µs 23 16

740 LED27-4S 9 A 2390 20 +50˚C -40˚C +50˚C 15A / 360µs 23 16

740 LED38-4S 9 A 3320 28,5 +50˚C -40˚C +50˚C 15A / 360µs 23 16

740 LED27-4S 23 S 2360 17,7 +50˚C -40˚C +50˚C 22A / 282µs 20 16

740 LED56-4S 23 S 4900 37,3 +50˚C -40˚C +50˚C 22A / 282µs 20 16

830 LED16-4S 9 A 1420 14,7 +50˚C -40˚C +50˚C 15A / 360µs 23 16

830 LED25-4S 9 A 2150 21,9 +50˚C -40˚C +50˚C 15A / 360µs 23 16

830 LED35-4S 9 A 3010 29,9 +50˚C -40˚C +50˚C 15A / 360µs 23 16

830 LED27-4S 23 S 2290 20,4 +50˚C -40˚C +50˚C 22A / 282µs 20 16

830 LED56-4S 23 S 4740 44,3 +50˚C -40˚C +50˚C 22A / 282µs 20 16

Mains /Control Connec on

Note: L80B10 life me (100000 h) is valid for 25°C

1

Oﬀ set installa on on nuts is permi ed as long

as the space under the foot plate is ﬁ lled using

a non-shrink grou ng space mortar.

Le montage décalé sur écrous est toléré á

la seule condi on que l’espace libre sous la

semelle soit comblé à l’aide d’un mor er de

bourrage sans retrait.

Se permite el montaje decalado sobre tuercas

siempre y cuando el espacio libre debajo de la

zapata sea rellenado con un mortero de relleno.

Use the M8 screw and washer supplied

in a bag to connect to earth the tube.

23

45

45 mm min

6a

Ground base tube connec on Class I Turn Bollard to ver cal posi on

Base placement indica on Minimum anchor bolt length

out of founda on

Instala on on nuts

Leveling of the washers Placing the base plate

22

70

M14

Install the broad based ligh ng tube directly

to the founda on (concrete pedestal) which

sholud be smooth, ﬂ at and horizontal.

Installer le bolard á semelle directement sur

la fonda on (massif béton) qui doit être lisse,

plate et horizontale.

Instalar la placa de la baliza directamente sobre

la cimentación (zapata) que debe estar lisa,

plana y horizontal.

6b

Leveling of founda on Placing the base plate

Instala on on founda on

22

70

7Instala on with EMBEDDED TUBE

Place tubes, screws M14,

washers and nuts M14

22

70

ZCB500 TUBE L500
