Philips Business 107MB User manual

Introduction

The PHILIPS 107MB color monitor displays sharp and brilliant images

of text and graphics with a maximum resolution up to 1280x1024 pixels.

It is optimal for Windows, CAD / CAM / CAE, desktop publishing,

spread sheets, multi-media, and any other application which demands

large screen size and high resolutions.

This monitor automatically scans horizontal frequencies from 30KHz to

86KHz, and vertical frequencies from 50Hz to 160Hz. With

microprocessor based digital controlled circuit, the monitor can

automatically adjust itself to the video card’s scanning frequency and

displays an image with precise parameters you desire. The wide range

of scanning frequency supports variety of operating platforms, such as

IBM PC and compatibles, Apple’s Macintosh, Quadra and Centris

families, Power PC and workstations.

Feature Highlights

•On-Screen-Display function provides more informations when the

user operates the control functions. This feature provides user-

friendliness and ease-of-use when operating the monitor.

•Anti-Glare and Anti-Static screen coating eliminate any bad effects

caused by the screen surface such as reflection of the room lights

and dust attraction.

• With Color Adjustment function you can easily choose different

preset color temperatures or set your own customized color

parameters.

•Image Tilt Adjustment function provides correction of rotated image.

This correction can minimize the distortions caused by outside

environments, such as earth magnetic field.

•Green Design including automatic power saving function (NUTEK)

and low emission TCO'95 (MPRII for 17B2302N) compliance shows

our commitment in environmental care.

•DDC1/DDC2B allows communication between the monitor and PC

system for optimal video configuration.

Safety precautions and maintenance

Note: If you experienced your monitor display is changing from color to

mono, it's possible that you are using a non-VESA-DDC-standard video

card. Please consult with your local Philips dealer for more information.

ENERGY STAR is an U.S. registered mark.

As an Energy Star partner, PHILIPS, has determined that this product

meets the Energy Star guidelines for energy effficiency.

IBM, IBM PC and Power PC are registered trademarks of International

Business Machines Corporation.

Apple, Macintosh, Quadra and Centris are registered trademarks of

Apple Computer, Inc.

◆Disconnect the monitor from the mains supply if the monitor is not to

be used for an extended period of time.

◆Do not attempt to remove the back cover, as you will be exposed to

a shock hazard. The back cover should only be removed by qualified

service personnel.

◆Do not place objects on top of the monitor cabinet, which could fall

into vents or which could cover them and prevent proper cooling of

the monitor’s electronic devices.

Do not expose the monitor to rain or excessive moisture to avoid the

risk of shock or permanent damage to the set.

◆Do not use alcohol or ammonia based liquid to clean the monitor. If

necessary, clean with a slightly damp cloth. Disconnect the monitor

from the mains supply before cleaning.

◆Consult a service technician if the monitor does not operate normally

when operating instructions of this manual are followed.

Package

Your PHILIPS 107MB package includes the following items:

• The monitor (integrated with tilt / swivel pedestal)

•Power cord

• Interface cable (flying-in)

• Audio and microphone cables

• Disk for Windows 95 driver

• Cable cover

Installation

End of life disposal

Your new set contains materials which can be recycled and reused.

Specialized companies can recycle your product to increase the amount

of reusable materials and to minimize the amount of materials to be

disposed of.

Please inform yourself on local regulations on disposal of your old set.

◆

NImportant: Please refer to the user’s manuals of your computer

and video adapter to make sure these equipments are properly

installed and configured before installing the monitor.

Positioning / Ventilation

◆Avoid exposing the monitor to direct sunlight, stoves or any other

heat sources.

◆To prevent overheating, make sure that the ventilation openings of

the monitor are not covered.

◆Keep moisture and dust away.

◆Keep away from any magnetic objects, such as speakers, electric

motors, transformers, ...etc.

◆When positioning this monitor, make sure that the mains plug and

socket are easily accessible.

Pedestal

With the built-in pedestal you can tilt and / or swivel the monitor for a

most comfortable viewing angle.

107 B

Connection

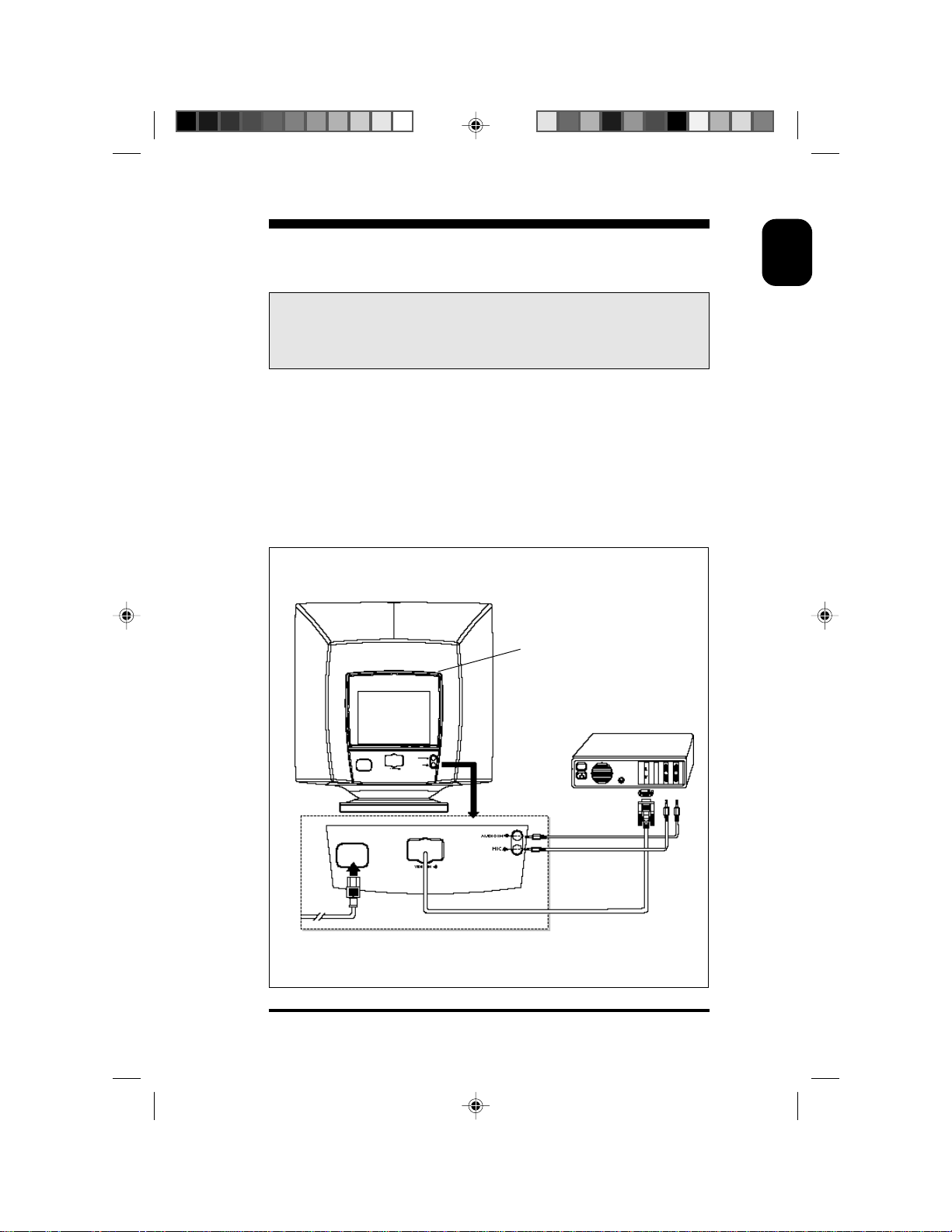

• Connect the monitor to the computer using the supplied interface

cables. Connection with computer system other than IBM PC may

need different type of adapters. Please consult your computer supplier

for these adapters. Connect the power cord to a wall outlet after the

interface cable is properly connected.

Important: Please make sure the AC power to your computer is

“OFF” before connecting or disconnecting any display

peripheral. Failure to do so may cause serious personal injury

as well as permanent damage to your computer equipments.

Monitor rear view

mains connection

cable cover

NControl locations and functions

a. Front Controls

Descriptions of knobs and keypads on front control panel

➀• Adjust volume of internal speakers and earphone output.

➁• Adjust brightness of the display.

➂• To access OSD menu.

√•Adjust contrast of the display.

➄•To scroll the OSD function and adjust the scale of the selected

function.

①②③④⑤

b. Upper Control

c. Side Control

➀• Press this knob to switch ON and OFF of monitor's power.

cable cover

(Snaps onto the back of the monitor to conceal cable connections.)

NOSD menu tree structure

First Level Second Level Third Level

SIZE & POSITION

HORIZONTAL POSITION

ZOOM

HORIZONTAL SIZE

VERTICAL POSITION

VERTICAL SIZE

SAVE & RETURN TO MAIN MENU

RECALL

GEOMETRY

COLOR TEMPERATURE

ADVANCED CONTROLS

MONITOR STATUS

USER 1

USER 2

RED (RED COLOR)

GREEN (GREEN COLOR)

BLUE (BLUE COLOR)

SAVE & RETURN TO

MAIN MENU

RECALL

9300°

6500°

POWER SAVING ON / OFF

LANGUAGES

DDC1/2B ON / OFF

OSD TIMER

DEGAUSS

MUTE OFF / ON

EXIT OSD

RESET

RED (RED COLOR)

GREEN (GREEN COLOR)

BLUE (BLUE COLOR)

ROTATION

PINCUSHION

TRAPEZOID

BALANCED PINCUSHION

PARALLELOGRAM

SAVE & RETURN TO MAIN MENU

RECALL

SAVE & RETURN TO MAIN MENU

RECALL

SAVE & RETURN TO MAIN MENU

RECALL

ENGLISH

DEUTSCH

FRANÇAIS

ITALIANO

ESPAÑOL

PRESET MODE

NEW MODE

YES

MOIRÉ H

SAVE & RETURN TO MAIN MENU

CANCEL

SYNC INPUT SELECT

SAVE & RETURN TO MAIN MENU

RECALL

TTL SYNC

SYNC ON GREEN

SAVE & RETURN TO MAIN MENU

RECALL

Adjustment via On-Screen-Display

Brightness / Contrast / Volume

adjustment of brightness, contrast & volume

●Press , then use OSD rotary

encoder to adjust.

●The adjusted parameters are

automatically saved and the OSD

menu will disappear within 5

seconds if there is not any

adjustment/action has been made.

●Press , then use OSD rotary

encoder to adjust.

●The adjusted parameters are

automatically saved and the OSD

menu will disappear within 5

seconds if there is not any

adjustment/action has been made.

●Press , then use OSD rotary

encoder to adjust.

●The adjusted parameters are

automatically saved and the OSD

menu will disappear within 5

seconds if there is not any

adjustment/action has been made.

resolution and frequency of the display

layer of the OSD menu

MUTE ON / OFF

adjustment functions

●Press , you will see an OSD

window (main menu) on the

screen.

●Use OSD rotary encoder to move

the bar to "MUTE OFF".

●Press , you can change "MUTE

OFF" to "MUTE ON".

BR GH

INESST

80%

CONTRAST

80%

VOLUME

80%

MUTE ON

OSIZE & P TIONSI

GEOMETRYMCOLOR TE RATUREPE

ADVANCED NTROLSCO

EXI T OSD

RESET

1024x768 68. Z 85HZKH

DEGAUSS SMON I TOR TUSTA

AMINMENU

OSIZE & P TIONSI

GEOMETRYMCOLOR TE RATUREPE

ADVANCED NTROLSCO

DEGAUSS

EXI T OSD

RESET

SMON I TOR TUSTA

1024x768 68 . Z 85HZKH

MUTE OF F

AMINMENU

NSIZE & POSITION

Adjustments of zoom, horizontal position, horizontal size, vertical

position, vertical size:

●Press , to access OSD menu.

●Use OSD rotary encoder to move

the bar to "SIZE & POSITION".

●Press to access the 2nd lelel

menu. Use OSD rotary encoder

to select the function you want to

adjust.

●Press , then use OSD rotary

encoder to adjust.

●Press , return to 2nd level

menu.

●The adjusted parameters are

automatically saved and the OSD

menu will disappear within the

time you selected on OSD TIMER

(e.g.10 seconds) if there is not

any adjustment/action has been

made.

●Press , return to the OSD

main menu.

main menu

2nd level menu

TSIZE & POSI NIO

ZOOM AHOR I ZONT POS I T I ONL

AHOR I ZONT S I Z EL

VERT ICAL S ITIONPO

VERTICAL ZESI

SAVE & RETURN TO MAIN MENU

RECALL

OSIZE & P TIONSI

GEOMETRYMCOLOR TE RATUREPE

ADVANCED NTROLSCO

EXI T OSD

MUTE OF F

RESET

1024x768 68. Z 85HZKH

DEGAUSS SMON I TOR TUSTA

AMINMENU
