Philips MCM148/96 User manual

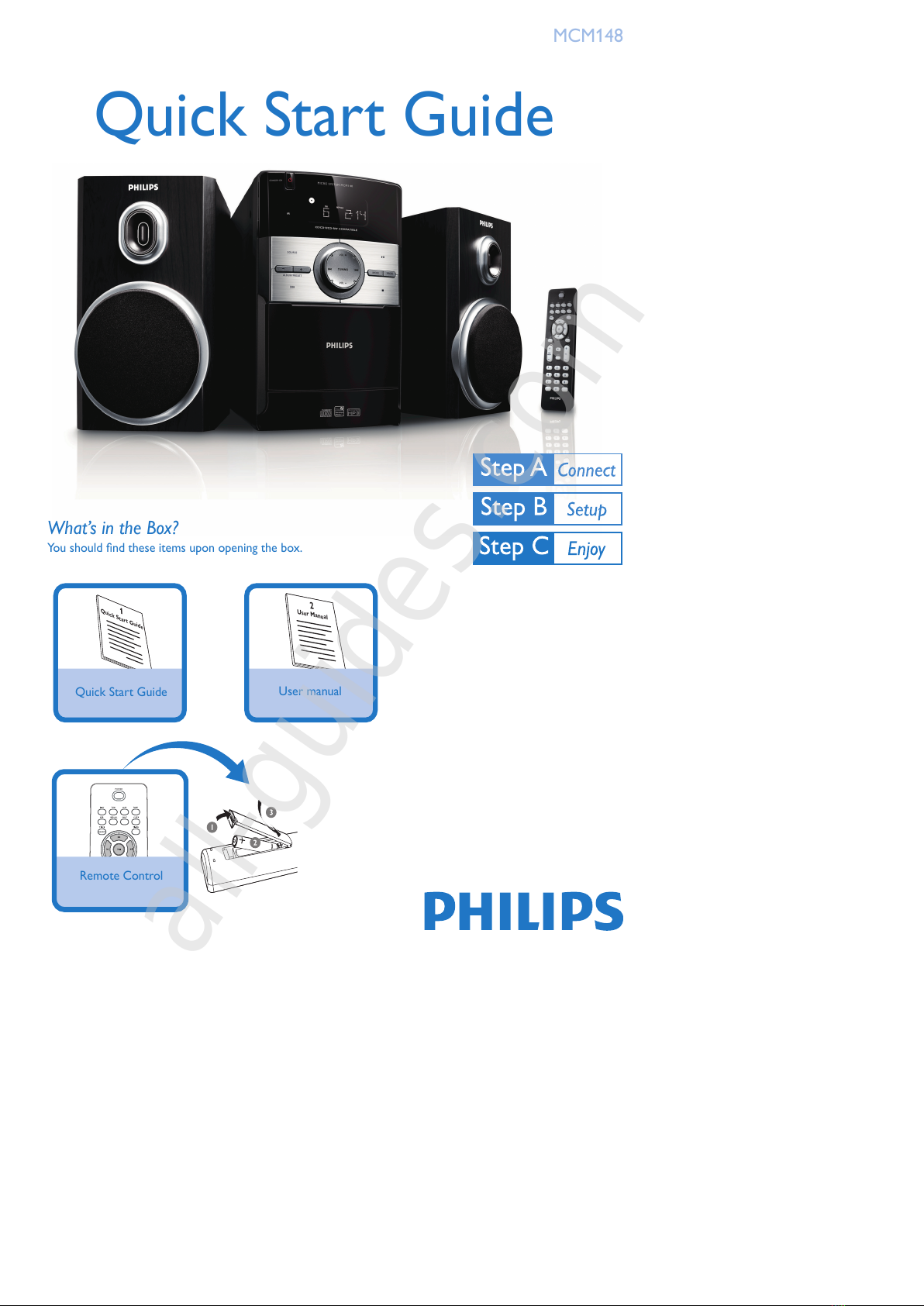

Quick Start Guide

What’s in the Box?

You should nd these items upon opening the box.

MCM148

Quick Start Guide

User Manual

Quick Start Guide User manual

POWER

Remote Control

MCM148_96_QSG_V2.0_EN.indd 1 3/30/2010 2:44:27 PM

All manuals and user guides at all-guides.com

all-guides.com

Connection

Connect the speaker wires to the SPEAKERS terminals.

Connect the power cord of the system to the AC power outlet.

Tip:

It is unnecessary to connect the FM pigtail antenna since it

is xed to the main unit.

MCM148_96_QSG_V2.0_EN.indd 2 3/30/2010 2:44:28 PM

All manuals and user guides at all-guides.com

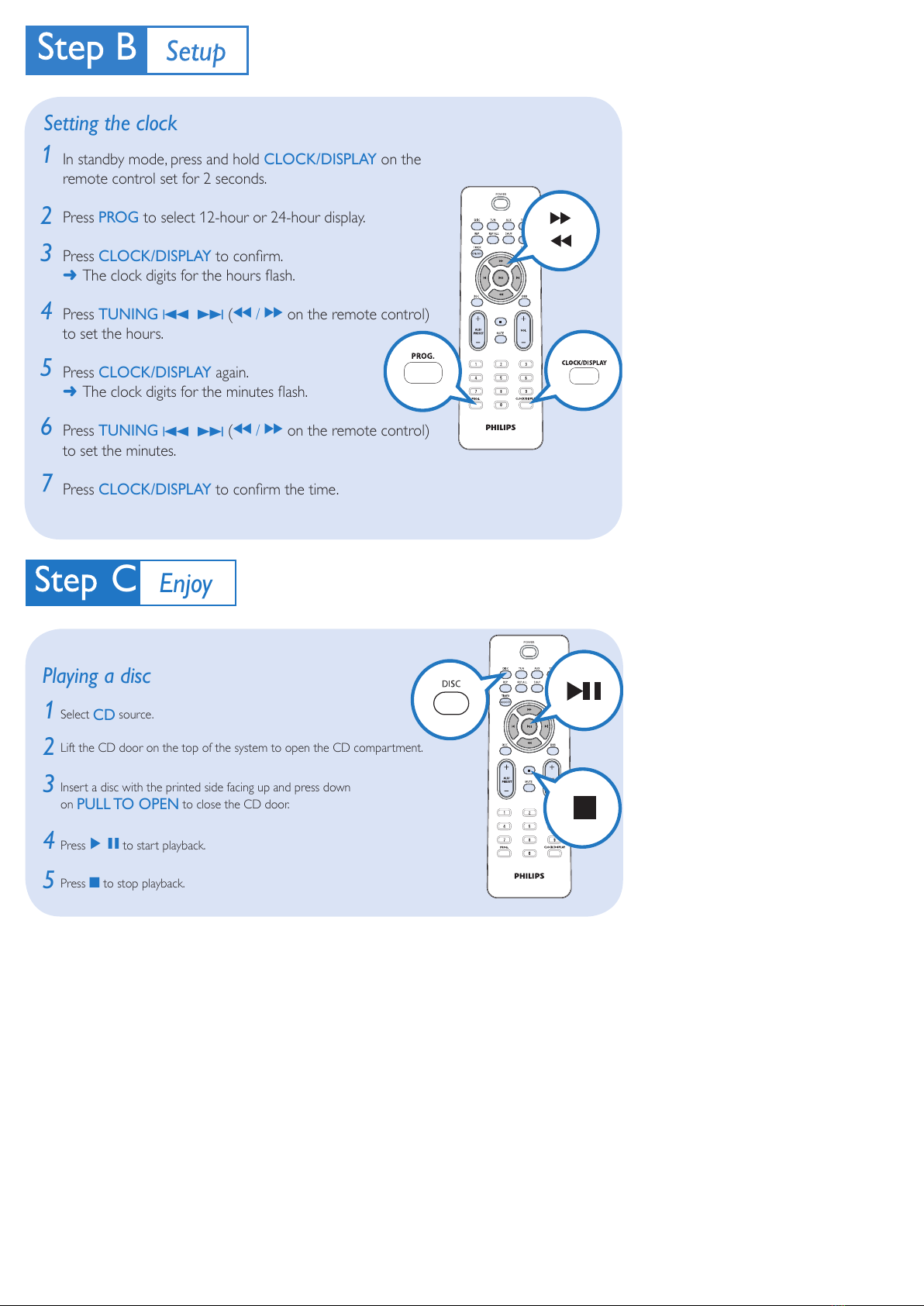

Setting the clock

In standby mode, press and hold CLOCK/DISPLAY on the

remote control set for 2 seconds.

Press PROG to select 12-hour or 24-hour display.

Press CLOCK/DISPLAY to conrm.

➜ The clock digits for the hours ash.

Press TUNING 4 ¢ (à/ áon the remote control)

to set the hours.

Press CLOCK/DISPLAY again.

➜ The clock digits for the minutes ash.

Press TUNING 4 ¢ (à/ áon the remote control)

to set the minutes.

Press CLOCK/DISPLAY to conrm the time.

POWER

Enjoy

Playing a disc

Select CD source.

Lift the CD door on the top of the system to open the CD compartment.

Insert a disc with the printed side facing up and press down

on PULL TO OPEN to close the CD door.

PressÉÅto start playback.

Press 9to stop playback.

POWER

MCM148_96_QSG_V2.0_EN.indd 3 3/30/2010 2:44:28 PM

All manuals and user guides at all-guides.com

C 2010 Koninklijke Philips Electronics N.V.

http://www.philips.com

MCM148_96_QSG_V2.0

Tip:

Detailed playback features and

additional functions are described in

the accompanied owner's manual.

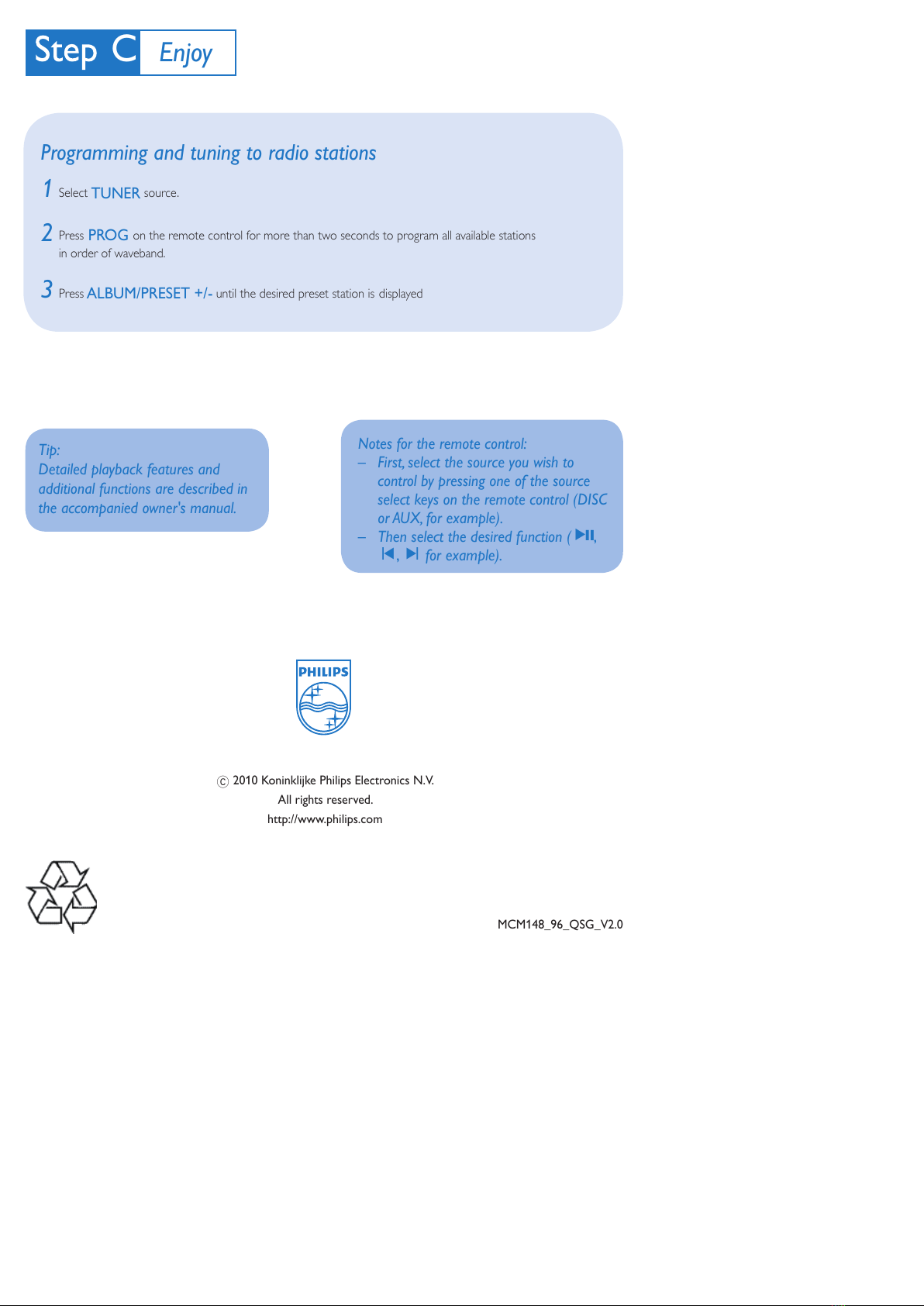

Select TUNER source.

Press PROG on the remote control for more than two seconds to program all available stations

in order of waveband.

Press ALBUM/PRESET +/- until the desired preset station is displayed

Programming and tuning to radio stations

Notes for the remote control:

– First, select the source you wish to

control by pressing one of the source

select keys on the remote control (DISC

or AUX, for example).

– Then select the desired function ( 2;,

í, ë for example).

Enjoy

MCM148_96_QSG_V2.0_EN.indd 4 3/30/2010 2:44:28 PM
