Philips HP8550 User manual

ServiceManual

Philips Consumer Lifestyle

Published by Philips Consumer Lifestyle Printed in the Netherlands © Copyright reserved Subject to modification

Summer Glow

HP8550

08/02

PRODUCT INFORMATION

- This full-body tanning appliance is equipped with an

electromechanical timer connected to an electronic

watchdog that immediately switches off the appliance

in case the timer is defective. This watchdog consists of

a PCB attached to the rear of he timer housing and also

gives a signal when the last minute of the set time has

been reached.

- The UV lamps only burn in combination with the IR

(relax) lamps. When the UV lamps are on the IR lamps

burn at reduced intensity.

- This tanning appliance has also been fitted with a scent

unit. The scent granules required for this unit can be

ordered as service part (see parts list).

IMPORTANT

- Because of the brief high starting voltage, the appliance

should be connected to a circuit protected with a 16A fuse.

- HPA lamps only go on at a restart if they have cooled down

sufficiently.

- Never touch the HPA lamps with your fingers. If necessary,

clean the lamps with a cloth moistened with some alcohol.

- When a new HPA lamp is installed, this lamp may have

a different colour compared to the other lamp. This is

normal and will disappear after a short period of use.

- After repair, the glass filters should be free from fingerprints.

If necessary clean the filters with some alcohol.

- Never look directly into the light of an HPA lamp when it

is on without protective goggles.

- Insufficient cooling – for instance when the vents are

blocked or when the fan has broken down – will cause the

thermal safety cut-out to switch the appliance off. Once the

cause of overheating has been removed and the appliance

has cooled down sufficiently, it will switch automatically on

again.

- Let the appliance cool down for 15 minutes before folding

it back into transport position and storing it.

- Only move the appliance when it is in transport position,

i.e. when it is folded.

- If there are complaints about inadequate tanning, the

output of the lamps can be measured with a UV-X 36

meter. For the minimum values, see table under ‘Technical

information’.

HP8550

TECHNICAL INFORMATION

5. Stand

- The column of the stand has been mounted by means of

a hydraulic press and cannot be removed without causing

serious damage.

- As a result, the hinge housing cannot be disassembled

either.

- The legs have been mounted on the paw by means of a

hydraulic press and cannot be removed without causing

serious damage.

To replace the hinge housing assy:

- Undo the screws of the main grip.

- Take the main grip off stand.

- Remove the black plastic tube from the column.

- Slide the lamp housing together with the slider off the

column.

To replace the paw and the paw cap (L&R) and the wheels:

- Undo the screw on the inside of the paw.

- Unsnap the paw caps.

- The wheels are now accessible.

- Undo 4 screws in the point of rotation of the paw to detach

the paw.

To replace the sliding plug leg:

- To replace the sliding plug of the leg, the existing sliding

plug has to be smashed with the pointed end of a hammer;

otherwise it can’t be removed without damaging the leg.

A new sliding plug can simply be snapped onto the leg.

Always unplug the appliance before disassembly or repair!

1. Replacing lamps, fans and starters.

- Fold the appliance out into operating position.

- Remove 12 screws on the bottom of the lamp housing.

- Remove the upper part of the lamp housing

(the fans, starters and internal wiring are now accessible)

- Remove the screws of the mounting bridge

- Remove the reflector clamps.

- Remove the reflector.

You have to lift the mounting bridge to do so.

2. Replacing timer and lock grips.

- Remove the timer knob.

- Undo the 4 screws under the knobs.

- Remove the timer front.

- Undo 6 screws of the timer housing.

- Remove the front of the timer housing.

- Timer and lock grips are now accessible.

3. Replacing watchdog

- Start disassembling the appliance as described under 2.

- Undo the 4 remaining screws.

- Remove the back of the timer housing.

- The watchdog is now accessible.

4. Replacing seesaws (always replace both)

- Make sure the slider is in bottom position.

- Start disassembling the appliance as described under 2.

- Remove the lock grips.

- Remove spring. Be careful, for the spring is tensioned.

- Remove 2 shafts.

- Remove the seesaws.

DISASSEMBLY & REPAIR INSTRUCTION

- Input voltage : 230 V – 50 Hz.

- Input consumption : Approx. 2200 W

- Fuse : 16 A

- UVA source : 2 x Philips Cleo HPA SYNERGIE

- IR source : 2 x Philips type 15040R

- Starter : KAIDA KCCD-G400

- Timer : 45 min. (motor driven)

- Radiation area : 190 x 70 cm

- Output (min) UVX-36 meter : 0.2 W/cm² at 65 cm. straight below the distance indicator

- Protecting goggles : 2 x HB072

- Safety : Class II Cenelec UV type 3

- Weight : Approx. 19 kg.

2-8

HP8550

ELECTRICAL DIAGRAM

Timer

Watchdog

TB1

TB2

SK1

SK3 SK5

Lp S2

-t

NTC1

-t

NTC3

-t

NTC2

La2 La4

La1

TCO1 TCO2

La3

SK4 SK6

3-8

HP8550

PARTS LIST

4-8

Item Service code Description

4222 062 97081

4822 404 40639

4822 214 12272

4822 271 30619

4822 410 40417

4222 062 96230

4222 062 97091

4222 062 95020

4222 062 96280

4222 062 96290

4222 062 96300

4222 062 95920

4222 062 96310

4222 062 95250

4822 325 20102

4222 062 96320

4222 062 94580

4222 062 94570

4222 062 96330

4822 690 80147

Lamp housing US

Switch bracket

Starter HPA

Micro switch

Switch pin

17 tabs PCB

Lamp housing LS

Distance indicator

Screw (set 3.5x20 and 3.5x12)

Lamp HPA

Lamp IR

Thermal cut off 90 °C

Lamp holder assy IR

Reﬂector clamp

Lamp holder HPA

Reﬂector assy

NTC resistor 22W

NTC connector

Scent reﬁll packages HB 080

Protecting Goggles HB 072

Item Service code Description

4222 062 95940

4222 062 95950

4222 062 95960

4222 062 95970

4222 062 97181

4222 062 95990

4222 062 96000

4222 062 96010

4222 062 96020

4222 062 96030

4222 062 96040

4222 062 96050

4222 062 96070

4222 062 97101

4222 062 97111

4222 062 97131

4222 062 97121

4222 062 96170

4822 265 30284

4222 062 96190

Paw cap R

Leg assy R

Leg assy L

Leg sliding plug (set)

Hinge assy

Paw cap L

Wheel

Fan assy

Slider assy

Main ﬂex EU

Main ﬂex UK

Main ﬂex CH

Timer MS 65 (45 min.)

Timer housing middle

Timer housing front

Knob timer

Timer housing back

Watch dog

Connecting block 3S

Sea saw (set)

HP8550

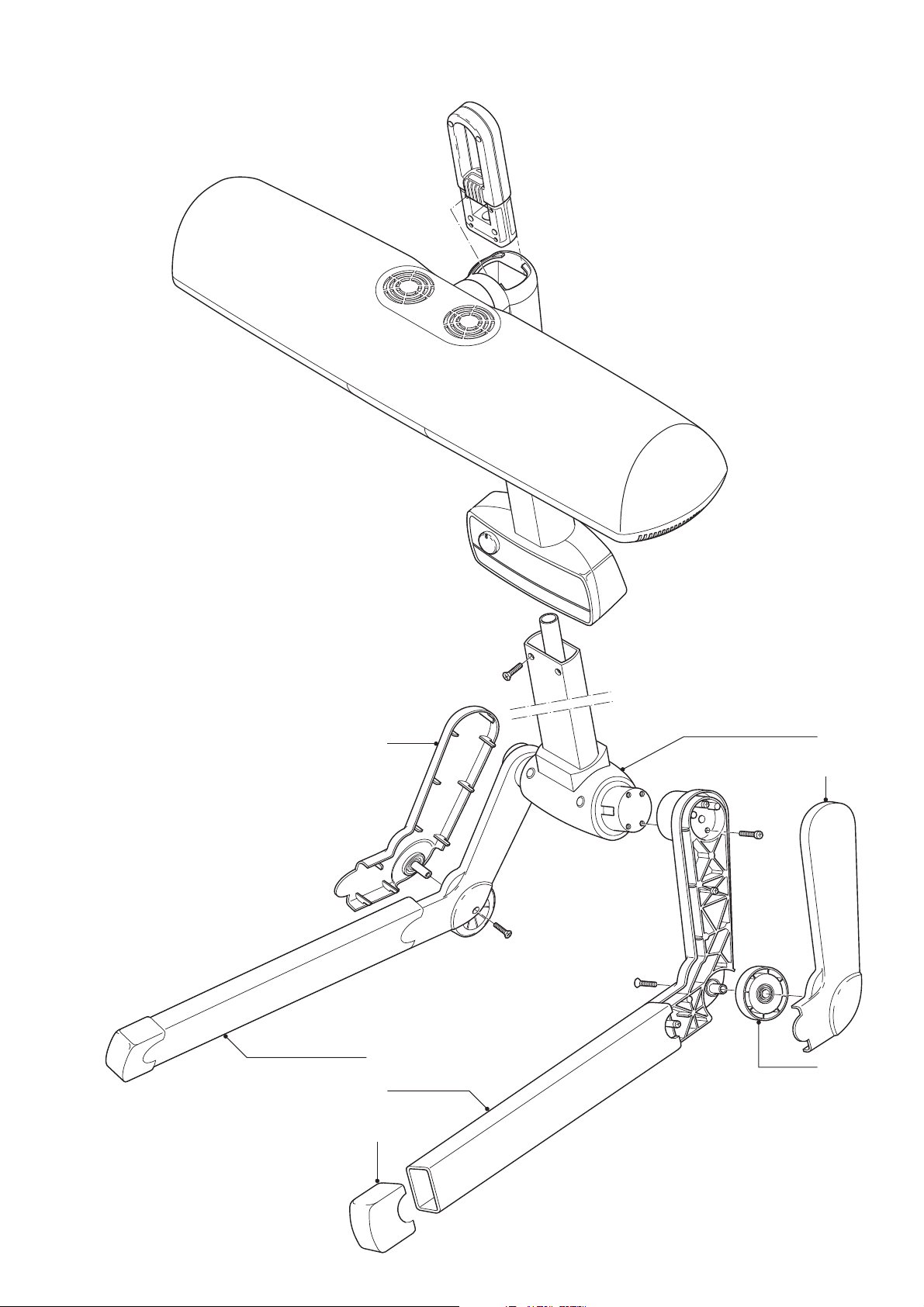

EXPLODED VIEW PART A

5-8

HP8550

EXPLODED VIEW PART B

6-8

HP8550

EXPLODED VIEW PART C

7-8

HP8550

WIRING DIAGRAM

PCB2

PCB3

Watchdog

PCB1

Mains

TB2

TB1

La2

La1

SK3

TCO1

La4

La3

TCO2

SK4

SK5 SK6

Timer

SK1

TB3

NTC2

NTC1

TB4

NTC3

Brown

Blue

Grey

Purple

Red

Yellow

Green

Black

White

8-8
