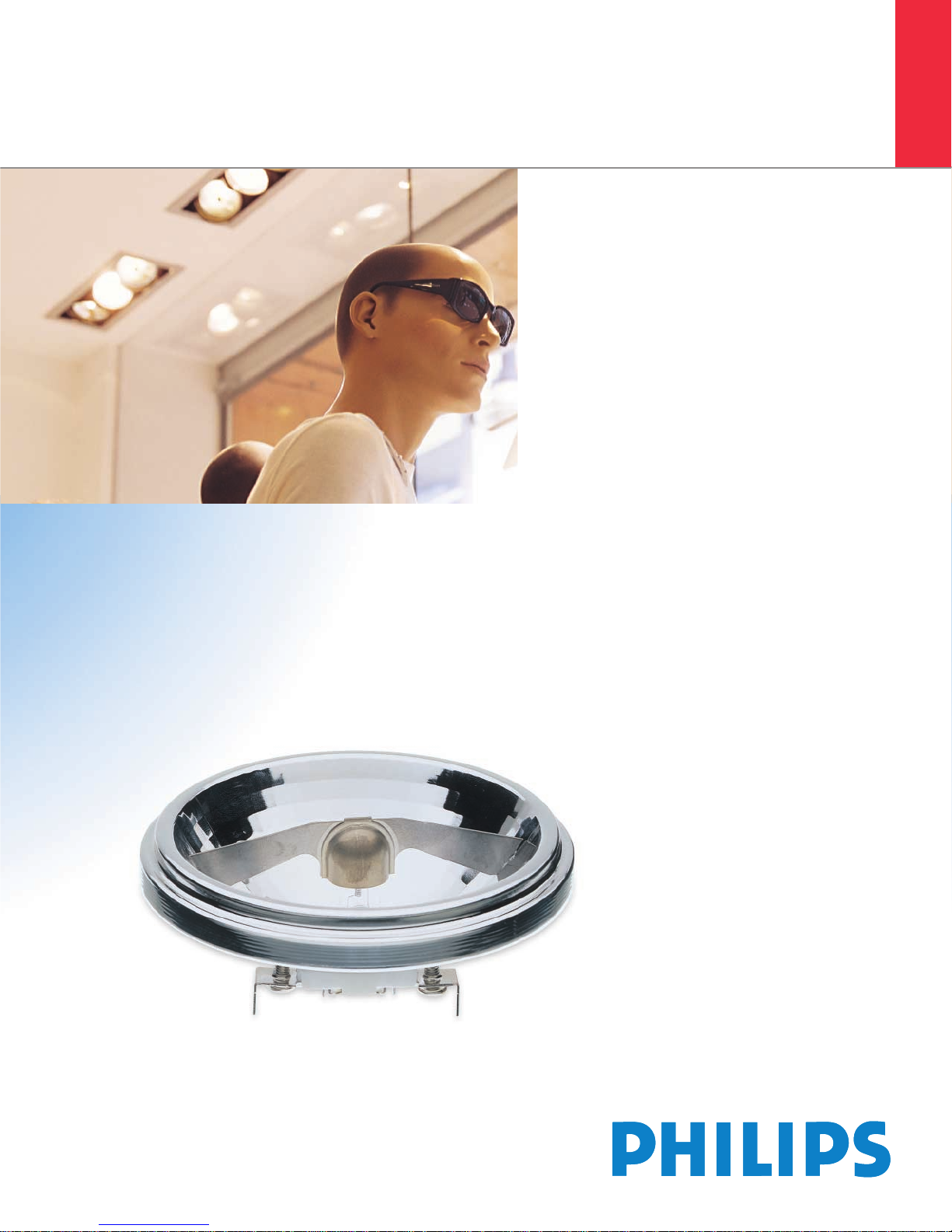

Philips ALU Line PRO-111 User manual

Ideal for accent lighting in retail

displays, exhibition halls in art

galleries, and museums

◗Highly Attractive Design

Large-diameter (111mm) low-voltage halogen

reflector lamps with high-purity facetted

aluminum reflector

◗Homogeneous Beam and

Comfortable Glare Free Light

A metal cap shields the filament to reduce

direct glare and also eliminates direct light,

producing a smooth beam with a very

sharp contrast

◗UV Block

UV block quartz reduces fading of goods

on display

◗000 Hour Rated Average Life

◗Multiple Connection Options

The lamp can be connected in three ways:

to a dedicated G53 socket or by direct wire

connection to screw or push-in terminations

on the lamp

◗Low Pressure—12V for Open Fixtures

Low-pressure halogen burner technology

permits the lamp to be safely used in

open luminaires

ALUline PRO 111

Large-diameter low-voltage reflector lamps for

even more flexibility in accent lighting

Color Rated

Product Temp. Beam Avg. Life

Number Description Watts Volts Bulb Base (Kelvin) Lumens Spread (Hrs.) Candlepower

13396-6 ALU111MM 50W G53 12V 8D 50 12 ALU Pro 111 G53 3000K 950 8 3000 23,000

13397-4 ALU111MM 50W G53 12V 24D 50 12 ALU Pro 111 G53 3000K 950 24 3000 4000

13398-2 ALU111MM 75W G53 12V 8D 75 12 ALU Pro 111 G53 3000K 1575 8 3000 30,000

13399-0 ALU111MM 75W G53 12V 24D 75 12 ALU Pro 111 G53 3000K 1575 24 3000 5300

13400-7 ALU111MM 75W G53 12V 45D 75 12 ALU Pro 111 G53 3000K 1575 45 3000 1900

Electrical,Technical and Ordering Data (Subje t to hange without noti e)

ALUline PRO 111

Shipping Data (Subje t to hange without noti e)

Outer Case Case SKUs

Product SKU UPC Bar Code Case Weight Cube Pallet Per Layers SKU Dimensions Case Dimensions Pallet Dimensions

Number (87-11500) (5-00-46677) Qty. (lbs.) (cu. ft.) Qty. Layer High (W xDxH)(In.) (W xDxH)(In.) (W xDxH)(In.)

13396-6 42652-9 13396-7 6 1.41 0.23 1104 138 8 3.38 x 3.38 x 4.44 10.67 x 7.32 x 5.16 50 x 36.6 x 41.28

13397-4 42655-0 13397-4 6 1.41 0.23 1104 138 8 3.38 x 3.38 x 4.44 10.67 x 7.32 x 5.16 50 x 36.6 x 41.28

13398-2 42698-7 13398-1 6 1.41 0.23 1104 138 8 3.38 x 3.38 x 4.44 10.67 x 7.32 x 5.16 50 x 36.6 x 41.28

13399-0 42700-7 13399-8 6 1.41 0.23 1104 138 8 3.38 x 3.38 x 4.44 10.67 x 7.32 x 5.16 50 x 36.6 x 41.28

13400-7 42702-1 13400-1 6 1.41 0.23 1104 138 8 3.38 x 3.38 x 4.44 10.67 x 7.32 x 5.16 50 x 36.6 x 41.28

Philips Lighting Company

200 Franklin Square Drive

P.O. Box 6800

Somerset, NJ 08875-6800

1-800-555-0050

A Division of Philips Electronics North America Corporation

Printed in USA 10/04 P-5641

Philips Lighting

281 Hillmount Road

Markham, Ontario

Canada L6C 2S

1-800-555-0050

A Division of Philips Electronics Ltd.

www.philips.com
