Philips 19HFL2807D/10 User manual

Philips Hospitality TV

Installation Manual for

19HFL2807D/10

24HFL2808D/10

32HFL2808D/10

39HFL2808D/10

Status: Approved

Version 1.0

Date: June 2013

Author: Marian Pufulete

Contents

1. Requirements before starting the installation.......................................................................................................... 2

2. Find out the state of the TV ...................................................................................................................................... 3

3. Re-install TV .............................................................................................................................................................. 5

4. Installation wizard..................................................................................................................................................... 6

5. Channel options ...................................................................................................................................................... 14

6. Professional Settings ..............................................................................................................................................18

7. Welcome Logo ........................................................................................................................................................ 22

8. Clone ....................................................................................................................................................................... 23

9. Feature settings......................................................................................................................................................24

10. CSM (Consumer Setup menu) ................................................................................................................................. 25

1. Requirements before starting the installation

Before starting the installation, make sure that you have everything you need at hand.

Master remote control 22AV8573 or Guest remote control 22AV1107A

And

USB stick

For the 19HFL2807 the master remote control is mandatory.

For the xxHFL2808 you can use the guest remote and use the key sequence MENU, 7,9,3,5 to access the Hotel Mode.

To enter the Hotel TV menu using the master remote control (22AV8573):

• Press the RC5 Setup key;

• Press the Home/Menu key;

Note:

The Home/Menu key on the master remote control (22AV8573) will activate only the hotel menu, navigation in this

menu must be done with the guest remote (22AV1107A).

Exit Hotel TV Menu

Leaving the Hotel TV Menu after making the required settings, can be done using the master Remote Control

(22AV8573) or with the TV included standard Remote Control.

To exit the Hotel TV menu with master remote control:

• Press the RC5 Setup key;

• Press the Home/Menu key;

To exit the Hotel TV menu with standard RC:

- Press the Menu key or

- Press the Return key

2. Find out the state of the TV

It is important to know if a TV is in ‘virgin mode’ (out of the box) or installed before.

If you can see this screen below, you know that the TV is in ‘virgin mode’ and you can install the set. See chapter 4 of

this manual.

If you power on the set and then press the ‘Home’ button on the guest remote, you will see this screen appear, if the

TV already has been installed or the wizard was already skipped.

Professional Settings ON

Professional Settings OFF

You can start the installation wizard again by reinstalling the TV as explained in chapter 3 of this manual.

Disable the Hotel TV mode

To access the setup menu you should press the ‘RC5 SETUP’ key and then press the ‘Home/Menu’ button.

You can use the guest remote to select with the up or down arrow buttons and change values with the left or right

arrow buttons. Set the Hotel TV Mode to OFF (picture attached)

Press “MENU” or “Return”button to exit this menu.

Note: Setting Hotel mode to OFF will disable all features from the Menu.

3. Re-install TV

If you want to start an installation from scratch you can always re-install the TV. First step is to set the Hotel Mode

to OFF and exit using the MENU or Return button on the guest remote.

Note: It is not required to use a save button, once you exit the menu, you will save the settings from the Hotel TV Menu

Press the MENU button on the guest remote to access the full menu of the TV. The following menu should be

displayed. Select the option “Install and Retune”(highlighted below)

Press “OK” to access the submenu.

Select the last option available “First time installation” and press “OK”. The TV asks for confirmation by showing the

following screen:

If you are sure that you want to re-install the TV, select “Yes” and press OK.

TV will reboot itself and show the “virgin state” screens with a welcome

message.

Note: All settings will be reset to default values.

4. Installation wizard

When you turn on the TV for the first time, or you have reinstalled the TV, you should see the following screen.

Please select your language and press “OK” to start the installation of the TV set.

The next step is to select the country. Based on the country selection a few presets will be activated.

The next step is to select the type of the search that you want to do:

- Digital only: TV will search only for digital channels

- Full: The TV will search for digital and analog channels

- Analogue TV only: The TV will search only for analogue channels

Note: On the bottom part of the screen the TV will display which buttons can help you to navigate and change the

options.

Once you have set up the channel search, you can press “OK” to go to next step of the installation.

In some cases due the country regulations, you have to provide a pin code formed from four digits. This pin code will

be required in case you want to modify the settings of the TV. Selected PIN code cannot be 0000. Enter a PIN code

and confirm it by entering it once more. Press the OK button to continue. If the two PIN codes match, your PIN code

will be set.

WARNING:

When you are required to enter a PIN code for any menu operation, you should use the PIN that you have previously

defined during the first time installation. If you have forgotten the PIN code, you should use the master PIN code

4725.

Press “OK” to continue to the next screen, which will ask if you want to start an automatic channel scan.

Select “Yes” and press “OK” to continue.

The next screen is asking about what the type of channels that will be installed.

Note: Be aware that you cannot mix DVB-T and DVB-C channels.

Aerial Installation

If you select the AERIAL option in the Search Type screen, the TV set will search for digital terrestrial TV (DVB-T)

broadcasts.

NOTE: You can press the “MENU”button to cancel.

After all the available stations are stored, the Channel List will be displayed on the screen. If you like to sort the

channels according to the LCN (*), please select “Yes” and then press OK.

Press the “MENU” button to quit the channel list and watch TV.

(*) LCN is the Logical Channel Number system that organizes available broadcasts in accordance with a recognizable channel sequence (if

available).

Cable Installation

If you want to install DVB-C channels, select the “CABLE”option and press the “OK”button on the remote control to

continue. To continue, please select “YES”and press “OK”. To cancel the operation, select “NO”and press “OK”.

You can select frequency ranges from this screen. For highlighting lines, use the “▼“ or “▲” buttons. You can enter

the frequency range manually by using the numeric buttons on the remote control. Set the Start and Stop Frequency

as desired by using the numeric buttons on the remote control. After this operation, you can set the Search Step as

8000 KHz or 1000 KHz.

If you select 1000 KHz the search will take longer, since the TV needs to check more frequencies. Depending on your

Country selection in the first time installation, A 250 KHz search step option might be available on the Network

Channel Scan screen. Note that if you perform the search with 250 KHz option, the search process could take longer.

Press “OK” to start the installation process. During this progress the bar will filland found channels will be added to

the list.

When the automatic channel installation is complete, the following summary appears.

Here you can move, edit or lock channels. The information bar displayed on the bottom part of the screen will guide

you through the option that you are using.

Now you can press “MENU” to exit the installation page or you can press the “OK” button to watch TV.

Pressing the MENU button will bring the MENU with all options active.

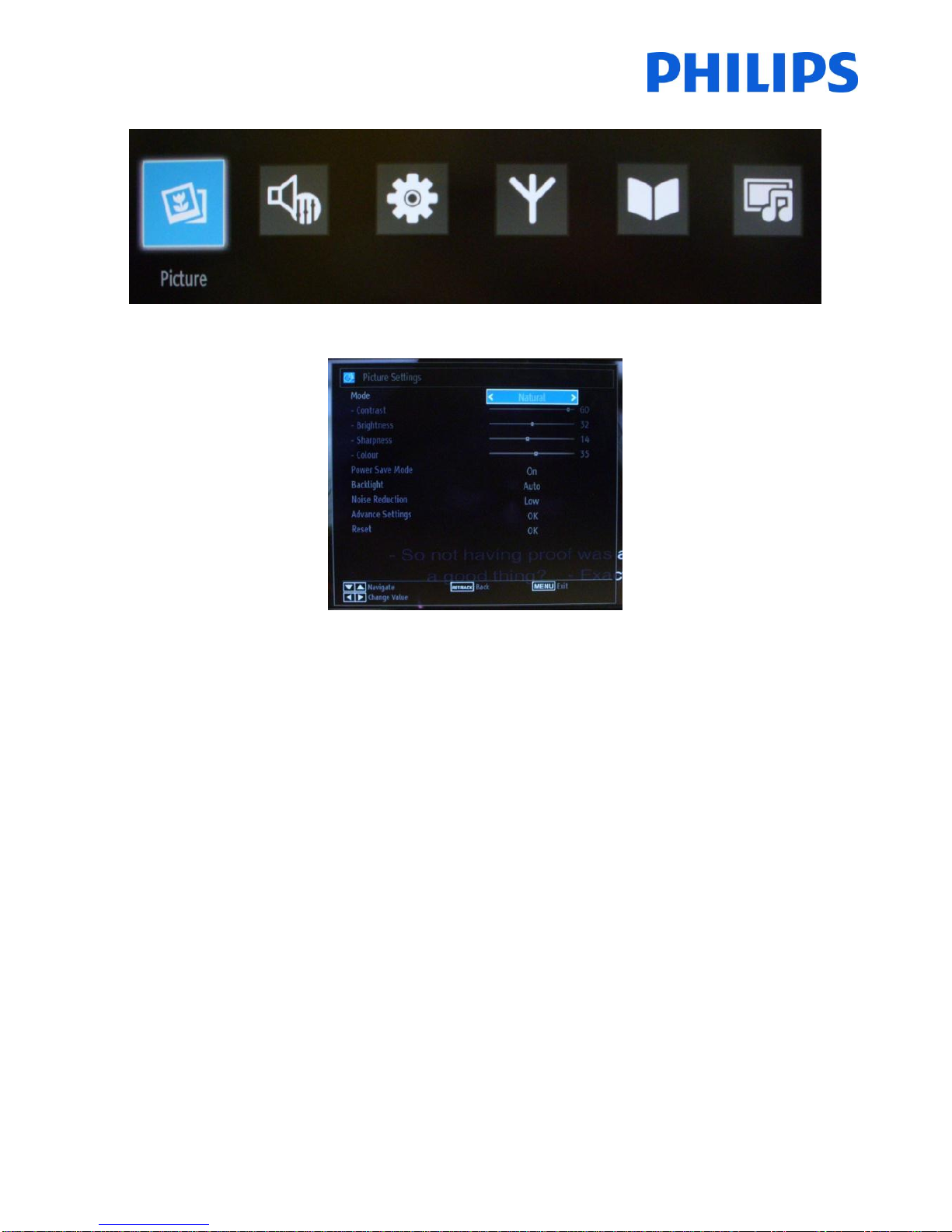

Accessing the picture submenu will bring the following menu on the screen:

The option which can be set:

- Mode: Can be set to one of these options: Cinema, Game, Dynamic and Natural.

- Contrast: Sets the difference between the brightest and darkest of the screen.

- Brightness: Sets the brightness value for the screen.

- Sharpness: Sets the sharpness value for the objects displayed on the screen.

- Color: Sets the color value, adjusting the colors.

- Power Save Mode: To set Power Save Mode to ON or OFF

- Backlight: This setting controls the backlight level and it can be set to Auto, Minimum and Maximum.

Backlight function will be inactive if Power Save Mode is set to ON. Backlight cannot be activated in VGA,

Media Browser mode or while the picture mode is set to Game.

- Noise Reduction: If the broadcast signal is weak and the picture is noisy, use the Noise Reduction setting to

reduce the noise amount. Noise Reduction can be set to one of these options: Low, Medium, High or Off.

- Advanced settings: Press “OK” and you will access the advanced options for the Picture menu.

- Reset: This option will reset all values for image to default.

Pressing the Return button will return you to the main menu. Pressing the MENU button will exit you from the

MENU.
