Philips HR1865/00 User manual

ServiceManual

Philips Consumer Lifestyle

Published by Philips Consumer Lifestyle Printed in the Netherlands © Copyright reserved Subject to modification

Juicer

HR1865/00

08/09

PRODUCT INFORMATION

Features:

- Unique micro-mesh ﬁlter

- Extra large Feeding Tube

- 2 L pulp container

- Easy-to-clean

- 2 speed control

- Rubber feet for extra stability

- Easy and convenient cord storage

Accessories (included):

- Juice Jug (1,25 L)

- Cleaning Brush

Safety:

- Safety locking system wih 2 brushed aluminium clamps.

- This product meets the requirements regarding

interference suppression on radio and TV.

- After the product has been repaired, it should function

properly and has to meet the safety requirements as

ofﬁcially laid down at this moment.

TECHNICAL INFORMATION

Power : 700 W

Voltage / frequency : 220 - 240 V / 50 - 60 Hz

110 - 127 V / 50 / 60 Hz

Juice Jug capacity : 1,25 Litre

Pulp Container capacity : 2,0 Litre

Cord length : 120 cm

Packaging - F-Box

Dimensions (L x W x H) : 355 x 245 x 445 mm

Weight : 6,35 kg

SAP coding : HR1865/00

Materials:

Clamps : Brushed Aluminium

Cleaning Brush : PP

Feeding Tube ring : ABS

Filter : Stainless Steel

Housing : Brushed Aluminium

Juice Collector : ABS

Juice Jug Lid : PP

Juice Jug : SAN

Juicer Lid : SAN + Brushed Aluminium

Pulp Container : PP

Pusher : ABS

Spout : Stainless Steel

HR1865/00

ASSEMBLY & DISASSEMBLY ADVICE

- No speciﬁc issues

REPAIR INSTRUCTION

- No speciﬁc issues

OPTIONAL (accessories)

- No speciﬁc issues

PARTS LIST

Pos Service code Description

9965 000 28693

4203 035 85890

4203 035 85900

4203 035 85910

9965 000 28697

4203 035 85920

4203 035 85930

4203 035 85940

4203 035 85950

4203 035 85960

4203 035 85970

9965 000 28719

9965 000 28705

4203 035 85980

4203 035 85990

4203 035 86000

4203 035 86010

9965 000 28709

9965 000 28710

9965 000 28711

9965 000 28712

9965 000 28713

9965 000 28714

9965 000 28715

4203 035 60490

9965 000 28716

4203 035 86020

4203 035 86040

Filter

Coupling

Juice Collector

Housing Assy

Switch Knob

Pusher

Juicer Lid Assy

Inner Housing

Bottom

Locking Latch - Back side

Locking Latch - Switch side

Hinge Axle

Pulp Container

Motor 220 - 240 V / 50 - 60 Hz

PCB HV

Switch

Safety Switch

Crimp

Cordset - EU

Cordset - GB

Cordset - CH

Cordset - KOR

Cordset - IT

Cordset - PRC

Cordset - TW

Juice Jug Assy

Led assy

Cleaning Brush

2-4

HR1865/00

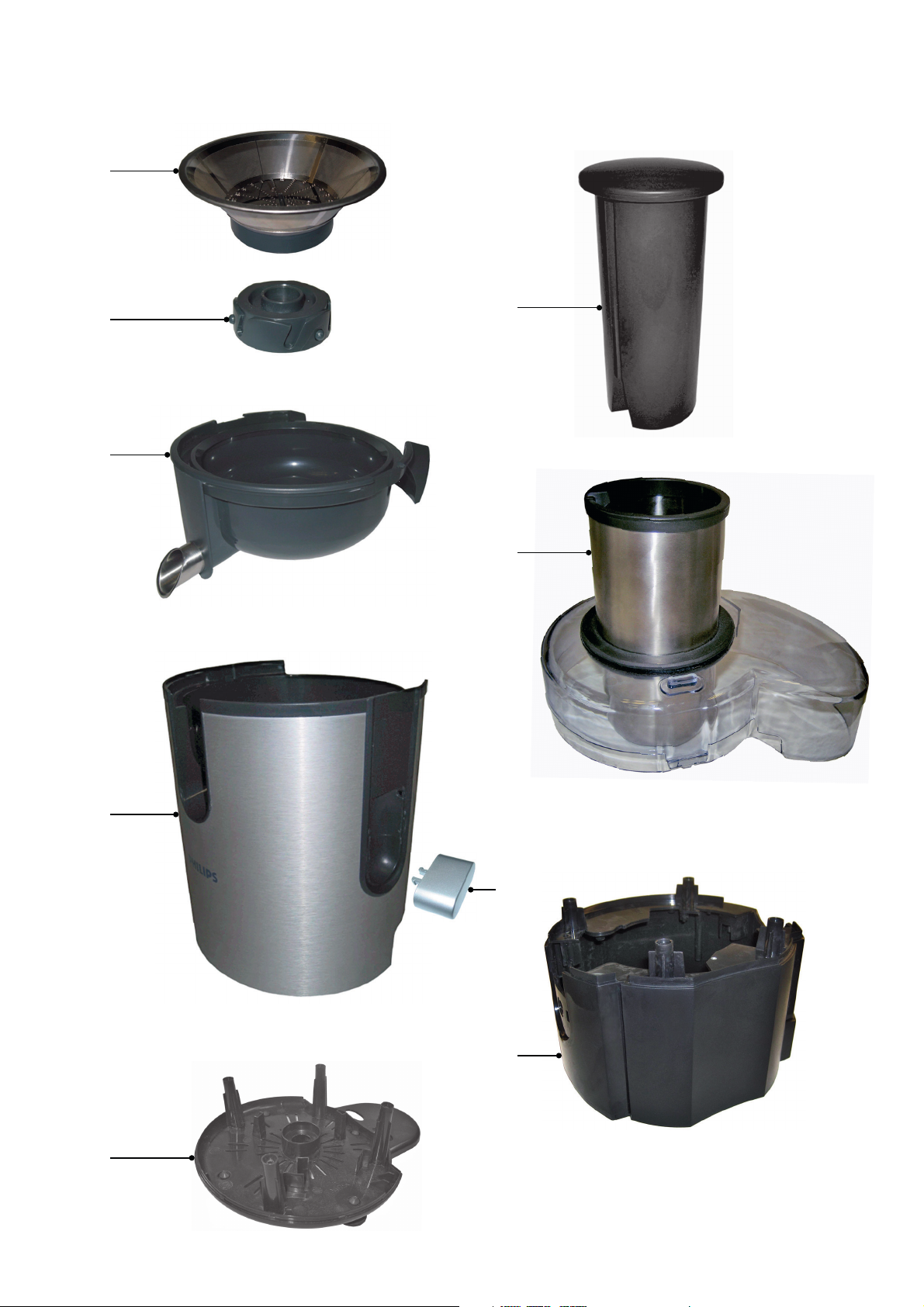

EXPLODED VIEW

3-4

HR1865/00

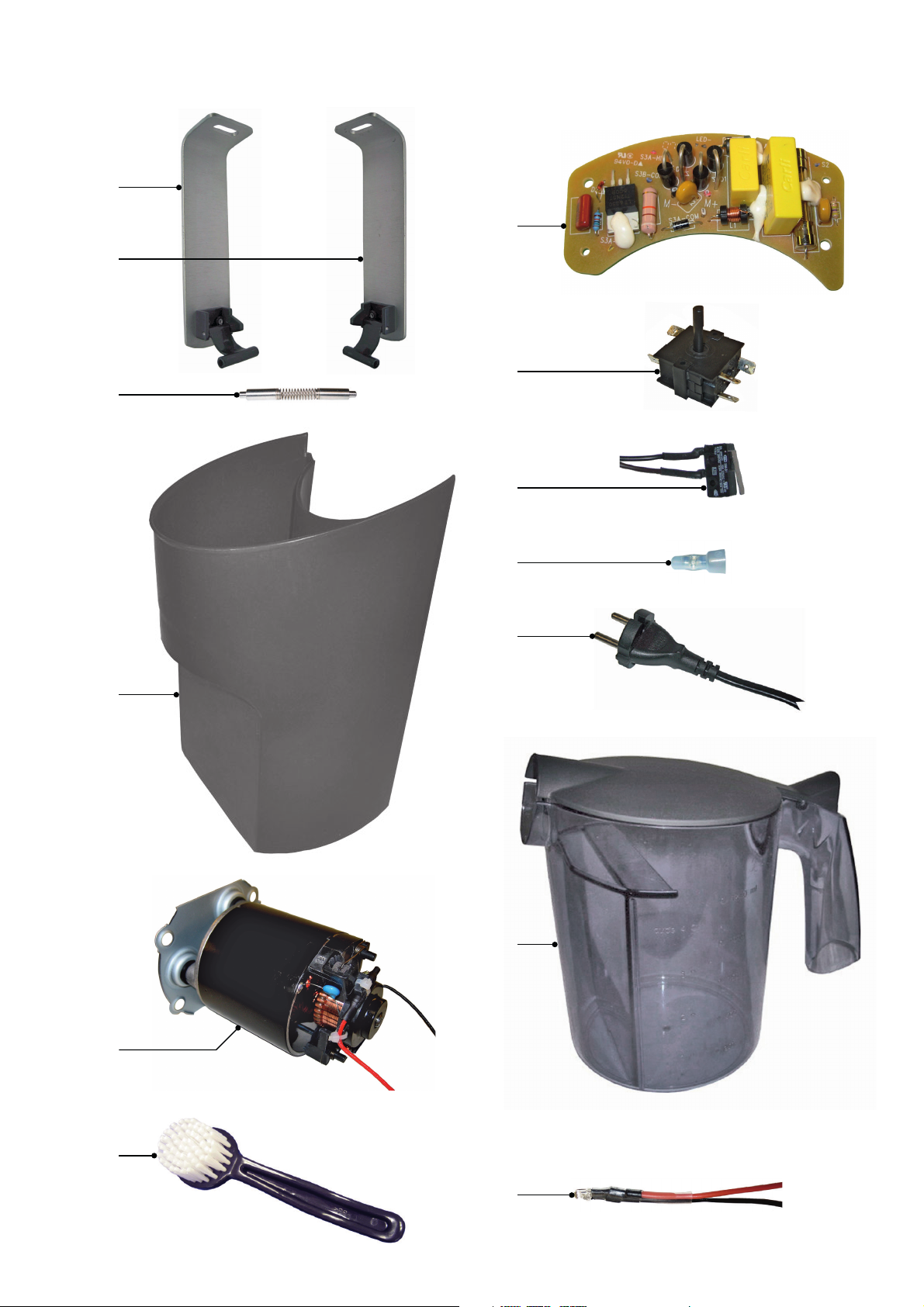

EXPLODED VIEW

(Symbolic photo!)

4-4
