Philips Intellicare GC7010 User manual

ServiceManual

Philips Domestic Appliances and Personal Care

Published by Philips Domestic Appliances and Personal Care Printed in the Netherlands © Copyright reserved Subject to modification

Boiler Steam Iron Intellicare

GC7010

05/03

PRODUCT INFORMATION

Features

Iron

- Careeza soleplate

- Steam output: 90 g/min

- Hose cord length: 1.7 m

Stand

- Pressure: 3.5 bar

- Boiler capacity: 250 ml

- Detachable water tank capacity: 800 ml

- Water level sensor to ensure constant steam output

- Steam ready in 2.5 min

- Power cord length: 2.0 m

- Calc clean function

Safety Information

- This product meets the requirements regarding

interference suppression on radio and TV.

- After the product has been repaired, it should function

properly and has to meet the safety requirements as

officially laid down as this moment.

TECHNICAL INFORMATION

Voltage : 230 V

Frequency : 50 Hz

Power consumption

Iron : 800 W

Boiler : 1400 W

Dimension (F-box) : 40 cm (L) x 40 cm (W) x 21 cm (H)

Weight (with package) : 6.4 kg

Water advice

If the tap water in your area is very hard, it is advisable to mix

the tap water with an equal amount of demineralised water.

Careeza soleplate

High scratch resistant & superior gliding on various types of

fabric.

Detachable water tank

The detachable water tank can be reﬁlled at any moment,

hence offering non-stop ironing.

Water level sensor

The intelligent water level sensor delivers a constant high

steam output.

GC7010

THERMOSTAT DIAL 1

RATTLE SPRING 15

BACKPLATE 2

Disassemble DIAL 1

Remove Screw A

Remove Connection

Remove Hose

INLAY (NON SOS) 3

TRIGGER 12

IRON LAMP ASSY 4

MICROSWITCH 5

HANDLE PRINTED 6

Disassemble DIAL 1

DISASSEMBLY ADVICE - IRON

REPAIR INSTRUCTIONS

- For disassembly, you will need a Torx screwdriver: 362 TR T20 x 100

OPTIONAL (accessories)

- No specific issues

Remove Screw A

Remove Connection

Remove Hose

Disassemble BACKPLATE 2

Disassemble INLAY (NON SOS) 3

IRON LAMP ASSY 4

MICROSWITCH 5

Remove Screws B (3 x)

HOSE-CORD ASSY 7

SWIVEL 8

THERMOSTAT BUSH 9

Disassemble DIAL 1

Remove Screw A

Remove Connection

Remove Hose

Disassemble BACKPLATE 2

Disassemble INLAY (SOS) 3

SOS KNOB 4

IRON LAMP ASSY 5

MICRO SWITCH 6

Remove Screws B (3 x)

Disassemble HANDLE PRINTED 6

IRON COVER 10

SOLEPLATE ASSY 11

Disassemble DIAL 1

Remove Screw A

Remove Connection

Remove Hose

Disassemble BACKPLATE 2

Disassemble INLAY (NON SOS) 3

IRON LAMP ASSY 4

MICROSWITCH 5

Remove Screws B (3 x)

Disassemble HANDLE PRINTED 6

Disassemble HOSE-CORD ASSY 7

SWIVEL 8

THERMOSTAT

BUSH 9

Remove Screws C (3 x)

STAND IRON

Electro-

valve

Pressure

Lamp

Boiler

Elec-

tronics

Boiler

Switch

Thermal

Fuse

Pump

Level

Sensor

Pump

Safety

Thermostat Water

Level

Lamp

Boiler

Heating

Element

Reed

Switch Pressostat

Boiler

Safety

Thermostat

Ther-

mostat

Heating

Element

2-6

GC7010

PARTS LIST & EXPLODED VIEW - IRON

C1 C2

3-6

Pos Service code Description

4239 021 19670

4239 026 15690

4239 026 15970

4239 021 19630

4239 017 09170

4239 021 26230

4239 000 09140

4239 026 15580

4239 015 98410

4239 026 18980

4239 021 26220

4239 026 15650

4239 014 54060

Thermostat dial printed (Eng/Fre)

Backplate

Inlay (Non SOS)

Iron lamp assy

Microswitch

Handle printed

Hose-cord assy + microswitch

Swivel

Thermostat bush

Iron cover

Soleplate assy 230V

Trigger

Rattle spring

GC7010

STAND

TRAY ASSY 31

STAND TOP PRINTED 32

PUMP ASSY 41

ELECTRONIC MODULE

(STAND) 45

BOILER MOUNTED ASSY 49

STAND BOTTOM 51

Disassemble

TRAY RUBBER CAP 30

at positions H1, H2, H3

Remove Screw H (3 x)

Disassemble TRAY ASSY 31

Remove Screw J (5 x)

Disassemble STAND TOP

PRINTED 32

REED SWITCH ASSY 46

Remove Screw K

Disassemble REED SWITCH

ASSY 46

REPAIR INSTRUCTIONS – STAND

- For disassembly, you will need a Torx screwdriver 362TR T20 x 100

- To avoid damage to the sealing and components of the boiler, NEVER clean the boiler with vinegar, descaling agent or other

chemicals.

- When replacing PUMP ASSY 41 or ELECTROVALVE ASSY 43, be reminded to apply loctite at the joint for good sealing.

- When replacing REED SWITCH ASSY 46, be reminded to orientate such that the red wire is facing the water tank.

WATER LEVEL SENSOR 42 ELECTROVALVE ASSY 43

Bottom View

DETACHABLE TANK ASSY

SEALING RING 61

Remove Screw L (2 x)

Disassemble Tank washer

Disassemble SEALING RING 61

SPRING (TANK) 62

Remove Screw M (7 x)

Disassemble SPRING (TANK) 62

DISASSEMBLY ADVICE - STAND & DETACHABLE TANK ASSY

4-6

GC7010

PARTS LIST

Note: Boiler mounted assy (Pos 49) does not include items 34, 42, 43, 44 and 50

Boiler mounted assy

50 (3x)

5-6

STAND

Pos Service code Description

4239 015 55750

4239 021 26270

4239 021 30260

4239 021 26980

4239 010 08920

4239 015 55640

4239 017 08810

4239 000 09150

4239 015 55500

4239 015 55630

4239 021 27120

4239 021 22090

4239 021 22610

4239 017 09150

4239 021 22070

4239 021 22060

Tray rubber cap

Tray Assy

Stand Top Printed

Calc clean cap

Rinse plug

Rinse coupling

Light switch

Cordset EU

Red rubber hose

Rubber support for pump

Pump assembly

Water level sensor

Electrovalve assy

Teﬂon ring

Electronic module (Stand)

Reed switch assy

Pos Service code Description

4239 010 09120

4239 015 55510

4239 021 30950

4239 015 55280

4239 026 17020

4239 026 05990

Inox clamp

Black insulated hose

Boiler mounted assy

Rubber Spacer

Stand Bottom

Filling cup

DETACHABLE WATER TANK

Pos Service code Description

4239 021 26280

4239 015 55390

4239 014 54070

Detachable tank assembly

Sealing ring

Spring (Tank)

GC7010

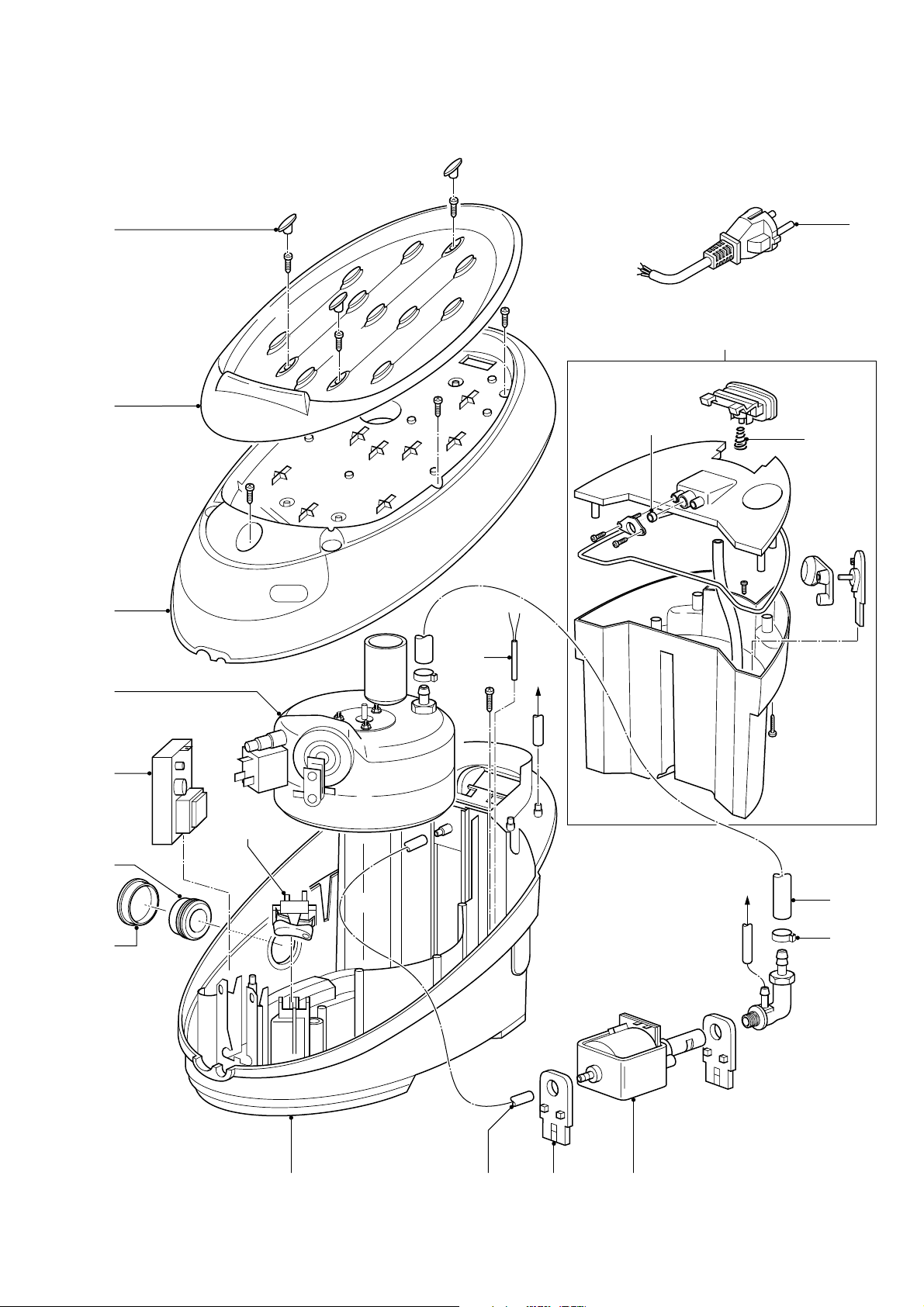

EXPLODED VIEW - STAND & DETACHABLE WATER STAND

51 40 4139

H (3x)

J (5x)

L (2x)

M (7x)

6-6
