Philips GC6510 User manual

Published by Philips Consumer Lifestyle Printed in the Netherlands © Copyright reserved Subject to modification

ServiceManual

Philips Consumer Lifestyle

Pressurized Steam Generator Compact Care

GC6510

11/03

PRODUCT INFORMATION

Iron

- Dark Blue color

- Blue Ceralon soleplate

- Steam rate (max): 95 g/min

- Steam trigger with lock

- Steam tip

- Steam hose length: 1.7 m

Stand

- Inox boiler pressure max.: 4.0 bar

- Boiler volume max.: 800 ml

- Steam ready in: 6 minutes

- Hose cord storage compartment

- Hose cord length: 1.7 m

- Power cord length: 1.9 m

- Power on light

- Overheat safety stop (Thermal fuse)

EMF & Service Information

- This product meets the requirements regarding

interference suppression on radio & TV.

- After the product has been repaired, it should function

properly & has to meet the safety requirements as

officially laid down at this moment.

TECHNICAL INFORMATION

Voltage : 230 V

Frequency : 50 - 60 Hz

Power - Iron : 800 W

- Boiler : 1370 W

Dimension (F-box) : 39 cm (D) x 25 cm (W) x 37 cm (H)

Weight Product) : 4.7 kg

Water advice

If the tap water in your area is very hard, it is advisable to mix

the tap water with an equal amount of demineralised water

REPAIR INSTRUCTION

- No specific issues

OPTIONAL (ACCESSORIES)

- No specific issues

GC6510

2-6

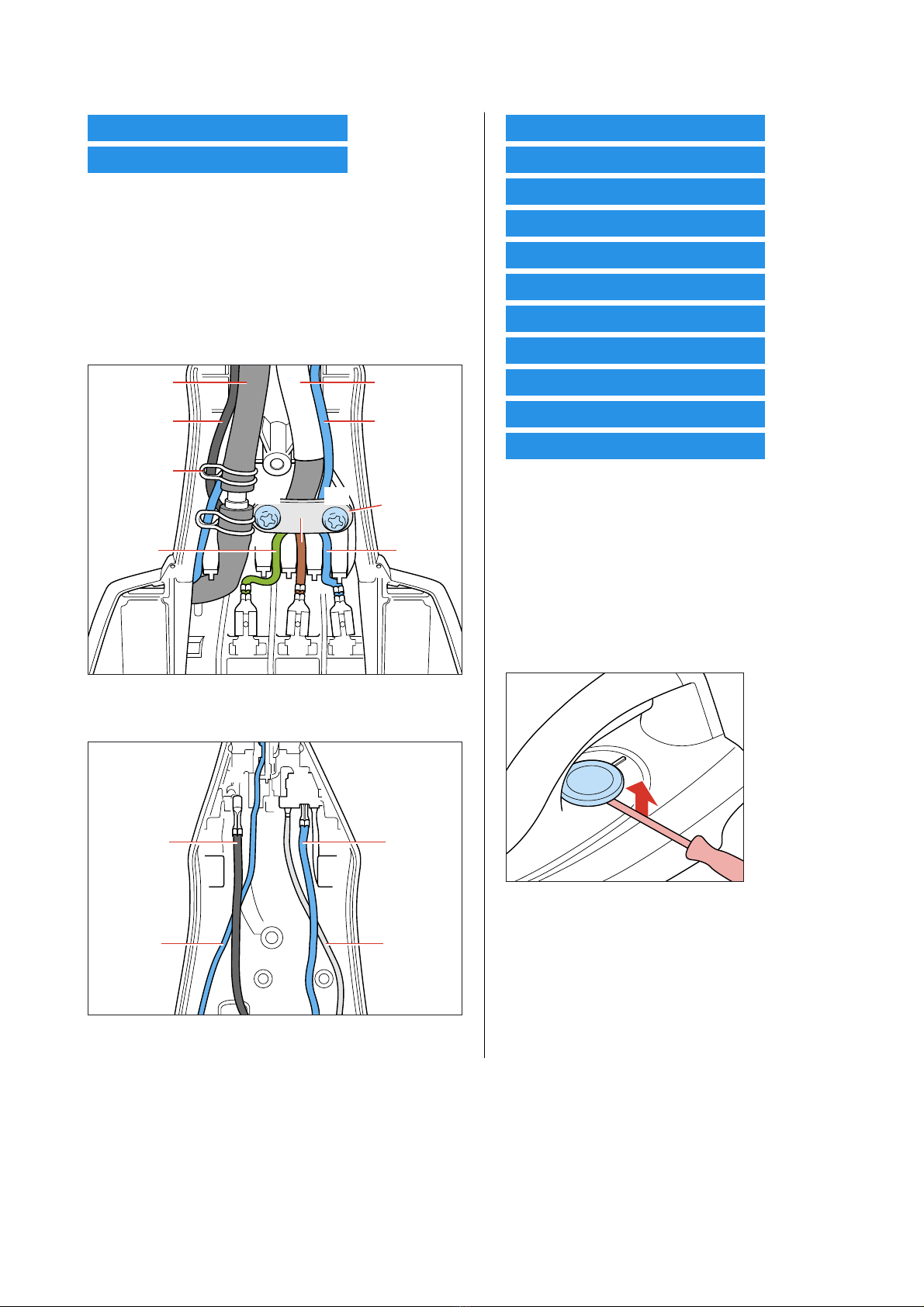

DISASSEMBLY ADVICE - IRON

BACKPLATE 1

HOSE CORD MOUNTED ASSY 2

Remove Screw A

Disassemble BACKPLATE 1

Remove Screw B1, B2

Remove Clamping plate

Remove Power cord quick-connect S, E, L, N

Remove Hose clip (a)

Disassemble Steam hose

Disassemble HOSE CORD MOUNTED ASSY 2

Steam hose

Black

Hose clip(a)

Power cord

Blue

Clamping

plate

BlueGreen

NLE

B2 B1

Brown

Fig 1. Wiring at rear HOUSING (Part 1)

Blue

(Micro switch)

Black

(Microswitch)

White

(Lamp assy)

Blue

(Lamp assy)

Fig 2. Wiring at rear HOUSING (Part 2)

INLAY 3

STEAM LOCK 4

LAMP ASSY 5

MICROSWITCH ASSY 6

TRIGGER 7

THERMOSTAT DIAL ASSY 9

HOUSING PRINTED 10

SOLEPLATE COVER 11

THERMOSTAT BUSH 13

BRAIDED RUBBER HOSE 14

SOLEPLATE ASSY 16

Remove Screw A

Disassemble BACKPLATE 1

Release Inlay rear catch

Disassemble INLAY 3

Disassemble STEAM LOCK 4

Disassemble MICROSWITCH ASSY 6

Remove Screw C

Disassemble TRIGGER 7

Disassemble THERMOSTAT DIAL 9

Fig 3.

Remove Screws D1,D2,D3

Disassemble HOUSING PRINTED 10

Remove Screws E1,E2,E3

Disassemble SOLEPLATE COVER 11

Remove Hose clip (b)

Disassemble RUBBER HOSE 14

GC6510

3-6

STAND IRON

Boiler

Heating

Element

Thermal

fuse

Power switch

Iron

Heating

Element

Thermostat

Electro

valve

SPST

switch

Pressostart

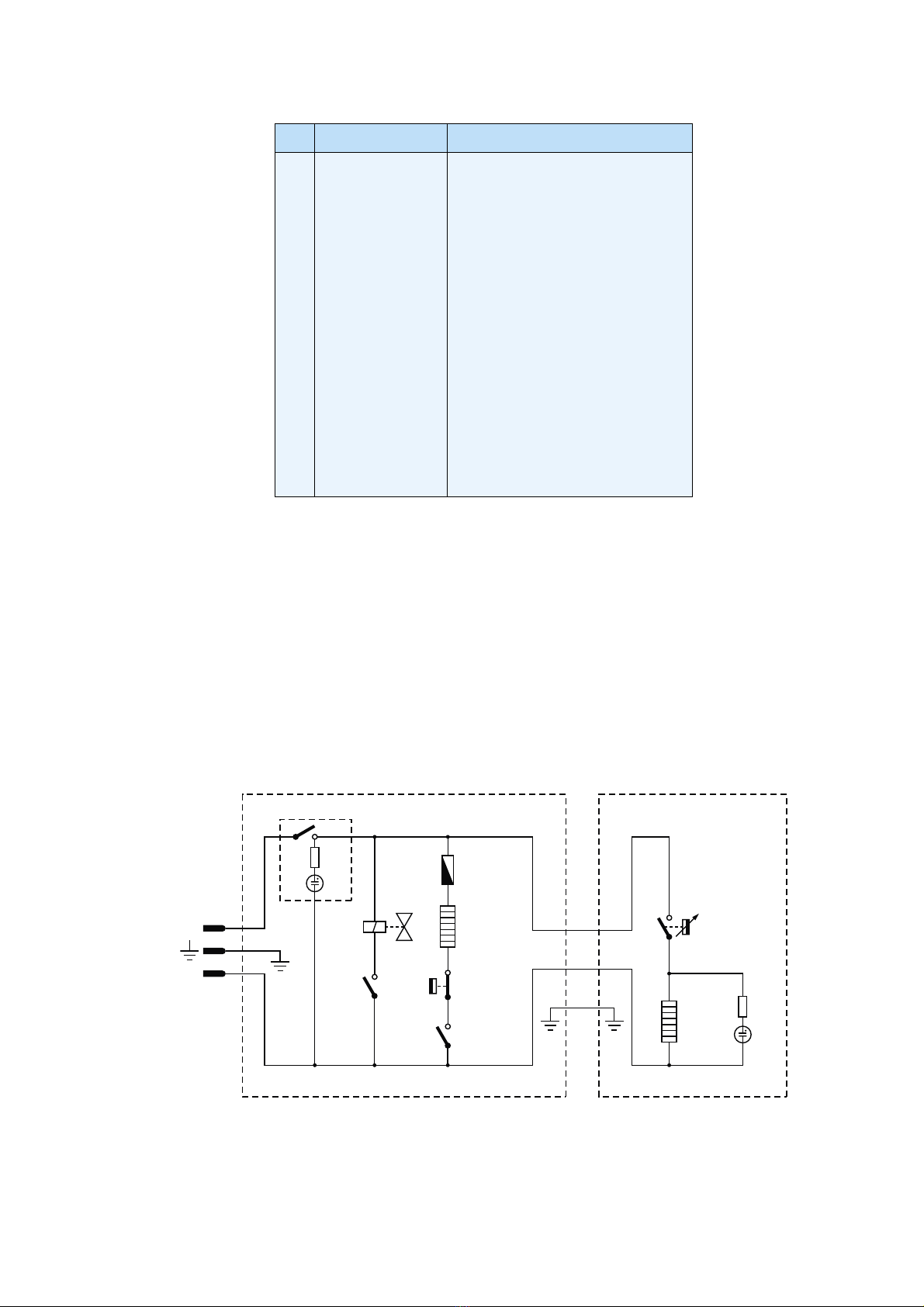

PARTS LIST - IRON & ELECTRICAL DIAGRAM

Pos Service code Description

4239 026 41761

4239 021 61231

4239 026 41981

4239 026 41891

4239 021 36861

4239 021 31790

4239 026 41931

4239 010 09290

4239 021 61241

4239 021 60611

4239 026 41811

4239 015 70153

4239 026 13220

4239 015 59301

4239 010 10280

4239 021 61181

Backplate

Hose cord mounted assy

Inlay

Steam lock

Lamp mounted assy

Microswitch assy

Trigger

Trigger spring

Thermostat dial assy

Housing printed

Soleplate cover

Ryton ring

Thermostat bush

Braided rubber hose

Hose clip - braided rubber hose

Soleplate assy (Blue Ceralon) - 230 V

GC6510

4-6

NLE

Hose

clip (a)

Hose

clip (b)

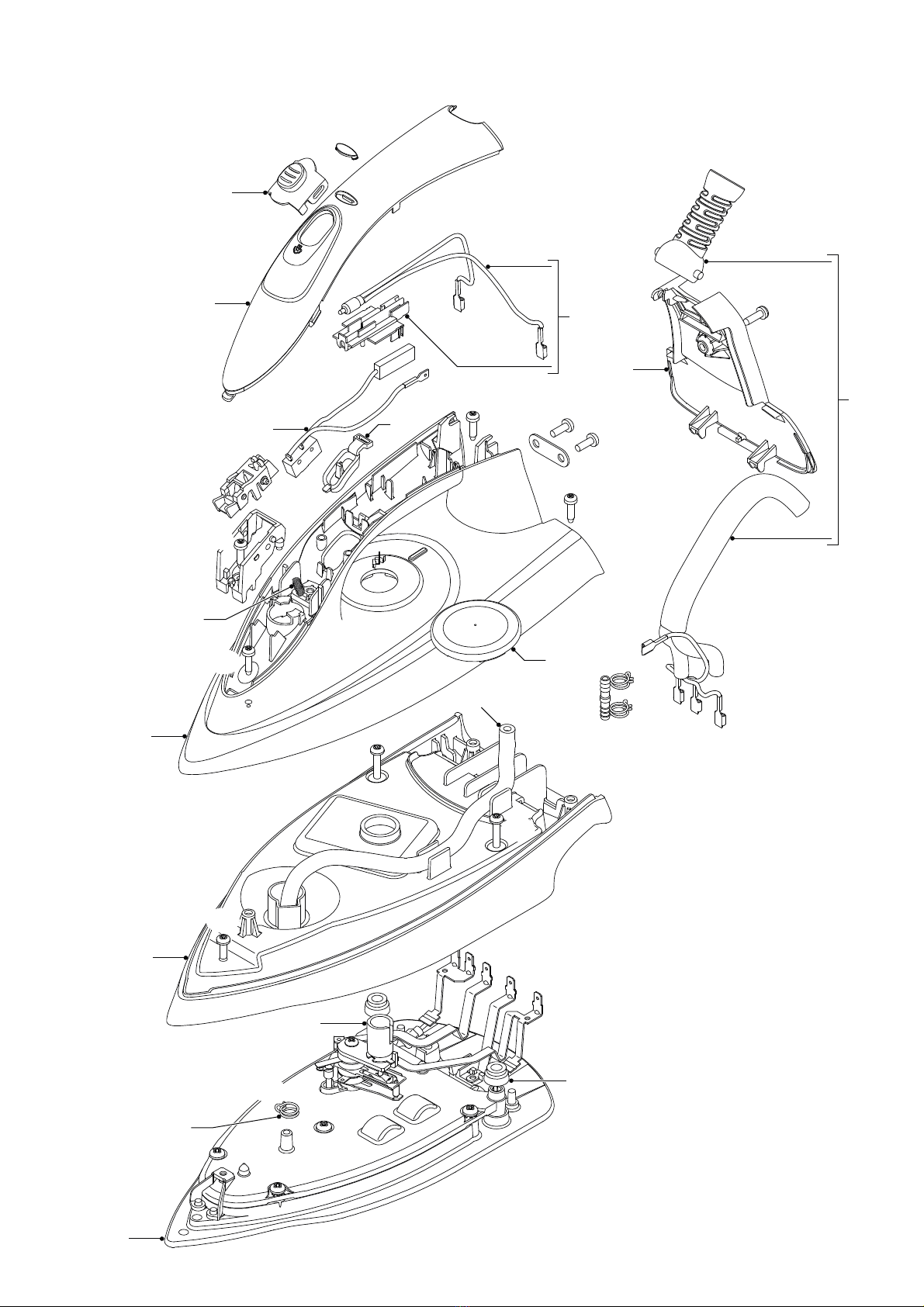

EXPLODED VIEW - IRON

GC6510

5-6

DISASSEMBLY ADVICE & PARTS LIST - STAND

SAFETY VALVE ASSY 40

STAND BASE ASSY 30

HOSE-CORD STORAGE

COMPARTMENT 32

POWER CORD 54

CONNECTION BOX 38, 39

BOILER ASSY 53

ELECTROVALVE 56

STAND TOP ASSY 35

ROCKER SWITCH 47

Remove SAFETY VALVE ASSY 40

Note:

Empty water in boiler

Turn Stand assy upside down

Remove Screws G1 – G5

Disassemble STAND BASE ASSY 30

Remove Screws H1 – H3

Disassemble HOSE-CORD STORAGE

COMPARTMENT 32

Remove Screws J1 – J3

Disassemble Cord clamp

Disassemble POWER CORD 54

Disassemble CONNECTION BOX 38, 39

Disassemble BOILER ASSY 53

Remove Screws K1 – K6

Disassemble STAND TOP ASSY 35

Remove Screws N1, N2

Disassemble ROCKER SWITCH BRACKET 46

Disassemble ROCKER SWITCH 47

Pos Service code Description

4239 021 61271

4239 026 41491

4239 021 61251

4239 026 41431

4239 026 41421

4239 021 61261

4239 015 58201

4239 026 41611

4239 017 12111

4239 021 65131

4239 000 11321

4239 000 11391

4239 010 11111

4239 017 11101

Stand base assy

Hose-cord storage compartment

Stand top assy

Connector box cover

Connector box base

Safety valve assy

O-ring

Rocker switch bracket

Rocker switch

Boiler mounted assy

Power cord - EU

Power cord - Swiss

Electrovalve mesh

Electrovalve

GC6510

6-6

K1 K2

K3 K4

N2 K5 K6

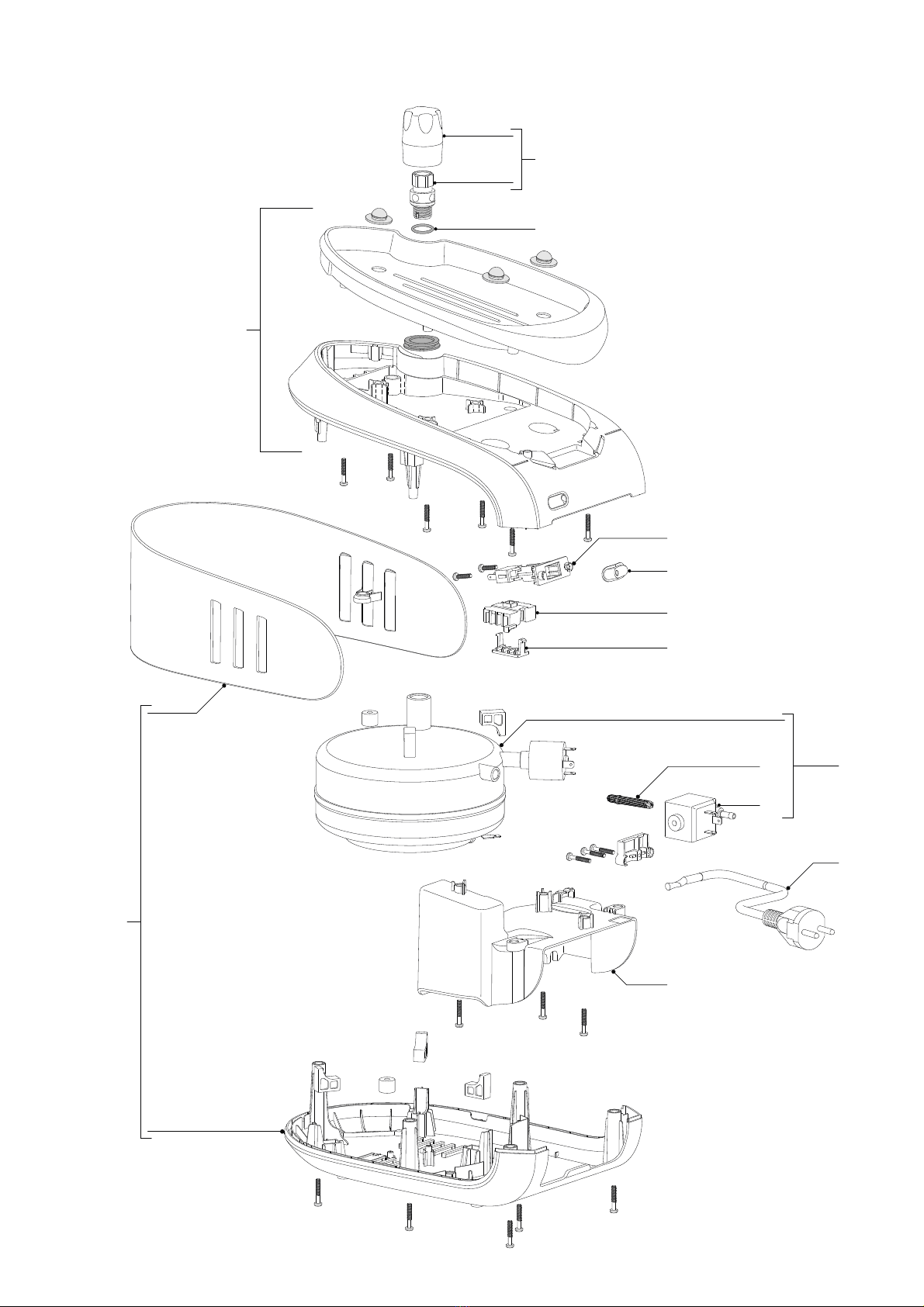

EXPLODED VIEW - STAND
