Philips Elance GC3116 User manual
ServiceManual
Philips Domestic Appliances and Personal Care
Published by Philips Domestic Appliances and Personal Care Printed in the Netherlands © Copyright reserved Subject to modification
Steam Iron Elance
GC3116
04/01
PRODUCT INFORMATION
Features
- Colour Creamy Orange
- Careeza soleplate
- Tank capacity (300 ml)
- Steam rate (30 g/min)
- Shot of steam (75 g/min)
- Vertical steam (75 g/min)
- Permanent Anti-Calc
- Integrated cord winder
- Cord length : 2 m.
Safety Information
- This product meets the requirements regarding
interference suppression on radio and TV.
- After the product has been repaired, it should function
properly and has to meet the safety requirements and
legal regulations as officially laid down at this moment.
TECHNICAL INFORMATION
Voltage : 220 - 240 V
Frequency : 50 - 60 Hz
Power consumption : 1900 W
Water advice
Suitable for tap water use. However if the tap water in your
area is very hard, we advise you to mix it with a equal portion
of distilled water or to use distilled water only.
Cleaning of the Iron
Use only the Calc clean button for cleaning of the Iron.
Never use vinegar, starch or chemically descaled water.
Soleplate
Careeza is a multi layer chemical substance that gives an
excellent gliding over various fabrics and better care for the
garments.
Vertical Steam
When the iron is kept in a vertical position, the shot of steam
(S.O.S) button can be used to iron hanging fabrics such as
curtains.
GC3116
DIAL 1
BACKPLATE 2
CORD SET 4
BALL SWIVEL 5
Remove Screw A (1x)
Remove BACKPLATE 2
Remove Screw B (2x) cord clamping

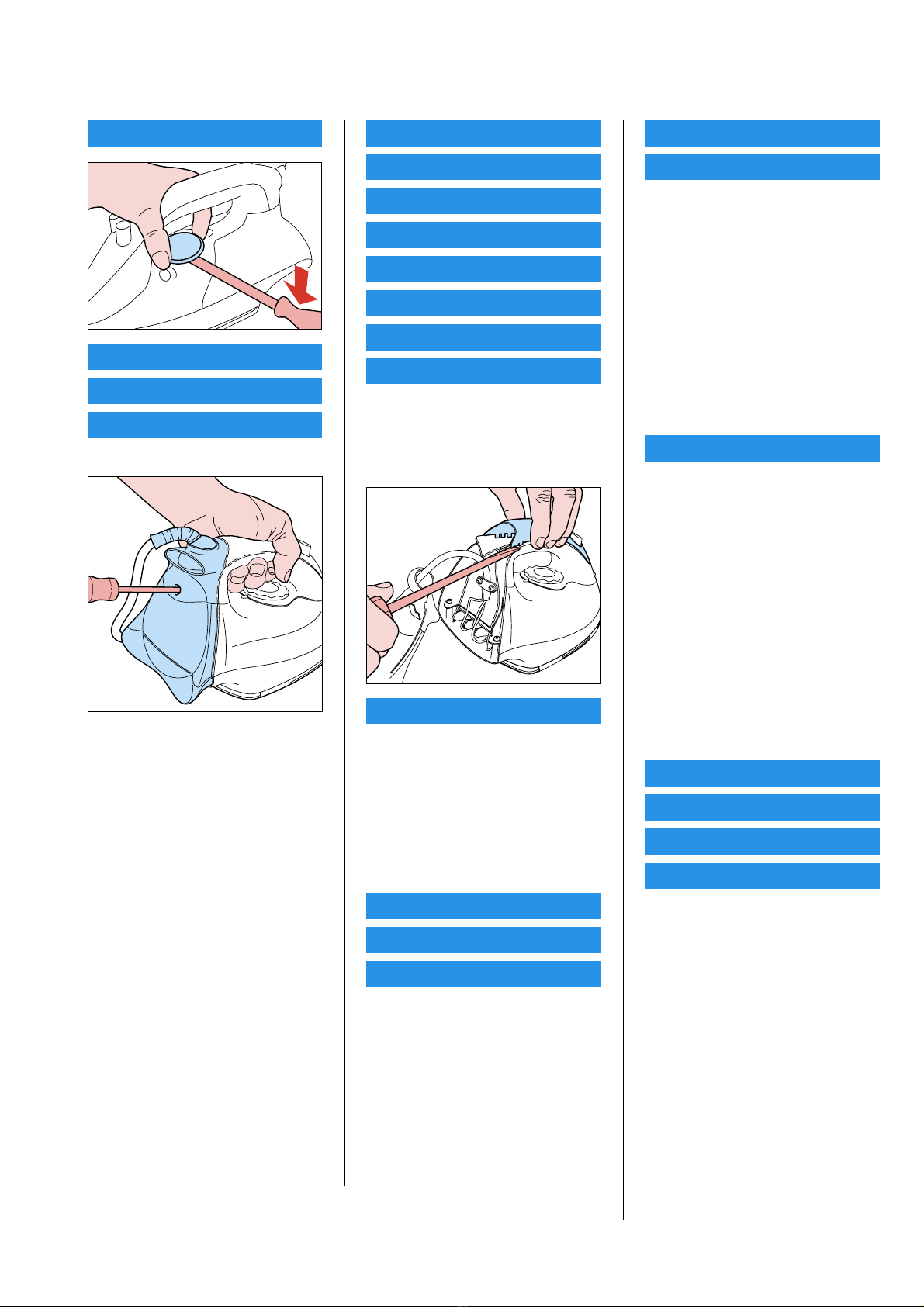

DISASSEMBLY ADVICE
INLAY 6
LAMP ASSY 10
FILLING DOOR 7
STEAM SLIDER 8
LAMP COVER 9
SOS KNOB 12
SPRAY KNOB 13
TANK SEAL 14
remove Screw A (1x)
remove BACKPLATE 2
remove Screw B (2x) cord clamping
remove INLAY 6
DOSING UNIT 15
remove Screw A (1x)
remove BACKPLATE 2
remove Screw B (2x) cord clamping
remove INLAY 6
remove Screw C (2x)
remove Screw D (2x)
remove DOSING UNIT 15
HOUSING 16
RATTLE SPRING 17
PUMP ASSY 18
remove Screw A (1x)
remove BACKPLATE 2
remove Screw B (2x) cord clamping
remove INLAY 6
remove Screw C (2x)
remove Screw D (2x)
remove DOSING UNIT 15
remove Screw E (2x)
remove HOUSING 16
TANK 19
THERMOSTAT BUSH 20
remove Screw A (1x)
remove BACKPLATE 2
remove Screw B (2x) cord clamping
remove INLAY 6
remove Screw C (2x)
remove Screw D (2x)
remove DOSING UNIT 15
remove Screw E (2x)
remove HOUSING 16
remove Screw F (2x)
remove TANK 19
HEAT SHIELD 21
remove Screw A (1x)
remove BACKPLATE 2
remove Screw B (2x) cord clamping
remove INLAY 6
remove Screw C (2x)
remove Screw D (2x)
remove DOSING UNIT 15
remove Screw E (2x)
remove HOUSING 16
remove Screw F (2x)
remove TANK 19
remove Screw G (1x)
remove HEAT SHIELD 21
COVER 22
SOS SEAL 23
DOSING SEAL 24
SOLEPLATE ASSY 25
remove Screw A (1x)
remove BACKPLATE 2
remove Screw B (2x) cord clamping
remove INLAY 6
remove Screw C (2x)
remove Screw D (2x)
remove DOSING UNIT 15
remove Screw E (2x)
remove HOUSING 16
remove Screw F (2x)
remove TANK 19
remove Screw G (1x)
remove HEAT SHIELD 21
remove Screw H (2x)
remove COVER 22
2-4
GC3116
PARTS LIST
REPAIR INSTRUCTIONS
- Due to high voltage of the iron, ONLY the specified cordsets must be used.
- For standardisation reasons :
Type plate : No information about the typenumber and voltage have been stamped onto the typeplate.
When replacing the typeplate, engrave at least typenumber onto the typeplate with a sharp object.
- Thermostat, fitted to the soleplate 25 has already been adjusted by the supplier and secured by glue. To avoid mal-function of the
iron, NEVER re-adjust the thermostat.
NOTE :
The thermostat can only be ordered together with the soleplate assembly 25.
OPTIONAL (accessories)
- No specific issues
RESISTOR
LAMP
FUSE
N
L
E
HEATING
UNIT
INPUT
THERMOSTAT
3-4
Pos Service code Description
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
4239 021 07300
4239 021 11880
4239 021 10260
4239 026 07960
4239 026 17650
4239 000 08850
4239 000 08380
4239 025 92070
4239 021 07280
4239 021 23270
4239 026 17850
4239 026 08280
4239 021 03140
4239 026 01220
4239 026 17700
4239 026 17740
4239 015 54400
4239 021 08510
4239 026 17490
4239 026 17830
4239 020 90560
4239 022 54380
4239 015 98410
4239 010 07850
4239 026 09750
4239 015 51450
4239 015 55430
4239 021 23390
4239 026 05990
Dial printed (Fre/Dut text)
Dial printed (Ger/Swe text)
Dial printed (Spa/Eng text)
Backplate
Backplate cover
Cordset EU
Cordset UK
Ball swivel
Inlay printed
Filling door assy
Steam slider
Lamp cover
Lamp assy
Lamp holder
SOS knob
Spray knob
Tank seal
Dosing unit
Housing
Plastic rattle spring
Pump assy
Tank assy (Non drip stop)
Thermostat bush
Heat shield
Cover (Non drip stop)
SOS seal
Dosing seal
Soleplate assy - HV
Filling cup
GC3116
EXPLODED VIEW
4-4
Screws : d x 1
A, B 3.5 x 16 mm
C2.5 x 14 mm
D3.5 x 15 mm
E3.5 x 17 mm
(with washer 1mm)
F4.0 x 12 mm
(with washer 1mm)
G4.0 x 10 mm
