Philips QG3340 User manual
User manual
QG3340
1
!"##$%
&'"()*+ 4
,-.'/.)* 17
)'01'&*). 30
43
2.+.*.34&(.56 56
71-86"69* 69
82
&*7.:1( 93
ภาษาไทย 106
116
128
145
153
4
);<=>?@A<B>;
Congratulations on your purchase and welcome to
offers, register your product at CCCDEFBGBEHDA>IJ
CKGA>IK.

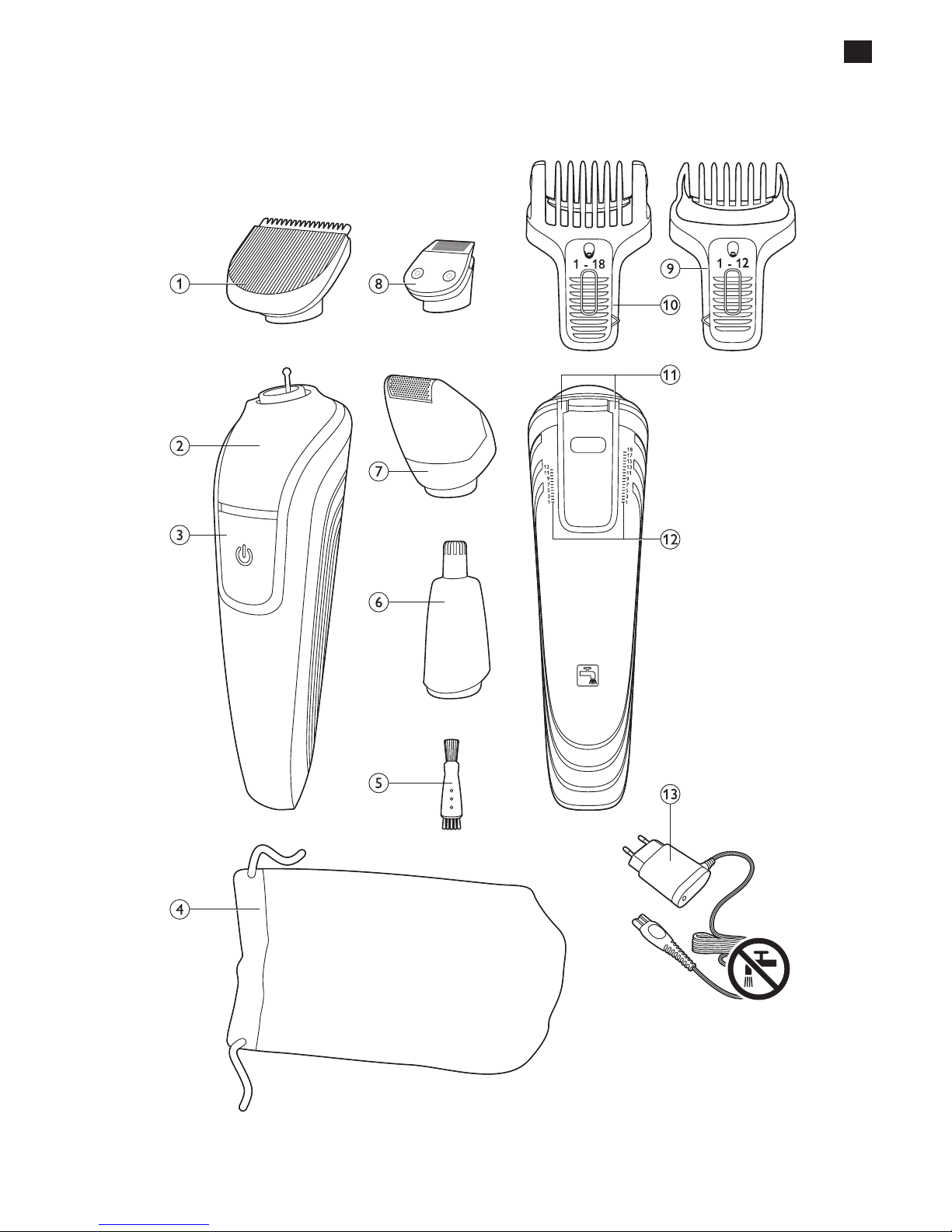

"K;K=LG3?KHA=BE<B>;3M,BND3OP
1 Beard trimmer
2 Handle
3 On/off slide
4 Pouch
5 Cleaning brush
6 Nose/ear trimmer
7 MIni-foil shaver
8 Full metal precision trimmer
9 Stubble comb
10 Beard comb
11 Guiding grooves
12 Setting indicator
13 Adapter
)IE>=<L;<
Read this user manual carefully before you use the
appliance and save it for future reference.
0L;NK=
- Keep the adapter dry.
QL=;B;N
- Check if the voltage indicated on the adapter
corresponds to the local mains voltage before you
connect the appliance.
- The adapter contains a transformer. Do not cut
off the adapter to replace it with another plug, as
this causes a hazardous situation.
&'"()*+
- This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience
and knowledge, unless they have been given
supervision or instruction concerning use of the
appliance by a person responsible for their safety.
- This appliance is not intended for use by children.
Children should be supervised to ensure that they
do not play with the appliance.
- Always check the appliance before you use it.
Do not use the appliance if it is damaged, as this
may cause injury.
- Do not use the appliance in the bath or in the
shower.
RL@<B>;
- Only use the adapter supplied.
- Use, charge and store the appliance at a
temperature between 5°C and 35°C.
- Make sure the appliance is switched off and
disconnected from the mains before you clean it
under the tap.
- If the adapter is damaged, always have it replaced
with one of the original type in order to avoid
a hazard.
- If the appliance is subjected to a major change
in temperature, pressure or humidity, let the
appliance acclimatise for 30 minutes before you
use it.
- Do not use the appliance if any of its parts is
damaged or broken, as this may cause injury.
- Never use compressed air, scouring pads, abrasive
cleaning agents or aggressive liquids such as petrol
or acetone to clean the appliance.
- Maximum noise level: Lc = 75dB(A)
&'"()*+ 5
R>IEGBL;AK3CB<F3H<L;?L=?H
- This appliance complies with the internationally
approved IEC Safety regulations and can be safely
cleaned under the tap.
- This Philips appliance complies with all standards
properly and according to the instructions in this
user manual, the appliance is safe to use based on
RFL=NB;N
Standard charging takes approximately 10 hours.
When the appliance is fully charged, it has an
operating time of up to 35 minutes.
Note: You can get 45 minutes of cordless operating
time when the appliance is charged overnight for
16 hours.
1 Switch off the appliance before you charge it.
2 Insert the appliance plug into the appliance.
3 Put the adapter in the wall socket.
,The charging light on the adapter goes on to
indicate that the appliance is charging.
Note: The charging light does not change colour and
does not go out when the appliance is fully charged.
&'"()*+6
6HB;N3<FK3LEEGBL;AK
2KL=?3L;?3H<@SSGK3<=BIIB;N
be careful. Do not move the trimmer too fast.
Make smooth and gentle movements.
2KL=?3<=BIIB;N3CB<F3SKL=?3A>IS
1 Place the trimmer onto the handle (1).
2 Slide the beard comb into the guiding grooves
on both sides of the handle.
3 Press the setting selector (1) and slide the
comb to the desired hair length setting (2).
You can choose any setting between 1 and 18mm.
4 Switch on the appliance.
5 Slowly move the trimmer against the hair
growth direction. Press lightly and always make
sure the surface of the comb is in full contact
with the skin.
highest setting (18mm) to familiarise yourself with t
he appliance.
&'"()*+ 7
8=BIIB;N3T>@=3H<@SSGKH
You can use the stubble comb to trim your stubbles.
1 Place the trimmer onto the handle (1). Turn the
2 Slide the stubble comb into the guiding grooves
on both sides of the handle.
3 Press the setting selector (1) and slide the
comb to the desired hair length setting (2).
You can choose any setting between 1 and 12mm.
4 Switch on the appliance.
5 Slowly move the trimmer against the hair
growth direction. Press lightly and always make
sure the surface of the comb is in full contact
with the skin.
*<TGB;NJA>;<>@=B;N3T>@=3SKL=?
You can use the precision trimmer to contour or
cut shapes in beard hair. It cuts hair very close to the
skin, at a length of 1mm.
Caution: Be careful when you use the precision
trimmer because it removes every hair it comes in
contact with.
&'"()*+8
1 Place the precision trimmer onto the handle
it (2).
2 To achieve a good cutting result, move the
precision trimmer against the direction of
hair growth. Always make sure the precision
trimmer is in full contact with the skin.
3 Make careful and controlled movements with
the precision trimmer.
shaver to make the edges and lines of your beard style
even smoother.
8=BIIB;N3;>HK3L;?3KL=3FLB=
8=BIIB;N3;>HK3FLB=3
1 Place the nose/ear trimmer onto the handle
it (2).
2 Make sure your nostrils are clean.
3 Switch on the appliance and insert the tip of
the trimmer into one of your nostrils.
Do not insert the tip more than 0.5cm into your
nostril.
&'"()*+ 9
4 Slowly move the tip in and out while turning it
round at the same time to remove unwanted hair.
To reduce the tickling effect, make sure that you
8=BIIB;N3KL=3FLB=
1 Attach the nose/ear trimmer onto the handle.
2 Clean the outer ear channel. Make sure it is
3 Switch on the appliance and move the tip softly
round the ear to remove hairs that stick out
beyond the rim of the ear.
4 Carefully insert the tip into the outer ear
channel.
Do not insert the tip more than 0.5cm into the ear
channel as this could damage the eardrum.
RGKL;B;N
Never use compressed air, scouring pads, abrasive
cleaning agents or aggressive liquids such as petrol
or acetone to clean the appliance.
Always keep the adapter dry.
Clean the appliance after each use. The appliance
is waterproof therefore the handle, combs and
attachments are easily cleaned under the tap.
1 Make sure the appliance is switched off and
disconnected from the mains.
2 Remove any comb and/or attachment from
the appliance.
&'"()*+10
