Philips HR7776 User manual

Wk1233 Version: B

HR7776/RI7776

HR7778/RI7778

HR7777

Philips Consumer Life Style

Published by Philips Consumer Life Style

Avance Food Processor

Materials:

- Housing : ABS

- Speed knob : ABS

- Pusher : ABS

- Bowl including lid : SAN

- Citrus press : PP

- Discs, chopping knife : Stainless steel

- Kneading tool : PP and metal

- Knife bolder, balloon beater :POM

Avance Food Processor Accessory

- There are some models could be used as

avance food processor accessory,

HR7986/HR7987/HR7989/HR7993/HR7994/RI7

986/RI7987/RI7994

ASSEMBLY & DISASSEMBLY ADVICE

- No specific issues

REPAIR INSTRUCTION

- No specific issues

OPTIONAL (accessories)

- No specific issues

TECHNICAL INFORMATION

- Power : 1000 W

- Voltage / frequency : 220 - 240V / 50 - 60 Hz

- Bowl capacity dry : 3.4 L

- Bowl capacity dough : 1700 g

- Bowl capacity flour : 1000 g

- Bowl volume capacity liquid : 2 L

- Safety : Lid & bowl detection, mechanical 1.5 sec

brake

- Cord length : 1.2 m

- Color : Ink black for HR7776/HR7777/RI7776

Metal/black for HR7778/RI7778

- Product dimensions(L X W X H):

475 X 468 X 450mm for HR7778/RI7778

408 X 215 X 499mm for

HR7776/RI7776/HR7777

SAFETY

- This product meets the requirements regarding interference suppression on radio and TV.

- After the product has been repaired, it should function properly and has to meet the safety

requirements as officially laid down at this moment.

Partslists HR7776/HR7777/HR7778/RI7776/RI7778

Pos

12NC

Description

Remark

9965 100 56756

ICE KNOB (BLACK)

For HR7776/RI7776/HR7777

9965 100 56814

ICE KNOB (SMOKE CHROME)

For HR7778/RI7778

9965 100 56731

KNEADING KNOB (BLACK)

For HR7776/RI7776/HR7777

9965 100 56809

KNEADING KNOB (SMOKE CHROME)

For HR7778/RI7778

9965 100 56758

WHIPPING KNOB (BLACK)

For HR7776/RI7776/HR7777

9965 100 56806

WHIPPING KNOB (SMOKE CHROME)

For HR7778/RI7778

9965 100 56748

MOTOR BOWL

For

all Avance Food Processor

9965 100 56739

TOP HOUSING

For

all Avance Food Processor

9965 100 56757

HOUSING (BLACK)

For HR7776/HR7777

9965 100 56819

HOUSING (BLACK,WALITA)

For RI7776 only

9965 100 56823

HOUSING (METAL BODY)

For HR7778 only

9965 100 56817

HOUSING (METAL BODY,WALITA)

For RI7778 only

9965 100 56746

RUBBER FEET

For

all Avance Food Processor

9965 100 56734

SWITCH KNOB

For

all Avance Food Processor

9965 100 56729

PCBA (HV)

For all

Avance Food Processor except

RI7776/91 & RI7778/01

9965 100 56813

PCBA (LV)

For RI7776/91 & RI7778/01

9965 100 56753

HOLDER SAFETY SWITCH + LEVER (JAR)

For HR7776/RI7776/HR7777

9965 100 56738

HOLDER SAFETY SWITCH + LEVER (JUICER)

For HR7776/RI7776/HR7777

9965 100 56776

CORD STORAGE BOX

For HR7776/RI7776/HR7777

9965 100 56755

DRIVING COUPLING ASSY

For HR7776/RI7776/HR7777

9965 100 56747

MOTOR ASSY

For all

Avance Food Processor except

RI7776/91 & RI7778/01

9965 100 56805

MOTOR ASSY(LV)

For RI7776/91 & RI7778/01

9965 100 56736

POWER CORD WITH COVER + FERRITE CORE

For HR7776/90 & HR7777/HR7778/00

9965 100 56767

POWER CORD 3PIN

For HR7776/91 & HR7778/01

9965 100 56811

POWER CORD WITH COVER + FERRITE CORE

For RI7776/RI7778

9965 100 56822

POWER CORD AUS VERSION

For HR7778/03

9965 100 56745

BOTTOM

For all

Avance Food Processor

9965 100 56815

JUICER LID

For

HR7778/RI7778/HR7986/RI7986

9965 100 56808

PUSHER

For

HR7778/RI7778/HR7986/RI7986

9965 100 56812

SIEVE BLADE DISC + FILTER MESH ASSY

For

HR7778/RI7778/HR7986/RI7986

9965 100 56816

JUICER BOWL

For

HR7778/RI7778/HR7986/RI7986

9965 100 56818

JUICER

BASE + LOCK ARM

For

HR7778/RI7778/HR7986/RI7986

9965 100 56807

BRUSH

For HR7778/RI7778

9965 100 56803

MEASURING CUP (JUICER BOWL)

For HR7778/RI7778

9965 100 56762

BOWL PUSHER

For all

Avance Food Processor

9965 100 56732

BOWL LID

For all

Avance Food Processor

9965 100 56761

DRIVER

For all

Avance Food Processor

Partslists HR7776/HR7777/HR7778/RI7776/RI7778

Pos 12NC

Description

Remark

27 9965 100 56763

BOWL

For all

Avance Food Processor

28 9965 100 56735

CHOPPING KNIFE

For all

Avance Food Processor

29 9965 100 56772

REAMER HEAD

For all

Avance Food Processor

30 9965 100 56754

REAMER BOWL

For all

Avance Food Processor

31 9965 100 56741

BOWL HANDLE

For all

Avance Food Processor

32 9965 100 56773

BOWL SAFETY LEVER

For all

Avance Food Processor

33 9965 100 56766

KNEADING HOOK

For all

Avance Food Processor

34 9965 100 56733

GRANULATING DISC

For all

Avance Food Processor

35 9965 100 56804

JULIENNE DISC

For

HR7778/RI7778/HR7987/RI7987

36 9965 100 56821

FRENCH FRIES DISC (9 X 9MM)

HR7778/HR7987/RI7987

37 9965 100 56775

SHREDDING DISC

For all

Avance Food Processor

and

HR7987/RI7987

38 9965 100 56765

ADJUSTABLE SLICING DISC

For all

Avance Food Processor

39 9965 100 56752

WHISK

For all

Avance Food Processor

40 9965 100 56774

WHISK WIRE ASSY

For all

Avance Food Processor

41 9965 100 56769

SPATULA

For all

Avance Food Processor

42 9965 100 56742

MEASURING CUP (JAR)

For all

Avance Food Processor

43 9965 100 56751

JAR LID

For all

Avance Food Processor

44 9965 100 56768

BLENDER JAR

For all

Avance Food Processor

45 9965 100 56737

KNIFE UNIT

For all

Avance Food Processor

and

HR7989

46 9965 000 23151

SEALING RING

- BLENDER KNIFE

For all

Avance Food Processor

47 9965 100 56749

MINI JUCIER PUSHER

For

HR7777

48 9965 100 56764

MINI JUCIER LID

For

HR7777

49 9965 100 56743

JUCIER CONTAINER

For

HR7777

50 9965 100 56759

JUCIER FILTER

For

HR7777

51 9965 100 56771

SAFETY SWITCH + SWITCH HOLDER (JAR)

For all

Avance Food Processor

52 9965 100 56744

SAFETY SWITCH + SWITCH HOLDER

(JUICER)

For all

Avance Food Processor

9965 100 56882

JAR MILL ASSY

For HR7989

, HR7776 MEA &

Dubai, HR7778 MEA & Dubai

9965 100 56876

MINI BOWL LID

For

HR7994/RI7994

9965 100 56877

BLADE + BLADE HOLDER

For

HR7994/RI7994

9965 100 56878

MINI BOWL

For

HR7994/RI7994

9965 100 57063

STORAGE BOX

For HR7993/HR7778

9965 100 57062

STORAGE BOX LID

For HR7993/HR7778

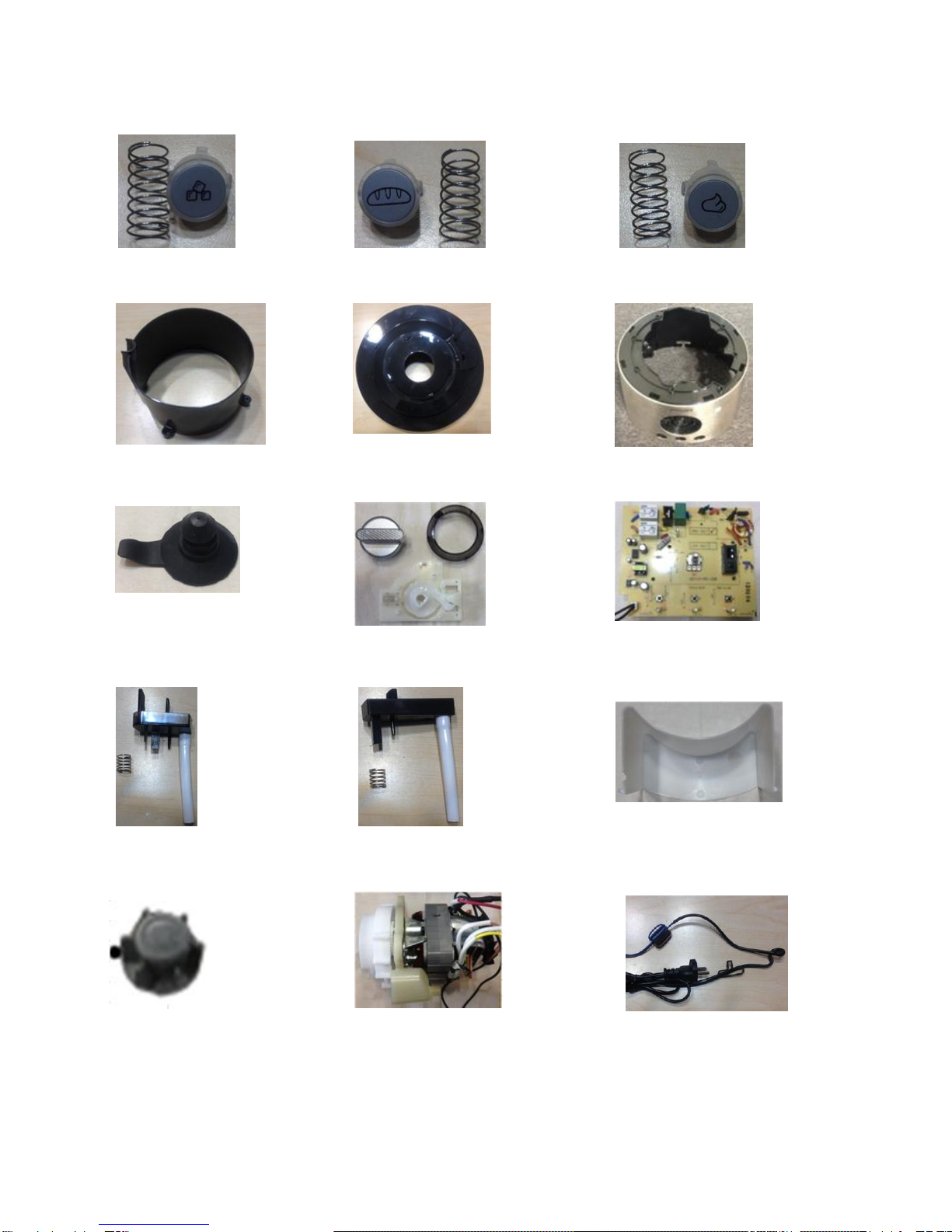

Main unit view HR7776/HR7777/HR7778/RI7776/RI7778

1 2 3

4 5 6

7 8 9

10 11 12

13 14 15

Main unit view HR7776/HR7777/HR7778/RI7776/RI7778

16 19 26

31 32 51

Accesorry view HR7776/HR7777/HR7778/RI7776/RI7778

28 29 30

17 20

24 25 27

33 34 35

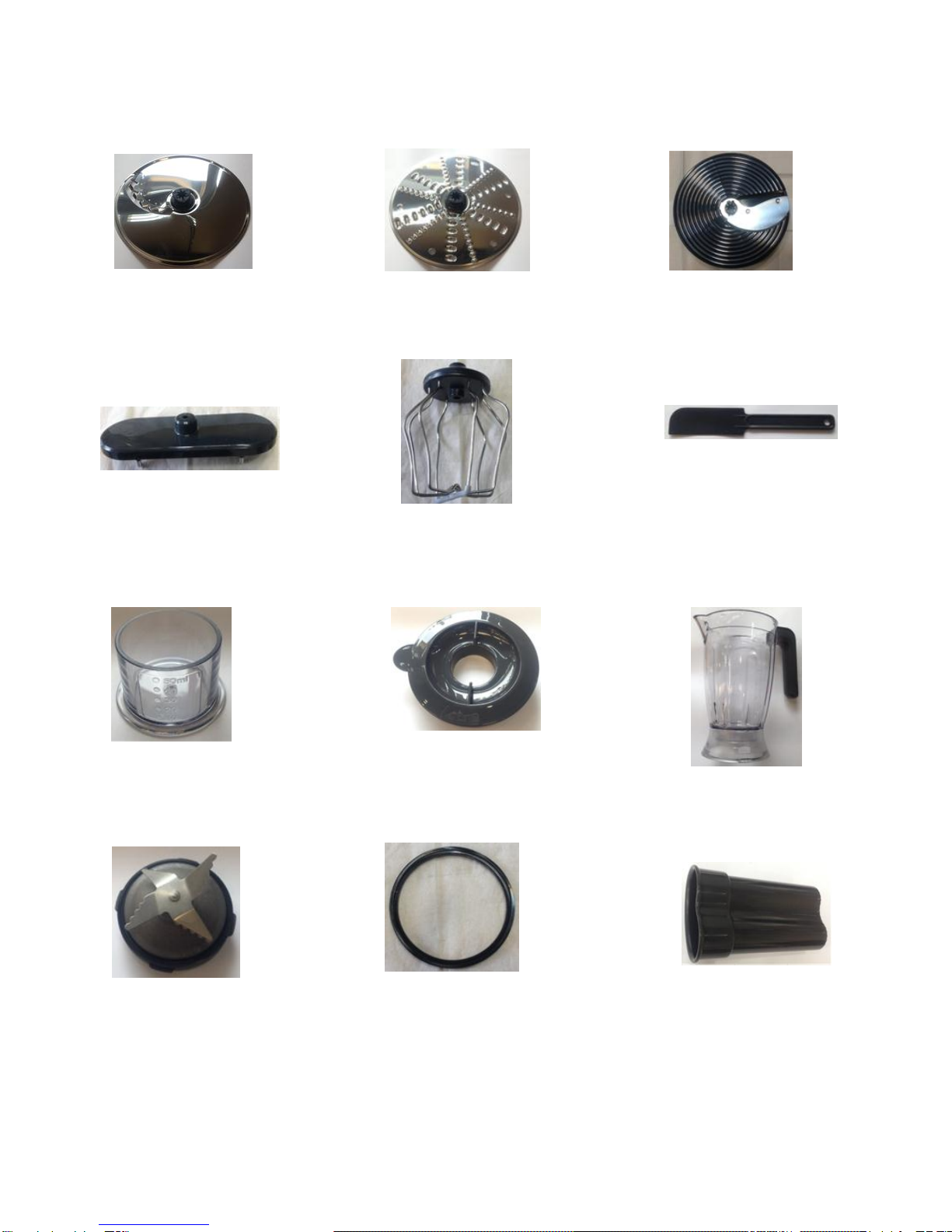

Accesorry view HR7776/HR7777/HR7778/RI7776/RI7778

36 37 38

39 40 41

42 43 44

45 46 47

Accesorry view HR7776/HR7777/HR7778/RI7776/RI7778

48 49 50

53 54

56 57 58

Revision list HR7776/HR7777/HR7778/RI7776/RI7778

1. Version A : Initial release

2. Version B : Add HR7986/RI7986/RI7987/RI7994 accessory models
