Philips HR1396 User manual
Register your product and get support at
www.philips.com/welcome
HR1396
1
HR1396
ENGLISH 6
DANSK 11
DEUTSCH 16
22
ESPAÑOL 28
SUOMI 33
FRANÇAIS 38
ITALIANO 43
한국어 48
NEDERLANDS 53
NORSK 59
PORTUGUÊS 64
SVENSKA 69
TÜRKÇE 74
83
87
6
Introduction
Congratulations on your purchase and welcome to Philips!To fully
benet from the support that Philips offers, register your product at
www.philips.com/welcome.

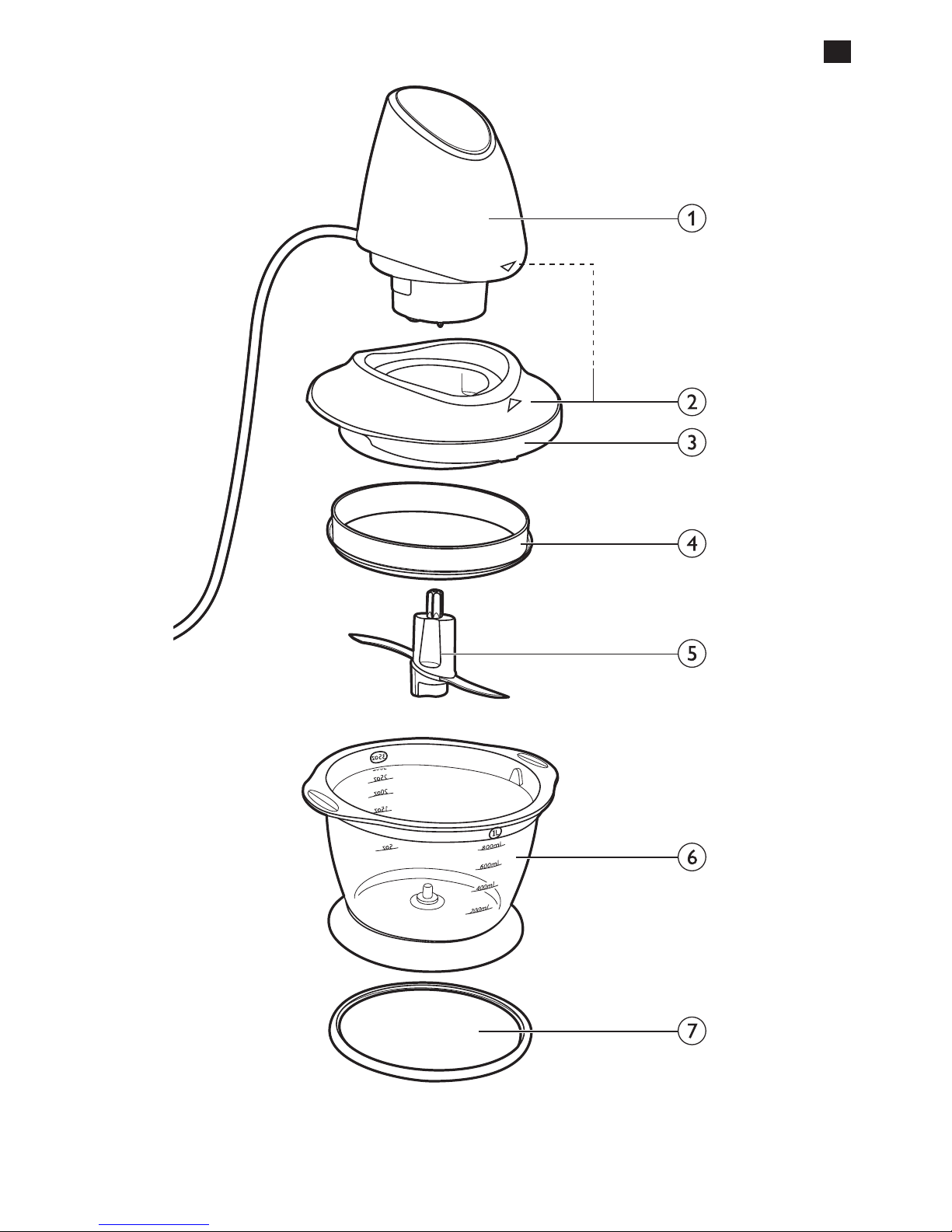

General description (Fig. 1)
1 Motor unit
2 Positioning arrows
3 Lid
4 Sealing ring
5 Blade unit
6 Bowl
7 Non-slip ring
Important
Read this user manual carefully before you use the appliance and save it
for future reference.
Danger
- Never immerse the motor unit in water or any other liquid, nor rinse
it under the tap. Use only a moist cloth to clean the motor unit.
Warning
- Be very careful when you handle the blades. Be especially careful
when you remove them from the bowl, when you empty the bowl
and when you clean them.Their cutting edges are very sharp.
- Check if the voltage indicated on the appliance corresponds to the
local mains voltage before you connect the appliance.
- Do not use the appliance if the mains cord, the plug or other parts
are damaged.
- If the mains cord is damaged, you must have it replaced by Philips, a
service centre authorised by Philips or similarly qualied persons in
order to avoid a hazard.
- This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision
ENGLISH
or instruction concerning use of the appliance by a person
responsible for their safety.
- Children should be supervised to ensure that they do not play with
the appliance.
- Do not allow children to use the chopper without supervision.
Caution
- Do not exceed the quantities and processing times indicated in the
table.
- Cut large ingredients into pieces of approximately 2cm before you
process them.
- Never ll the bowl with ingredients that are hotter than 80°C/175°F.
- If the ingredients stick to the wall of the bowl, remove the motor unit,
open the lid and loosen them with a spatula or add some liquid.
- Never use any accessories or parts from other manufacturers or that
Philips does not specically recommend. If you use such accessories
or parts, your guarantee becomes invalid.
- This appliance is intended for household use only.
This Philips appliance complies with all standards regarding
electromagnetic elds (EMF). If handled properly and according to the
instructions in this user manual, the appliance is safe to use based on
scientic evidence available today.
,Thoroughly clean the parts that will come into contact with food
before you use the appliance for the rst time (see chapter
‘Cleaning’).
Using the appliance
1 Place the blade unit onto the pin in the centre of the bowl (Fig. 2).
2 Put the ingredients in the bowl (Fig. 3).
See the table below for the recommended quantities and processing times.
You will achieve the best results if you stick to the quantities and
processing times in the table.
ENGLISH 7
Maximum quantities and processing times
Ingredients Max. quantities Time
Onions/garlic (cut in 8) 150-200g 5-10 pulses
Parsley 40-50g 10 pulses
Lean beef (high quality) 100-150g 10 pulses
Dried apricots 100g 5 seconds
Cheese 100-150g 5-10 pulses
Nuts 100-200g 5-10 pulses
Fruits 250-300g 5-10 pulses
Baby food 250-300g 5-10 pulses
3 Put the lid on the bowl (Fig. 4).
4 Place the motor unit on the lid (Fig. 5).
Make sure that the positioning arrows on the lid and on the motor unit
are directly opposite each other.
5 Push down the motor unit to start the chopping process.
The appliance works as long as you keep the motor unit pushed down.
,When chopping soft ingredients (e.g. onions, parsley or lean beef),
we advise you to press the motor unit briey several times in a
row (‘pulsing’). For 1 pulse, press the pulse button for one second
and then release the pulse button for 1 second.
Cleaning
Do not use abrasives, scourers, alcohol, etc to clean the appliance.
Never immerse the motor unit in water and never clean it in the
dishwasher.
1 Unplug the appliance and disassemble it.
ENGLISH8
For extra thorough cleaning, you can also remove the sealing ring and
non-slip ring.
2 Clean the bowl, the lid, the blade unit, the sealing ring and the non-
slip ring in the dishwasher or in warm water with some washing-up
liquid.
3 Clean the motor unit with a moist cloth.
Environment
,Do not throw the appliance away with the normal household waste
at the end of its life, but hand it in at an ofcial collection point for
recycling. By doing this you will help to preserve the
environment (Fig. 6).
Guarantee & service
If you need information or if you have a problem, please visit the Philips
website at www.philips.com or contact the Philips Customer Care Centre
in your country (you will nd its phone number in the worldwide
guarantee leaet). If there is no Customer Care Centre in your country,
turn to your local Philips dealer or contact the Service Department of
Philips Domestic Appliances and Personal Care BV.
Frequently asked questions
This chapter lists the questions most frequently asked about the
appliance. If you can’t nd the answer to your question, contact the
Customer Care Centre in your country.
ENGLISH 9
Question Answer
Can I clean all parts in
the dishwasher? Yes, except the motor unit.
Can I pour boiling
liquids in the bowl? No, let hot liquids cool down to 80 cC/175 cF.
Why does the motor
produce an
unpleasant smell
during processing?
It is very common for the appliance to give off
an unpleasant smell or emit some smoke the
rst few times it is used. This phenomenon will
stop after you have used the appliance a
number of times.The appliance may also give
off an unpleasant smell or emit some smoke if
it has been used too long. In this case you have
to stop operating the appliance and let it cool
down for 60 minutes.
The appliance
stopped running
because the blade
unit is blocked.What
should I do?
Remove the motor unit and the lid from the
appliance. Use a spatula to dislodge the
ingredients that are blocking the blade unit.You
may also need to process a smaller quantity.
The chopper doesn’t
work when I push on
the motor unit.What
should I do?
Check if the motor unit is placed correctly on
the lid.The positioning arrows on the lid and
the motor unit should be directly opposite
each other.
ENGLISH10
