Philips PT920 User manual

Published by Philips Consumer Lifestyle Printed in the Netherlands © Copyright reserved Subject to modification

ServiceManual

Philips Consumer Lifestyle

Shaver

PT920

12/06

PRODUCT INFORMATION

General:

• Rechargeable

• World-wide automatic voltage selection V100 - 240

Safety information

• This product meets the requirements regarding

interference suppression on radio and TV.

• After the product has been repaired, it should function

properly and has to meet the safety requirements as

officially laid down at this moment.

DISASSEMBLY- AND RE-ASSEMBLY ADVICE

• No specific issues

REPAIR INSTRUCTIONS

• No specific issues

TECHNICAL INFORMATION

• Voltage : 100 - 240 Volt

• Motor Voltage : 3,6 Volt

• Stand-by power : 0,5 W

• Max power consumption : 5,4 W

• Charging time : 1 hour

• Shaving time : up to 50 min

• Shaving heads : HQ9

• SAP coding : PT920

OPTIONAL (accessories)

• 4222 039 24341 Jet clean 2.3

• 2722 171 90135 Power plug BRA

• 2722 171 90077 Power plug MEX

• 2722 171 90133 Power plug KOR

• 2722 171 90137 Power plug JAP/TW

• 2722 171 90128 Power plug APAC

• 2722 171 90142 Power plug AUS

• 2722 171 90065 Power plug EUR

• 2722 171 90075 Power plug CAN/USA

• 2722 171 90389 Power plug GB

• 2722 171 90139 Power plug CN

PT920

2

3

6

1

7

4

8

5

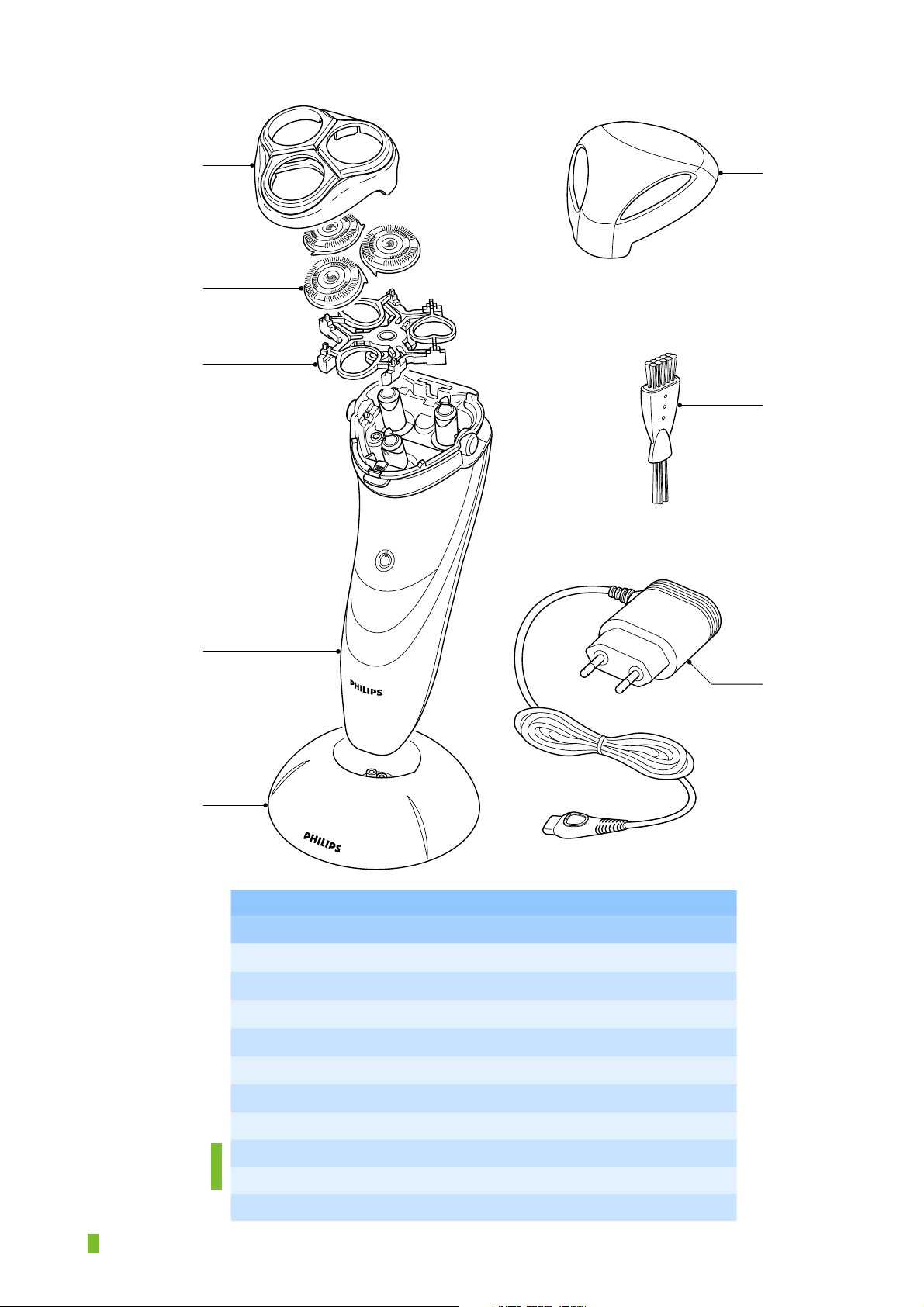

EXPLODED VIEW & PARTS LIST

Eindhoven Singapore

Pos Service code Service code Description

1 4222 027 23801 4222 036 19971 Protecting cap

2 4222 036 18781 4222 036 18661 Bracket assy

3 4222 036 18461 4222 036 18461 Shaving head

4 4222 036 18711 4222 036 18591 Holder assy

5 4222 039 24491 4222 036 20011 Stand

6 4222 036 02770 4222 036 02770 Brush

7 see optional see optional Power plug

8 - 4222 036 21051 Handle JAP

8 4222 036 21291 4222 036 21181 Handle

4222 018 58351 4222 036 20021 Pouch
