Philips HQT788 User manual

ServiceManual

Philips Domestic Appliances and Personal Care

Published by Philips Domestic Appliances and Personal Care Printed in the Netherlands © Copyright reserved Subject to modification

Beard Trimmer

HQ-T788

03/02

PRODUCT INFORMATION

Features:

- Contour Tracking System; comb adapts to the contours

of the face.

- Precision Zoom Lock; for precise adjustability of the

comb in 9 lenghts between 1.5 mm and 18 mm.

- Beard length indication window.

- Pop-up precision trimmer for moustache and contouring.

- Corded mains operation and cordless rechargebale

operation possilble.

- Charging indication.

- Maintenance free cutting element: no oiling required.

- Three dimensional rounded teeth at skin side for max.

comfort.

- This product meets the requirements regarding

interference suppression on radio and TV.

- After the product has been repaired, it should function

properly and has to meet the safety requirements as

officially laid down at this moment.

TECHNICAL INFORMATION

Power system : 1 hour rechargeable and mains

Rechargeable:

Batteries : 1 x AA NiCd

Charging period : NiCd batteries : 1 hour

Capacity : NiCd batteries : 40 minutes

Batteryfull indication : light blinks when battery is fully

charged

Mains:

Voltage : Automatic voltage selection

(100 - 240 V / 50 - 60 Hz)

NOTES :

• In order to guarantee the longest possible working life of

the battery :

- do not charge for more than 24 hours

- do not keep the charging unit permanently plugged in

- discharge the battery completely once a year by letting the

motor run until it stops

• The appliance should be charged again, when not used for a

long period

HQ-T788

DISASSEMBLY ADVICE

REPAIR INSTRUCTIONS

- Never use again a deformed housing clamp (3).

OPTIONAL (accessories)

- No specific issues.

to replace SPRING ZOOM RING (6)

remove COMB (1)

SCREW A

COVER (7)

PROFILER (12)

COMB HOLDER (4)

ZOOM RING (5)

to replace ON / OFF KNOB (8)

BATTERY (10)

PCB (9)

MOTION CONVERTER (11)

remove COMB (1)

CUTTER (2)

HOUSING CLAMP (3)

COMBHOLDER (4)

SCREW A

COVER (7)

ZOOM RING (5)

PROFILER (12)

CAP 15

to replace PROFILER (12)

remove COMB (1)

SCREW A

COVER (7)

2-3

HQ-T788

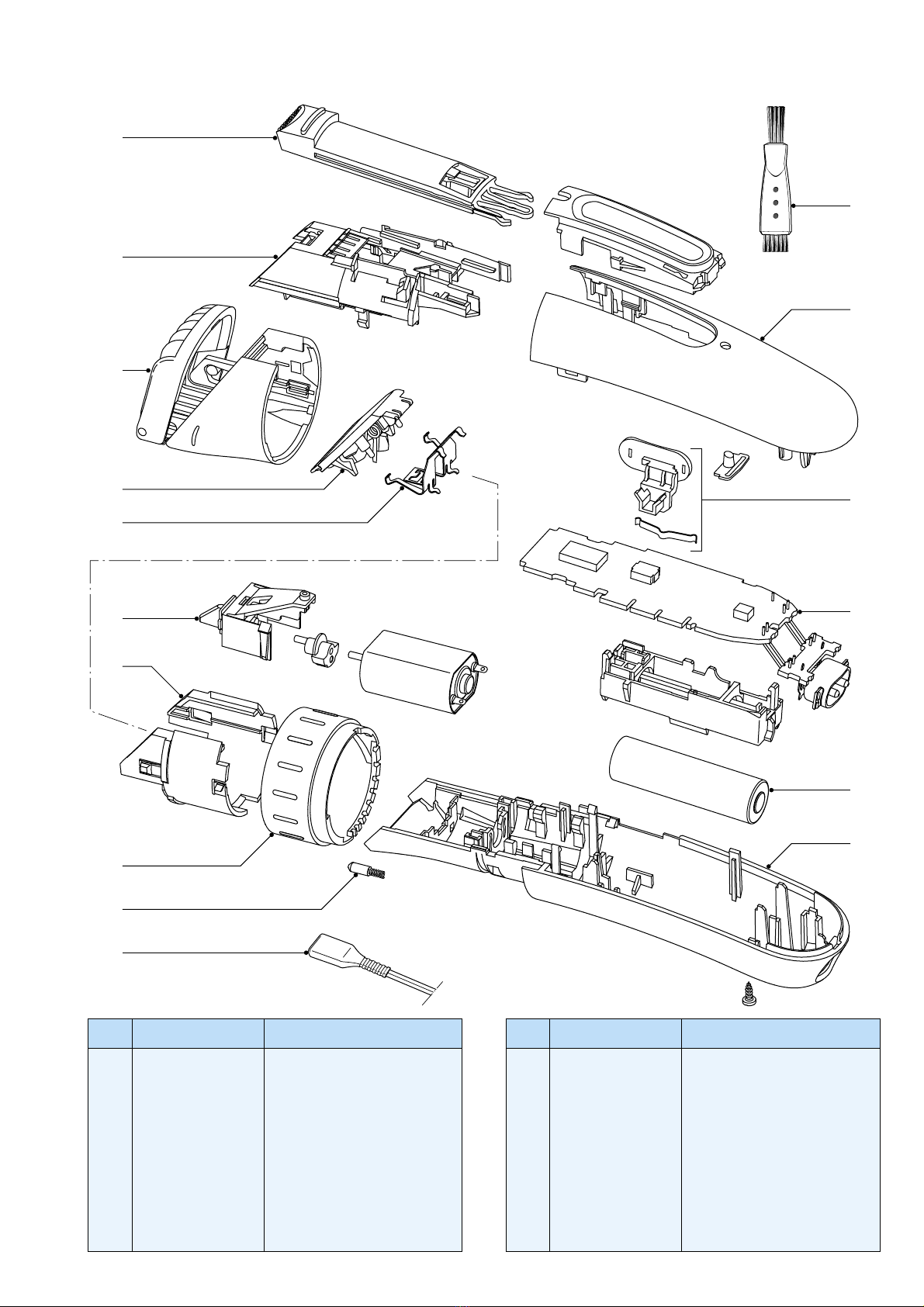

PARTS LIST & EXPLODED VIEW

3-3

Pos Service code Description

4203 035 76430

4203 035 76420

4203 035 76410

4203 035 76360

4203 035 76350

4203 035 71380

4203 035 76720

4203 035 76470

4203 035 76490

4822 138 10336

comb

cutter

housing clamp

comb holder

zoomring

spring zoom ring

cover

on/off knob

PCB

battery NiCd

Pos Service code Description

4203 035 76480

4203 035 76460

4822 479 30183

4822 321 10095

4822 321 10096

4822 321 10097

4822 321 10148

4822 321 10344

4203 035 79100

4203 035 79110

motion converter

proﬁler

cleaning brush

cord set (EURO)

cord set (UK)

cord set (CND)

cord set (AUS/NZ)

cord set (USA)

cap

housing
