Philips HQ7120 User manual

ServiceManual

Philips Domestic Appliances and Personal Care

Published by Philips Domestic Appliances and Personal Care Printed in the Netherlands © Copyright reserved Subject to modification

Shaver

HQ7120

07/03

PRODUCT INFORMATION

General:

- Rechargeable operation only

- World-wide automatic voltage selection

- Electronic on/off switch

- Washable

Safety information

- This product meets the requirements regarding

interference suppression on radio and TV.

- After the product has been repaired, it should function

properly and has to meet the safety requirements as

officially laid down at this moment.

TECHNICAL INFORMATION

- Voltage : 100 - 240 Volt / 50 - 60 Hz

- Motor voltage : 1,2 Volt

- Shaving heads : HQ8 - 4222 036 05820

- SAP coding : HQ7120

DISASSEMBLY- AND RE-ASSEMBLY ADVICE

Disassembly:

- Remove shaving unit, to prevent damaging during

repairing.

- Remove the 2 screws (A) out of the hairchamber.

- Remove the hairchamber from the body.

- Remove the 2 screws (B) on the backside of the shaver.

- Remove the cover.

- Remove the side grips.

- Remove the housing by bending the hooks with a

screwdriver.

- Take out the basic body.

REPAIR INSTRUCTION

- No specific issues

OPTIONAL (accessories)

- Car cord : 4222 036 08920

- Pouch : 4222 036 14160

HQ7120

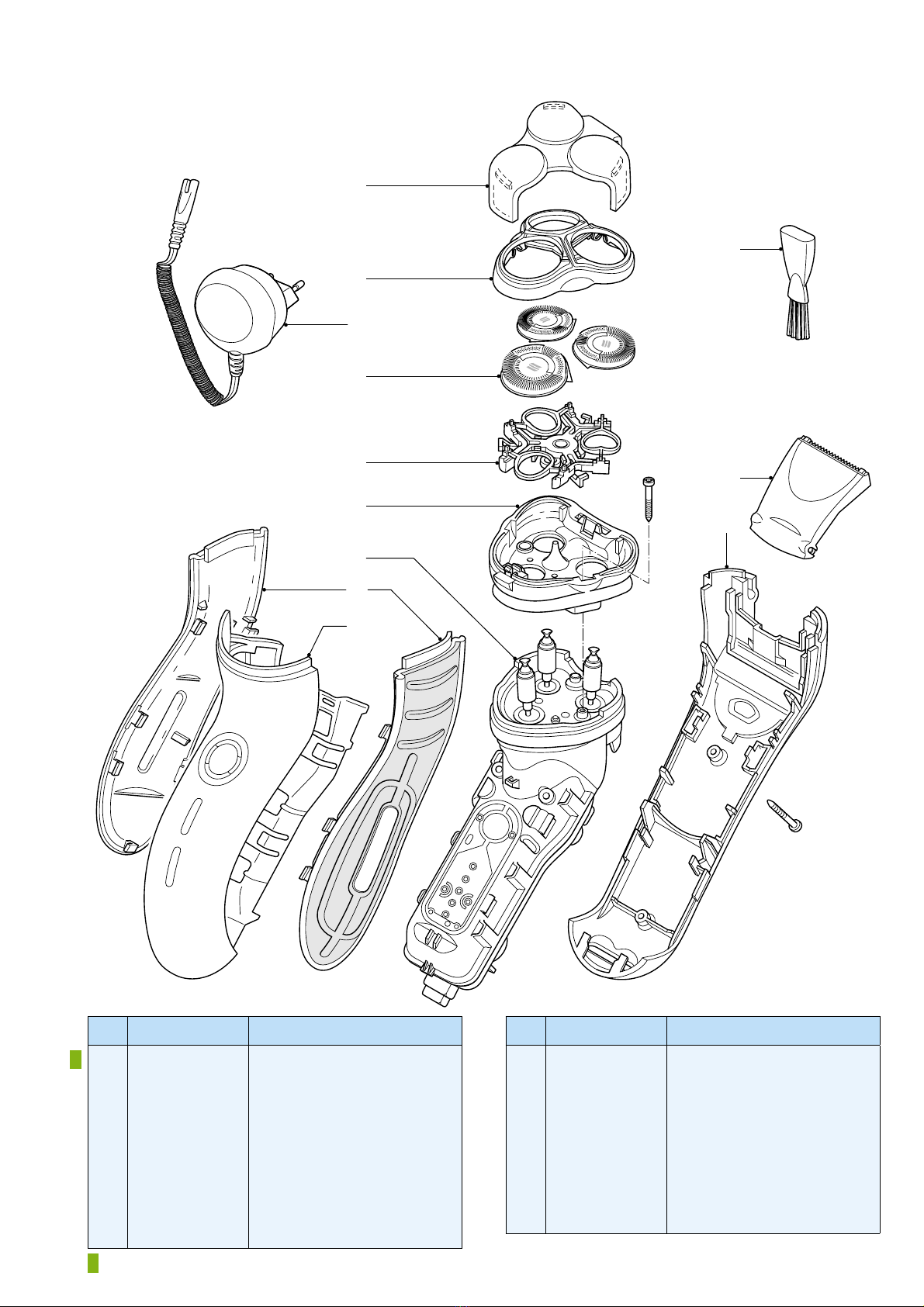

EXPLODED VIEW & PARTS LIST

Pos Service code Description

4222 036 14050

4222 036 12610

4222 036 06790

4222 036 03970

4222 036 04020

4222 036 04000

4222 036 04030

4222 036 04040

4222 036 06800

4222 036 05820

Protection cap Cheetah

Bracket-assy

Power plug EUR

Power plug GBR

Power plug AUS

Power plug KOR

Power plug MEX

Power plug PRC

Power plug Can/Tw/Ven

Shaving heads

Pos Service code Description

4222 036 12990

4222 036 12640

4222 036 12790

4222 036 12570

4222 036 12480

4222 036 02770

4222 036 12220

4222 036 12690

4222 036 11480

Holder-assy

Hairchamber

Basic body

Grip left & right

Housing-assy

Brush

Trimmer assy

Back shell assy

Screw

= changed
