EN 3139 785 31300

Second Generation

DVD + VCR Combi

Service Manual

Service

/55 NTSC

This service manual is for DVP3050V/55 Second

Generation model, which is different from the

previous generation DVP3050V/55 models.

For Second Generation model, the serial number

begins with xx2Bxxxxxxxxxx.

For technical data reference is made to the Service

Manual of the previous generation DVP3050V/55

12NC: 3139 785 31000. This manual shows only the

differences.

xx2Bxxxxxxxxxx

U JAN 2005

H982BMD

Rating label

Serial number

SUPPLEMENT

DVD PLAYER &

VIDEO CASSETTE RECORDER

TABLE OF CONTENTS

BLOCK DIAGRAMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-12-1

SCHEMATIC DIAGRAMS / CBA’S AND TEST POINTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-13-1

LEAD IDENTIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-18-1

Different parts from the previous generation DVP3050V/55 model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-19-1

Manufactured under license from Dolby Laboratories.

“Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

1-12-1

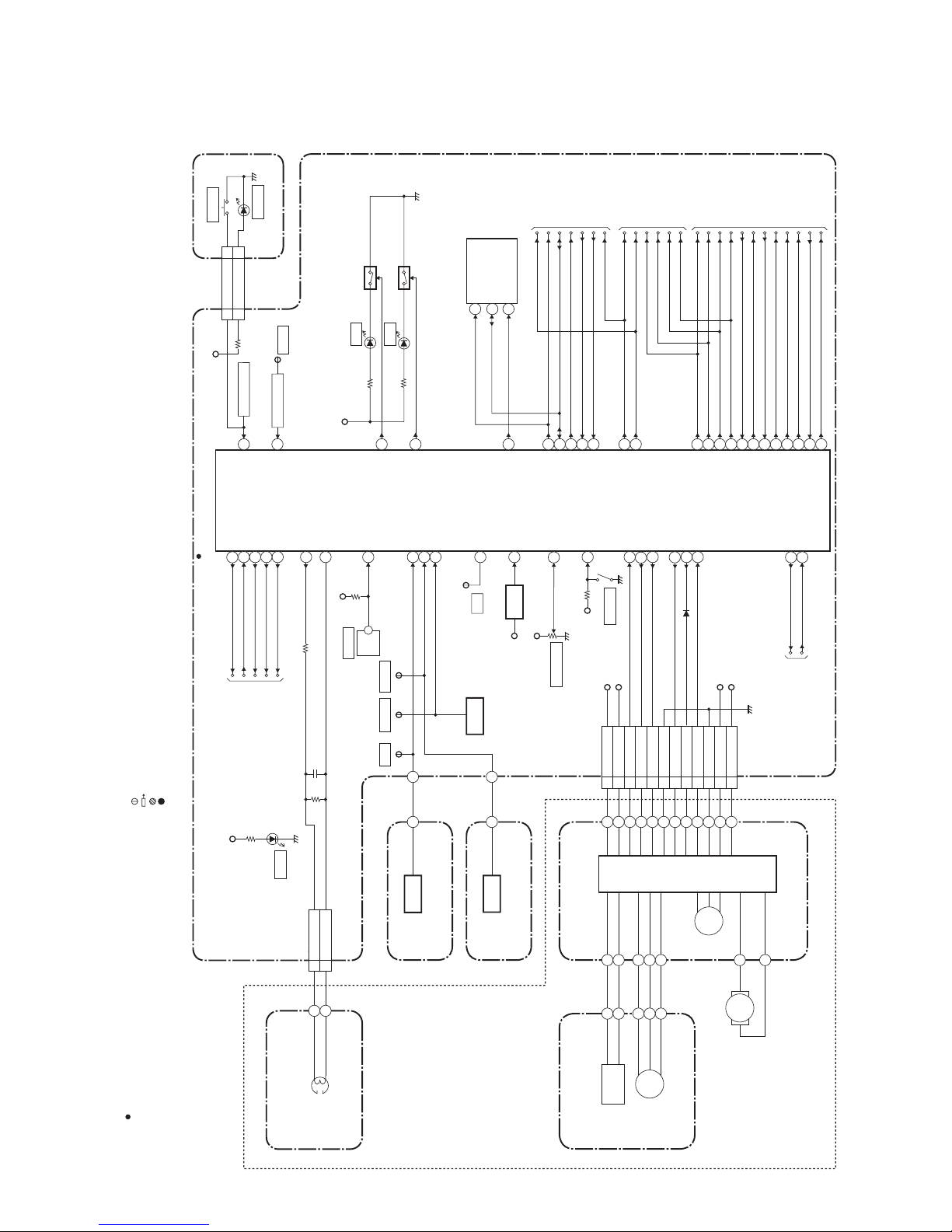

BLOCK DIAGRAMS <VCR SECTION>

Servo / System Control Block Diagram

H982BBLS

MOTOR

SENSOR CBA

CAPSTAN MOTOR

CONTROL

HEAD

CL504

CN502

CN504

ACE HEAD ASSEMBLY

MAIN CBA

KEY- 2

RF-SW

C-FG

C-CONT

D-PFG

ST-S

T-REEL

C-F/R

KEY- 1

D-V SYNC

C-SYNC

V-ENV

DISPLAY-ENA

CTL(+)

RESET

C-ROTA

D-REC-H D-REC-H

REC-

SAF-SW

PG-DELAY

AUDIO-MUTE-H AUDIO-MUTE-H

AUDIO-MUTE-H

RF-SW

D-V SYNC

C-SYNC

V-ENV

C-ROTA

END-S

IC501

(SERVO/SYSTEM CONTROL)

CTL

CTL(-)

LM-FWD/REV

D-CONT29

(DECK ASSEMBLY)

END-S

T-REEL

ST-S

Q504

Q503

Q501

RESET

Q506

SW-POINT

AL+5V

VR501

TIMER+5V

TP506 TP505

END-S

TP507

P-ON-L 22 P-ON-L

P-DOWN-H 1P-DOWN-H

H-A-SW

H-A-SW H-A-COMP

H-A-COMP

INPUT-SELECT

OUTPUT

-SELECT

YCA-SCL

YCA-SDA

YCA-CS

YCA-SCL

14 YCA-SDA

15 YCA-CS

YCA-SCL

YCA-SDA

YCA-CS

SW511

REC SW

TO VIDEO

BLOCK DIAGRAM

TO AUDIO

BLOCK DIAGRAM

TO Hi-Fi AUDIO

BLOCK

DIAGRAM

CLOCK

DATA

TU701(TUNER UNIT)

VCR/TV5

POWER

CN508

CN509

D561

POWER

SW518

LD-SW68

AL+12V(1)

AL+5V

SW512

AL+12V

AL+18V

P-ON+5V

LD-SW

AL+5V

D555

S-LED

TO POWER

SUPPLY

BLOCK DIAGRAM

IIC-BUS SCL

IIC-BUS SDA

13IIC-BUS SCL

VCR/TV-IND

IIC-BUS SDA

NORMAL-L

ST/SAP-MODE

Hi-Fi-H-SW

Hi-Fi/NOR-IN

ST/SAP-IN

Hi-Fi-H-SW 25

KEY SWITCH

TP502

P-ON+9V

S-INH

5 CTL(+)

6 CTL(-)

1AL+12V(1)

2P-ON+5V

3C-FG

4C-F/R

5C-CONT

6GND

LM-FWD/REV

8D-CONT

9D-PFG

10 GND

11 AL+12V

12 AL+18V

TP513

CTL

INPUT-SELECT

OUTPUT-SELECT

DVD-POWER

DVD-POWER 26 22KEY-1

11POWER-LED

POWER SW CBA

TO DVD SYSTEM

CONTROL /SERVO

BLOCK DIAGRAM

<DVD SECTION> DISPLAY-ENA DISPLAY-DATA

DISPLAY-DATA DISPLAY-CLK

DISPLAY-CLK REMOCON-IN

REMOCON-IN

CYLINDER ASSEMBLY

DRUM

MOTOR

SENSOR

CAPSTAN

MOTOR

DRIVE

CIRCUIT

DVD-H-IND 71

D567 DVD

D566 VCR

AL+5V

Q566

Q567

DVD-L-IND 70

D-REC-H

“ “ = SMD

TEST POINT INFORMATION

:INDICATES A TEST POINT WITH A JUMPER WIRE ACROSS A HOLE IN THE PCB.

:USED TO INDICATE A TEST POINT WITH A COMPONENT LEAD ON FOIL SIDE.

:USED TO INDICATE A TEST POINT WITH NO TEST PIN.

:USED TO INDICATE A TEST POINT WITH A TEST PIN.

NOTE FOR WIRE CONNECTORS:

1. PREFIX SYMBOL "CN" MEANS CONNECTOR.

(CAN DISCONNECT AND RECONNECT.)

2. PREFIX SYMBOL "CL" MEANS WIRE-SOLDER

HOLES OF THE PCB.

(WIRE IS SOLDERED DIRECTLY.)

[ DVP3050V/55 (Second Generation) ]

1-12-2

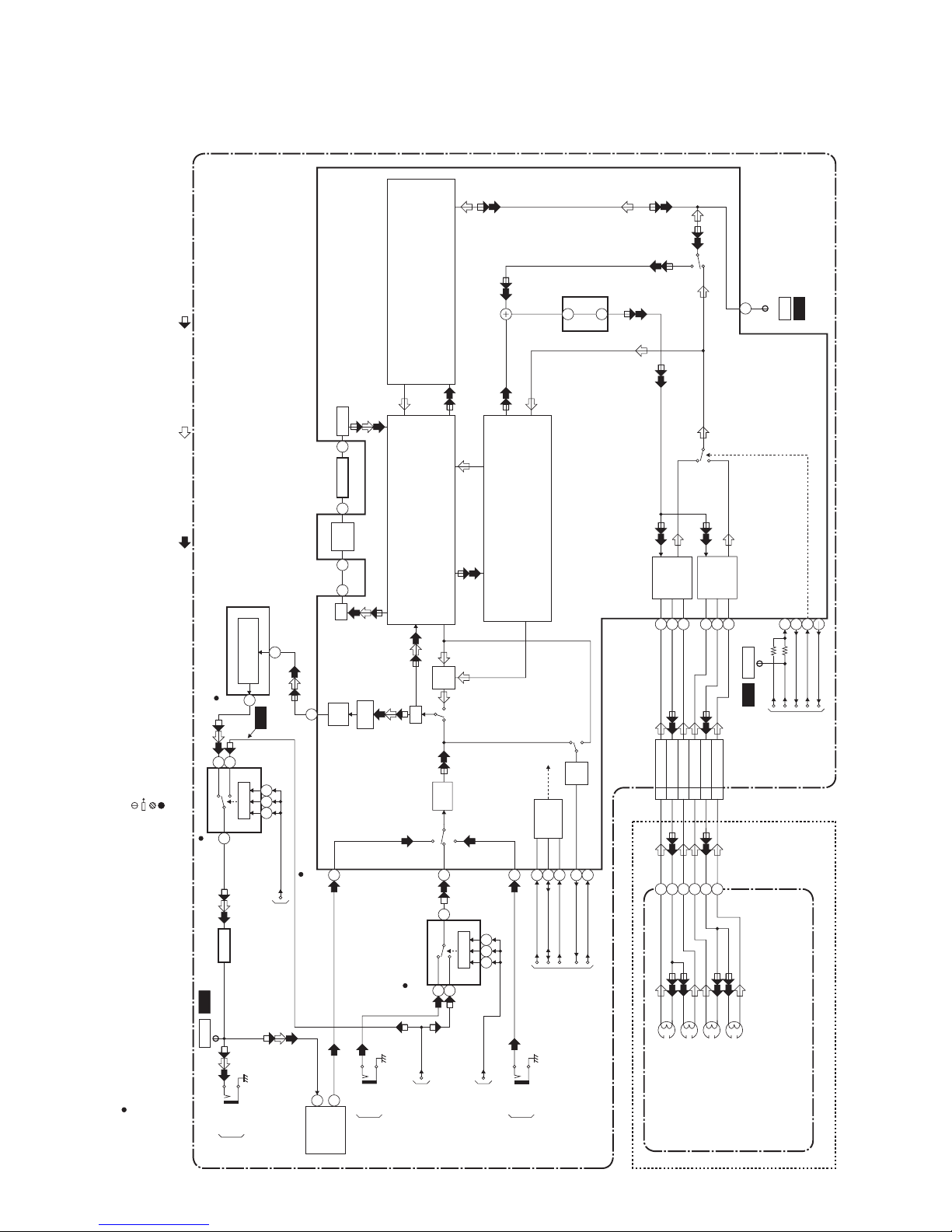

Video Block Diagram

H982BBLV

MAIN CBA

Q391

TU701

VIDEO IN

VCR

DVD

OUTPUT-SELECT

VIDEO OUT

TP751 V-OUT

IC752

(INPUT SELECT)

REC VIDEO SIGNAL PB VIDEO SIGNAL DVD VIDEO SIGNAL MODE: SP/REC

WF1

BUFFER

SW CTL

IC751 (OUTPUT SELECT)

15 1

9 10 11

TO SERVO/SYSTEM

CONTROL BLOCK

DIAGRAM

DVD-VIDEO

INPUT-SELECT

DVD VIDEO/AUDIO

BLOCK DIAGRAM

SERVO/SYSTEM

CONTROL BLOCK

DIAGRAM

OSD CHARACTER

MIX

IC501 (OSD)

LUMINANCE

SIGNAL PROCESS

VIDEO (R)-1 HEAD

VIDEO (L)-1 HEAD

(DECK ASSEMBLY)

VIDEO(R)-1

VIDEO-COM

VIDEO(L)-1

CN253

VIDEO(L)-2

VIDEO-COM

VIDEO(R)-2

VIDEO

AGC

TUNER

FRONT

REAR

SYNC

SEPA

FBC

Y/C

MIX

CCD 1H

DELAY

YNR/COMB FILTER

CHROMINANCE

SIGNAL PROCESS

IC301

(VIDEO SIGNAL PROCESS/ HEAD AMP)

QV/QH

6dB

AMP

TO SERVO/SYSTEM

CONTROL BLOCK

DIAGRAM

SERVO/SYSTEM

CONTROL BLOCK

DIAGRAM

CYLINDER ASSEMBLY

RF-SW

V-ENV

H-A-SW

H-A-COMP H-A-COMP

TP302

VIDEO (L)-2 HEAD

VIDEO (R)-2 HEAD

TP301

C-PB

D-V SYNC

C-SYNC

D-V SYNC

YCA-SCL

36 37 39 34

Q301

BUFFER

YCA-SDA

YCA-CS

SERIAL

I/F

VCA CLAMP

HEAD

AMP

HEAD

AMP

ENV-DET

C-ROTA

C-ROTA/RF-SW

WF2

WF3

JK753

VIDEO

-IN

JK752

VIDEO

-IN

FRONT

REAR

JK751

VIDEO

-OUT

REAR

(TUNER UNIT)

WF6

VCR

DVD

SW CTL

9 10 11

“ “ = SMD

TEST POINT INFORMATION

:INDICATES A TEST POINT WITH A JUMPER WIRE ACROSS A HOLE IN THE PCB.

:USED TO INDICATE A TEST POINT WITH A COMPONENT LEAD ON FOIL SIDE.

:USED TO INDICATE A TEST POINT WITH NO TEST PIN.

:USED TO INDICATE A TEST POINT WITH A TEST PIN.

NOTE FOR WIRE CONNECTORS:

1. PREFIX SYMBOL "CN" MEANS CONNECTOR.

(CAN DISCONNECT AND RECONNECT.)

2. PREFIX SYMBOL "CL" MEANS WIRE-SOLDER

HOLES OF THE PCB.

(WIRE IS SOLDERED DIRECTLY.)

1-12-3

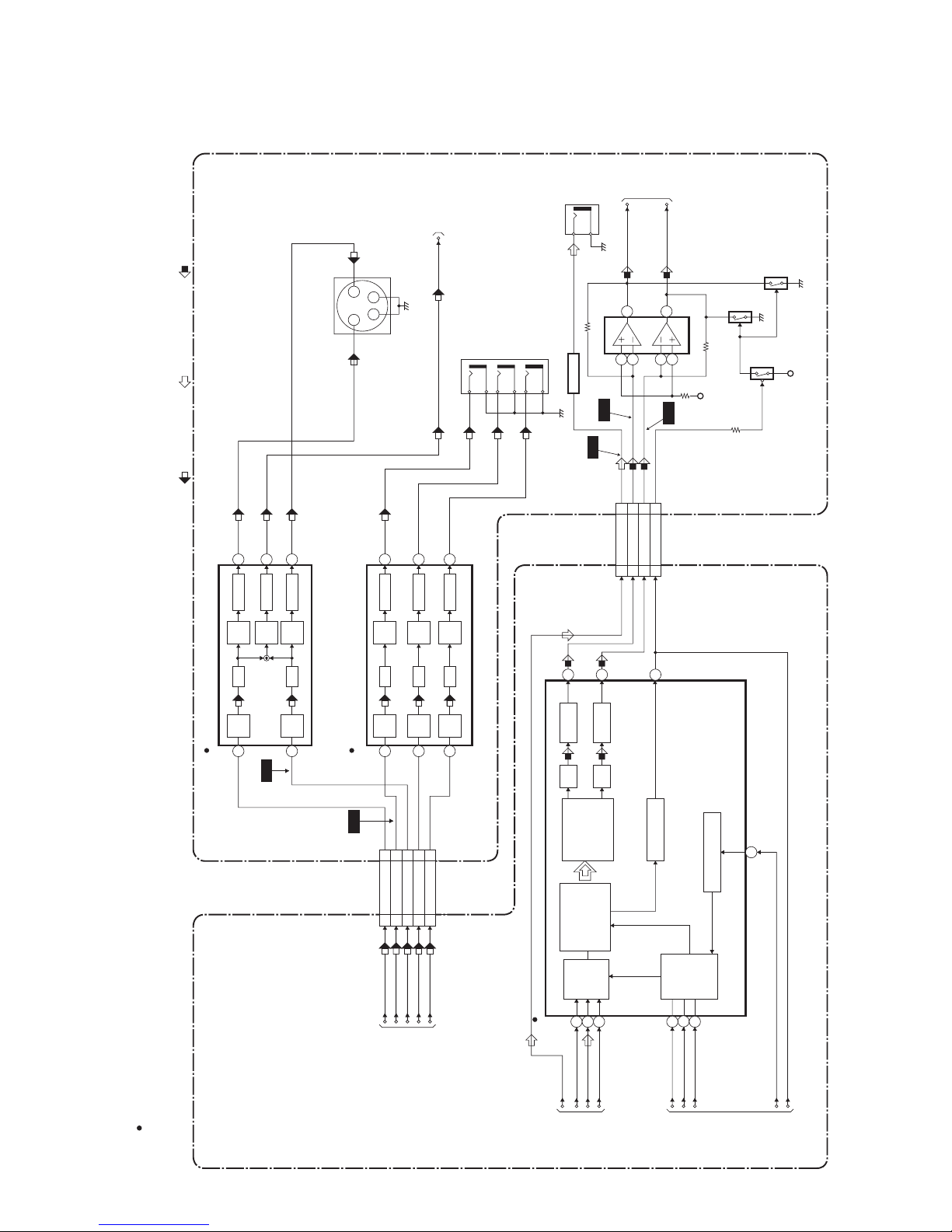

Audio Block Diagram

H982BBLA

TU701

SIF OUT

AUDIO IN

REC

AMP

SERIAL

I/F

AUTO

BIAS

P-ON+5V

Q421

BIAS

OSC

Q422

Q426

(PB=ON)

Q425

SWITCHING

D-REC OFF

6EQ

AMP

LINE

AMP MUTE

LPF 10

SP/LP-ON

ALC

TUNER

LINE 1

LINE 2

AUDIO-PB/REC

CN504

3 A-COM

1 AE-H

2 AE-H/FE-H

AUDIO

HEAD

AUDIO

ERASE

HEAD

ACE HEAD ASSEMBLY

FE HEAD

(DECK ASSEMBLY)

1 FE-H

2 FE-H-GND

CN501

MAIN CBA

PB-AUDIO SIGNAL REC-AUDIO SIGNAL Mode : SP/REC

58 55 53 54

D-REC-H

AUDIO-MUTE-H

SERVO/SYSTEM

CONTROL BLOCK

DIAGRAM

FULL

ERASE

HEAD

YCA-CS

YCA-SCL

YCA-SDA

IC301

SIF

MOD-AUDIO

AUDIO(R)-IN-F

AUDIO(L)-IN-F

AUDIO(L)-IN

AUDIO(R)-IN

AUDIO(R)-OUT

AUDIO(L)-OUT

N-A-OUT

N-A-IN

JK752

AUDIO(R)

-IN

AUDIO(L)

-IN

JK754

AUDIO(L)

-IN

JK755

AUDIO(R)

-IN

TO Hi-Fi AUDIO

BLOCK DIAGRAM

TO Hi-Fi AUDIO

BLOCK DIAGRAM

DVD VIDEO/AUDIO

BLOCK DIAGRAM

FRONT

REAR

IC751

(OUTPUT SELECT)

DVD-AUDIO(L)

DVD-AUDIO(R)

3 2

DVD-AUDIO(L)

DVD-AUDIO(R)

TP753

A-OUT (R)

TP754

A-OUT (L)

SW CTL

DVD

VCR

DVD

VCR

JK751

AUDIO(R)

-OUT

AUDIO(L)

-OUT

JK756

AUDIO(R)

-OUT

AUDIO(L)

-OUT

9 10 11

OUTPUT-SELECT TO SERVO/SYSTEM

CONTOL BLOCK

DIAGRAM

DVD AUDIO SIGNAL

(TUNER UNIT)

AUDIO SIGNAL

PROCESS

“ “ = SMD

TEST POINT INFORMATION

:INDICATES A TEST POINT WITH A JUMPER WIRE ACROSS A HOLE IN THE PCB.

:USED TO INDICATE A TEST POINT WITH A COMPONENT LEAD ON FOIL SIDE.

:USED TO INDICATE A TEST POINT WITH NO TEST PIN.

:USED TO INDICATE A TEST POINT WITH A TEST PIN.

NOTE FOR WIRE CONNECTORS:

1. PREFIX SYMBOL "CN" MEANS CONNECTOR.

(CAN DISCONNECT AND RECONNECT.)

2. PREFIX SYMBOL "CL" MEANS WIRE-SOLDER

HOLES OF THE PCB.

(WIRE IS SOLDERED DIRECTLY.)

1-12-4

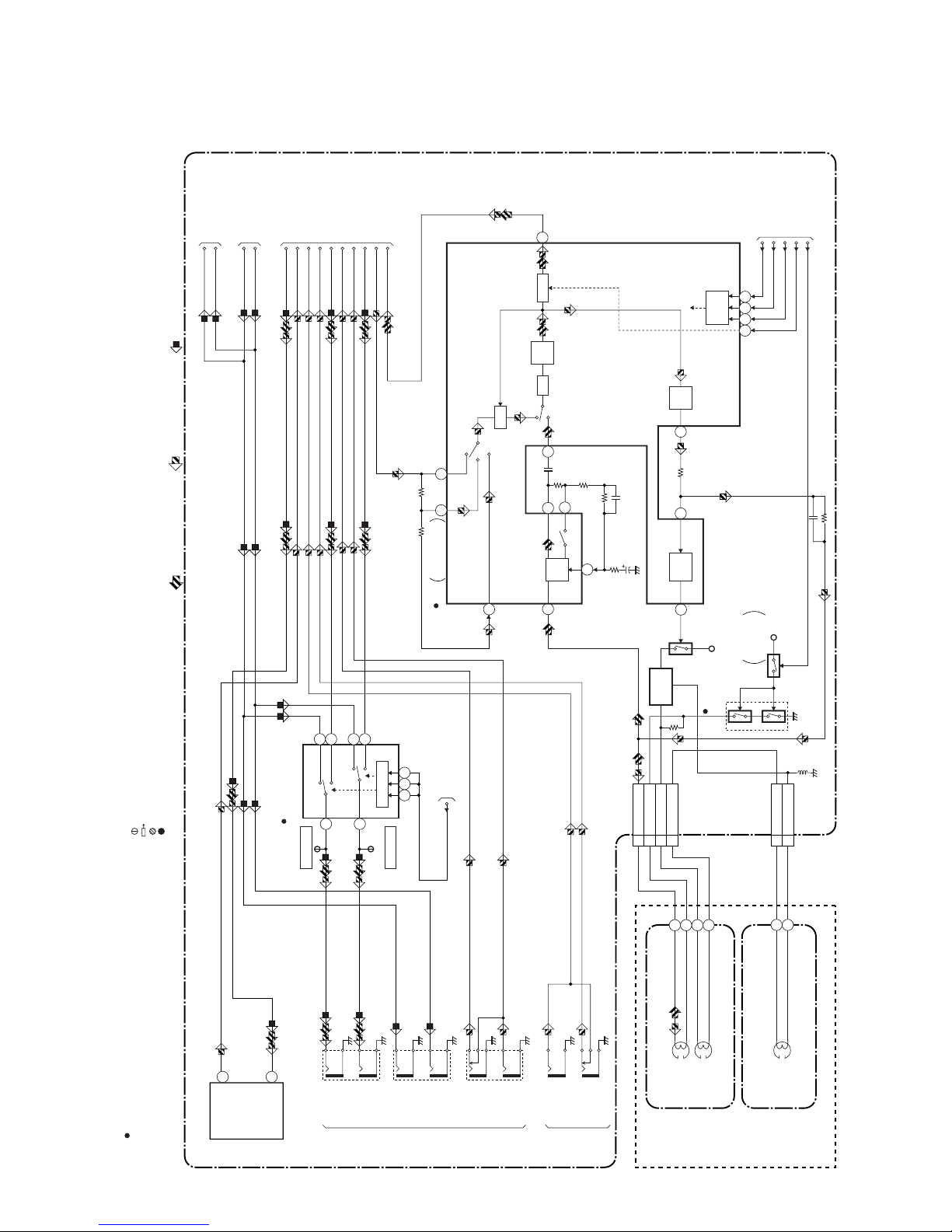

Hi-Fi Audio Block Diagram

H982BBLH

INPUT

SW R-CH

INPUT

SW L-CH

NOR

MUTE

SERIAL

DATA

DECODER

L-CH HiFi

AUDIO SIGNAL

PROCESS

R-CH HiFi

AUDIO SIGNAL

PROCESS

MTS/SAP

SIGNAL

PROCESS

OUT PUT

SW R-CH

OUT PUT

SW R-CH

dBX

DEC

MUTE

CONTROL

MATRIX ENV

DET

MODE

OUT

MUTE

AMP

SIF

AUDIO(R)-IN

AUDIO(L)-IN

N-A-OUT

AUDIO(R)-IN-F

AUDIO(L)-IN-F

DVD-AUDIO(L)

DVD-AUDIO(R)

AUDIO(L)-OUT

MOD-AUDIO

AUDIO(R)-OUT

N-A-IN

Hi-Fi-H-SW

AUDIO-MUTE-H

AUDIO-

MUTE

D-REC-H

NORMAL-L

ST/SAP-MODE

TO AUDIO

BLOCK DIAGRAM

IIC-BUS SDA

IIC-BUS SCL

MAIN CBA

Hi-Fi-

AUDIO(R)

Hi-Fi

-COM 8

Hi-Fi-

AUDIO(L)

CN253

IC451 (MTS/ SAP/ Hi-Fi AUDIO PROCESS/ Hi-Fi HEAD AMP)

REC-AUDIO SIGNALPB-AUDIO SIGNAL Mode : SP/REC

TO AUDIO

BLOCK

DIAGRAM

TO SERVO/ SYSTEM

CONTROL BLOCK

DIAGRAM

TO SERVO/ SYSTEM

CONTROL BLOCK

DIAGRAM

DVD AUDIO SIGNAL

Hi-Fi

AUDIO

(R) HEAD

Hi-Fi

AUDIO

(L) HEAD

CYLINDER

ASSEMBLY

(DECK ASSEMBLY)

DRIVE

Q430

Q429

Q432

Q428

MUTE MUTE

INVERTER

“ “ = SMD

NOTE FOR WIRE CONNECTORS:

1. PREFIX SYMBOL "CN" MEANS CONNECTOR.

(CAN DISCONNECT AND RECONNECT.)

2. PREFIX SYMBOL "CL" MEANS WIRE-SOLDER

HOLES OF THE PCB.

(WIRE IS SOLDERED DIRECTLY.)

1-12-5

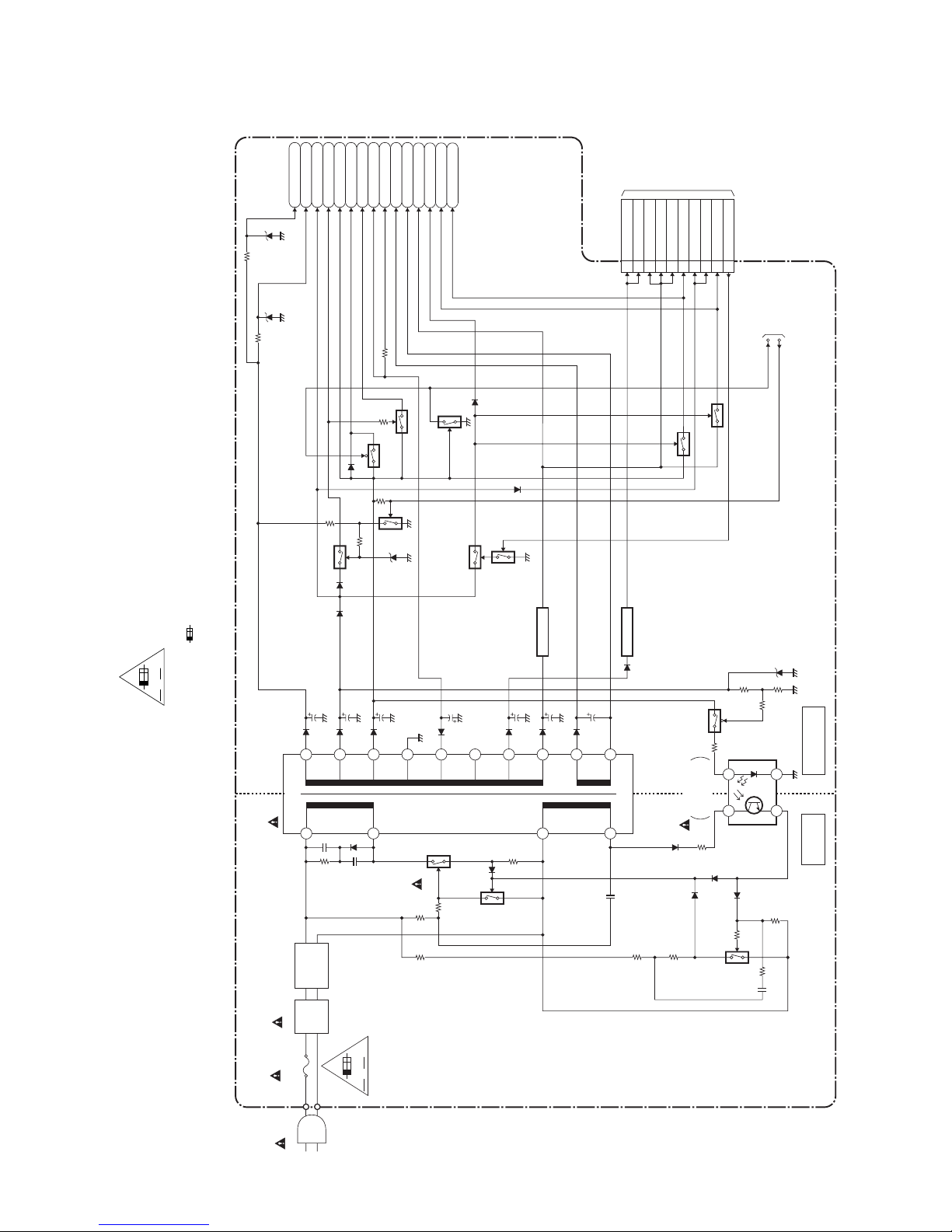

Power Supply Block Diagram

H982BBLP

AC1001 F1001

1A 250V LINE

FILTER

L1001 D1001 - D1004

BRIDGE

RECTIFIER

Q1001

Q1003

Q1008

IC1001

ERROR

VOLTAGE DET

T001

Q055

Q052

Q056

MAIN CBA

HOT CIRCUIT. BE CAREFUL.

Q1006

Q1005

Q1011

Q031

1 EV+1.2V

2 EV+1.2V

3 EV+3.3V

4 EV+3.3V

5 EV+3.3V

7 DVD-P-ON+5V

8 EV+10V

9 EV+10V

DVD-P-ON+3.3V

17 PWRCON

IC1004

+3.3V REG.

IC1002

+1.2V REG.

CN1001

Q1004

P-ON+5V

DVD-P-ON+12V

-FL

AL+18V

EV+3.3V

DVD-P-ON+3.3V

AL+33V

P-ON+9V

AL-30V

AL+12V

TIMER+5V

AL+5V

DVD-P-ON+5V

TO DVD MAIN

CBA UNIT

CN401

SERVO/SYSTEM

CONTROL

BLOCK DIAGRAM

P-ON-L

P-DOWN-H

Q063

Q064

HOT COLD

A V

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.

If Main Fuse (F1001) is blown , check to see that all components in the power supply

circuit are not defective before you connect the AC plug to the AC power supply.

Otherwise it may cause some components in the power supply circuit to fail.

NOTE:

The voltage for parts in hot circuit is measured using

hot GND as a common terminal.

"Ce symbole reprèsente un fusible à fusion rapide."

CAUTION !

For continued protection against fire hazard,

replace only with the same type fuse.

ATTENTION : Pour une protection continue les risqes

d'Incele n'utiliser que des fusible de même type.

Risk of fire-replace fuse as marked.

"This symbol means fast operating fuse."

A V

NOTE FOR WIRE CONNECTORS:

1. PREFIX SYMBOL "CN" MEANS CONNECTOR.

(CAN DISCONNECT AND RECONNECT.)

2. PREFIX SYMBOL "CL" MEANS WIRE-SOLDER

HOLES OF THE PCB.

(WIRE IS SOLDERED DIRECTLY.)

1-12-6

BLOCK DIAGRAMS <DVD SECTION>

H982BBLSD

DVD System Control / Servo Block Diagram

REMOTE

SENSOR

RM2001

FP-STB

REMOCON-IN

DISPLAY-CLK

DISPLAY-DATA

DISPLAY-ENA

FP-DIN

FP-CLK

GRID FIP

SEGMENT

FIP502

IC571

MAIN CBA

(FIP DRIVER)

FP-STB 20

FP-DIN 19

FP-CLK 18

REMOTE 22

23 f

TO SERVO/SYSTEM

CONTROL BLOCK

DIAGRAM

DVD-POWER

CN401 CN1001

DVD-PLAY 25

DVD-STOP 26

DVD-POWER

DVD-OPEN/CLOSE

DVD-PLAY

DVD-STOP

DVD-POWER

DVD-OPEN/CLOSE 24

EV+3.3V

SW2001

CN2002CN2003

DVD-OPEN/CLOSE

1 EV+3.3V 1

DVD-OPEN/CLOSE

DVD OPEN/CLOSE CBA

SW2002 STOP

SW2003 PLAY

82FP-STB

60FP-DIN

REMOTE

FP-CLK

DVD MAIN CBA UNITDRIVE CBA

IC301

(SERVO DRIVE)

CN301

SLED

MOTOR

IC101

(MICRO CONTROLLER)

SLED

MOTOR

DRIVE

FOCUS

ACTUATOR

DRIVE

SPINDLE

MOTOR

DRIVE

TRACKING

ACTUATOR

DRIVE

147

TRAY-IN

SLD

SPDL76

TRACKING

DRIVE

148

FOCUS DRIVE

TO DIGITAL SIGNAL

PROCESS BLOCK

DIAGRAM

FS(+)

FS(-)

TS(+)

TS(-)

TO DVD

VIDEO/ AUDIO

BLOCK DIAGRAM

ADAC-MD

56 ADAC-MC

ADAC-MC

PCM-SCLK

AUDIO-MUTE

ADAC-MD

AUDIO-MUTE

163

PCM-SCLK

TRAY-IN

3SP(+)

4SP(-)

5TRAY-IN

6GND

7SL(-)

8SL(+)

VREF

RESET73

RESET

IC462

1 3

+3.3V

IC202

(OP AMP)

18 23

81 SL-AMP

143

SP-ROT

+3.3V

13 14

146

FD-OFST

139

TD-OFST

86 ADAC-ML

ADAC-ML

RESET

IC461

2 1

SPINDLE

MOTOR

1 NOTE:

Either IC461 or IC462 is used for DVD MAIN CBA UNIT.

“ “ = SMD

NOTE FOR WIRE CONNECTORS:

1. PREFIX SYMBOL "CN" MEANS CONNECTOR.

(CAN DISCONNECT AND RECONNECT.)

2. PREFIX SYMBOL "CL" MEANS WIRE-SOLDER

HOLES OF THE PCB.

(WIRE IS SOLDERED DIRECTLY.)

1-12-7 H982BBLD

Digital Signal Process Block Diagram

DATA(VIDEO/AUDIO) SIGNAL DVD VIDEO SIGNAL DATA(AUDIO) SIGNAL

C16

D18

A17

B15

E14

F12

DVD-LD 8

CD-LD 10

PD-MONI 7

FS(+) 2

FS(-) 3

TS(+) 1

TS(-) 4

CN201

IC201

(SW)

IC101 (MICRO CONTROLLER)

FS(+)

CD/DVD

FS(-)

TS(+)

TS(-)

PICK-UP

UNIT

DETECTOR

CD/DVD 19

Q251,Q252

CD DVD

AMP

Q253,Q254

AMP

1 3

GND(DVD-PD)

GND(CD-PD)

GND(LD)

TO DVD SYSTEM

CONTROL/SERVO

BLOCK DIAGRAM

SIGNAL

PROCESS

CIRCUIT

DVD/CD

FORMATTER

AUDIO

I/F

VIDEO

I/F

NTSC/PAL

ENCODER

DMA

BCU

INST.

ROM 32BIT

CPU

DATA

RAM

INTERRUPT

CONTROLLER

WATCH DOG

TIMER

CPU

I/F

TIMER

DECODER

I/F

CPU

I/F

READ

MEMORY

DATA

RAM

DSP

DECODER

I/O

PROCESSOR

INST.

ROM

DATA

RAM

INST.

ROM

SERIAL

D/A

GENERAL

I/O

INTERRUPT

CONTROLLER

TIMER

WATCH DOG

TIMER

REMOTE

CONTROL

32BIT CPU

STREAM

I/F

EXTERNAL

MEMORY

I/F

ECC

UMAC

114

115

116

117

132

131

134

133

129

130

126

124

125

123

DEBUG

BCU

INST

RAM

DATA

RAM

D/A

TO DVD

VIDEO

/AUDIO

BLOCK

DIAGRAM

149

158

Y(I/P)

Pr/Cr

Pb/Cb

VIDEO-Y(I/P)

VIDEO-C

VIDEO-Pr/Cr

VIDEO-Pb/Cb

TO DVD

VIDEO

/AUDIO

BLOCK

DIAGRAM

177

SPDIF

170

PCM-BCK

171

PCM-DATA

169

PCM-LRCLK

152

151

23~51

SDRAM DATA(0-15)

SDRAM ADDRESS(0-11)

217

238

252

256

IC103 (FLASH ROM)

FLASH

ROM

DVD MAIN CBA UNIT

FDQ (0-15)

192~212

FADR (0-19)

SDRAM DATA(0-15)

D/A

156

Y(I) VIDEO-Y(I)

IC503 (SDRAM)

SDRAM

“ “ = SMD

NOTE FOR WIRE CONNECTORS:

1. PREFIX SYMBOL "CN" MEANS CONNECTOR.

(CAN DISCONNECT AND RECONNECT.)

2. PREFIX SYMBOL "CL" MEANS WIRE-SOLDER

HOLES OF THE PCB.

(WIRE IS SOLDERED DIRECTLY.)

1-12-8 H982BBLVD

DVD Video / Audio Block Diagram

IC601 (AUDIO D/A CONVERTER)

DIGITAL

AUDIO OUT

JK1202

BUFFER

Q1351

IC1201

Q1201

Q1202

VREF

(AMP)

CN601 CN1601

TO DVD

SYSTEM

CONTROL

/SERVO

BLOCK

DIAGRAM

TO DIGITAL

SIGNAL

PROCESS

BLOCK

DIAGRAM

SERIAL

PORT

SERIAL

CONTROL

4X/8X

OVERSAMPLING

DIGITAL FILTER

/FUNCTION

CONTROLLER

ENPHANCED

MULTI-LEVEL

DELTA-SIGMA

MODULATOR

DAC LPF+AMP L-CH

R-CH

LPF+AMP

DAC

ZERO DETECT

SYSTEM CLOCK

PCM-BCK

SPDIF

PCM-DATA

PCM-LRCLK

ADAC-MD

ADAC-MC

ADAC-ML

PCM-SCLK

MAIN CBADVD MAIN CBA UNIT

DVD AUDIO SIGNALDATA(AUDIO) SIGNAL

AUDIO-MUTE

+3.3V

Q1204

CN601

88VIDEO-Y(I/P)

10 10VIDEO-C

66VIDEO-Pb/Cb

44VIDEO-Pr/Cr

JK1401

S-VIDEO OUT

CN1601

3 4

IC1402 (VIDEO DRIVER)

4dB

AMP

2dB

AMP

LPF DRIVER

4dB

AMP

2dB

AMP

LPF DRIVER

4dB

AMP

2dB

AMP

LPF DRIVER

VIDEO-Pb/Cb

OUT

VIDEO-Y

OUT

VIDEO-Pr/Cr

OUT

JK1403

TO DIGITAL

SIGNAL PROCESS

BLOCK DIAGRAM

DVD VIDEO SIGNAL

VIDEO-Y(I/P)

VIDEO-C

VIDEO-Pb/Cb

VIDEO-Pr/Cr

DVD-VIDEO TO VIDEO

BLOCK DIAGRAM

IC1403 (VIDEO DRIVER)

4dB

AMP

2dB

AMP

LPF DRIVER

2dB

AMP DRIVER

4dB

AMP

2dB

AMP

LPF DRIVER

11VIDEO-Y(I)

VIDEO-Y(I)

WF5

WF9

WF7

WF8

WF4

13 13

DVD-AUDIO(L)

15 15

DVD-AUDIO(R)

14 14

DVD-AUDIO(R)-MUTE

18 18

SPDIF DVD-AUDIO(L)

DVD-AUDIO(R)

AUDIO

BLOCK

DIAGRAM

<VCR

SECTION>

“ “ = SMD

NOTE FOR WIRE CONNECTORS:

1. PREFIX SYMBOL "CN" MEANS CONNECTOR.

(CAN DISCONNECT AND RECONNECT.)

2. PREFIX SYMBOL "CL" MEANS WIRE-SOLDER

HOLES OF THE PCB.

(WIRE IS SOLDERED DIRECTLY.)

Other manuals for DVP3050V/55

Table of contents

Other Philips DVD VCR Combo manuals

Philips

Philips DVP620VR/05 User manual

Philips

Philips DVDR3320V/02 Operating manual

Philips

Philips DVDR3320V/37B User manual

Philips

Philips DVP3345VB/F7 User manual

Philips

Philips DVP3050V/37B Operating manual

Philips

Philips DVD750/001 User manual

Philips

Philips DVP620VR/75 User manual

Philips

Philips DVP3340V/17B User manual

Philips

Philips DVDR630VR User manual

Philips

Philips DVP3345V/F7 User manual

Philips

Philips DVD VCR Combo Quick start guide

Philips

Philips DV900VHS0I User manual

Philips

Philips DV900VHS User manual

Philips

Philips DVP620VR/07B Operating manual

Philips

Philips DVP620VR/75 Operating manual

Philips

Philips DVP721VR/05 Operating manual

Philips

Philips DVP721VR/05 User manual

Philips

Philips DVP3200V/37B User manual

Philips

Philips DVP620VR/17B Operating manual

Philips

Philips DVP3050V/51 Operating manual

Philips

Philips DVP3350V User manual

Philips

Philips DVP3200V/75 User manual

Philips

Philips DVP3355V User manual

Philips

Philips DVDR3545V - DVDr/ VCR Combo User manual

Popular DVD VCR Combo manuals by other brands

Samsung

Samsung DVD-V2000 instruction manual

Toshiba

Toshiba D-VR3SG owner's manual

Sharp

Sharp DV-NC230SB Operation manual

Samsung

Samsung DVD-V5500 instruction manual

Seg

Seg DVRC 600 user manual

Memorex

Memorex MVD4540C owner's manual

JVC

JVC HR-XVC29SUM instructions

JVC

JVC DR-MV1BEK Schematic diagrams

Samsung

Samsung DVD-V9090 instruction manual

Samsung

Samsung DVD-V5450 Service manual

Samsung

Samsung DVD-V55K instruction manual

Pioneer

Pioneer DV-PT100-S Service manual

Toshiba

Toshiba DVR610 - DVDr/ VCR Combo Service manual

Toshiba

Toshiba SD-K531SU owner's manual

JVC

JVC HR-XVS20AA instructions

Toshiba

Toshiba RDXV60KB owner's manual

Toshiba

Toshiba D-VR600 - DVDr/ VCR Combo Specification sheet

Magnavox

Magnavox ZV457MG9 A quick guide
