Philips DVP721VR/05 Operating manual

1Disconnect all equipment from the power outlets. Connect the equipment to the power outlets only after you

have finished hooking up everything. Never make or change connections with equipment connected to the power outlet.

2Connect the EURO AV1 AUDIO/VIDEO on the rear panel of this DVD/VCR to the SCART input on theTV

using the SCART cable (supplied).

3Connect your existing RF cable from the AntennaTV signal directly to the AERIAL jack on the rear of the

DVD/VCR.

If you have a Cable Box (or Satellite Receiver), connect the OUT jack of the Cable Box/Satellite Receiver to the AERIAL

jack on the DVD/VCR using an RF coaxial cable (not supplied).

4Connect the supplied black RF coaxial cable to the DVD/VCR’s RF-OUT jack and to yourTV’s ANTENNA IN

jack. The TV’s ANTENNA IN jack could be labelled 75-ohm, TV IN, or RF IN. Check your TV manual for details.

5Connect the power cords of the DVD/VCR,TV, and Cable Box (if applicable) to a power outlet.

6Turn on the TV power. Set the TV to a video channel. (See the accompanying DVD/VCR owner’s manual for

details.)

7Press STANDBY-ON 2on the DVD/VCR or its remote to turn on the DVD/VCR. The first time you turn

on the DVD/VCR, you should complete the VCR setup. See the other side of this Quick-Use Guide for details.

SCART IN

SCARTIN

OUT

CABLE

TV SIGNAL

Antenna

Cable box (optional)

12NC: 8239 300 33282

SgpSL/0434/05_1

DVP721VR/05

All manuals and user guides at all-guides.com

all-guides.com

AV IN

POWER

RETURN

TV/VCR DVD VCR

OPEN/CLOSE

EJECT

STOP

MARKER SEARCH INPUT REC/ITR

SUBTITLE AUDIO ANGLE ZOOM

REPEAT

PROGRAM

CLEAR

TITLE

VIDEO PLUS

SHUFFLE C.LOCK

SHOW VIEW

PAUSE/STEP

PLAY

DISC SYSTEM

DISPLAY

123

456

789

A-B

SUPER VIDEO

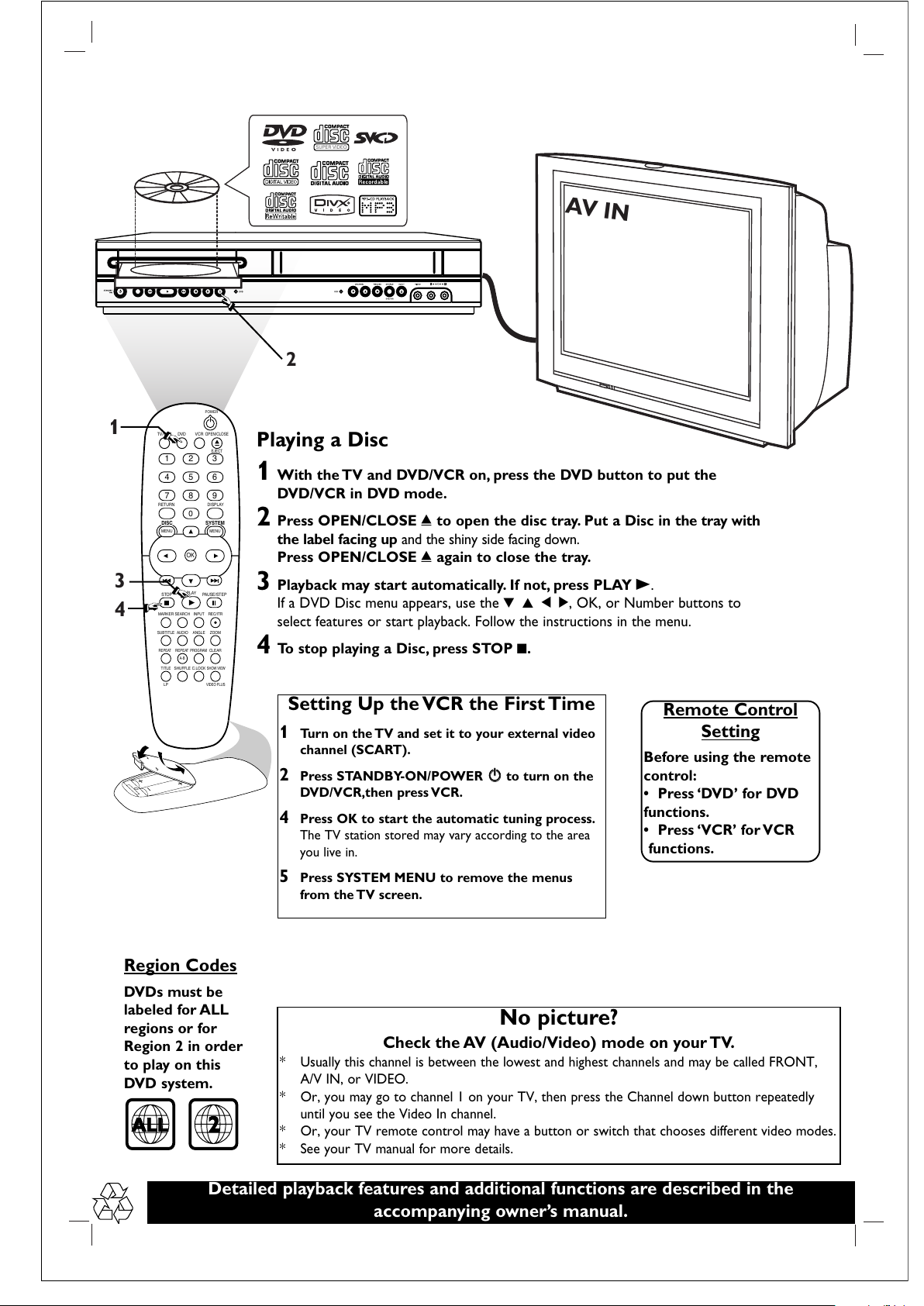

Playing a Disc

1With the TV and DVD/VCR on, press the DVD button to put the

DVD/VCR in DVD mode.

2Press OPEN/CLOSE /to open the disc tray. Put a Disc in the tray with

the label facing up and the shiny side facing down.

Press OPEN/CLOSE /again to close the tray.

3Playback may start automatically. If not, press PLAY B.

If a DVD Disc menu appears, use the 4 3 1 2, OK, or Number buttons to

select features or start playback. Follow the instructions in the menu.

4To stop playing a Disc, press STOP 9.

Detailed playback features and additional functions are described in the

accompanying owner’s manual.

Setting Up the VCR the First Time

1Turn on the TV and set it to your external video

channel (SCART).

2Press STANDBY-ON/POWER 22to turn on the

DVD/VCR,then press VCR.

4Press OK to start the automatic tuning process.

The TV station stored may vary according to the area

you live in.

5Press SYSTEM MENU to remove the menus

from theTV screen.

Region Codes

DVDs must be

labeled for ALL

regions or for

Region 2 in order

to play on this

DVD system.

ALL

No picture?

Check the AV (Audio/Video) mode on your TV.

*Usually this channel is between the lowest and highest channels and may be called FRONT,

A/V IN, or VIDEO.

*Or, you may go to channel 1 on your TV, then press the Channel down button repeatedly

until you see the Video In channel.

*Or, your TV remote control may have a button or switch that chooses different video modes.

*See your TV manual for more details.

Remote Control

Setting

Before using the remote

control:

• Press ‘DVD’ for DVD

functions.

• Press ‘VCR’ for VCR

functions.
