Philips DS1155/98 User manual

www.philips.com/welcome

User manual

Always there to help you

DS1155/98

Question?

Contact

Philips

1EN

Contents

1 Important 2

Safety 2

2 Your Docking Speaker 3

Introduction 3

What's in the box 3

Overview of the main unit 3

3 Get started 4

Connect power 4

Adjust time 4

Turn on 4

4 Play 5

Play from iPod/iPhone 5

Charge your mobile phone 5

Adjust volume 6

Adjust brightness 6

5 Product information 7

Specications 7

6 Troubleshooting 8

7 Notice 9

Disposal of your old product 9

2EN

1 Important

Safety

Important Safety Instructions

• Heed all warnings.

• Follow all instructions.

• Do not use this apparatus near water.

• Clean only with dry cloth.

• Do not block any ventilation openings.

Install in accordance with the

manufacturer's instructions.

• Do not install near any heat sources such

as radiators, heat registers, stoves, or

otherapparatus(includingampliers)that

produce heat.

• Protect the power cord from being

walked on or pinched, particularly at plugs,

convenience receptacles, and the point

where they exit from the apparatus.

• Onlyuseattachments/accessoriesspecied

by the manufacturer.

• Unplug this apparatus during lightning

storms or when unused for long periods

of time.

• Referallservicingtoqualiedservice

personnel. Servicing is required when

the apparatus has been damaged in any

way, such as power-supply cord or plug

is damaged, liquid has been spilled or

objects have fallen into the apparatus, the

apparatus has been exposed to rain or

moisture, does not operate normally, or

has been dropped.

• Apparatus shall not be exposed to

dripping or splashing.

• Do not place any sources of danger on the

apparatus(e.g.liquidlledobjects,lighted

candles).

• Where the plug of the Direct Plug-in

Adapter is used as the disconnect device,

the disconnect device shall remain readily

operable.

Warning

•Never remove the casing of this apparatus.

•Never lubricate any part of this apparatus.

•Never place this apparatus on other electrical

equipment.

•Keep this apparatus away from direct sunlight, naked

amesorheat.

•Make sure that you always have easy access to the

power cord, plug, or adaptor to disconnect the

apparatus from the power.

3EN

2 Your Docking

Speaker

Congratulations on your purchase, and

welcometoPhilips!Tofullybenetfromthe

support that Philips offers, register your product

at www.philips.com/welcome.

Introduction

With this docking speaker, you can:

• set time;

• enjoy audio from your iPod/iPhone.

What's in the box

Check and identify the contents of your

package:

• Main unit

• 1 x AC adaptor

• Short user manual

Overview of the main unit

a Dock for iPod/iPhone

• Adjust brightness of bottom light.

c CLOCK

• Adjust brightness of the display.

• Press and hold to set the clock.

• Charge your mobile phone through a

USB cable.

e DC IN

• Connect AC power.

f Display

g /

• Adjust volume.

4EN

3 Get started

Always follow the instructions in this chapter in

sequence.

If you contact Philips, you will be asked for the

model and serial number of this apparatus.The

model number and serial number are on the

bottom of the apparatus.Write the numbers

here:

Model No. __________________________

Serial No. ___________________________

Connect power

Caution

•Risk of product damage! Make sure that the power

supply voltage corresponds to the voltage printed on

the back of the unit.

•Risk of electric shock! When you unplug the AC

adaptor, always pull the plug from the socket. Never

pull the cord.

•Before connecting the AC adaptor, make sure that you

have completed all other connections.

Adjust time

1 In standby mode, press and hold CLOCK

to enter the clock setting mode.

» [24H] or [12H] hour format is

displayed.

2 Press +/- to select [24H] or [12H] hour

format, and then press CLOCK.

» The hour digits are displayed and begin

to blink.

3 Press +/- to set hour, and then press

CLOCK.

» The minute digits are displayed and

begin to blink.

4 Repeat step 3 to set minute.

Turn on

In standby mode, the docking speaker turns on

automatically when it detects an audio signal

from docked iPod/iPhone.

Switch to standby mode

The unit switches to standby mode if there is

no audio signal from docked iPod/iPhone over

15 minutes.

5EN

4 Play

Play from iPod/iPhone

You can enjoy audio from iPod/iPhone through

this docking speaker.

Compatible iPod/iPhone

The docking speaker supports the following

iPod/iPhone models.

Made for:

• iPhone 5

• iPodnano(7thgeneration)

• iPodtouch(5thgeneration)

Load the iPod/iPhone

Insert your iPod/iPhone into the dock.

» The docking speaker synchronizes time

from the docked iPod/iPhone.

To remove the iPod/iPhone:

• Pull your iPod/iPhone out of the dock.

Listen to the iPod/iPhone

Note

•Make sure that the iPod/iPhone is loaded correctly.

Start to play music from your iPod/iPhone.

» Music streams from the docking

speaker automatically.

Charge the iPod/iPhone

The docked iPod/iPhone begins to charge

automatically after connected to power.

Charge your mobile phone

You can charge your mobile phone through the

USB socket in this device with a USB cable (not

supplied)

6EN

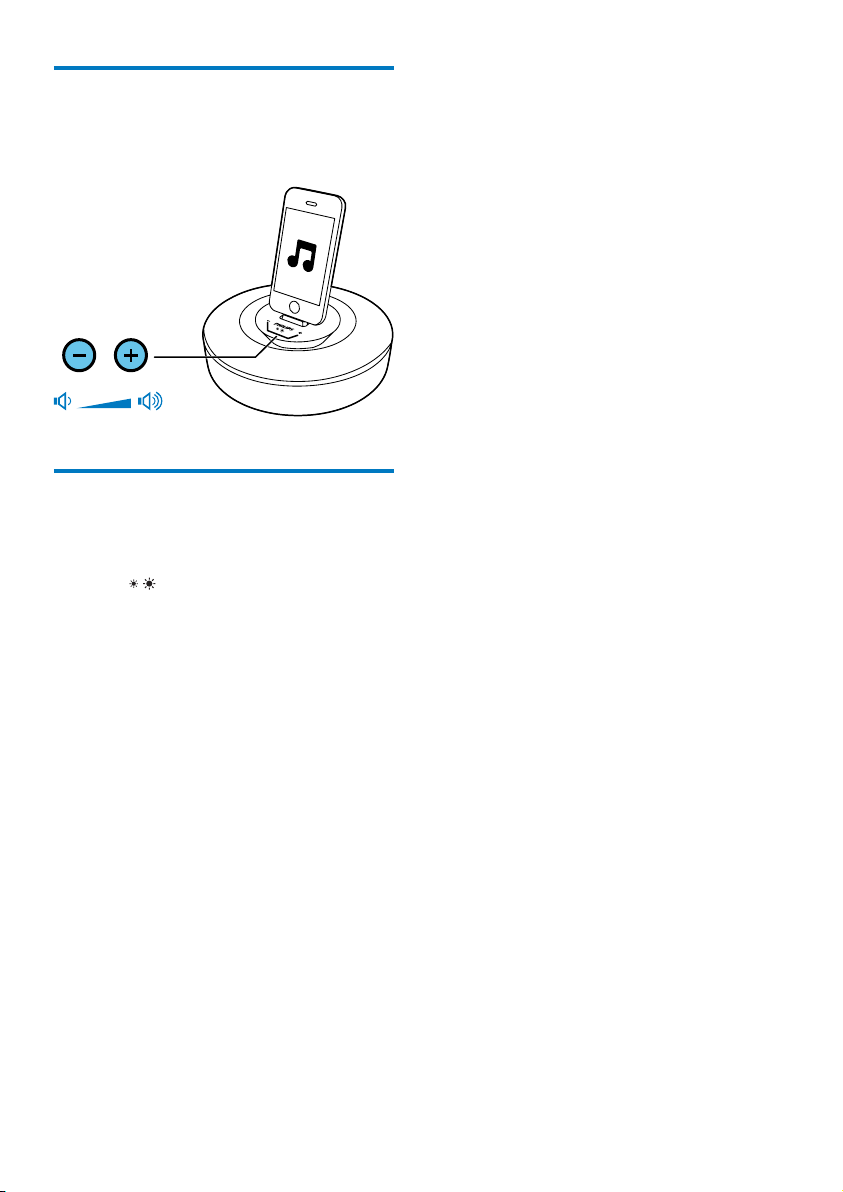

Adjust volume

During play, press +/- repeatedly to increase or

decrease the volume.

Adjust brightness

• Press CLOCK repeatedly to select

different levels of display brightness.

• Press repeatedly to select different

levels of bottom light brightness.

7EN

5 Product

information

Note

•Product information is subject to change without prior

notice.

Specications

Amplier

Rated Output Power 2 x 3 W

RMS

Signal to Noise Ratio 77 dBA

General information

AC power adaptor Model: OH-

1018A0592400U

(Philips)

Input: 100-240 V, 50/60

Hz, 650 mA;

Output: 5.9 V 2400

mA;

Operation Power

Consumption

18 W

Charging(USB) ≤500mA

Dimensions: Main

Unit(WxHxD)

177 x 177 x 100 mm

Weight: Main Unit 0.88 kg

8EN

6 Troubleshooting

Warning

•Never remove the casing of this device.

To keep the warranty valid, never try to repair

the system yourself.

If you encounter problems when using this

device, check the following points before

requesting service. If the problem remains

unsolved, go to the Philips Web page (www.

philips.com/support).WhenyoucontactPhilips,

make sure that the device is nearby and the

model number and serial number are available.

No power

•Make sure that the AC power plug of the

unit is connected properly.

•Make sure that there is power at the AC

outlet.

No sound or poor sound

•Adjust the volume of your docking speaker.

•Adjust the volume of your iPod/iPhone or

external audio device.

No response from the unit

•Disconnect and reconnect the AC power

plug, and then turn on the docking speaker

again.
