Philips Senseo HD7814/60/C User manual

ServiceManual

Philips DomesticAppliances and Personal Care

Published by Philips DomesticAppliances and Personal Care Printed in the Netherlands © Copyright reserved Subject to modification

Coffee Maker Senseo

HD7814/60

06/09

PRODUCT INFORMATION

- This product meets the requirements regarding

interference suppression on radio andTV.

- After the product has been repaired, it should function

properly and has to meet the safety requirements as

officially laid down at this moment.

TECHNICAL INFORMATION

- Voltage : 220 - 230 V

- Frequency : 50 Hz

- Power consumption : 1450 W

- Standby power consumption : 0.002 kWh

- Contents reservoir : 755 cc

- Colour setting : Black

- SAP coding : HD7814/60/C

CONTROL

PCB

Boiler

Pump

Fuse

Temp.

Sensor

Waterlevel

Sensor

Push buttons

Fuse

HD7814/60/C

4-5

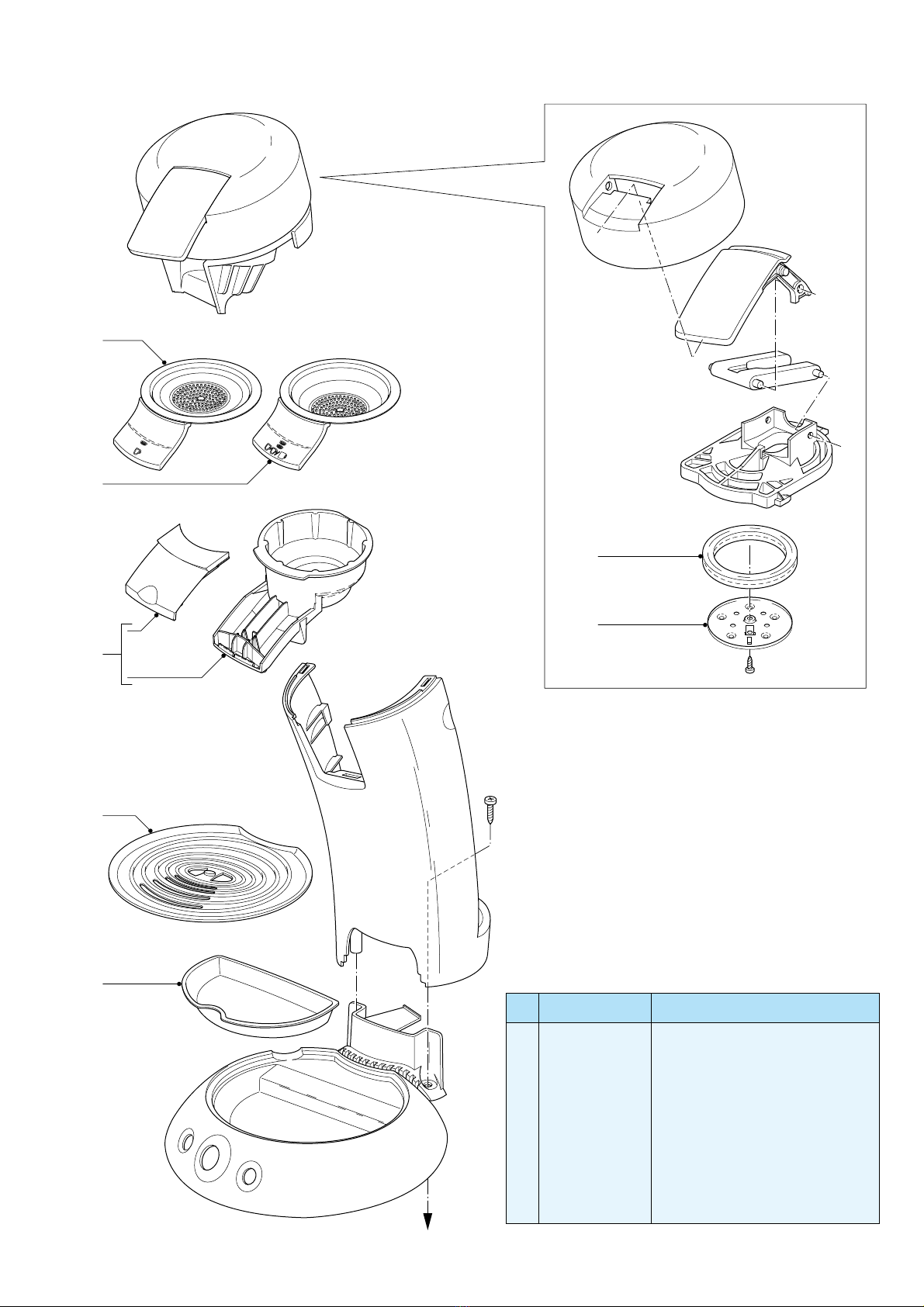

PARTS LIST & EXPLODEDVIEW

Pos Service code Description

4222 259 35130

4222 259 35140

4222 259 35120

4222 240 06670

4222 247 35790

4222 247 06810

4222 259 06890

Podholder single Black

(short GB/USA)

Podholder Double Black

(short GB/USA)

Foam chamber + cover Black

(short GB/USA)

DripTray Cover

DripTray

Brew chamber radial seal

Distributor assy

HD7814/60/C

5-5

PARTS LIST & EXPLODEDVIEW

Pos Service code Description

4222 259 34970

4222 259 06580

4222 259 20100

4222 247 37200

Valve (3way)

Water tank assy Soft Grey

XL (10 Cups)

Water tank assy Silent blue

Valve outlet Black

* standardized part

Pos Service code Description

4222 247 35870

4222 247 05180

4222 247 39890

4222 247 05110

4213 247 05250

Filter

WC sealing

WC socket hard

Corrugated tube

Foot
