Philips HD7690/90 User manual

ServiceManual

Philips Domestic Appliances and Personal Care

Published by Philips Domestic Appliances and Personal Care Printed in the Netherlands © Copyright reserved Subject to modification

Coffee maker Pure

HD7690/90

07/04

PRODUCT INFORMATION

- This product meets the requirements regarding

interference suppression on radio and TV.

- After the product has been repaired, it should function

properly and has to meet the safety requirements as

officially laid down at this moment.

TECHNICAL INFORMATION

- Voltage : 220 - 240 V

- Frequency : 50 - 60 Hz

- Power consumption : 1400 W

- Colour setting : Black/Steel

- Contents : 1200 cc

- SAP coding : HD7690/90

OPTIONAL (accessories)

- Commercial trade number jug + juglid : HD7986/90 (Black)

HD7690/90

DISASSEMBLY- AND RE-ASSEMBLY ADVISE

- Remove bottom base plate (3 screws).

- Now the Power module as well as the LCD/Timer module

can be reached.

- Disconnect the LCD/Timer module by pulling the 6 pins

connector from the Power module.

- Pull the complete pump unit downwards until the hose

pieces are loosened from the pump (hose pieces must stay

connected to the appliance-pipes).

- Remove screw A to replace the metal filter carrier cover.

(see picture)

REPAIR INSTRUCTION

- Descaling:

Regular de-scaling will prolong the life of your appliance

and will guarantee optimal brewing results.

Follow below steps to de-scale the appliance.

1. Fill the water tank with white vinegar.

2. Let the appliance complete two runs.

3. Let the appliance complete two more flushing cycles

with clean water to rinse away all vinegar.

If the above procedure does not restore the function, then

switch off the coffee maker when the acid passed through

during appr. 3 min.

Keep the appliance in this condition overnight and

continue the steps see above procedure.

ELECTRICAL DIAGRAM

Power

Module

Panel Module

Heater

Fuse

Blue

Mains

Blue

Grey

Black

Brown

Ther-

mostat

Auto Hrs Mins On/Off

8888

2-4

HD7690/90

EXPLODED VIEW & PARTS LIST

3-4

Pos Service code Description

4222 259 38780

4222 459 45049

4222 459 45050

4222 459 45034

4222 459 45048

4222 459 45047

4222 459 45053

4222 459 45046

4222 259 38770

4222 459 45044

4222 459 45029

LCD Module

Display window

Buttons

T-connector incl. valve

O-Ring

Heating system assy 230 V

Distance heater (3x)

Body bottom Black

Power PCB

Hose kit

Rubber foot (2x)

Pos Service code Description

4222 459 45037

4222 459 45022

4222 459 45023

4222 459 45024

4222 459 45040

4222 459 45035

4222 459 45025

4222 459 45052

4222 459 45017

4222 459 45021

4222 459 45038

Lid assy ﬁlterholder Black

Filter insert assy Black

Sealing dripstop

Dripstop kit

Frame Black

Knob kit

Filter cover brushed metal

Jug lid Black

Jug assy HD7986/90 Black

Watertank assy Black

Intake service kit

HD7690/90

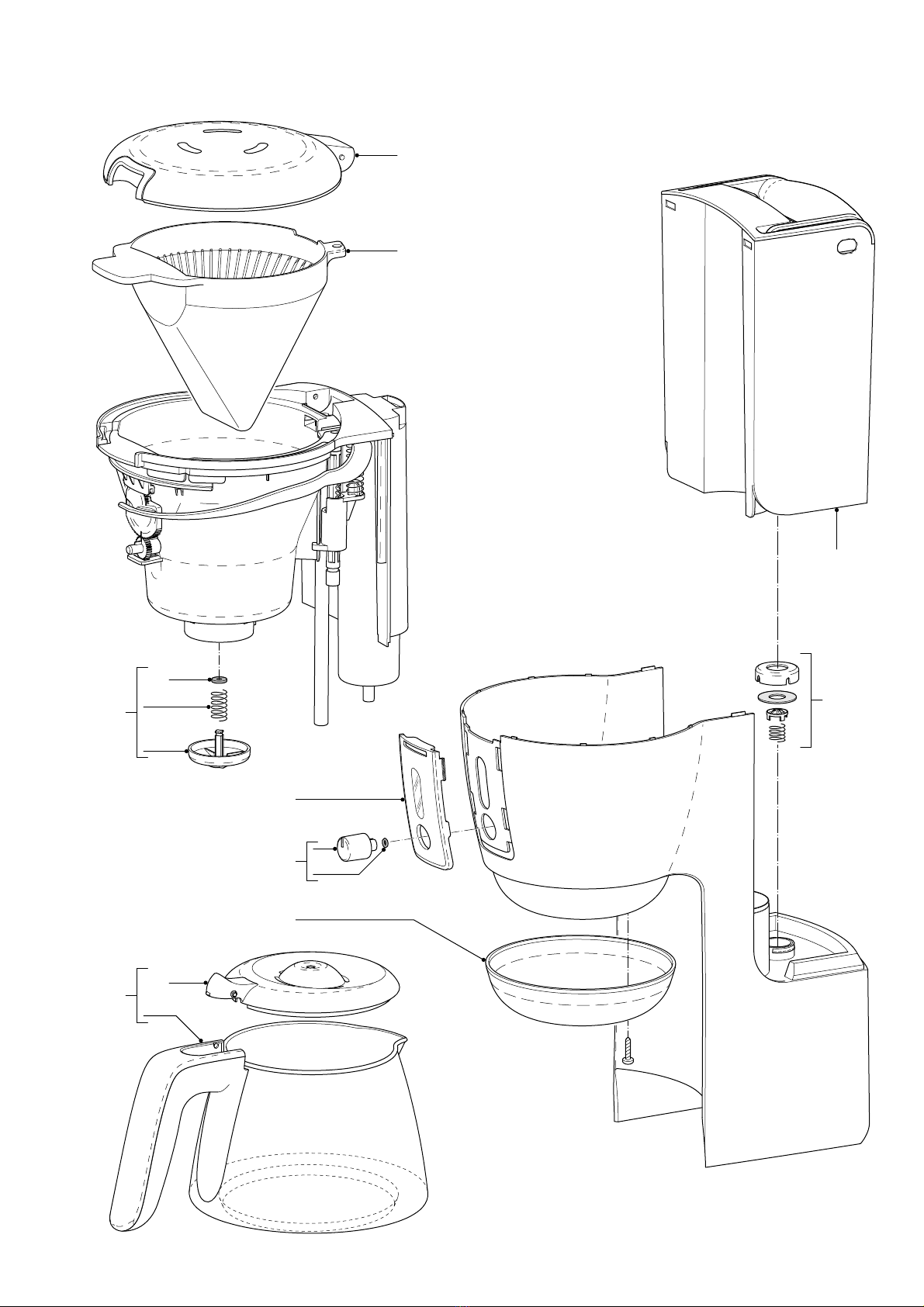

EXPLODED VIEW

15 22

4-4
