Philips AJ3112/37 User manual
Clock Radio
Register your product and get support at
www.philips.com/welcome
AJ3112/37
AJ3112_37_UM_EN 4/16/10 15:55 Page 1
1
3
4
1
#%^ $
5
9
0
678
2
!
@
AJ3112_37_UM_EN 4/16/10 15:55 Page 2
AJ3112_37_UM_EN 4/16/10 15:55 Page 3
AJ3112_37_UM_EN 4/16/10 15:55 Page 4

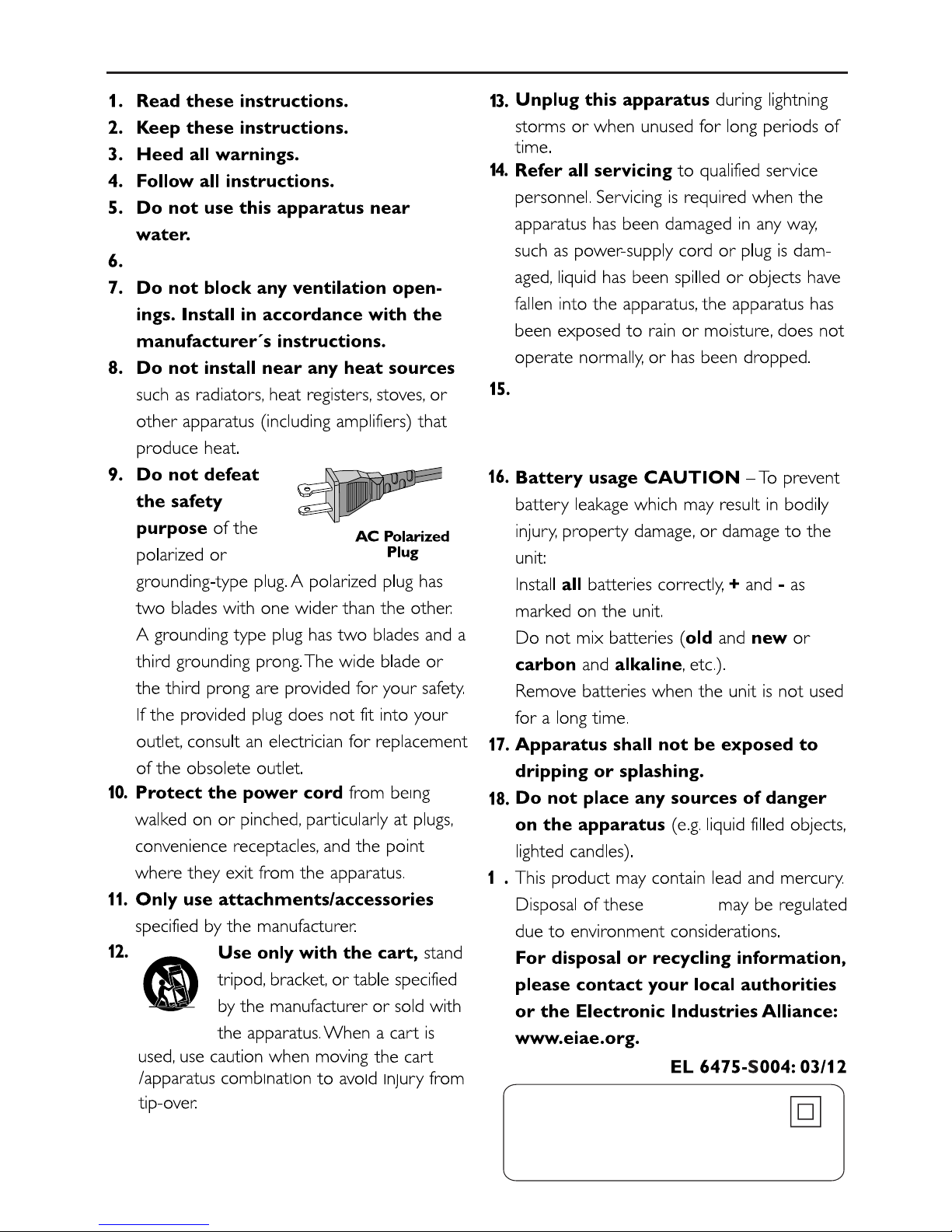

IMPORTANT SAFETY INSTRUCTIONS
Class II equipment symbol
This symbol indicates that the unit has
a double insulation system
Clean only with dry cloth.
Where the MAINS plug or an appliance
coupler is used as the disconnet device,
the disconnet device shall remain
readily operable.
materials
9
AJ3112_37_UM_EN 4/16/10 15:55 Page 5
Notice of compliance
The set complies with the FCC-Rules, Part 15 and with RSS-210 of
Industry Canada. Operation is subject to the following two conditions:
1.This device may not cause harmful interference, and
2.This device must accept any interference received, including interfer-
ence that may cause undesired operation.
English
CONTROLS (see fig. 1 )
1DISPLAY - shows the clock/ alarm time and status of the set
2ALARM indicator -
lights up when alarm is activated
3Frequency indicator - shows the radio frequency of your selected waveband
4REPEAT ALARM /
SLEEP
OFF
- switches off the active alarm for a 8-9 minute period
- switches off the sleep function
5CLOCK - sets the clock time
6SLEEP
- activates the radio for sleep function
- adjusts the sleep period
7ALARM RESET - stops the active alarm for 12 hours
8ALARM - sets the alarm function
Congratulations on your purchase and welcome to Philips!
To fully benefit from the support that Philips offers, register your
product at www.philips.com/welcome.
AJ3112_37_UM_EN 4/16/10 15:55 Page 6
9RADIO / ALARM
RADIO ON: switches on the radio
RADIO OFF: switches off the radio/alarm
ALARM - RADIO: activates the radio for alarm
ALARM - BUZ: activates the buzzer for alarm
0SET TIME HR / MIN
- adjusts the hours / minutes for clock / alarm / sleep time
!Power cord -
connects to wall outlet
@Pigtail - improve FM reception
#VOLUME - adjusts the sound level
$Battery door - opens to store a 9 volts 6F22 battery (not included) for clock
memory backup.
%FM/AM (MW) - selects FM/AM (MW) waveband
^TUNING - tunes to radio stations
Specifications
AC Power........................................................120 V / 60 Hz
Power Consumption
Active.......................................................................... 5 W
Standby.................................................................... 2.8 W
Dimensions (w x d x h)...............130.4 x 130 x 46.8 (mm)
.............................................................5.1 x 5.1 x 1.8 (inch)
Weight............................................0.395 kg / 0.87 pounds
AJ3112_37_UM_EN 4/16/10 15:55 Page 7
INSTALLATION
POWER SUPPLY
1
Check if the power supply, as shown on the type plate located on the bot-
tom of the set, corresponds to your local power supply. If it does not, consult
your dealer or service center.
2
Connect the plug to the wall outlet.
3
To disconnect the set from the power supply completely, remove the
plug from the wall outlet.
For users in the U.K.: please follow the instructions on the lower left
handed corner of the sheet.
CLOCK MEMORY BACKUP
The clock memory backup allows your alarm and clock time settings to be stored
for up to a day when there is a power interruption e.g. power failure. The com-
plete clock radio and display illumination will be switched off. As soon as the
power supply returns, the display will indicate the correct time.
1
Remove the battery door to insert a 9 volts 6F22 type battery (not included)
for backup.
2
Replace the battery door.
NOTE:
If no backup battery is installed or the power interruption is prolonged,
you will need to set the clock and alarm times again.
Batteries contain chemical substances so they should be disposed of
properly.
Perchlorate Material - special handling may apply. See
www.dtsc.ca.gov/hazardouswaste/perchlorate.
AJ3112_37_UM_EN 4/16/10 15:55 Page 8
RADIO
You can use this set solely as a radio!
1
Adjust
RADIO / ALARM
to
RADIO ON
to switch on the radio.
2
Select your waveband by adjusting the
FM/AM (MW)
switch
.
3
Adjust TUNING to tune to your desired station
.
4
Turn the VOLUME control to adjust the volume level
.
5
Adjust
RADIO / ALARM
to OFF to switch off the radio.
To improve reception:
FM:
Extend and position the pigtail fully to obtain optimal reception.
AM (MW):
uses a built-in antenna inside the set. Direct the antenna
by adjusting the position of your set
.
SETTING THE CLOCK / ALARM TIME
The time is displayed using the 12-hour clock.
1
Hold down CLOCK or ALARM.
2
Press
HR
or
MIN
repeatedly, or hold down
HR
or
MIN
to adjust minute
and/or hour.
3
Release CLOCK or ALARM and
HR
or
MIN
when you reach the correct setting.
™The set clock time will show on the display and start to run.
SELECTING THE ALARM MODE
To use the alarm, you must set the alarm time first. You can choose from two dif-
ferent alarm modes to wake you up: by radio or buzzer.
1
Select your choice of alarm mode by adjusting
RADIO / ALARM
to
RADIO
or
BUZ
.
™
The alarm indicator (AL) will light up.
AJ3112_37_UM_EN 4/16/10 15:55 Page 9
Helpful Hint:
•
If you have selected the radio mode, make sure you have adjusted the vol-
ume loud enough to wake you.
•
The buzzer is set at a fixed volume and cannot be adjusted.
SWITCHING OFF THE ALARM
There are three ways of switching off the alarm. Unless you cancel the alarm
completely, the 12 hour alarm reset option will be automatically selected after
1 hour and 59 minutes, from the time your alarm time first goes off.
12 HOUR ALARM RESET
If you want the alarm mode to be stopped immediately but also wish to retain
the same alarm setting for the following day:
•
Press ALARM RESET during the alarm call.
™
The alarm indicator (AL) will remain on.
CANCELING THE ALARM COMPLETELY
To cancel the set alarm time before it goes off, or during the alarm call:
•
Adjust
RADIO / ALARM
to OFF position.
™
The alarm indicator (AL) will light off.
REPEAT ALARM
This repeats your alarm call at 9-minute intervals.
1
During the alarm call, press REPEAT ALARM
/
SLEEP
OFF
.
™
The alarm indicator (AL) will remain on.
AJ3112_37_UM_EN 4/16/10 15:55 Page 10
