Philips CID3693/00 User manual

www.philips.com/welcome

EN Quick Start Guide

REVERSE

PARKING

CAMERA CVBS

0DLQXQLW

*36DQWHQQD

3,1

WRRULJLQDO

GLVSOD\VFUHHQ

3,1

WRRULJLQDO&'

SOD\HU

3,1

WRRULJLQDO&'

SOD\HU

3,1

WRRULJLQDOLQFDU

V\VWHP

3,1

WRRULJLQDOLQFDU

V\VWHP

WR&$1ER[

<HOORZ

ޮ෿൮௘ൿԟ

$9V\VWHP

%ODFN

ޮ෿Ԭଇ௤

<HOORZ

:KLWH

5HG

$8;

ޮ෿൮௘ൿԟ

ޮ෿Ⴛၿ௘ൿԟ

ޮ෿ቔၿ௘ൿԟ

5HDUVFUHHQ

:LUHOHVVKHDGSKRQH

<HOORZ

5HG

:KLWH

ڧᇽ൮௘ൿೊ

ڧᇽႻၿ௘ൿೊ

ڧᇽቔၿ௘ൿೊ

2 3

4 5

English

Connect wires 1

1Check the car’s wirings carefully, then

connect them to the unit.

Mount in the dashboard

1If the car does not have an on-board drive

or navigation computer, disconnect the

negative terminal of the car battery.

2Ensure that the horizontal slant of the car

dashboard opening is between 0 and 20

degrees. The unit cannot be used if the

dashboard opening’s slant angle is above 20

degrees.

3Fix the plastic clips and base support

(removed from the original in-car system)

to the main unit. 2

4Fix the mounting brackets (removed from

the original in-car system) to the left and

right side panels of the main unit. 3

5Fix the exhaust outlets of the original air-

conditioner to the two openings. 4

6Fix the hazard warning switch (removed

from the original in-car system) to the main

unit. 5

7 Slidetheunitintothedashboardandxit

to the car.

8Reconnect the negative terminal of the car

battery.

Turn on

1Press and hold /MUTE/VOL to turn on

the unit.

The available OSD (On-Screen Display)»

languages are displayed.

2Tap a language to select.

To turn off the unit, press and hold• /

MUTE/VOL.

Set date and time

1Tap to display home menu.

2Tap [Settings].

3Tap [Time].

The date/time setup menu is displayed.»

Set date

1Tap [Date].

2Tap on the displayed date information.

3Tap or to set year, month and day.

Set clock mode

1Tap [Clock mode].

2Tap on [12Hr] or [24Hr] to select clock

mode.

Set time

1Tap [Time].

2Tap on the displayed time.

3Tap or to set hour and minute.

Use map

Note

You may need to upgrade the map (sold•

separately) before using it.

1In the main menu, tap [Navigation].

The navigation menu is displayed in a»

few seconds.

2See the map manual to operate the

navigation tool.

Listen to Radio

1Tap to display the home menu.

2Tap [Radio].

Band and frequency information is»

displayed.

3Tap on FM or AM to select band:

4 Brieytap or to tune to a radio station

by step.

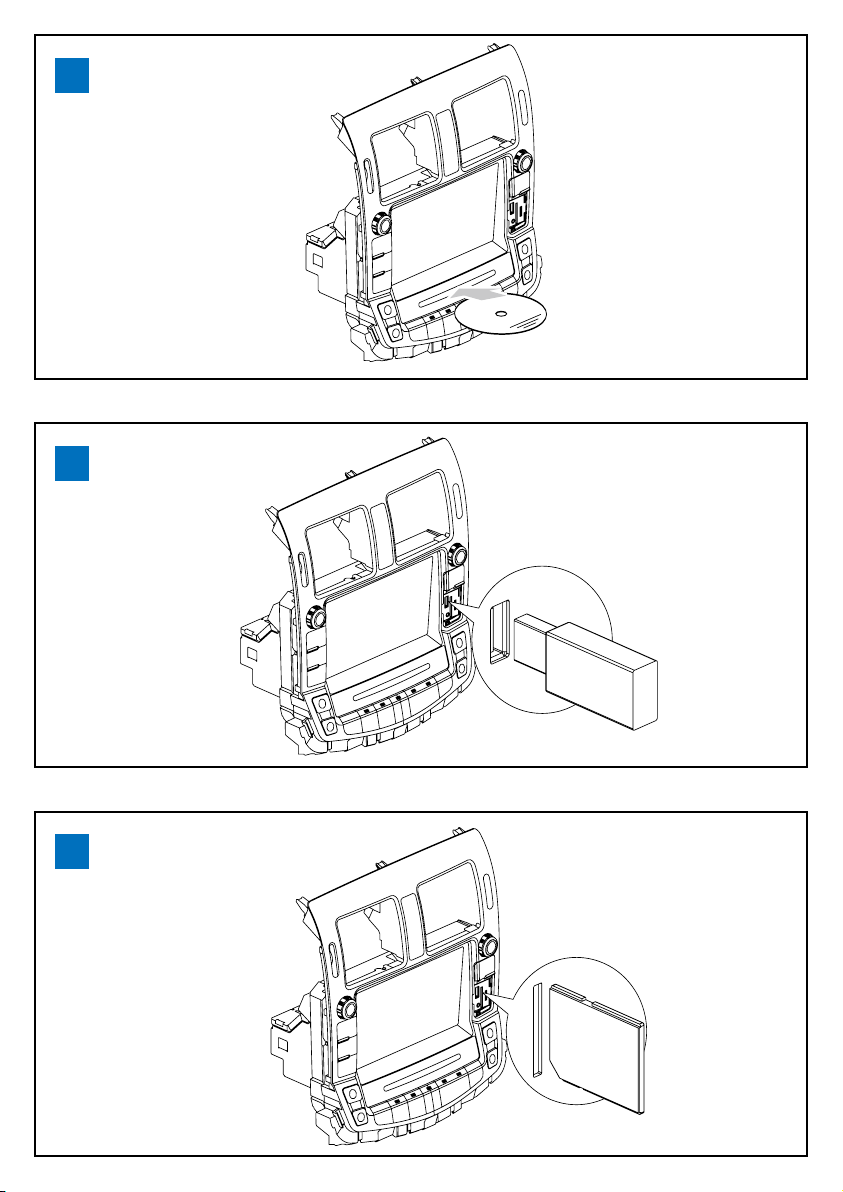

Play disc 6

You can play video, audio or images stored on the

following discs:

DVD video, DVD-R, DVD-RW•

VCD•

Audio CD, CD-R, CD-RW•

1Insert a disc into the disc slot with the label

side facing up.

Play starts automatically.»

Connect USB device 7

1Open the USB/SDHC socket cover.

2Insert the USB storage device to the USB

socket.

Play starts automatically.»

Insert SD/MMC card 8

1Open the USB/SDHC socket cover.

2Insert the SD/MMC card into the card slot.

Play starts automatically.»

Make a call

1Pair the phone with the unit.

2Tap to display the home menu.

3Tap [Bluetooth].

The Bluetooth menu is displayed.»

4Tap or to select the paired phone, then

tap .

5Tap or to search for phone number

from the following list:

• [Missed calls]

• [Received calls]

• [Dialed calls]

• [Phone book]

• [Sim phone book]

• [Local phone book]

Or tap to dial number directly, then tap to

dial.

Answer a call

By default, the in-car system answers all incoming

calls automatically.

1If there is incoming call, [Incoming call...]

ashesonthescreen.Speakintothe

Bluetooth microphone.

2When conversation ends, tap (red) to

terminate the call.

CID3693_00_QSG_V1.0
