BGD602

CATV amplifier module

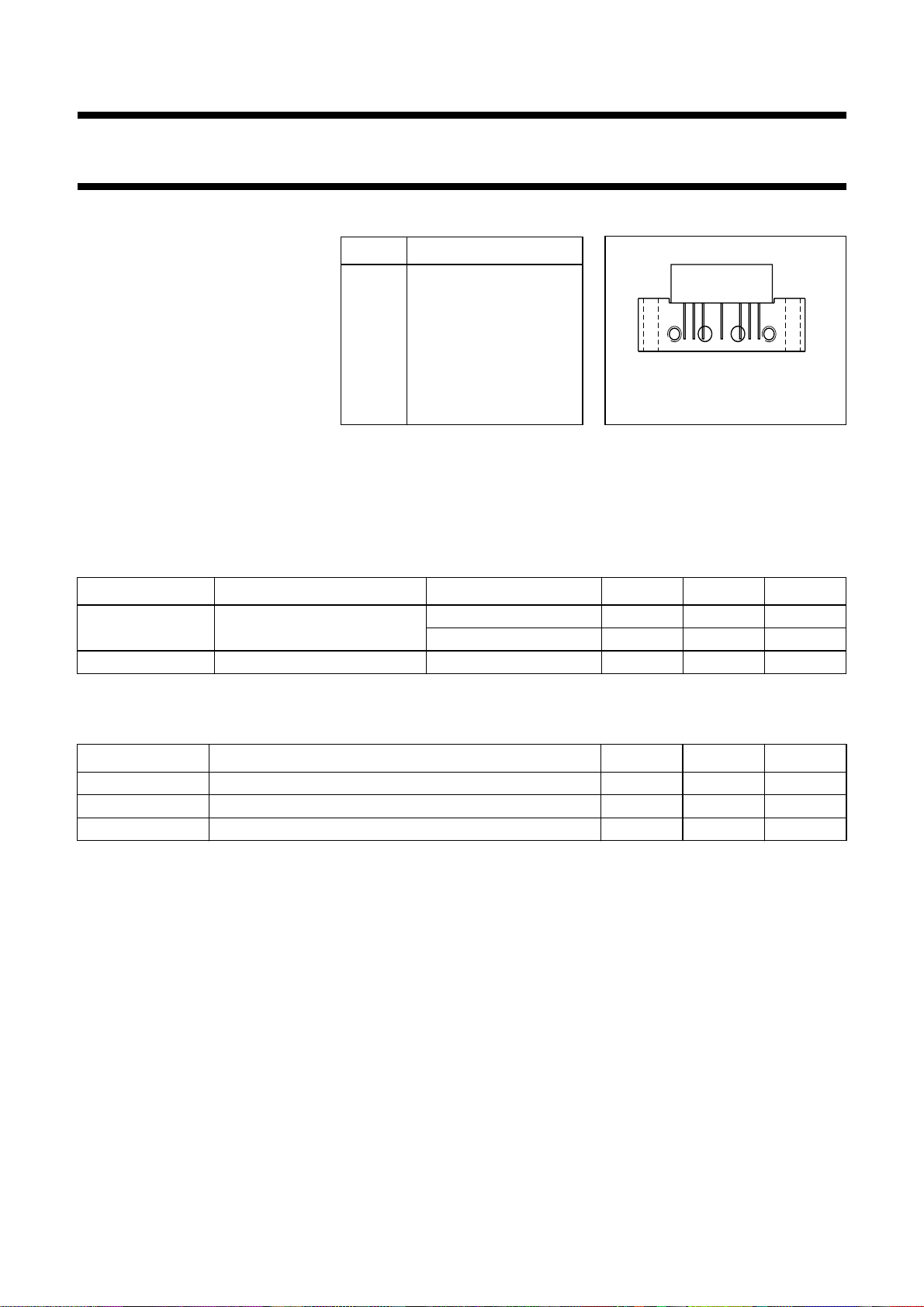

February 1994 2

Philips Semiconductors Productspeciﬁcation

CATV ampliﬁer module BGD602

FEATURES

•Excellent linearity

•Extremely low noise

•Silicon nitride passivation

•Rugged construction

•Gold metallization ensures

excellent reliability.

DESCRIPTION

Hybrid high dynamic range amplifier

module designed for applications in

CATV systems with a bandwidth of

40 to 600 MHz operating with a

voltage supply of 24 V (DC).

PINNING - SOT115J

PIN DESCRIPTION

1 input

2 common

3 common

5+V

7 common

8 common

9 output Fig.1 Simplified outline.

page

789

2351

Side view

MSA319

QUICK REFERENCE DATA

LIMITING VALUES

In accordance with the Absolute Maximum Rating System (IEC 134).

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT

Gppower gain f = 50 MHz 18 19 dB

f = 600 MHz 19 −dB

Itot total current consumption (DC) VB= 24 V −435 mA

SYMBOL PARAMETER MIN. MAX. UNIT

ViRF input voltage −65 dBmV

Tstg storage temperature −40 +100 °C

Tmb operating mounting base temperature −20 +100 °C

February 1994 3

Philips Semiconductors Productspeciﬁcation

CATV ampliﬁer module BGD602

CHARACTERISTICS

Bandwidth 40 to 600 MHz; VB= 24 V; Tmb = 35 °C; ZS= ZL= 75 Ω.

Notes

1. fp= 55.25 MHz; Vp= 44 dBmV;

fq= 541.25 MHz; Vq= 44 dBmV;

measured at fp+ fq= 596.5 MHz.

2. Measured according to DIN45004B:

fp= 590.25 MHz; Vp= Vo;

fq= 597.25 MHz; Vq= Vo−6 dB;

fr= 599.25 MHz; Vr= Vo−6 dB;

measured at fp+ fq−fr= 588.25 MHz.

3. The module normally operates at VB= 24 V, but is able to withstand supply transients up to 30 V.

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT

Gppower gain f = 50 MHz 18 19 dB

f = 600 MHz 19 −dB

SL slope cable equivalent f = 40 to 600 MHz 0.2 2.2 dB

FL ﬂatness of frequency response f = 40 to 600 MHz −±0.3 dB

S11 input return losses f = 40 to 80 MHz 20 −dB

f = 80 to 160 MHz 19 −dB

f = 160 to 600 MHz 18 −dB

S22 output return losses f = 40 to 80 MHz 20 −dB

f = 80 to 160 MHz 19 −dB

f = 160 to 600 MHz 18 −dB

S21 phase response f = 50 MHz −45 +45 deg

CTB composite triple beat 85 channels ﬂat;

Vo= 44 dBmV;

measured at 595.25 MHz

−−62 dB

Xmod cross modulation 85 channels ﬂat;

Vo= 44 dBmV;

measured at 55.25 MHz

−−66 dB

CSO composite second order distortion 85 channels ﬂat;

Vo= 44 dBmV;

measured at 596.5 MHz

−−60 dB

d2second order distortion note 1 −−70 dB

Vooutput voltage dim = −60 dB; note 2 63 −dBmV

F noise ﬁgure f = 600 MHz −8dB

tot total current consumption (DC) note 3 −435 mA

February 1994 4

Philips Semiconductors Productspeciﬁcation

CATV ampliﬁer module BGD602

CHARACTERISTICS

Bandwidth 40 to 550 MHz; VB= 24 V; Tmb = 35 °C; ZS= ZL= 75 Ω.

Notes

1. fp= 55.25 MHz; Vp= 44 dBmV;

fq= 493.25 MHz; Vq= 44 dBmV;

measured at fp+ fq= 548.5 MHz.

2. Measured according to DIN45004B:

fp= 540.25 MHz; Vp= Vo;

fq= 547.25 MHz; Vq= Vo−6 dB;

fr= 549.25 MHz; Vr= Vo−6 dB;

measured at fp+ fq−fr= 538.25 MHz.

3. The module normally operates at VB= 24 V, but is able to withstand supply transients up to 30 V.

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT

Gppower gain f = 50 MHz 18 19 dB

f = 550 MHz 18.8 −dB

SL slope cable equivalent f = 40 to 550 MHz 0.2 2.2 dB

FL ﬂatness of frequency response f = 40 to 550 MHz −±0.3 dB

S11 input return losses f = 40 to 80 MHz 20 −dB

f = 80 to 160 MHz 19 −dB

f = 160 to 550 MHz 18 −dB

S22 output return losses f = 40 to 80 MHz 20 −dB

f = 80 to 160 MHz 19 −dB

f = 160 to 550 MHz 18 −dB

S21 phase response f = 50 MHz −45 +45 deg

CTB composite triple beat 77 channels ﬂat;

Vo= 44 dBmV;

measured at 547.25 MHz

−−66 dB

Xmod cross modulation 77 channels ﬂat;

Vo= 44 dBmV;

measured at 55.25 MHz

−−68 dB

CSO composite second order distortion 77 channels ﬂat;

Vo= 44 dBmV;

measured at 548.5 MHz

−−62 dB

d2second order distortion note 1 −−72 dB

Vooutput voltage dim = −60 dB; note 2 64 −dBmV

F noise ﬁgure f = 550 MHz −7.5 dB

Itot total current consumption (DC) note 3 −435 mA

February 1994 5

Philips Semiconductors Productspeciﬁcation

CATV ampliﬁer module BGD602

CHARACTERISTICS

Bandwidth 40 to 450 MHz; VB= 24 V; Tmb = 35 °C; ZS= ZL= 75 Ω.

Notes

1. fp= 55.25 MHz; Vp= 46 dBmV;

fq= 391.25 MHz; Vq= 46 dBmV;

measured at fp+ fq= 446.5 MHz.

2. Measured according to DIN45004B:

fp= 440.25 MHz; Vp= Vo;

fq= 447.25 MHz; Vq= Vo−6 dB;

fr= 449.25 MHz; Vr= Vo−6 dB;

measured at fp+ fq−fr= 438.25 MHz.

3. The module normally operates at VB= 24 V, but is able to withstand supply transients up to 30 V.

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT

Gppower gain f = 50 MHz 18 19 dB

f = 450 MHz 18.6 −dB

SL slope cable equivalent f = 40 to 450 MHz 0.2 1.8 dB

FL ﬂatness of frequency response f = 40 to 450 MHz −±0.3 dB

S11 input return losses f = 40 to 80 MHz 20 −dB

f = 80 to 160 MHz 19 −dB

f = 160 to 450 MHz 18 −dB

S22 output return losses f = 40 to 80 MHz 20 −dB

f = 80 to 160 MHz 19 −dB

f = 160 to 450 MHz 18 −dB

S21 phase response f = 50 MHz −45 +45 deg

CTB composite triple beat 60 channels ﬂat;

Vo= 46 dBmV;

measured at 445.25 MHz

−−67 dB

Xmod cross modulation 60 channels ﬂat;

Vo= 46 dBmV;

measured at 55.25 MHz

−−66 dB

CSO composite second order distortion 60 channels ﬂat;

Vo= 46 dBmV

measured at 446.5 MHz

−−60 dB

d2second order distortion note 1 −−75 dB

Vooutput voltage dim = −60 dB; note 2 67 −dBmV

F noise ﬁgure f = 450 MHz −7dB

tot total current consumption (DC) note 3 −435 mA

February 1994 6

Philips Semiconductors Productspeciﬁcation

CATV ampliﬁer module BGD602

DEFINITIONS

LIFE SUPPORT APPLICATIONS

These products are not designed for use in life support appliances, devices, or systems where malfunction of these

products can reasonably be expected to result in personal injury. Philips customers using or selling these products for

use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such

improper use or sale.

Data sheet status

Objective speciﬁcation This data sheet contains target or goal speciﬁcations for product development.

Preliminary speciﬁcation This data sheet contains preliminary data; supplementary data may be published later.

Product speciﬁcation This data sheet contains ﬁnal product speciﬁcations.

Limiting values

Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one or

more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation

of the device at these or at any other conditions above those given in the Characteristics sections of the speciﬁcation

is not implied. Exposure to limiting values for extended periods may affect device reliability.

Application information

Where application information is given, it is advisory and does not form part of the speciﬁcation.
