Philco PCD 3122 Installation instructions
Refrigerator Freezer
User Instruction
PCD 3122
Dear customer,
Thank you for buying aPHILCO brand product. So that your appliance serves you well, please read all
the instructions in this user'smanual.
EN - 1
08/2015Copyright © 2015, Fast ČR, a. s.
CONTENTS
PART 1: SAFETY INFORMATION ......................................................................................................................2
PART 2: OVERVIEW ..........................................................................................................................................6
PART 3: REVERSE DOOR ..................................................................................................................................7
PART 4: INSTALLATION ..................................................................................................................................11
PART 5: DAILY USE .........................................................................................................................................13
PART 6: INFORMATION SHEET ......................................................................................................................17
EN - 2
08/2015Copyright © 2015, Fast ČR, a. s.
PART 1: SAFETY INFORMATION
In the interest of your safety and to ensure the correct use, before installing and rst using the appliance, read
this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is
important to ensure that all people using the appliance are thoroughly familiar with its operation and safety
features. Save these instructions and make sure that they remain with the appliance if it is moved or sold, so
that everyone using it through its life will be properly informed on appliance use and safety.
For the safety of life and property keep the precautions of these user’sinstructions as the manufacturer is not
responsible for damages caused by omission.
Children and vulnerable people safety
• This appliance can be used by children aged from 8 years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and knowledge if they have been given super vision or
instruction concerning use of the appliance in asafe way and understand the hazards involved.
• Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above
and supervised.
• Keep all packaging well away from children. There is risk of suocation.
• If you are discarding the appliance pull the plug out of the socket, cut the connection cable (as close to
the appliance as you can) and remove the door to prevent playing children to suer electric shock or to
close themselves into it.
• If this appliance featuring magnetic door seals is to replace an older appliance having aspring lock (latch)
on the door or lid, be sure to make that spring lack unusable before you discard the old appliance. This will
prevent it from becoming adeath trap for achild.
General safety
WARNING! Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of
obstruction.
WARNING! Do not use mechanical devices or other means to accelerate the defrosting process, other
than those recommended by the manufacturer.
WARNING! Do not damage the refrigerant circuit.
WARNING! Do not use other electrical appliances (such as ice cream makers) inside of refrigerating
appliances, unless they are approved for this purpose by the manufacture.
WARNING! Do not touch the light bulb if it has been on for along period of time because it could be
very hot.1)
• Do not store explosive substances such as aerosol cans with aammable propellant in this appliance.
• The refrigerant isobutane (R600a) is contained within the refrigerant circuit of the appliance, anatural gas
with ahigh level of environmental compatibility, which is nevertheless ammable.
• During transportation and installation of the appliance, be certain that none of the components of the
refrigerant circuit become damaged.
- avoid open ames and sources of ignition
- thoroughly ventilate the room in which the appliance is situated
EN - 3
08/2015Copyright © 2015, Fast ČR, a. s.
• It is dangerous to alter the specications or modify this product in any way. Any damage to the cord may
cause ashort circuit, re and/or electric shock.
• This appliance is intended to be used in household and similar applications such as
- sta kitchen areas in shops, oces and other working environments;
- farm houses and by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments;
- catering and similar non-retail applications.
WARNING! Any electrical components(plug, power cord, compressor and etc.) must be replaced by
acertied service agent or qualied service personnel.
WARNING! The light bulb supplied with this appliance is a“special use lamp bulb”usable only with the
appliance supplied. This “special use lamp”is not usable for domestic lighting.1)
1) If there is alight in the compartment.
• Power cord must not be lengthened.
• Make sure that the power plug is not squashed or damaged by the back of the appliance. Asquashed or
damaged power plug may overheat and cause are.
• Make sure that you can come to the mains plug of the appliance.
• Do not pull the mains cable.
• If the power plug socket is loose, do not insert the power plug. There is arisk of electric shock or re.
• You must not operate the appliance without the lamp.
• This appliance is heavy. Care should be taken when moving it.
• Do not remove nor touch items from the freezer compartment if you hands are damp/wet, as this could
cause skin abrasions or frost/freezer burns.
• Avoid prolonged exposure of the appliance to direct sunlight.
Daily use
• Do not put hot on the plastic parts in the appliance.
• Do not place food products directly against the rear wall.
• Frozen food must not be re-frozen once it has been thawed out. 1)
• Store pre-packed frozen food in accordance with the frozen food manufacture’sinstructions. 1)
• Appliance’s manufactures storage recommendations should be strictly adhered to. Refer to relevant
instructions.
• Do not place carbonated of zzy drinks in the freezer compartment as it creates pressure on the container,
which may cause it to explode, resulting in damage to the appliance. 1)
• Ice lollies can cause frost burns if consumed straight from the appliance.1)
Care and cleaning
• Before maintenance, switch o the appliance and disconnect the mains plug from the mains socket.
• Do not clean the appliance with metal objects.
• Do not use sharp objects to remove frost from the appliance. Use aplastic scraper. 1)
• Regularly examine the drain in the refrigerator for defrosted water. If necessary, clean the drain. If the drain
is blocked, water will collect in te bottom of the appliance. 2)
1) If there is afreezer compartment.
2) If there is afresh-food storage compartment.
EN - 4
08/2015Copyright © 2015, Fast ČR, a. s.
Installation
Important! For electrical connection carefully follow the instructions given in specic paragraphs.
• Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged.
Report possible damages immediately to the place you bought it. In that case retain packing.
• It is advisable to wait at least four hours before connecting the appliance to allow the oil to ow back in
the compressor.
• Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve
sucient ventilation follow the instructions relevant to installation.
• Wherever possible the spacers of the product should be against awall to avoid touching or catching warm
parts (compressor, condenser) to prevent possible burn.
• The appliance must not be located close to radiators or cookers.
• Make sure that the mains plug is accessible after the installation of the appliance.
Service
• Any electrical work required to do the servicing of the appliance should be carried out by a qualied
electrician or competent person.
• This product must be serviced by an authorized Service Center, and only genuine spare parts must be
used.
Energy saving
• Don’t put hot food in the appliance;
• Don’t pack food close together as this prevents air circulating;
• Make sure food don’t touch the back of the compartment(s);
• If electricity goes o, don’t open the door(s);
• Don’t open the door(s) frequently;
• Don’t keep the door(s) open for too long time;
• Don’t set the thermostat on exceeding cold temperatures;
• Some accessaries, such as drawers, can be removed to get larger storage volume and lower energy
consumption.
Environment Protection
This appliance does not contain gasses which could damage the ozone layer, in either its refrigerant
circuit or insulation materials.The appliance shall not be discarded together with the urban refuse and
rubbish. The insulation foam contains ammable gases: the appliance shall be disposed according
to the appliance regulations to obtain from your local authorities. Avoid damaging the cooling unit,
especially the heat exchanger. The materials used on this appliance marked by the symbol are
recyclable.
The symbol on the product or on its packaging indicates that this product may not be treated as
household waste. Instead it should be taken to the appropriate collection point for the recycling of
electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help
prevent potential negative consequences for the environment and human health, which could
otherwise be caused by inappropriate waste handling of this product. For more detailed information
about recycling of this product, please contact your local council, your household waste disposal
service or the shop where you purchased the product.
EN - 5
08/2015Copyright © 2015, Fast ČR, a. s.
Packaging materials
The materials with the symbol are recyclable. Dispose the packaging in a suitable collection containers to
recycle it.
Disposal of the appliance
1. Disconnect the mains plug from the mains socket.
2. Cut o the mains cable and discard it.
EN - 6
08/2015Copyright © 2015, Fast ČR, a. s.
PART 2: OVERVIEW
1
2
3
4
5
6
7
1. Thermostat and Light 5. Freezer Drawers
2. Glass Shelves 6. Leveling Feet
3. Crisper Cover 7. Balconies
4. Crisper 8. Upper Crisper
This illustration is only for hinting, the detail please check your appliance.
PART 2: OVERVIEW
3
EN - 7
08/2015Copyright © 2015, Fast ČR, a. s.
PART 3: REVERSE DOOR
Tool required: Philips screwdriver, Flat bladed screwdriver, Hexagonal spanner.
• Ensure the unit is unplugged and empty.
• To take the door o, it is necessary to tilt the unit backwards. You should rest the unit on something solid
so that it will not slip during the door reversing process.
• All parts removed must be saved to do the reinstallation of the door.
• Do not lay the unit at as this may damage the coolant system.
• It’sbetter that 2 people handle the unit during assembly.
1. Remove two screw cover on the front plate.
2. Unscrew the hinge and then remove upper door and place it on
asoft pad to avoid scratch.
PART
3:
REVER
S
E D
OOR
Unscrew
EN - 8
08/2015Copyright © 2015, Fast ČR, a. s.

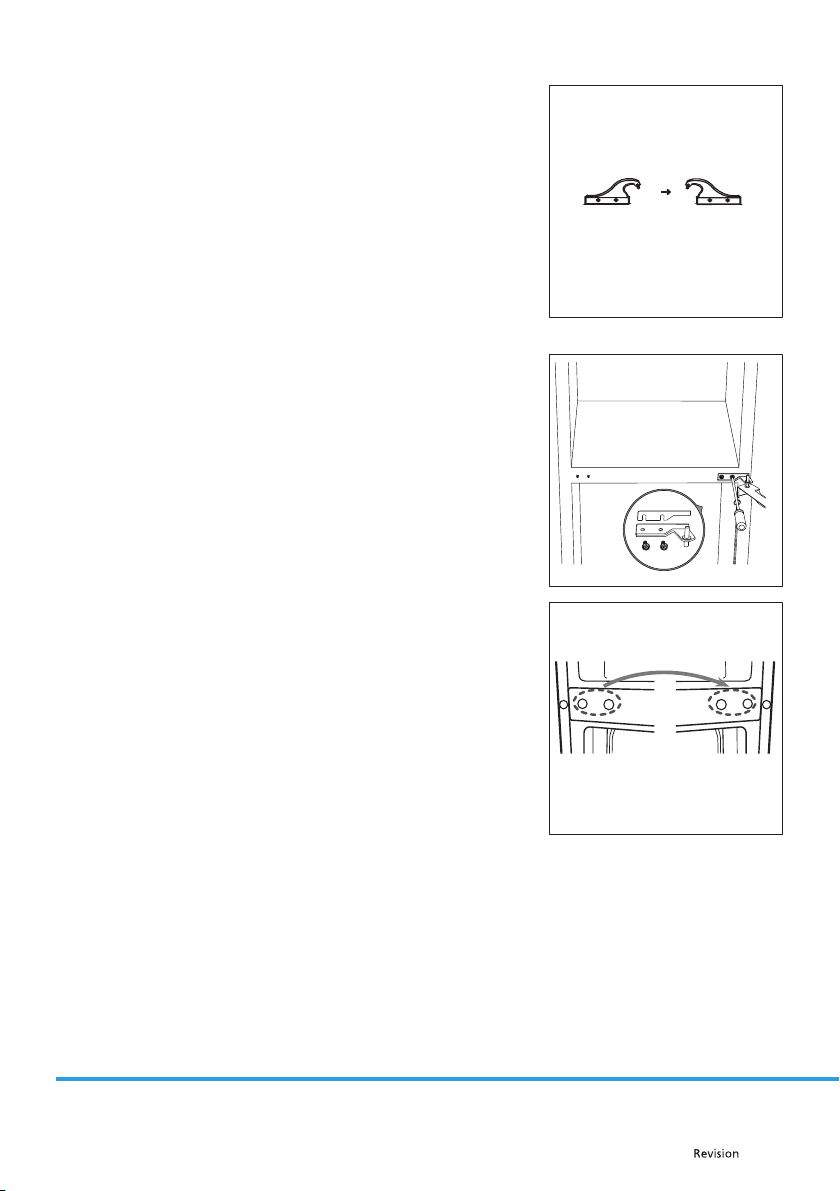

3. Remove the pin with ascrewdriver and ip the hinge bracket. Then
ret the pin to hinge bracket.
4. Unscrew middle hinge. Then lift lower door and place it on asoft
pad to avoid scratch.
5. Move the hinge hole covers from left side to right side.
