Permobil FAST MOVERS' User manual

FAST MOVERS'

QUICK START GUIDE

CONTENTS

Introduction

1Speed setting and steering box options

2Driving technique

3Adjusting arm and leg supports

4Charging batteries

5Disengage the brakes (Freewheeling)

6Support for a hollow back

7Construction & operation

8For wheelchairs with STAND ASSIST

9For wheelchairs with reversible steering box

10 Headrest (accessory)

For a more detailed description see the user's manual

that came with the wheelchair.

FAST MOVERS'

QUICK START GUIDE

Introduction

Permobil stresses solutions above products. These solutions

can be for complicated customer needs or for specific

seating and mobility needs.

Our products consist of a chassis and several seating systems

that meet simple and complex mobility and seating needs.

The seamless integration of the correct chassis and seating

components results in an electric wheelchair perfectly adapted

to the user.

Function keys

Explanation of the VR2 control panel

Indicator lights Control lever (joystick)

The number of function keys/indicator lights differs depending

on your chair's equipment, such as with/without lighting and

seat functions.

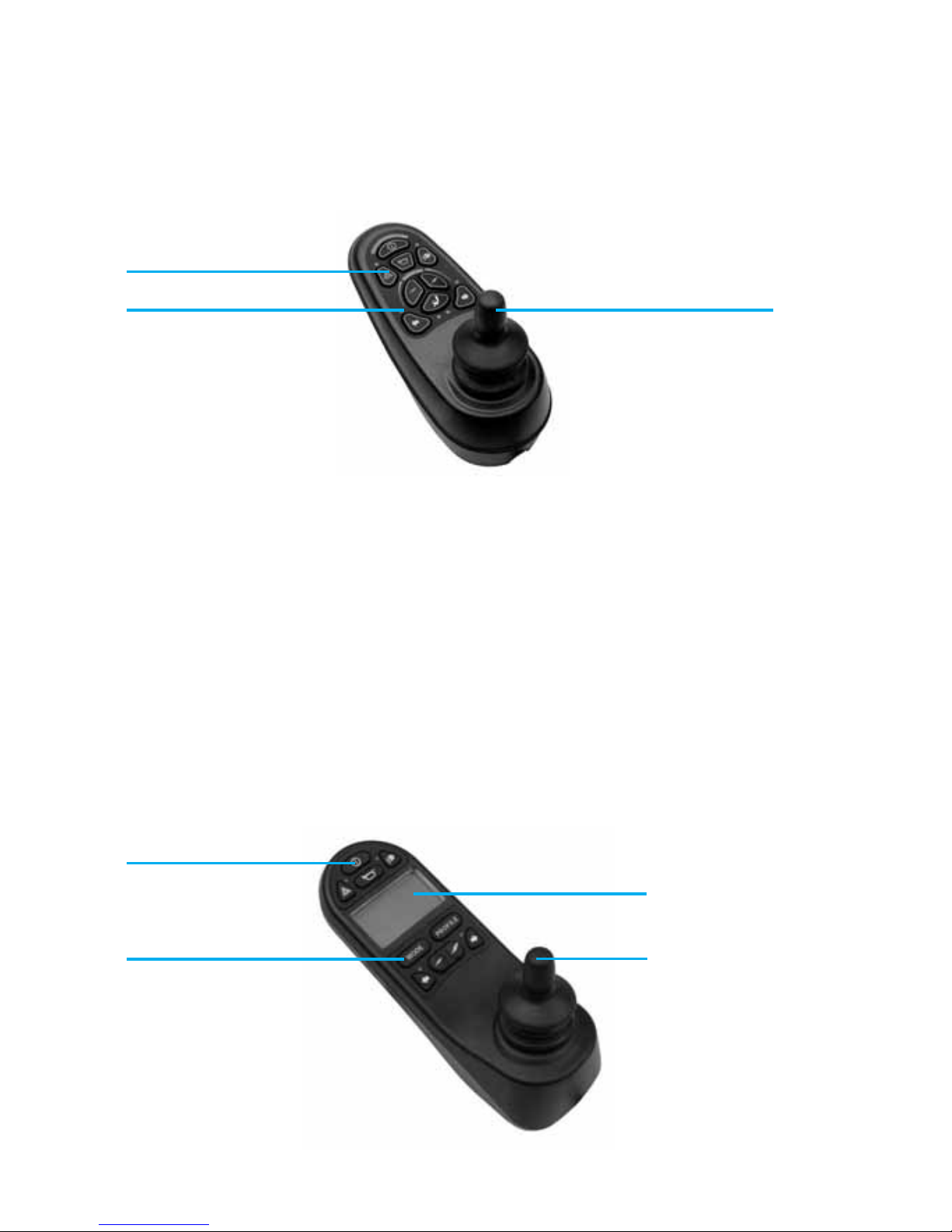

Explanation of the R-Net control panel

On / off button

Function keys Joystick

Display

This wheelchair is suitable for indoor and outdoor use.

When using indoors, you must use it with normal caution.

When outdoors you must ensure that you go very slowly on

hills and do not go over edges greater than 7 - 8 cm.

Take someone along on your first test trip. A test trip is

intended to determine how best to handle the wheelchair;

you may need some help with this.

1. SPEED SETTINGS AND

STEERING BOX OPTIONS

VR-2 CONTROL PANEL

*) Only applicable to chairs with lights.

**) Only applicable to chairs with electric seat functions.

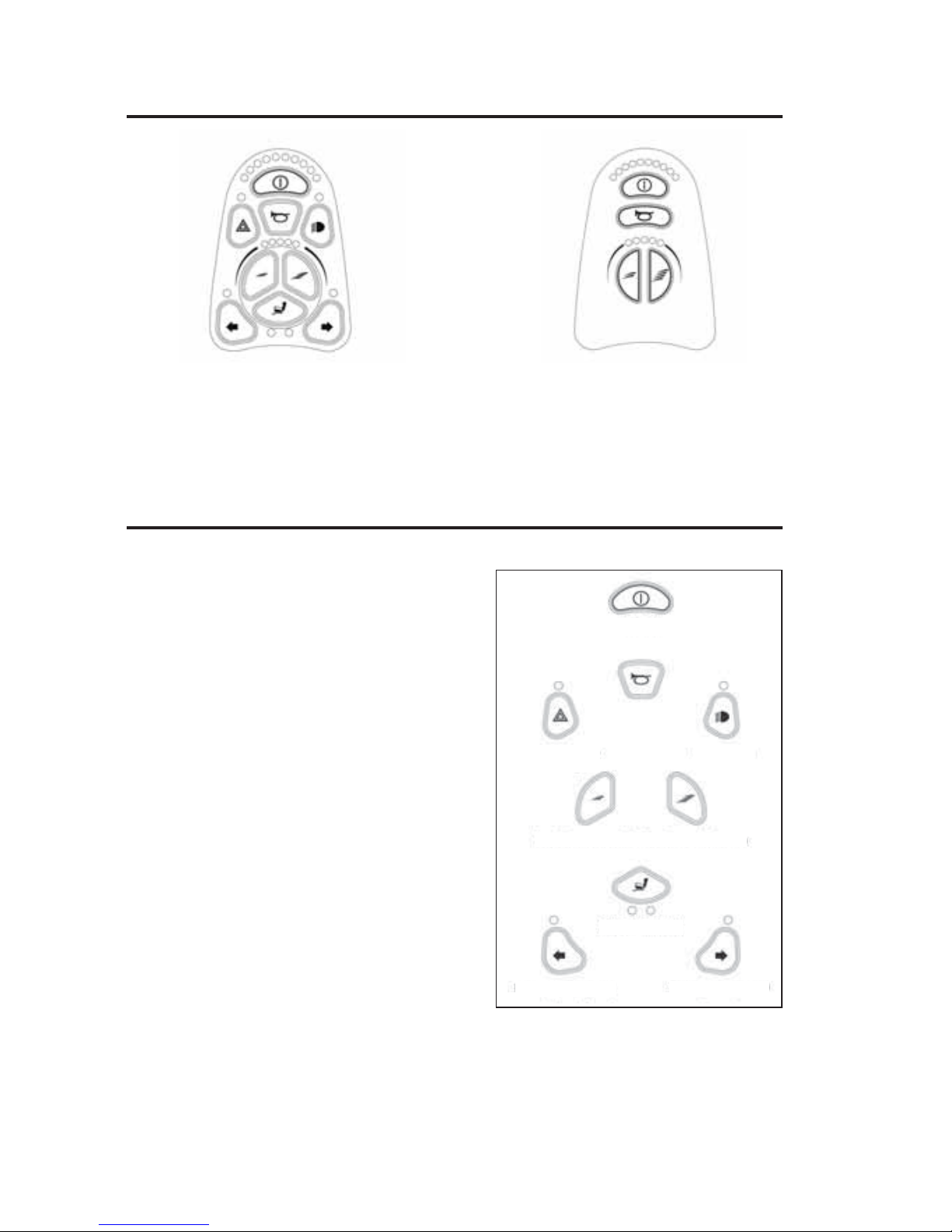

VR-2

Control panel with lighting

and seat functions.

Control panel without

lighting and seat functions.

On / Off

Horn

Lighting *)Warning Lights *)

Seat functions**)

Directional lights*) Directional lights*)

Increase / decrease max. speed setting

Function keys

There are up to 10 function

keys on the control panel.

The number of function keys /

indicator lights differs depending

on your chair's equipment level.

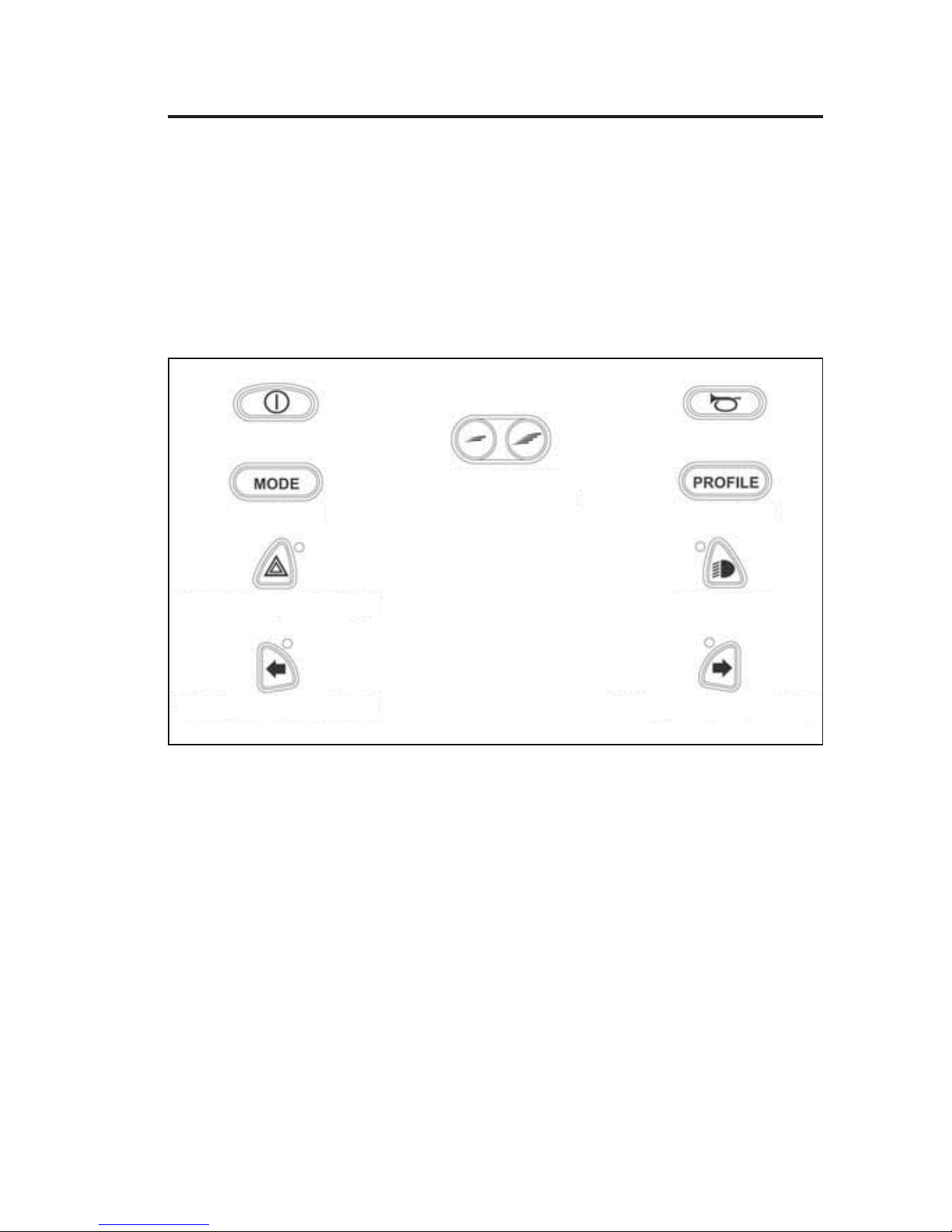

R-NET

On / Off

Profile / Side view

Horn

Warning lights*) Lighting*)

Mode / Level

Directional lights, left*) Directional lights*)

Increase / decrease

max. speed

There are a total of 10 function keys on the control panel.

The electronics in the control panel "interprets" the joy-

stick's movements and directs the motions the operator

wants the wheelchair to make. There are no complicated

user techniques for normal riding, which is an advantage for

an inexperienced user. A good way to start is simply to

move the joystick in the direction in which you want to

move. The wheelchair then rolls where the joystick points.

2. DRIVING TECHNIQUE

WATCH OUT!

Always remember to move slowly and to avoid hard

braking and abrupt sideways movements.

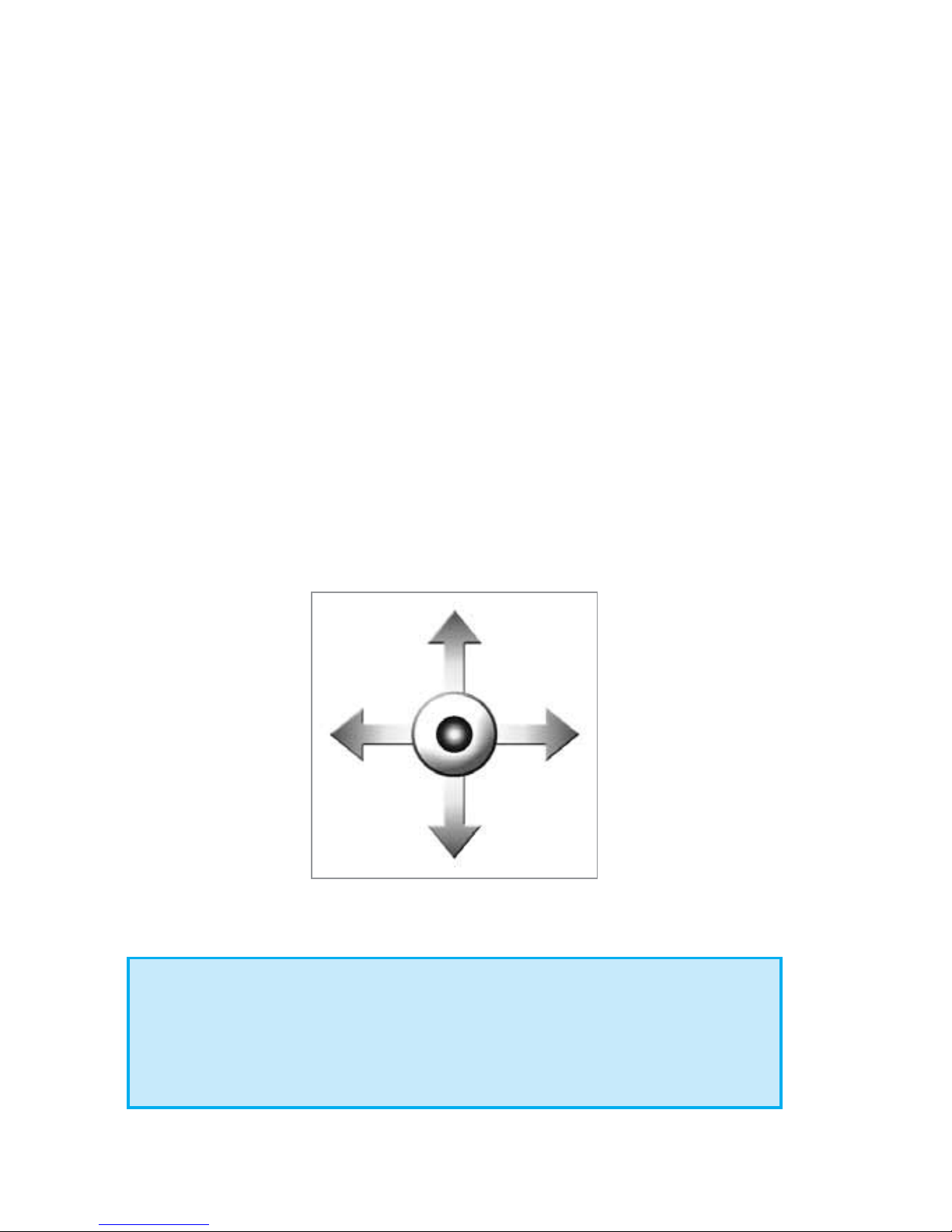

Going forward

Backing up

Turning rightTurning left

Permobil does its best to adjust the arm and leg supports to

suit the user. Your dealer is responsible for making the

definitive adjustments upon delivery.

3. ADJUSTING ARM AND

LEG SUPPORTS

1. Setting the height 2. Setting the angle /depth

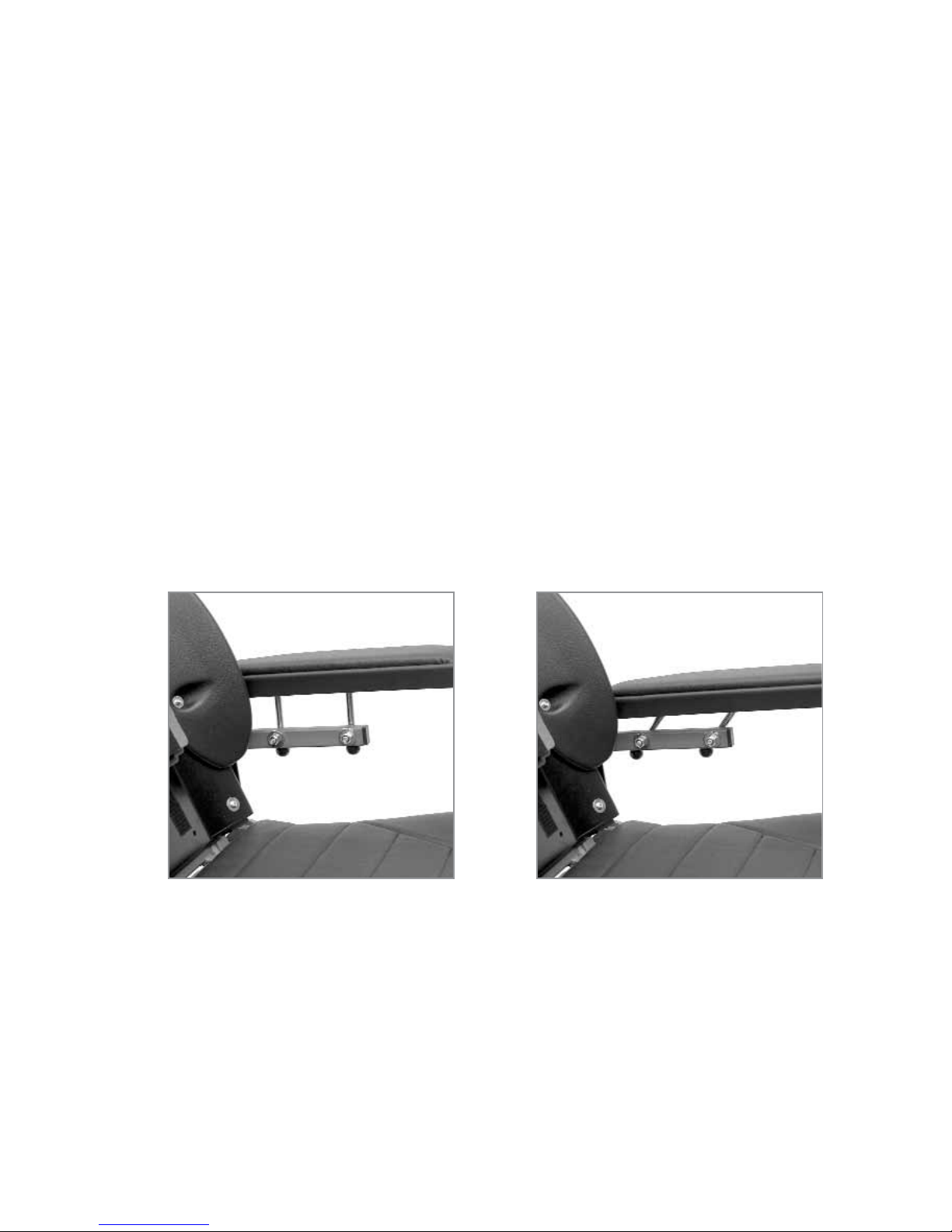

Adjusting the armrests

Batteries must be charged regularly to obtain the best possible

riding time per charge and to ensure long operational life.

Always turn off the wheelchair when not in use and do not

empty the batteries completely. Make a habit of charging the

batteries whenever you are not using the wheelchair.

You can tell whether the batteries need charging by looking

at the battery voltage on the control panel. Should your

batteries become completely empty it is important to recharge

them right away because being fully discharged shortens the

batteries' operational life. The charger connection point is

right above the batteries on most of our wheelchairs.

4. CHARGING THE BATTERIES

The charger connection

point for C500 + C400

WATCH OUT!

Do not put anything on the charger, it can get hot!

There should be free space around the charger on

all sides.

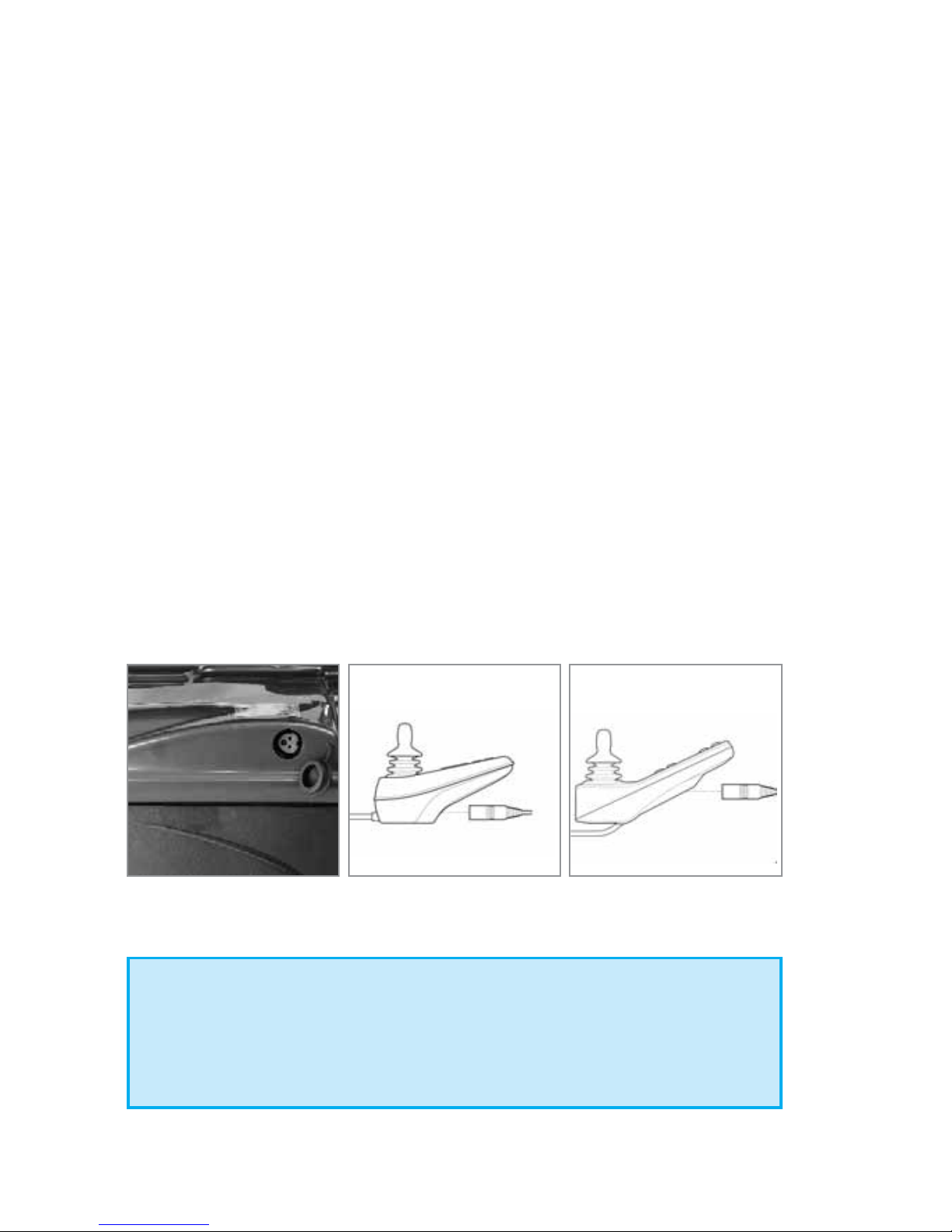

Connection point for the

VR2 control panel

Charger connection point

for the R-Net control panel
