Perle S-110-P User manual

Perle PoE/PoE+

10/100 Ethernet

Media Converters

Installation Guide

S-110-P S-110P-XT

S-110PP S-110PP-XT

S-110P-SFP S-110P-SFP-XT

S-110PP-SFP S-110PP-SFP-XT

Part# 5500318-14

Perle PoE/PoE+ 10/100 Ethernet Media Converter

Overview

This document contains instructions necessary for the

installation and operation of the Perle Standalone PoE/PoE+

10/100 rate converting Media Converters (S-110P). These

products have the ability to convert 10/100Base-T cable

connections (copper) to 100Base-X connection (fiber). The

Perle media converters function as a PoE switch, and

support a variety of port configurations. These media

converters function as Power Sourcing Equipment (PSE)

and can power up one Powered Device (PD) using standard

UTP cables that carry Ethernet data. The S-110P models

are compatible with Powered Devices that comply with the

IEEE 802.3af standard and the S-110PP models are

compatible with Powered Devices that comply with both the

IEEE 802.3af and the 802at-2009 standards. The fiber

connection can be either single mode (SM) or multimode

(MM) and can operate over different wavelengths and

distances, depending on the model selected (see table

below).

POE/POE+

PoE (P)

PoE+ (PP)

Connector

(xx) Mode

Distance Wavelength

(TX/RX)

S-110P-M2xx2

S-110PP-M2xx2 SC/ST MM

2 km/1.2 mi. 1310 nm

S-110P-S2xx20

S-110P-S2xx20 SC/ST SM

20 km/12.4 mi. 1310 nm

S-110P-S2xx40

S-110PP-S2xx40 SC/ST SM

40 km/24.9 mi. 1310 nm

S-110P-S2xx80

S-110PP-S2xx80 SC/ST SM

80 km/49.7 mi. 1550 nm

S-110P-S2xx120

S-110PP-S2xx120 SC/ST SM

120 km/74.6. 1550 nm

S-110P-S1SC20U

S-110PP-S1SC20U SC SM

20 km/12.4 mi. 1310/1550 nm

S-110P-S1SC20D

S-110PP-S1SC20D SC SM

20 km/12.4 mi. 1550/1310 nm

S-110P-S1SC40U

S-110PP-S1SC40U SC SM

40 km/24.9 mi. 1510/1590 nm

S-110P-S1SC40D

S-110PP-S1SC40D SC SM

40 km/24.9 mi. 1590/1510 nm

Perle PoE/PoE+ 10/100 Ethernet Media Converter

PoE (P)

PoE+ (PP)

Connector

(xx) Mode

Distance Wavelength

(TX/RX)

S-110P-SFP

S-110PP-SFP SFP NOTE 1

Extended Temperature Models

PoE (P)

PoE+ (PP)

Connector

(xx) Mode

Distance Wavelength

(TX/RX)

S-110P-M2xx2-XT

S-110PP-M2xx2-XT SC/ST MM

2 km/1.2 mi. 1310 nm

S-110P-S2xx20-XT

S-110P-S2xx20-XT SC/ST SM

20 km/12.4 mi. 1310 nm

S-110P-S1SC20U-XT

S-110PP-S1SC20U-XT SC SM

20 km/12.4 mi. 1310/1550 nm

S-110P-S1SC20D-XT

S-110PP-S1SC20D-XT SC SM

20 km/12.4 mi. 1550/1310 nm

S-110P-SFP-XT

S-110PP-SFP-XT SFP NOTE 1

Note 1: Fiber characteristics will depend on the SFP fiber

module selected.

Installation

The default DIP switch settings (all switches in the UP

position) will work for most installations. These are the steps

required to configure the Perle S-110P Ethernet media

converter:

1. Insert SFP Module (SFP Model only).

2. Set the DIP switch settings (if required).

3. Set the Powering Option Jumpers (if required).

4. Install and connect the fiber cable.

5. Install and connect the copper cable.

6. Install the Power cord Relief clip (optional).

7. Power up the media converter.

Perle PoE/PoE+ 10/100 Ethernet Media Converter

Power Sourcing Pinouts

When Power Sourcing is enabled on a copper port, the S-

110P will provide power to the connected PD device over

the Ethernet cable (see PSE function on Dip Switch

configurations). The wire pairs on the cable used for

delivering power will depend on the device. The following

options are available.

PoE Option

RJ-45 Alternative A Alternative B Legacy

1 positive

2 positive

3 negative

4 positive negative

5 positive negative

6 negative

7 negative positive

8 negative positive

UTP (copper) Power

PoE

•IEEE 802.3af (PoE) up to 15.4 Watts for the UTP

port.

PoE+

•IEEE 802at-2009 (PoE+)

•Up to 30 Watts on UTP port

•PoE+ models will also support 802.3af PDs (Type 1)

and PoE+ PDs (Type 2)

Perle PoE/PoE+ 10/100 Ethernet Media Converter

Powering Options Jumper Settings

Note: The factory settings for Power Sourcing Pinouts will

work for most installations as 802.3a and 802at-2009 (

POE/POE+) devices will detect and sync to the correct POE

option. However, in the rare case that you need to modify the

settings, the procedure is below.

In order to select a powering option, the Power Options

Jumper settings must be set. Each copper port has a set of

Power Option jumpers. To access the Powering Options

Jumper settings, unscrew the six side screws on the case

and remove the cover plate. Locate the Power Option

jumper set and strap the option pins as detailed below.

DIP Switches

The DIP switches for Bank 1 are accessible through the

opening in the side of the enclosure.

Bank 1

Perle PoE/PoE+ 10/100 Ethernet Media Converter

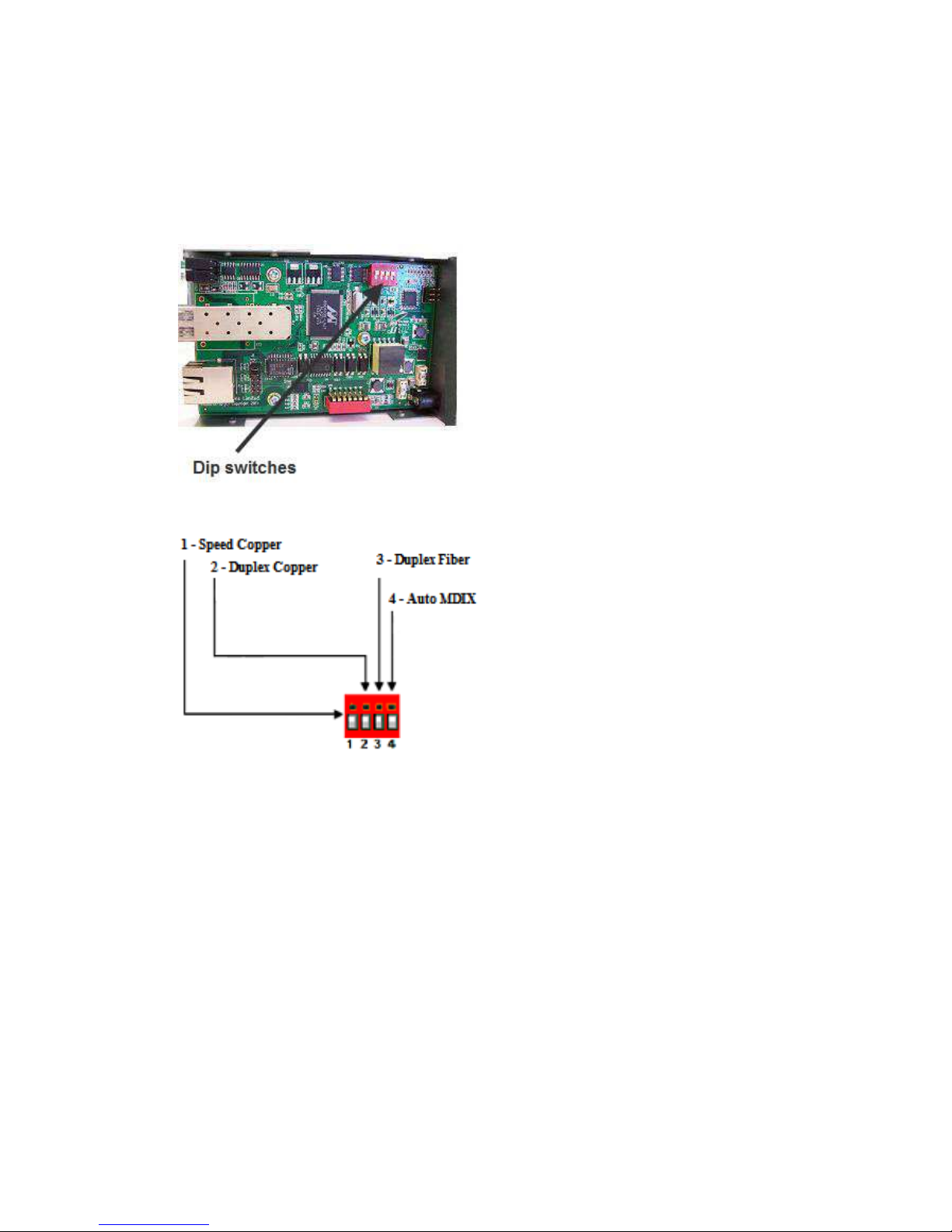

Bank 2

To access the DIP switches for Bank 2, unscrew the six side

screws on the case and remove the cover plate. Locate the

jumper set as detailed below.

Bank 2

Note: All switch changes take effect immediately. Switch

changes will cycle power to the PD only if the PD Reset

switch is set to On or you make changes to the PSE Power

switches.

Perle PoE/PoE+ 10/100 Ethernet Media Converter

DIP Switch Settings

Bank 1

Auto-negotiation (copper) (Switch 1)

Switch Position Copper Port

Up (default) Auto

Down Off

Note: Auto-negotiation should only be turned off, if the

copper link partner does not support Auto-negotiation and

fixed settings are required by the copper link partner.

Auto: When enabled, the media converter will negotiate

with its link partner to determine the most optimal

parameters for this connection. The S-110P will advertise

capabilities of 10 and 100 Mbps, full and half duplex as well

as pause to the link partner.

If the copper link partner does not support Auto-negotiation,

the S-110P will parallel detect to 10 or 100 Mbps and force

Half Duplex mode as per IEEE specifications.

Off: When the Auto-negotiation switch is set to the OFF

position, the media converter will not negotiate the Ethernet

parameters with the copper link partner. The parameters

used by the media converter will be determined by the

Copper Speed (Bank 2 - switch 1) and Duplex Copper (Bank

2 - switch 2) DIP switch settings. Pause receive and send

will be disabled.

Link Pass-Through Mode (Switch 2)

Switch Position Mode

Up (default) Standard Mode

Down Link Pass-Through Mode

Perle PoE/PoE+ 10/100 Ethernet Media Converter

Standard Mode: In this mode, links on the fiber and copper

sides can be brought up and down independently of each

other. A loss of link on either the fiber or copper port can

occur without affecting the other connection.

Link Pass-Through Mode: In this mode, the link state on

one connection is directly reflected through the media

converter to the other connection. If link is lost on one of the

connections, then the other link will be brought down by the

media converter.

If the installation has a media converter on both ends of the

fiber link and both are set-up for Link Pass-Through, then a

loss of copper link on the far end device will propagate

through both media converters and will result in a loss of link

at the near end device.

Link Pass-Through Behaviour

(A) – Remote Media Converter setup for Far End Fault

Enabled, Auto-negotiation – OFF and Link Mode –

Standard.

(B) – Local Media Converter setup for Far End Fault

enabled, Link Pass-Through On and Auto-negotiation - OFF

(A) Loses fiber connection on its receiver.

(A) Sends FEF.

(B) Detects FEF signal and shuts down the fiber link.

(B) Drops link on copper connection because Link Pass-

Through is configured.

(A) Link on copper connection is not affected because Link

Pass-Through Mode is set to Standard.

Perle PoE/PoE+ 10/100 Ethernet Media Converter

Far End Fault (Switch 3)

Switch Position Fiber Port

Up (default) Enabled

Down Disabled

Enabled: If the media converter detects a loss of signal on

the fiber receiver, it will immediately disable its fiber

transmitter signal on the same port. This, in effect, notifies

the fiber link partner that an error condition exists on the

fiber connection.

If the remote media converter is set up for Far End

Fault(FEF) and the local media converter is set up with Link

Pass-Through, a loss of fiber link on either the transmit or

receive line will be passed through to the local copper

connection thus notifying the connected device.

If the media converter has been set to Link Pass-Through

mode, the effect will be the same as FEF, since the link loss

on the fiber receiver will result in bringing down the copper

link, which will in turn cause the transmit fiber link to be

brought down.

Note: This feature only takes affect if Auto-negotiation

(Switch 1) has been turned Off.

Disabled: The media converter will not monitor for or

generate Far End Fault.

PSE Enable Copper (Switch 4 and 5)

Switch Position 4 Switch Position 5 Type

Up (default) Up (default) PSE enabled

normal detection

Up Down PSE enabled

High capacitance

detection

Down Up PSE enabled

Legacy device

Perle PoE/PoE+ 10/100 Ethernet Media Converter

detection

Down Down PSE disabled

These switches must be set in order to enable the power

sourcing function and to indicate the type of device detection

required. If the device type is unknown, the default should

be used as per IEEE802.3af/at standards.

Enabled: When enabled, the media converter will perform

Power Sourcing Equipment (PSE) functions as per

IEEE802.3af (POE) or 802.3at-2009 (POE+) standards.

Disabled: When disabled the media converter will not

perform PSE functions.

PD Power Reset (Switch 6)

Switch Position Mode

Up (default) Disabled

Down Enabled

Disabled: When disabled, the loss of fiber link has no effect

on PSE power to the PD device.

Enabled: When enabled, if the media converter detects loss

of link on the fiber port it will turn off PSE output power to

the PD device connected to the copper port. After 2

seconds, the media converter will restore power to the PD

and the power will remain on until the fiber link transitions

from a link up to link down state.

Loopback Fiber (Switch 7)

Switch Position Mode

Up (default) Disabled

Down Enabled
