Perfect Aire 3PAMSHQCW09-U230 User manual
REMOTE CONTROL
QUICK CONNECT DUCTLESS MINI-SPLIT
MODELS 3PAMSHQCW09-U230, 3PAMSHQCW12-U230, 3PAMSHQCW18-U230
USER MANUAL
Remote controller 1
Operation instructions
Operation modes 3
3
Airflow direction control 4
Smart mode 5
Clock button 5
Timer mode 6
8° Heating mode 7
Super mode 7
Sleep mode 8
Ifeel mode 8

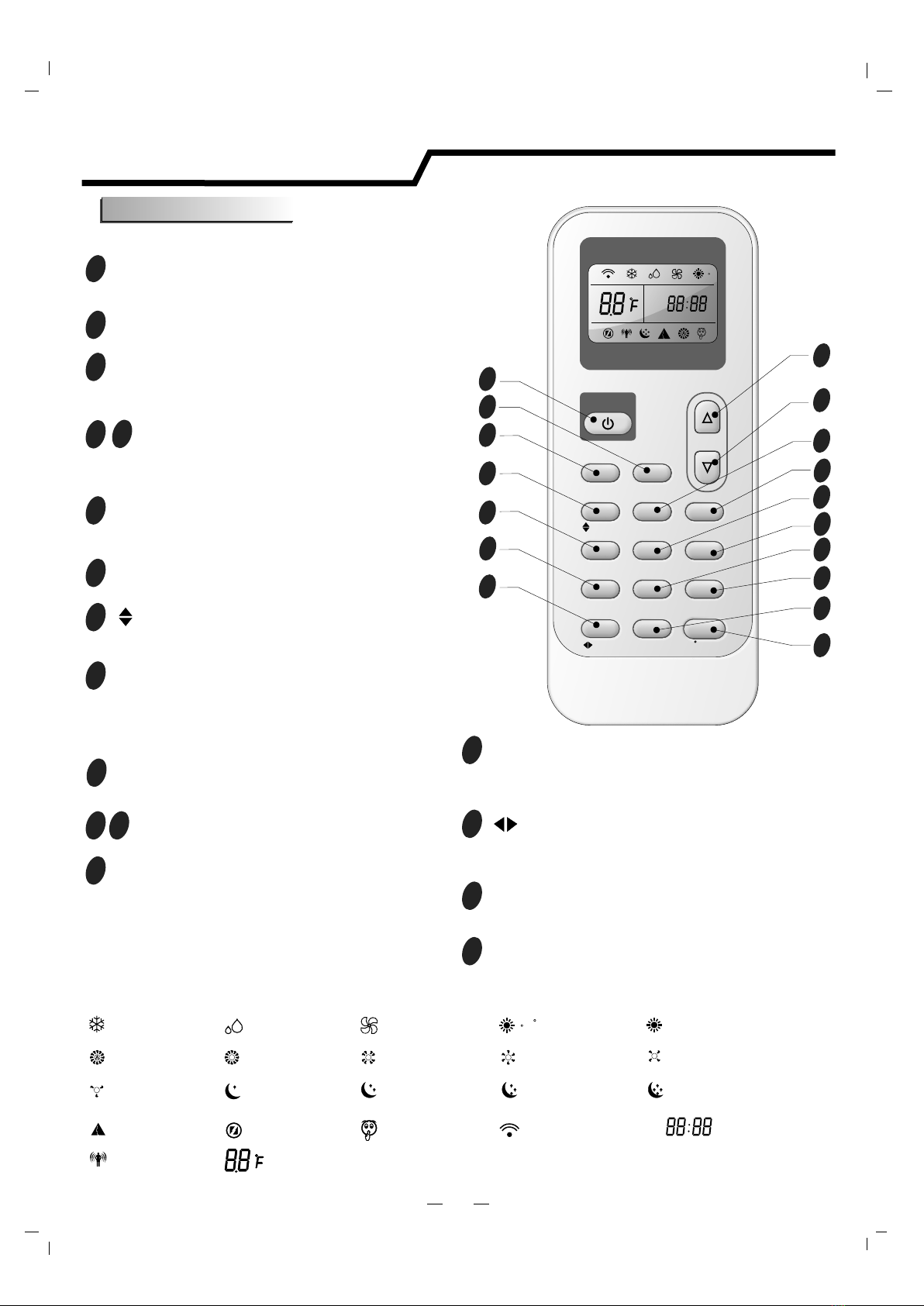

Remote Controller Instructions
Remote controller
1
1
2
3
13
45
6
12
11
8
7
9
10
SUPER BUTTON
FAN BUTTON
ROOM TEMPERATURE
TIMER ON/OFF BUTTON
Used to start or stop the fast cooling/heating.
(Fast cooling operates at high fan speed with
61°F(16℃) set temp automatically ; Fast heating
operates at auto fan speed with 86°F(30℃) set
temp automatically.)
Used to stop or start vertical adjustment louver swinging
and set the desired up/down airflow direction.
Used to select fan speed in sequence
auto, higher, high, medium, low or lower.
IFEEL BUTTON
Used to set IFEEL temperature sensing mode
operation. Press it once, the IFEEL function will
be started. Press it again, the IFEEL function will
be shut off.
ON/OFF BUTTON
The appliance will turn on when button is pushed or will be
turned off when pushed again.
MODE BUTTON
Press this button to select the operation mode.
Used to set or cancel the timer operation.
Remote controller
Indication symbols on LCD:
SETTING BUTTONS
Used to adjust the room temperature, the timer,
and the clock function.
SMART BUTTON
Used to automatically set temperature and fan
speeds based on the room temperature.
SLEEP BUTTON
14 DIMMER BUTTON
15
When you press this button, all the display of
indoor unit will be hidden. Press any button to
resume display.
SWING BUTTON
Used to stop or start Horizontal adjustment
louver swinging and set the desired left/right
airflow direction.
16 MUTE BUTTON
Fan speed is automatically set at lower fan speed.
17 8°C/46°F HEAT BUTTON
Used to automatically set the heating mode, when a
lower temperature operation is desired.
Note: Each mode and relevant function will be further specified in following pages.
Signal transmit
Display temperature
Display set timer
Display current time
ON
OFF
Dry indicator Fan only indicator
Cooling indicator
Smart indicator Super indicator
Ifeel
Mute indicator
8 Heating indicator
8 Heating indicator
Auto fan speed Higher fan speed High fan speed Medium fan speed Low fan speed
Lower fan speed Sleep 4 indicator
Sleep 3 indicatorSleep 2 indicator
Sleep 1 indicator
12
ON/OFF
MODE FAN
SLEEP SUPER
SMART IFEEL DIMMER
TIMER ON TIMER OFF CLOCK
SWING
SWING
MUTE
ON
OFF
ON
OFF
8
8 HEAT
10
11
13
14
3
4
1
2
6
8
5
7
9
16
17
15
CLOCK BUTTON
Used to set the current time.
SWING BUTTON
Used to set or cancel Sleep Mode operation.
ON
OFF
ON
OFF
ON/OFF
MODE FAN
SWING SLEEP SUPER
SMART IFEEL DIMMER
TIMER ON TIMER OFF CLOCK
8
SWING MUTE
8 HEAT
2

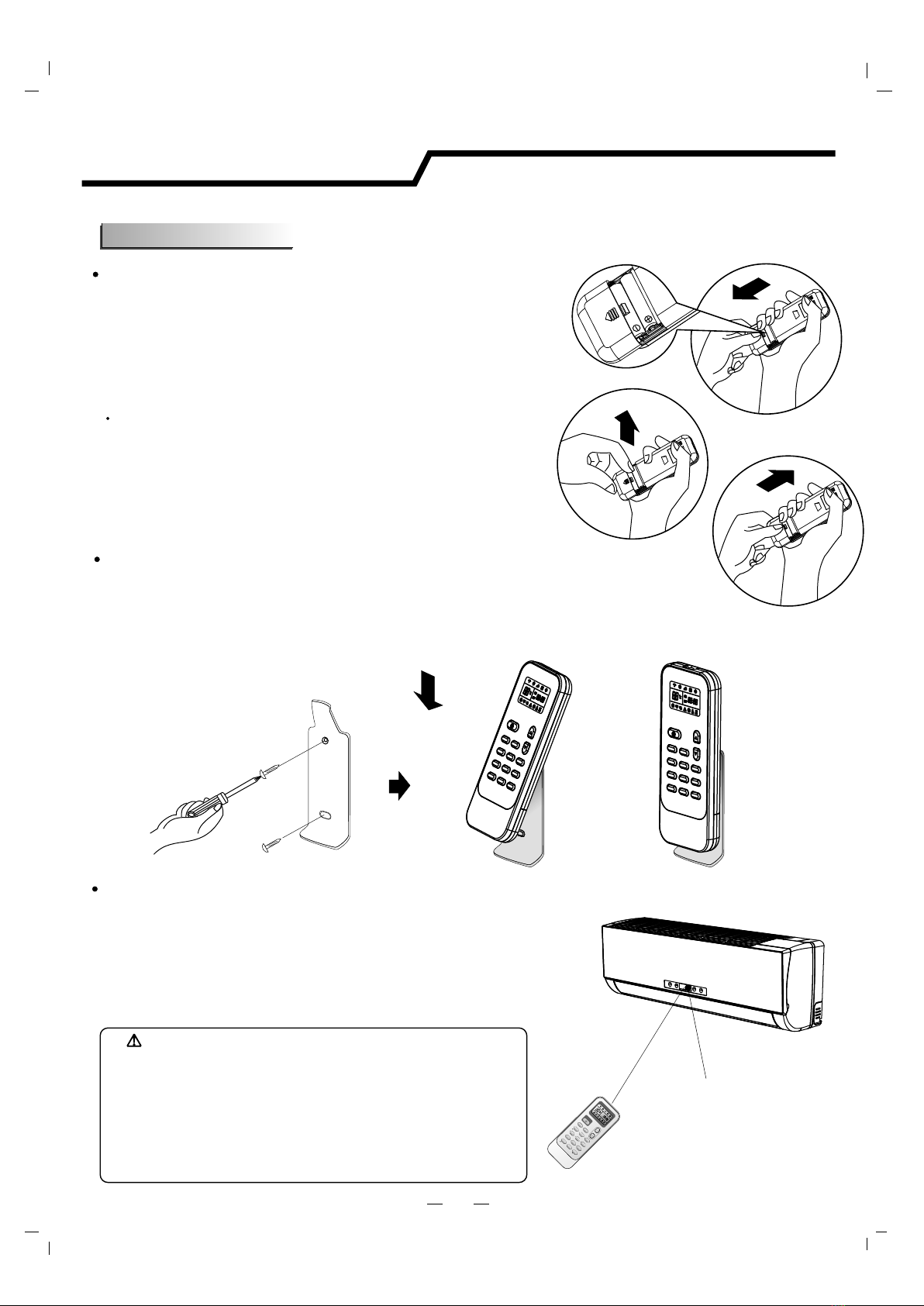

How to Insert the Batteries
Remove the battery cover according to the direction of the arrow.
Insert new batteries making sure that the (+) and (-) of
battery are matched correctly.
Reattach the cover by sliding it back into position.
Note:
Use 2 LR03 AAA(1.5volt) batteries. Do not use rechargeable batteries.
Replace batteries with new ones of the same type when the display
becomes dim.
Storage and Tips for Using the Remote Controller
Note: The remote controller holder is an optional part.
How to Use
Remote controller
Remote controller
Signal receptor
CAUTIONS
For appropriate signal transmission between remote controller and
indoor unit, keep the signal receiver away from the following items:
Direct sunlight or other strong lights or heat
Flat panel television screen or other electrical appliances that
react to the remote controller
Additionally, the air conditioner will not operate if curtains, doors or
other materials block the signals from the remote controller to the
indoor unit. If the signal may not be transmitted properly, either move
these materials or consult your local dealer.
The remote controller may be stored or mounted on the
wall with a remote control holder.
To operate, aim the remote control at the signal receptor on the
air conditioning unit. The remote control will operate the air
conditioner at a distance up to 23 ft (7 m) when pointing at the
signal receptor of the indoor unit.
Each time MODE button is pressed, the operation mode
is changed in sequence:
Each time the "FAN" button is pressed, the fan speed is
changed in sequence:
Heating mode is NOT available for cooling only air conditioner.
HEATING
COOLING DRY FAN ONLY
Selecting mode
FAN mode
At "FAN ONLY" mode, the "Auto" is not available.
At "DRY" mode, Fan speed is set at "AUTO” automatically, "FAN" button
is ineffective in this case.
Setting temperature
Press once to lower temperature setting by 1°F 1℃.or
Press once to raise temperature setting by 1°F 1℃.or
Range of available set temperature
*HEATING, COOLING
DRY -7 ~ 7
unable to set
Turning on
SWING, SMART, TIMER ON, TIMER OFF, CLOCK, HEATING, SLEEP and SUPER operation modes
will be specified in the following pages.
8°
Press button, when the appliance receives the
signal, the RUN indicator of the indoor unit lights up.
Changing modes during operation, sometimes the unit does not response at once. Wait 3 minutes.
Wait 3 minutes before restarting the appliance.
During heating operation, air flow is not discharged at the beginning. After 2－5 minutes, the air flow will be discharged
until temperature of indoor heat exchanger rises.
FAN ONLY
Operation instructions
3

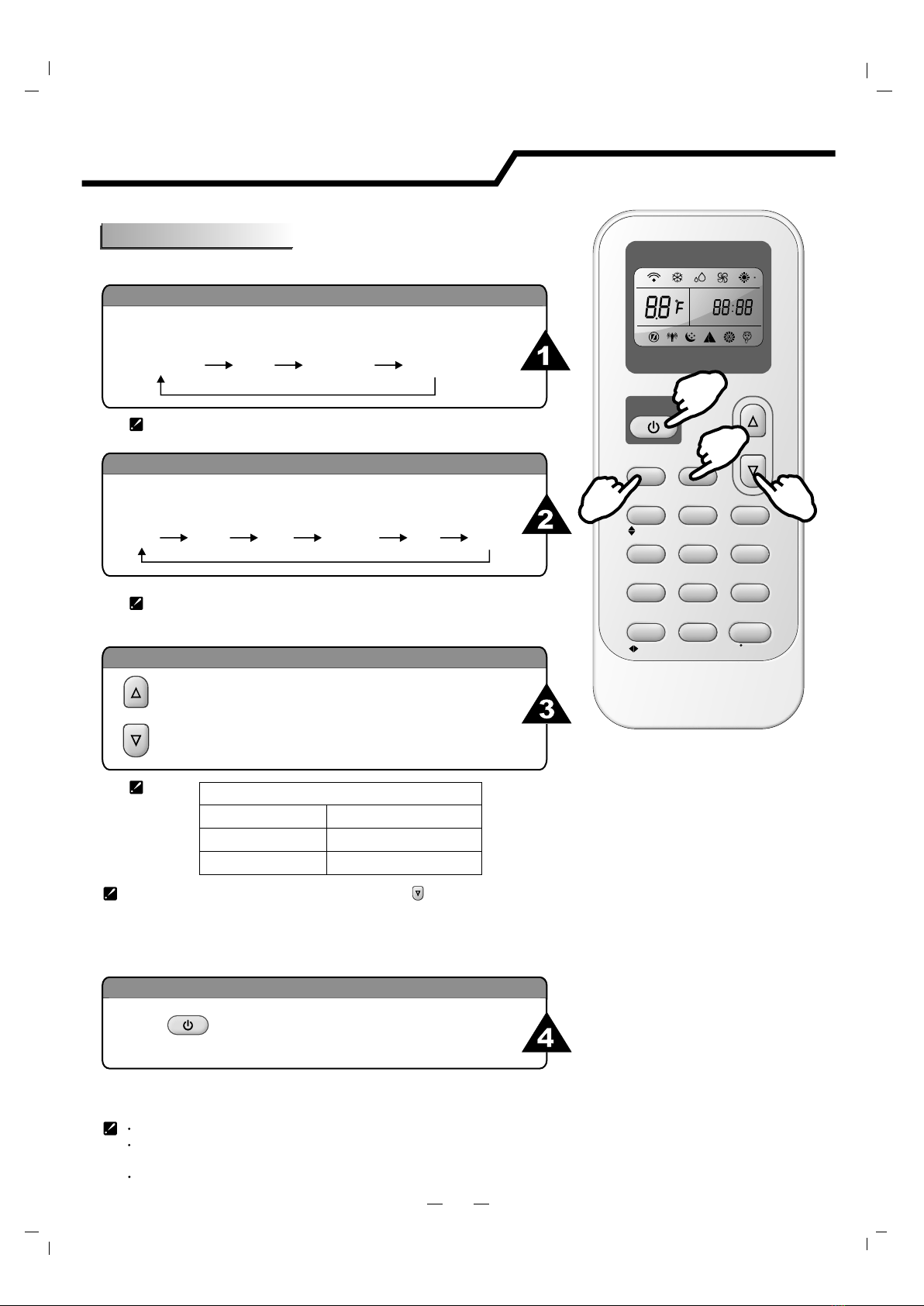

Operation modes
Auto Higher High Medium Low Lower
ON/OFF
MODE FAN
SLEEP SUPER
SMART IFEEL DIMMER
TIMER ON TIMER OFF CLOCK
SWING
SWING
MUTE
ON
OFF
ON
OFF
8
8 HEAT
1
4
2
3
61°F ~86°F(16℃~30℃)
Note: ”
together for 3 seconds will alternate the temperature display
between the ℃ and °F scale.
Note: Heating mode is NOT available for cooling only models.
Note: At “Dry” mode, the unit can decrease or rise 7°F by remote
controller if you feel uncomfortable.
Press and hold “ MODE” button and “ button
SWING
5

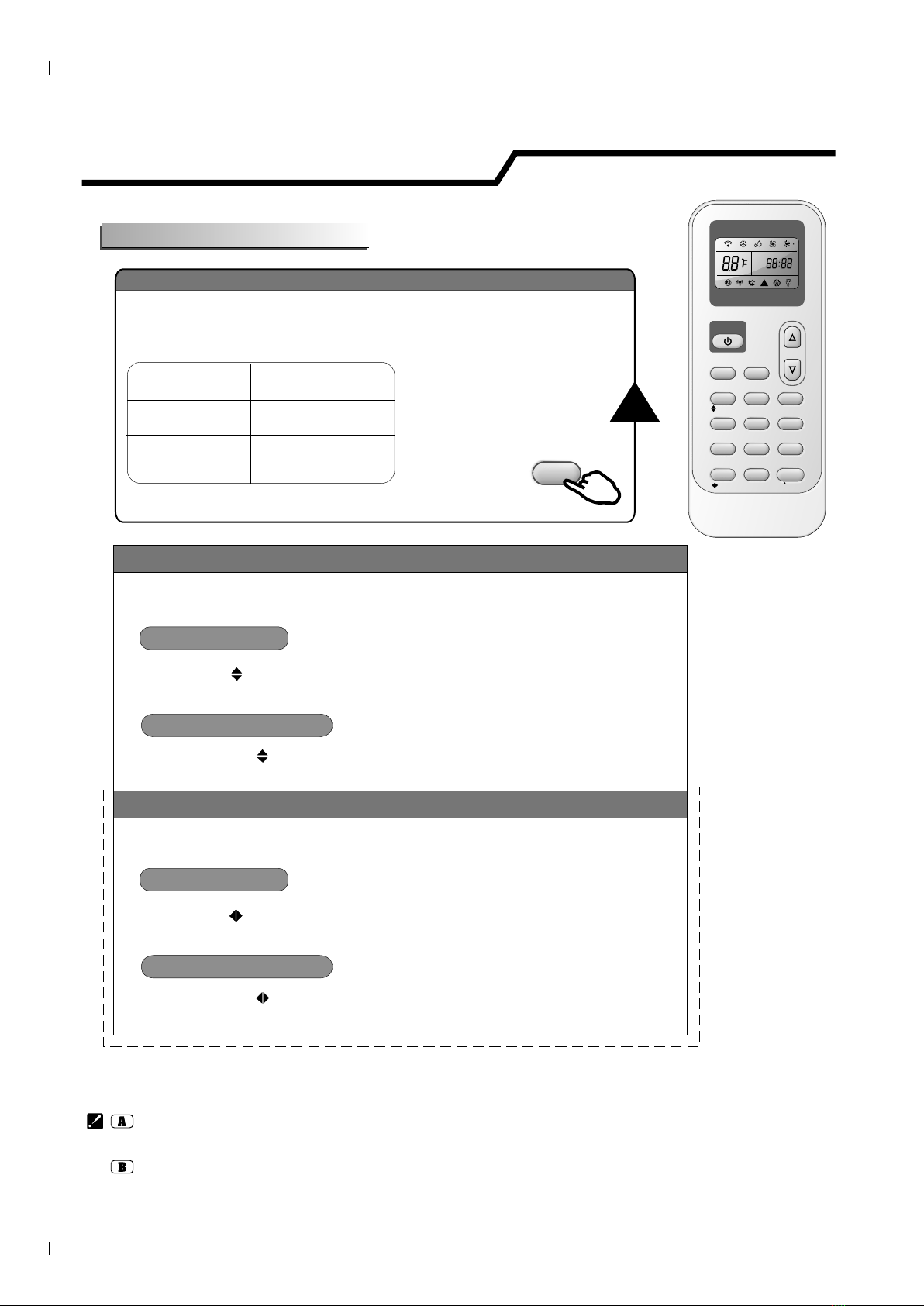

Airflow direction control
Vertical airflow(Horizontal airflow) is automatically adjusted to a certain
angle in accordance with the operation mode after turning on the unit.
The direction of airflow can be
also adjusted to your own
requirement by pressing the
"SWING" button of the
remote controller.
Operation mode Direction of airflow
COOLING, DRY
*HEATING,
FAN ONLY
horizontal
downward
Vertical airflow control (with the remote controller)
Using remote controller to set various angles of flow or specific angle
as you like.
Swinging airflow
Pressing " SWING" button once, the vertical adjustment louver will
swing up and down automatically.
Desired direction airflow
Pressing the " SWING" button again when the louvers swing to a
suitable angle as desired.
Do not turn the vertical adjustment louvers manually, otherwise malfunction may occur. If that happens, turn off the
unit first and cut off the power supply, then restore power supply again.
It is better not to let the vertical adjustment louver tilt downward for a long time at COOLING or DRY mode to prevent
condensed water from dripping.
Operation instructions
4
*Heating mode is only available for heat pump models.
Airflow direction control
Horizontal airflow control (with the remote controller)
Using remote controller to set various angles of flow or specific angle
as you like.
Swinging airflow
Pressing " SWING" button once, the horizontal adjustment louver will
swing left and right automatically.
Desired direction airflow
Pressing the " SWING" button again when the louvers swing to a
suitable angle as desired.
NOTE:If the unit doesn’t have four ways airflow function,you can adjust horizontal
airflow by yourself.(invalid for some models)
ON/OFF
MODE FAN
SLEEP SUP ER
SMART I FEEL DIMM ER
TIMER ON TIMER OFF CLOCK
SWING
SWING
MUTE
ON
OFF
ON
OFF
8
8 HEAT
Your feeling
What you can do in SMART mode
button adjustment procedure
Uncomfortable
because of
unsuitable air
flow volume.
Uncomfortable
because of
unsuitable flow
direction.
Indoor fan speed alternates among
Auto, Higher, High, Medium, low and Lower
each time this button is pressed.
Press it once, the vertical adjustment louver
swings to change vertical airflow direction.
Press it again, swings stops.
For horizontal airflow direction, please
refer to the previous page for details.
Note: Temperature, airflow and direction are controlled automatically in SMART mode.
However, for the inverter you can choose from -7°C to 7°C (1 degree Celsius = 1.8
degrees Fahrenheit.) If you still feel uncomfortable.
Operation instructions
5

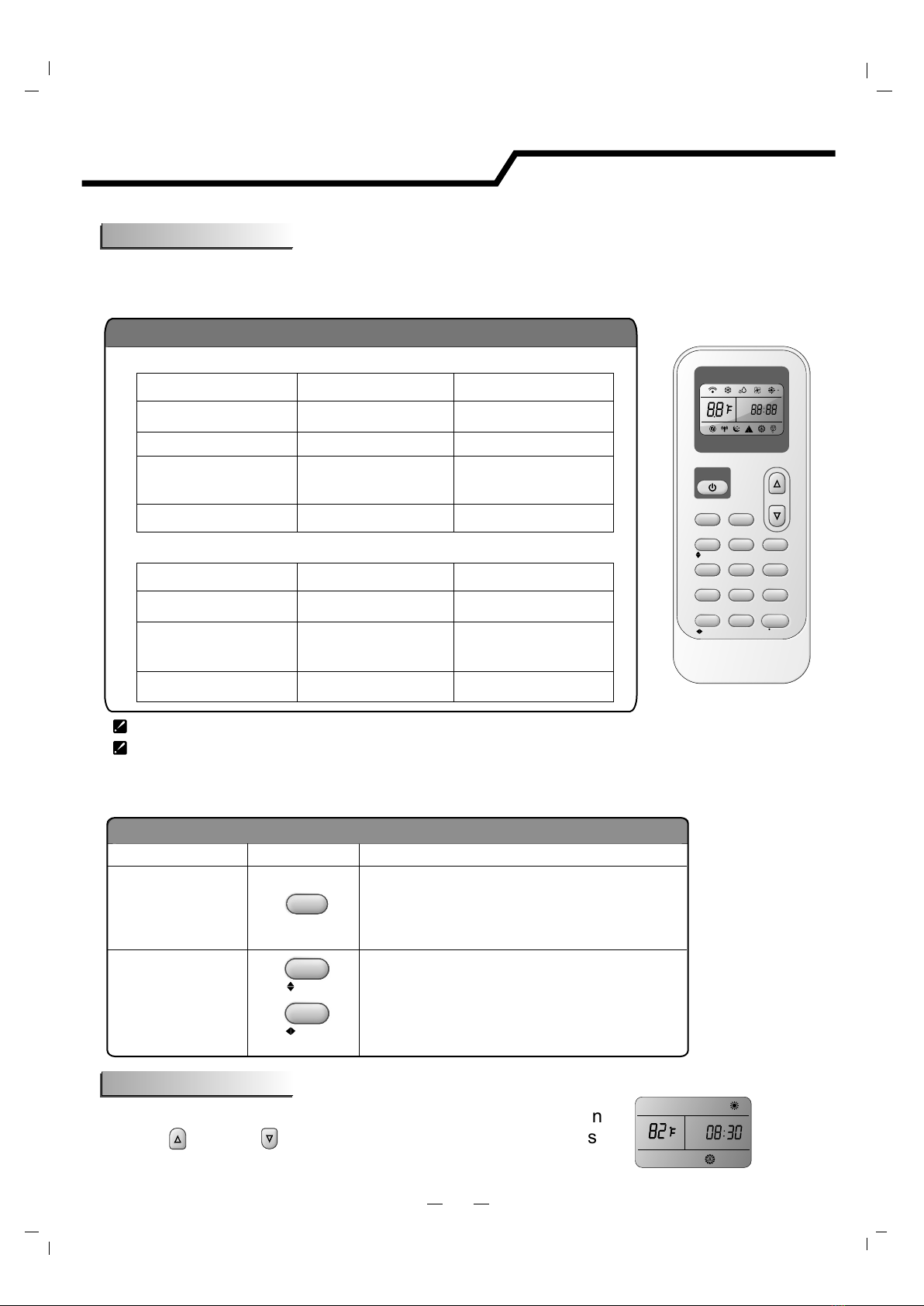

SMART mode
CLOCK button
You can adjust the real time by pressing CLOCK button, then
using and buttons to get the correct time, press
CLOCK button again the real time is set.
FAN
SWING
SWING
SMART button is ineffective in SUPER mode. Press
MODE button cancel SMART mode.
ON/OFF
MODE FAN
SLEEP SUP ER
SMART I FEEL DIMM ER
TIMER ON TIMER OFF CLOCK
SWING
SWING
MUTE
ON
OFF
ON
OFF
8
8 HEAT
Indoor temperature Target temperature
70 )°F(21℃ or below 72 )°F(22℃
79°F(26℃)Over 79°F(26℃)
70°F °F(21℃~23℃)-73
73 -79°F °F(23℃~26℃)
Operation mode
HEATING
FAN ONLY
DRY Room temperature
decrease 2°F(2℃） after
operate for 3 minutes
COOLING
Operation mode and temperature are determined by indoor temperature
Heat pump models
Cooling only models
Indoor temperature Target temperature
73 )°F(23℃ or below
79°F(26℃)
Over 79°F(26℃)
73°F °F(23℃~26℃)-79
Operation mode
FAN ONLY
DRY Room temperature
decrease 2°F(2℃） after
operate for 3 minutes
COOLING
In this mode, temperature and fan speed are automatically set based on the actual room temperature.
6

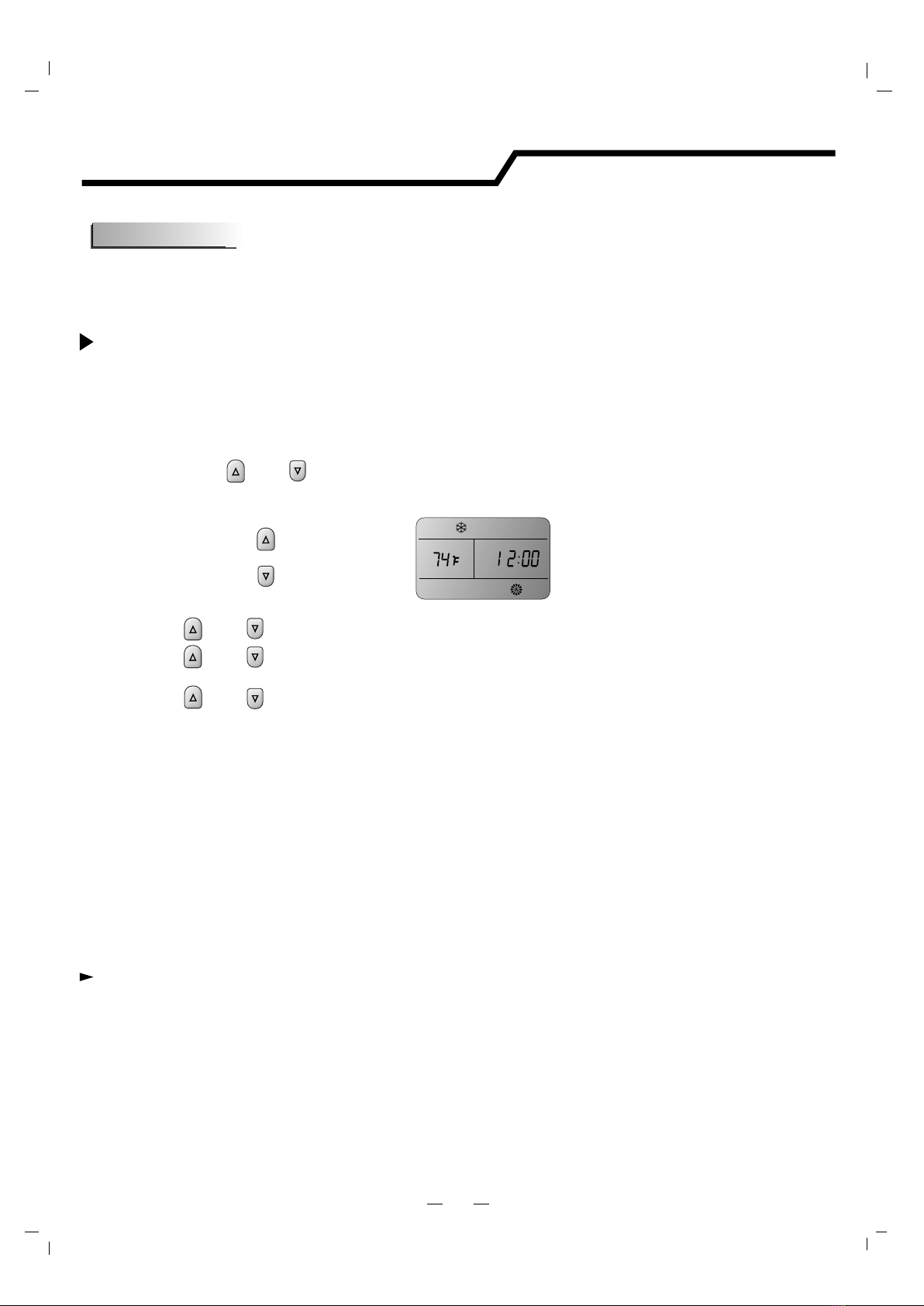

TIMER mode
The TIMER ON button can be used to set the timer to switch on the appliance at your
desired time.
Press the TIMER ON button and when "ON 12:00" flashes on the LCD display, you can
then press the or buttons to select the time you wish for the appliance to turn on.
Press the or
Press the or
Press the or
button once to increase or decrease the time setting by 1 minute.
button within 2 seconds to increase or decrease the time setting
by 10 minutes.
button for 5 seconds to increase or decrease the time by 1 hour.
Note: If you don't set the time in 10 seconds after you press the TIMER ON button, the remote control
will exit the TIMER ON mode automatically.
Note: It is similar to set TIMER OFF. You can make the appliance switch off automatically at
your desired time.
Operation instructions
It is convenient to set the timer on with TIMER ON buttons in the morning to achieve a
comfortable room temperature in the evening.
How to set the TIMER ON
Increase
Decrease
i)
When your desired time is displayed on the LCD, press the TIMER ON button and confirm
it.
A "beep" will sound.
"ON" stops flashing.
The TIMER indicator on the indoor unit lights up.(invalid for some models)
How to cancel TIMER ON
ii)
iii)
ON
Press the TIMER ON button again. You wll hear a "beep" and indicator will disappear, canceling the TIMER ON function.
After the set timer is displayed for 5 seconds the clock will be displayed on the remote control.
7
Operation instructions

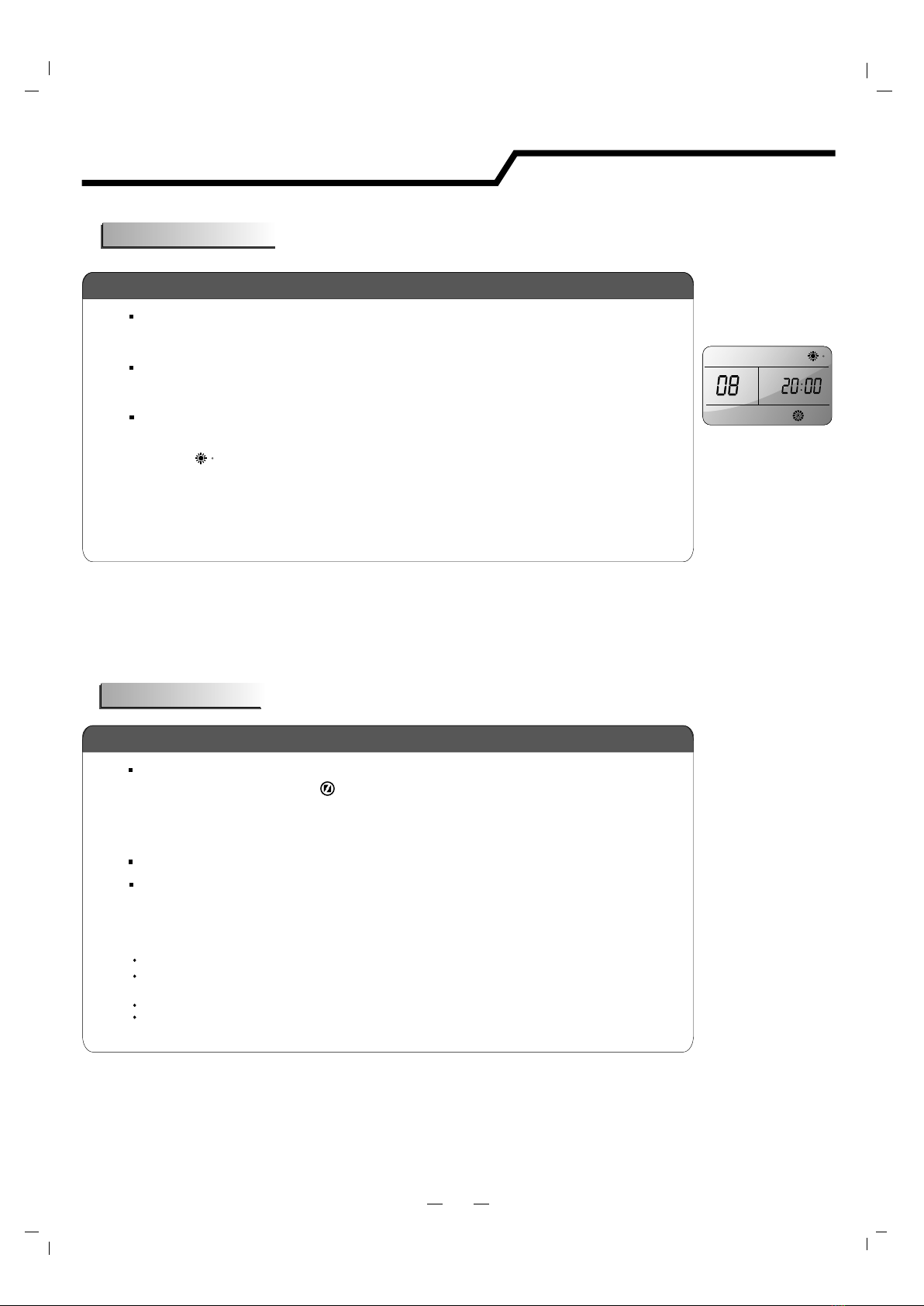

SUPER mode
SUPER mode
8° HEATING mode
If you
and SWING button, you can escape from 8°HEATING mode.Then the
display will disappear and the 8°HEATING mode will be cancelled.
press any button except for TIMER ON, TIMER OFF, CLOCK, IFEEL
8° HEATING mode
8
Note:
mode can be set only when the air conditioner works in the heating mode.8°HEATING
In mode, the temperature is set 8 .8°HEATING default ℃
8
SUPER mode can be set when the appliance is in operation or energized.
In SUPER mode, you can set airflow direction or timer.temperature,
SUPER mode is used to start or stop fast cooling or heating. In SUPER
mode, the super indicator will .
Fast cooling operates at high fan speed, changing the set temperature
automatically to 61°F(16℃);Fast heating operates at auto fan speed, changing the
set temperature automatically to 86 °F(30℃).
display on LCD
If you want to turn off SUPER mode, press SUPER, MODE, FAN,
ON/OFF or SLEEP button, the display will return to the original mode.
Note:
SMART button is not available in SUPER mode.
The Appliance will continue working in SUPER mode , if you don't escape from it by
pressing any of the buttons mentioned above.
Heating is NOT available for cooling only air conditioner.
For the first generation of products, you can’t set temperature in super mode, but you
can press TEMPERATURE SETTING button to escape super mode.
8° HEAT button is used to set 8°C (46°F) heating mode. In this mode, the fan
speed is automatically set to "AUTO".
The 8° HEATING mode will be started when you press the 8° HEAT button in
heat mode.
ON
OFF
ON
8
Operation instructions

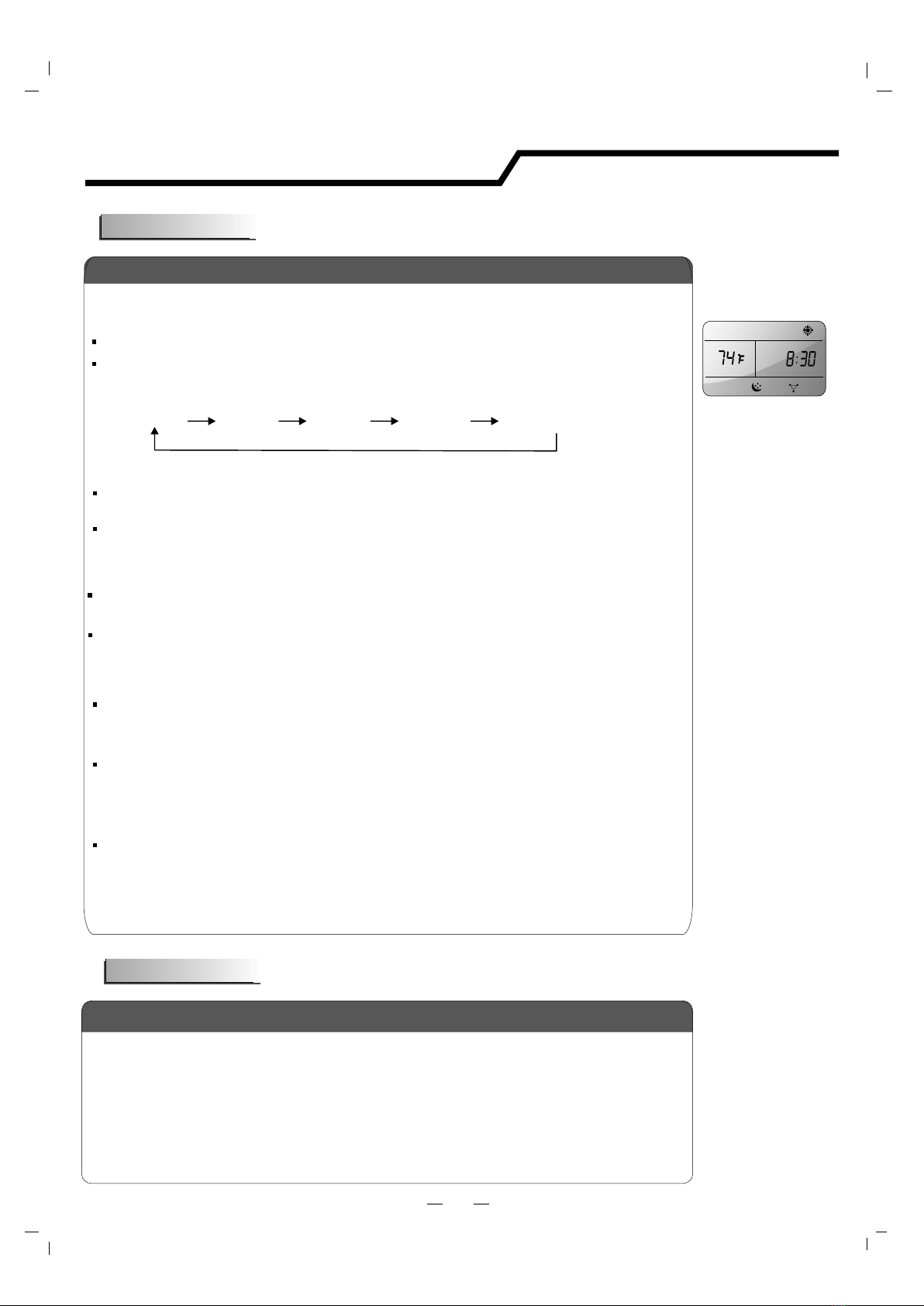

SLEEP mode
Note: When using IFEEL mode, advice to put the remote in the place where the indoor unit can
receive the signal easily.
Note: When stopping the air conditioner, advice to cancel the IFEEL mode so as to save energy.
In IFEEL mode, the temperature sensor built in the remote controller is activated
and transmits the signal back the unit. The unit can adjust the temperature to
provide maximum comfort.
IFEEL mode
IFEEL mode
SLEEP mode
SLEEP mode can be set in COOLING ,HEATING or DRY mode.
This function gives you a more comfortable environment to sleep in.
SLEEP mode 1:
Set temperature will rise by 2 ) if the appliance operates in cooling
constantly, decrease by 1°F(1℃) after 6 hours, then decrease by 1°F(1℃) after 7 hours.
°F(2℃mode for 2 hours
Set temperature will decrease by 2°F(2℃) if the appliance operates in heating mode for
hours constantly, rise by 1°F(1℃) after 6 hours, then rise by 1°F(1℃) after 7 hours.
SLEEP mode 2:
Set temperature will rise by 1 ) if the appliance operates in cooling
hour, rise by 2°F(2℃) after 2 hours, then decrease by 2°F(2℃) after 6 hours,
decrease by 1°F(1℃) after 7 hours.
°F(1℃mode for 1
Set temperature will decrease by 2°F(2℃) if the appliance operates in heating mode
for 1 hour , decrease by 2°F(2℃) after 2 hours, then rise by 2°F(2℃) after 6 hours,
rise by 2°F(2℃) after 7 hours.
SLEEP mode 3:
SLEEP mode 4:
The appliance will stop automatically after operating for 8 hours.
Fan speed is automatically set to low speed.
Each time SLEEP button is pressed, the operation mode is changed in sequence:
SLEEP 2 SLEEP 3 QUIT SLEEP MODE
SLEEP 4
SLEEP 1
Set temperature will stay steady.
Note: Heating is NOT available for cooling only air conditioner.
Note: Press SUPER ,SMART, MODE,SLEEP or FAN button cancel SLEEP mode.
Set temperature will rise by 2°F (2°C) at most if the appliance operates in cooling mode
for 2 hours constantly.
Set temperature will decrease by 2°F (2°C) at most if the appliance operates in heating
mode for 2 hours constantly.
This manual suits for next models
2
Table of contents
Languages:
Other Perfect Aire Remote Control manuals
Perfect Aire
Perfect Aire RG51F/EU1 User manual
Perfect Aire
Perfect Aire 3PAMSH09A-SZW User manual
Perfect Aire
Perfect Aire 1PACU8000 User manual
Perfect Aire
Perfect Aire PORT8000 User manual
Perfect Aire
Perfect Aire 3PAMSH36B-SZW User manual
Perfect Aire
Perfect Aire 1PAMSHH series User manual
Perfect Aire
Perfect Aire RG10A/BGEFU1 User manual
Perfect Aire
Perfect Aire 3PAMSDH09 User manual
