Peerless-AV DS-LEDIF Series User manual

12018-03-14 #:146-9020-4 (2019-05-16)

ENG

DS-LEDIF Series

For Samsung IF015H, IF020H, IF025H

*Actual conguration may vary

22018-03-14 #:146-9020-4 (2019-05-16)

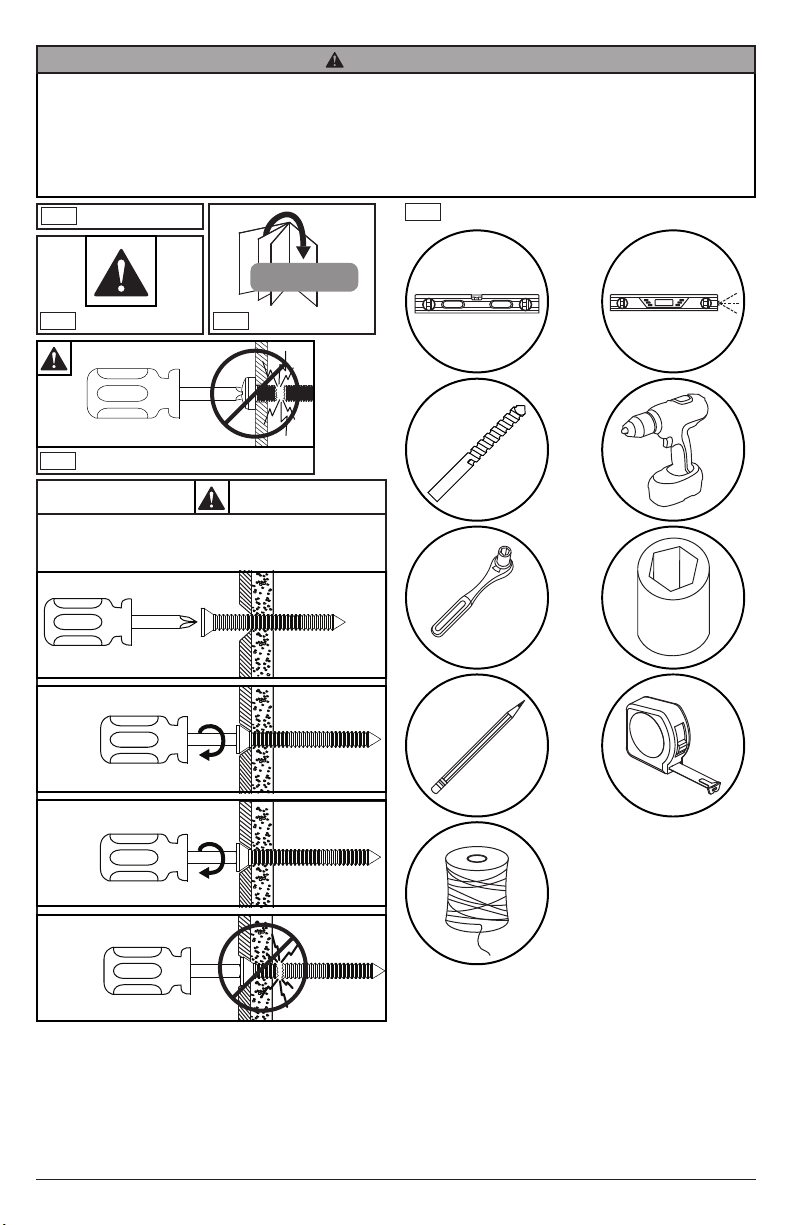

To properly tighten screws: Tighten until screw

head makes contact, then tighten another 1/2

turn. Do not overtighten screws.

+1/2

Symbols

ENG

WARNING

ENG

Do not overtighten screws.

ENG

Tools Needed for Assembly.

ENG

5/32"

(4mm)

ENG - This product is designed to be installed on plywood walls. Hardware is included for plywood installation.

Before installing make sure the supporting surface will support the combined load of the equipment and

hardware. Screws must be tightly secured. Do not overtighten screws or damage can occur and product may fail.

Never exceed the Maximum Load Capacity. Always use an assistant or mechanical lifting equipment to safely lift

and position equipment. This product is intended for indoor use only. Use of this product outdoors could lead to

product failure or personal injury. Be careful not to pinch ngers when operating the mount. For support please

call customer care at 1-800-865-2112.

WARNING

3/8"

(10mm)

Skip to step.

ENG

32018-03-14 #:146-9020-4 (2019-05-16)

This page intentionally left blank.

ENG

42018-03-14 #:146-9020-4 (2019-05-16)

Parts List

Description

Aleft column

Bright column

Cinside vertical column

Dtop horizontal asy

Ebottom horizontal asy

Ftop vertical spacer

Ghorizontal spacer

HM5 x 8mm socket screw

I#14 x 2.5" wood screw

JM5 square nut (spare)

K3mm allen wrench two-tip T-handle

Lwall plate shim

Mconnector plate

NM5 x 5mm set screw

Obottom vertical spacer

Parts (Before beginning, make sure you have all parts shown below).

ENG

left column

right column

inside vertical column

top horizontal assembly

bottom horizontal assembly

Refer to parts list included for your specic model.

ENG

52018-03-14 #:146-9020-4 (2019-05-16)

M5 x 5mm

set screw

#14 x 2.5" wood screw

M5 x 8mm

M5 square nut

bottom vertical

spacer

wall plate

shim

top vertical

spacer horizontal

spacer

connector

plate

3mm allen wrench

two-tip T-handle

62018-03-14 #:146-9020-4 (2019-05-16)

Refer to layout drawing included for your

specic model.

ENG

72018-03-14 #:146-9020-4 (2019-05-16)

2-1

Optional: If connecting two top horizontal extrusions,

rst remove inner hook-on brackets.

ENG

Remove and save hardware.

ENG

M5 x 16mm

2-2

Use extrusion connectors to connect top horizontal

extrusions.

ENG

M (4) N (8)

82018-03-14 #:146-9020-4 (2019-05-16)

2-4

Optional: If connecting two bottom horizontal

extrusions, rst remove inner hook-on brackets

ENG

Remove and save hardware.

ENG

2-3

Replace one hook-on bracket in between connected

extrusions.

ENG

Use saved hardware.

ENG

H (2)

92018-03-14 #:146-9020-4 (2019-05-16)

2-5

Use extrusion connectors to connect bottom

horizontal extrusions.

ENG

N (6)

M (3)

2-6

Replace one hook-on bracket in between connected

extrusions.

ENG

Use saved hardware.

ENG

10 2018-03-14 #:146-9020-4 (2019-05-16)

3-1

ENG - When installing Peerless wall mounts on a wood stud wall covered with plywood, verify that the wood

studs are a minimum of 2" x 4" nominal size and plywood is a minimum Grade BC, 1/2" (13 mm) thick. Plywood

may be covered by gypsum board (drywall) up to 5/8" thick.

WARNING

Level top horizontal extrusion and mark

mounting holes on plywood (must be

minimum Grade BC, 1/2" (13mm) thick.)

ENG

2.24"

(57mm)

display tile
