Peavey MMA SERIES User manual

SPECIFICATIONS

Controls overall

output level of

the module

RCA phono input

jacks

Screw terminal

input panel

SPECIFICATIONS

INSTALLATION:

The module installs at the rear panel of products

accepting the standard 6-pin card-edge module

connection. Align card-edge connector with top and

bottom circuit board guides. Snap module into card-

edge socket, push flush with rear panel and install

(furnished) mounting screws.

Gain: 0 to -60 d

Input Sensitivity: 100 mV to 6.3 V

(-17.8 d u to 14 d u)

Frequency Response:

20 Hz to 20 kHz ±0.5 d

S/N Ratio: 90 d

Mutin Level: 60 d

Power: +24 V DC

Control: Gain

Mountin : Edge card connector

Wei ht: 2.5 oz

Dimensions: 3.07" H x 1.38" W x 3.70" D

Load Impedance: 10k ohm

MMA™SERIES

MODULE AUX™2

Auxiliary Preamp Input

Module With Muting

ARCHITECTURAL ACOUSTICS®

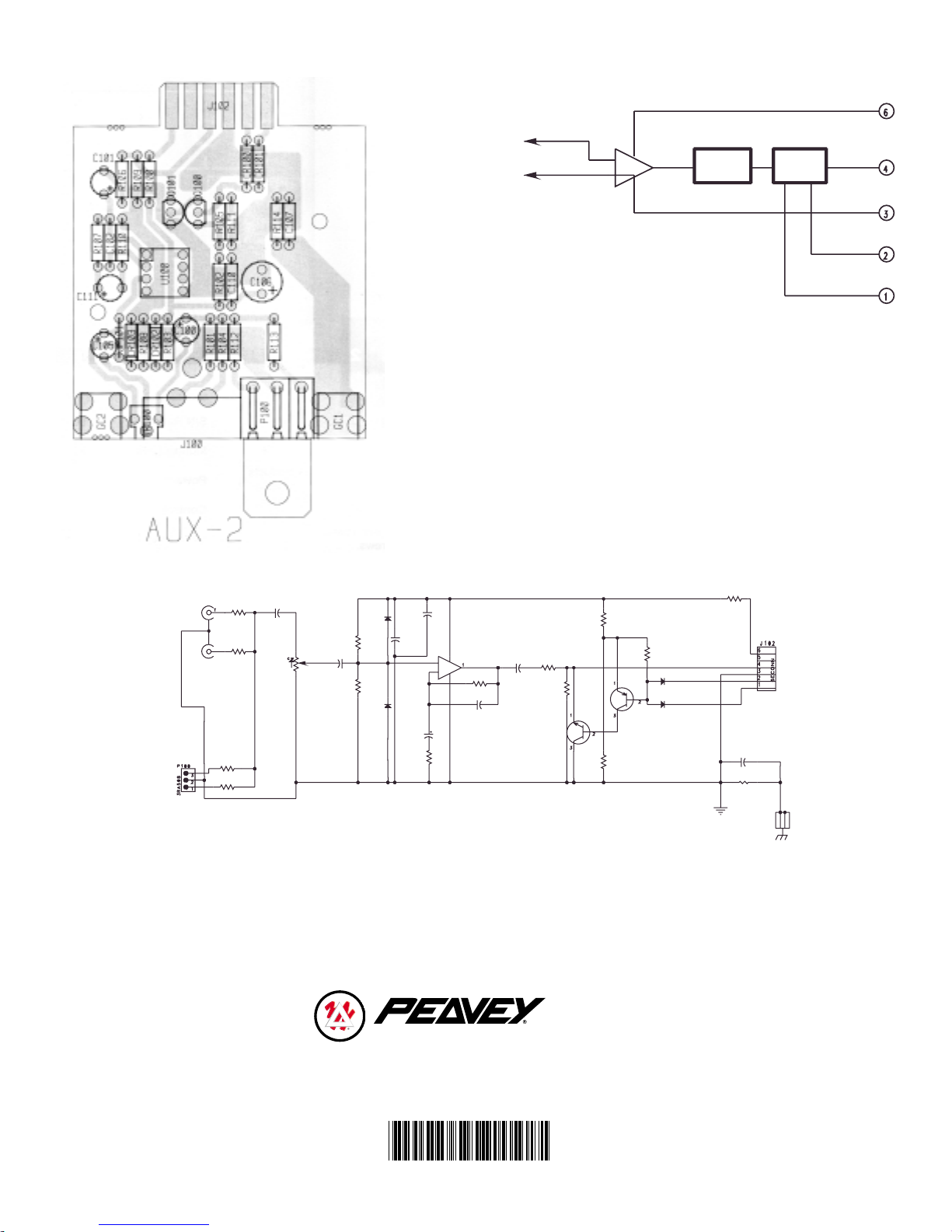

AUX™-2 BOARD LAYOUT

+24 VDC

Output

Common

Mute 1

Mute 2

Mute

Gain

Hot

Common

R101

1.5k

J 100

J 100 R104

1.5k

R112

1.5k

R113

1.5k

C100

22R50

VR100

50 TRMRA 22R50

R108

470k

R103

470k

C105

CR102

1N4148

CR103

1N4148

R110

10k

C111

22R50

C106

47V50

C110

U100

4560 R107

12k

C102

100PF

C101

22R50

R106

6.8k

R109

470k

2N3904

Q101

R111

Q100

6534

1N4148

CR101

CR100

R105

100k

R102

10k

R100

10FP

N/C

C107

.015

R114

100k

GND

CLIP17

AUX™2 BLOCK DIAGRAM

AUX™2 SCHEMATIC

2 + 3 YEAR LIMITED WARRANTY

NOTE: For details, refer to the warranty statement. Copies of this statement may be obtained by

contacting Peavey Electronic Corporation, P.O. Box 2898, Meridian, Mississippi 39302-2898.

Features and specifications subject to change without notice.

Peavey Electronics Corporation • 711 A Street • Meridian • MS • 39301

(601) 483-5376 • FAX (601) 486-1678 • www.peavey.com

80304511

ARCHITECTURAL ACOUSTICS®

To defeat Mute 1 slave operation, remove CR 100

To defeat Mute 2 slave operation, remove CR 101
