Peak IPEH-003044 User manual

PCAN-miniPCI

Mini PCI to CAN Interface

User Manual

V2.1.1

PCAN-miniPCI – User Manual

Products taken into account

Product Name Model Part Number

PCAN-miniPCI Single Channel

One CAN channel IPEH-003044

PCAN-miniPCI Dual Channel Two CAN channels IPEH-003045

PCAN-miniPCI Single Channel

opto-decoupled

One CAN channel, galvanic

isolation for CAN connection

IPEH-003046

PCAN-miniPCI Dual Channel

opto-decoupled

Two CAN channels, galvanic

isolation for CAN connections

IPEH-003047

The cover picture shows the product PCAN-miniPCI Dual Channel with opto-

decoupling. Other product versions have an identical form factor but vary in

equipment.

CANopen® and CiA® are registered community trade marks of CAN in Automation

e.V..

All other product names mentioned in this document may be the trademarks or

registered trademarks of their respective companies. They are not explicitly marked

by “™” and “®”.

PEAK-System Technik GmbH

Otto-Roehm-Strasse 69

64293 Darmstadt

Germany

Phone: +49 (0)6151 8173-20

Fax: +49 (0)6151 8173-29

www.peak-system.com

info@peak-system.com

Document version 2.1.1 (2012-04-17)

PCAN-miniPCI – User Manual

Contents

1Introduction 4

1.1 Properties at a Glance 4

1.2 System Requirements 5

1.3 Scope of Supply 5

2Installing the Software and the Card 6

3Connecting the CAN Bus 9

3.1 D-Sub connector 9

3.2 Supplying External Devices via the CAN

Connector 11

3.3 Cabling 13

3.3.1 Termination 13

3.3.2 Example of a Connection 13

3.3.3 Maximum Bus Length 14

4Using the Software 15

4.1 CAN Monitor PCAN-View for Windows 15

4.1.1 Receive/Transmit Tab 17

4.1.2 Trace Tab 19

4.1.3 Status Bar 20

4.2 Linking Own Programs with PCAN-Basic 21

4.2.1 Features of PCAN-Basic 22

4.2.2 Principle Description of the API 23

4.2.3 Notes about the License 24

5Technical Specifications PCAN-miniPCI 25

Appendix A CE Certificate 27

Appendix B Dimension Drawing 28

Appendix C Quick Reference 29

PCAN-miniPCI – User Manual

1Introduction

The PCAN-miniPCI card provides one or two CAN channels in com-

puters with Mini PCI slots (e.g. in the embedded domain). Device

drivers and programming interfaces exist for different operating

systems, so programs can easily access a connected CAN bus.

Tip: At the end of this manual (Appendix C) you can find a

Quick Reference with brief information about the installation

and operation of the PCAN-miniPCI card.

1.1 Properties at a Glance

CAN interface for the Mini PCI slot

1 or 2 High-speed CAN channels (ISO 11898-2)

Bit rates up to 1 Mbit/s

Compliant with CAN specifications 2.0A (11-bit-ID)

and 2.0B (29-bit-ID)

CAN bus connection via connection cable and D-Sub,

9-pin (in accordance with CiA® 102)

NXP SJA1000 CAN controller, 16 MHz clock frequency

TJA1040 CAN transceiver

Space-saving dimension thanks to SMD technology

Galvanic isolation on the CAN connection up to 300 V, separate

for each CAN channel

5-Volts supply to the CAN connection can be connected through

a solder jumper, e.g. for external bus converter

Operating temperature range from 0 to 70 °C (32 to 158 °F)

PCAN-miniPCI – User Manual

Note: This manual describes the use of the PCAN-miniPCI card

with Windows. You can find device drivers for Linux and the

corresponding application information on the provided CD in

the directory branch Develop and on our website under

www.peak-system.com/linux.

1.2 System Requirements

A vacant Mini PCI slot in the computer

Operating system Windows 7/Vista/XP (32/64-bit)

or Windows CE6.x (x86 and ARMv4 processor support)

or Linux (32/64-bit)

1.3 Scope of Supply

PCAN-miniPCI card

Connection cable inc. D-Sub plug

Device drivers for Windows 7/Vista/XP(32/64-bit)

and Linux (32/64-bit)

Device driver for Windows CE6.x

(x86 and ARMv4 processor support)

PCAN-View CAN monitor for Windows

PCAN-Basic programming interface consisting of an interface

DLL, examples, and header files for all common programming

languages

Manual in PDF format

PCAN-miniPCI – User Manual

2Installing the Software and

the Card

This chapter covers the software setup for the PCAN-miniPCI card

under Windows and the installation in the computer.

Setup the driver before installing the PCAN-miniPCI card.

Do the following to install the driver:

1. Windows XP only: Make sure that you are logged in as user

with administrator privileges (not needed for normal use of

the PCAN-miniPCI card later on).

2. Insert the supplied CD into the appropriate drive of the

computer. Usually a navigation program appears a few

moments later. If not, start the file Intro.exe from the root

directory of the CD.

3. On the page English > Drivers activate the entry PCAN-PCI.

4. Click on Install now. The setup program for the driver is

executed.

5. Follow the instructions of the setup program.

Tip: If you don't want to install the CAN monitor PCAN-View for

Windows onto the hard disk together with the driver, you have

the option to start the program later directly from CD without

prior installation.

PCAN-miniPCI – User Manual

Do the following to install the card in the computer:

Attention! Electrostatic discharge (ESD) can damage or destroy

components on the PCAN-miniPCI card. Take precautions to

avoid ESD when handling the card.

1. Shut down the computer.

2. Disconnect the computer from the power supply.

3. Open the computer's casing.

4. Insert the PCAN-miniPCI card into an empty Mini PCI slot.

For details please refer to the documentation of the

computer.

5. For each CAN channel mount a D-Sub connector with

connection PCB into a respective hole of the computer

casing.

6. For each CAN channel interconnect a D-Sub connector and

the corresponding port on the PCAN-miniPCI card.

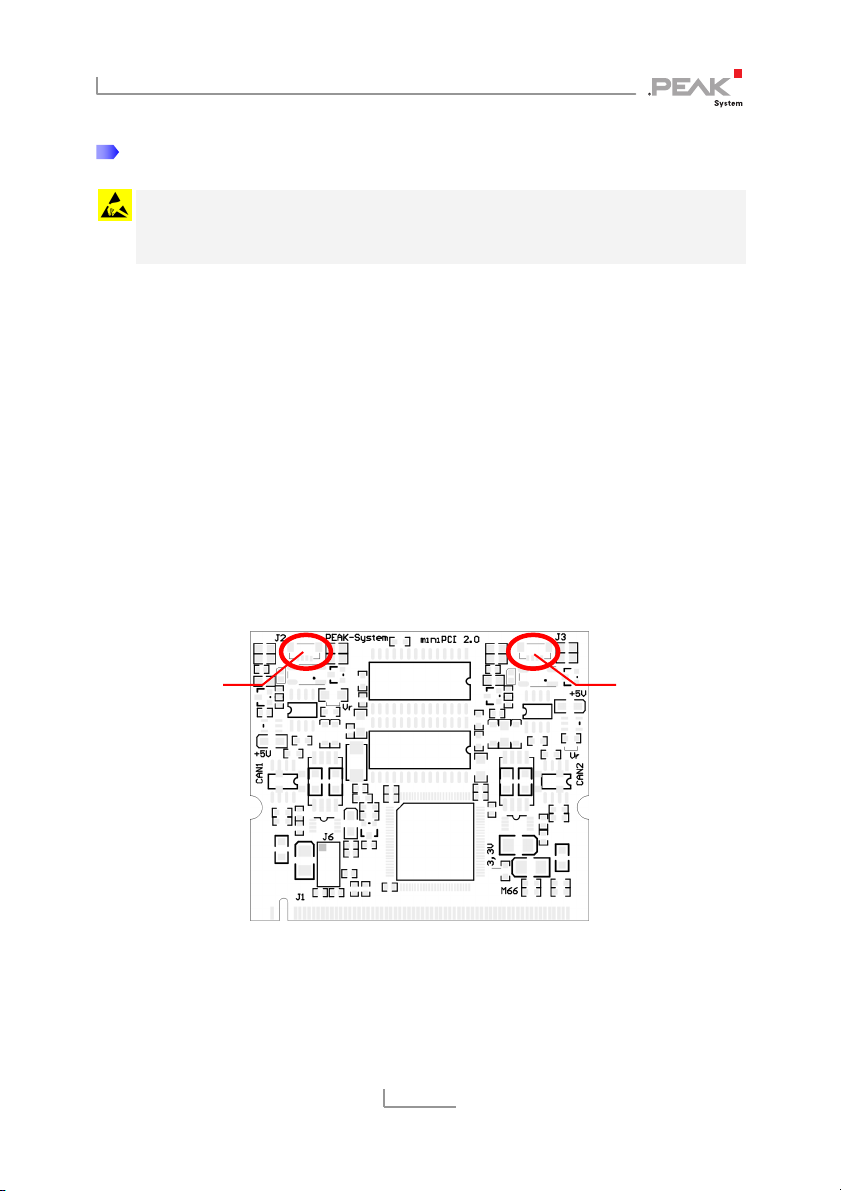

Figure 1: Positions of the CAN ports on the PCAN-miniPCI card

7. Close the computer's casing.

8. Reconnect the power supply of the computer.

CAN 1 CAN 2

PCAN-miniPCI – User Manual

Do the following to complete the initialization:

1. Turn on the computer and start Windows. Make sure that

you are logged in as user with administrator privileges.

Windows notifies that new hardware has been detected.

2. Windows XP only: A Wizard dialog box appears. Follow its

instructions. Deny the search for driver software at

Windows update and select the automatic software

installation during the procedure.

All Windows operating systems: The drivers are found and

installed by Windows.

3. Afterwards you can work as user with restricted rights

again.

After the initialization process is finished successfully you can find

the entry “PCAN-miniPCI” in the branch “CAN-Hardware” of the

Windows Device Manager.

PCAN-miniPCI – User Manual

3Connecting the CAN Bus

3.1 D-Sub connector

A High-speed CAN bus (ISO 11898-2) is connected to the 9-pin

D-Sub connector. The pin assignment corresponds to the

specification CiA® 102.

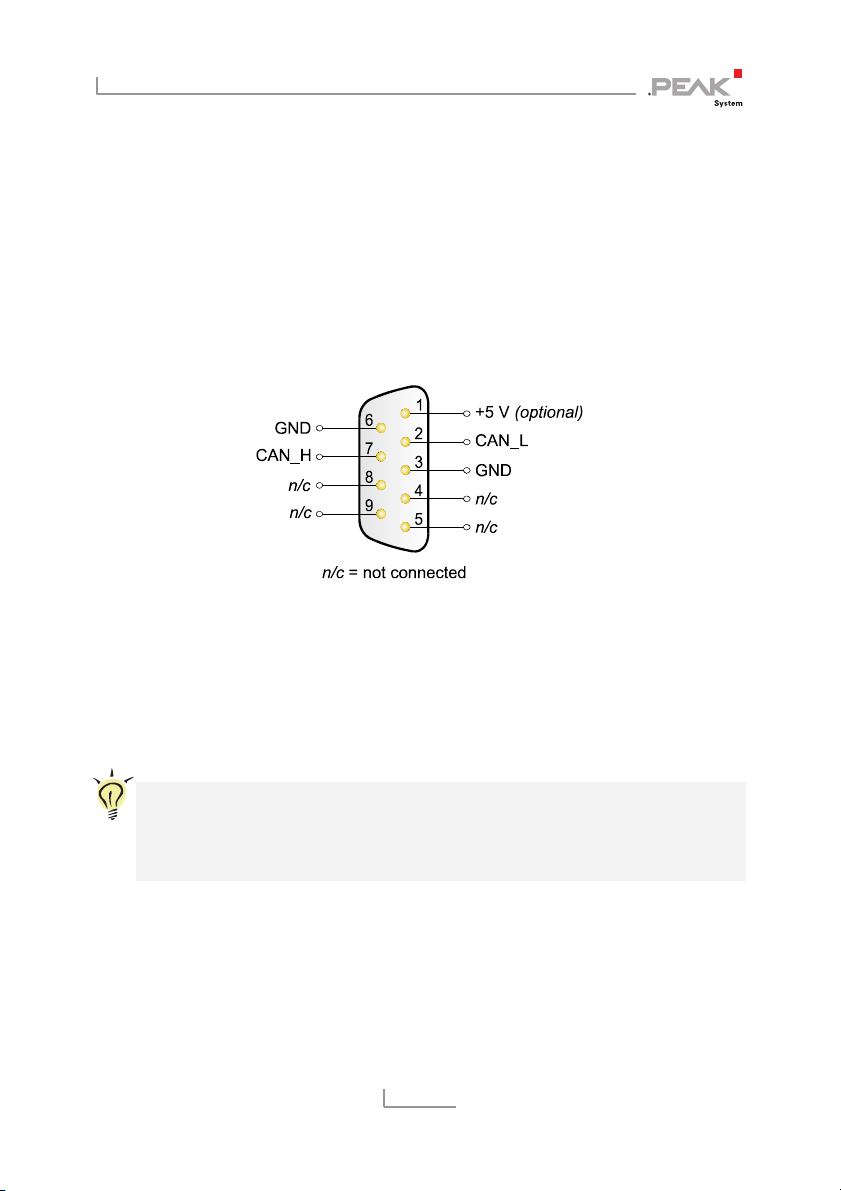

Figure 2: Pin assignment High-speed CAN

(view onto a D-Sub connector)

With pin 1 devices with low power consumption (e.g. bus conver-

ters) can be directly supplied via the CAN connector. At delivery this

pin is not assigned. You can find a detailed description in the follo-

wing section 3.2.

Tip: You can connect a CAN bus with a different transmission

standard via a bus converter. PEAK-System offers different bus

converter modules (e.g. PCAN-TJA1054 for a Low-speed CAN

bus according to ISO 11898-3).

PCAN-miniPCI – User Manual

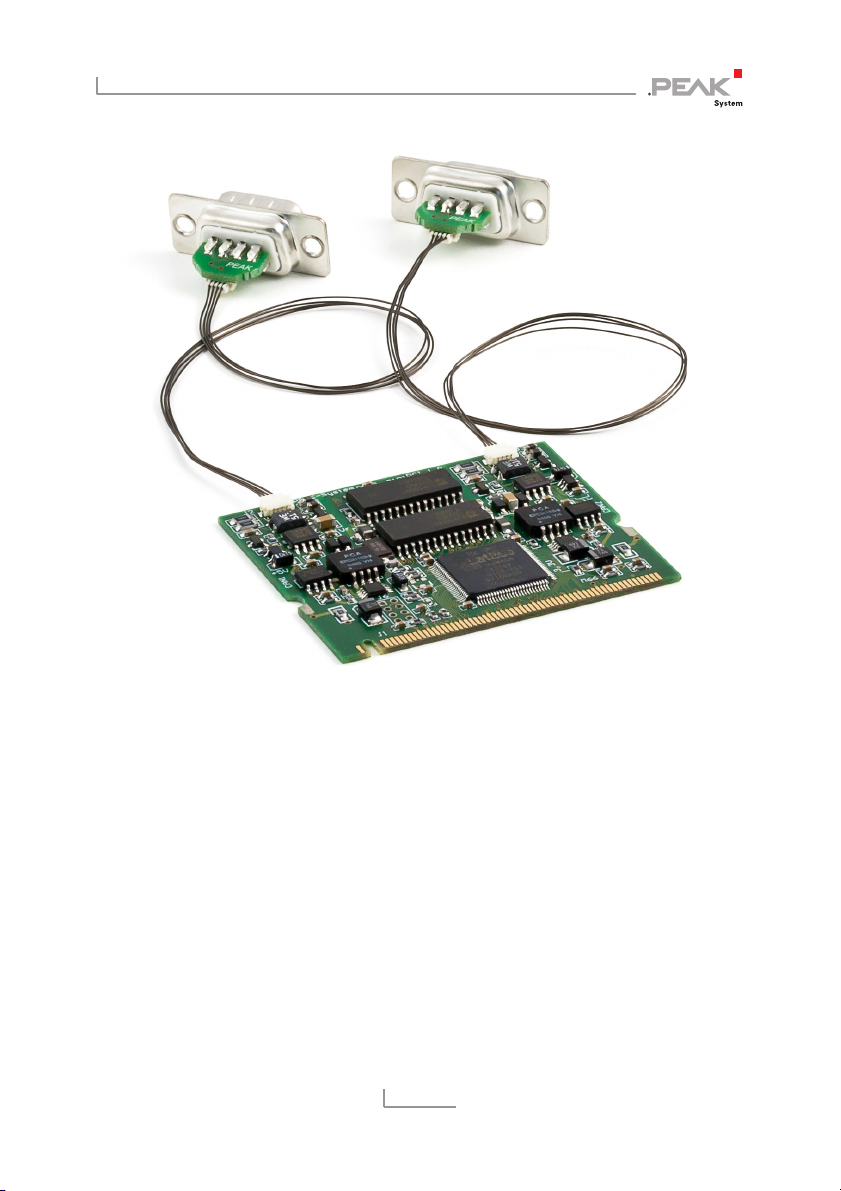

Figure 3: PCAN-miniPCI card with connection cable

To connect a CAN bus to the PCAN-miniPCI card, use the supplied

special connection cables. After you've plugged in the cable on the

PCAN-miniPCI card, you can connect a CAN bus to the D-sub socket.
