Quick Start Guide
Keypad Products
KPT4, DKT4
©2012 Powerline Control Systems, Inc.
All Rights Reserved v2.01
19215 Parthenia St. Suite D
Northridge, CA 91324
P: 818.701.9831
www.pcslighting.com
https://pcswebstore.com
MODELS:
KPT4 – Keypad Transmitter, Wall Mount, 4 button
DKT4 – Desktop Keypad Transmitter, 4 button
FUNCTION
SimpleWorx products are designed to provide simple remote
control for lighting and other electrical loads without having
to run any new wiring. They connect or “link” to one another
by communicating over the existing electrical power wires.
One Transmitter can be linked to as many Receivers as you like.
Each Receiver can be linked to eight Transmitters.
The KP Series (KPT, DKT) Keypad Transmitters provide control of
four groups of SimpleWorx receivers anywhere in your home or
office. Each group can have one or multiple receivers. The KPT4
mounts in any standard single gang electrical box, the DKT plugs
into a standard electrical outlet.
The keypads communicate to the desired group of SWX devices
associated with the button and all devices programmed to
listen for commands will react by turning their connected
lights on/off accordingly.
IMPORTANT SAFETY INSTRUCTIONS
When using electrical products, basic safety precautions
should always be followed, including the following:
1. Do not use this product for other than its intended purpose.
2. Keep away from water. If the product comes in contact
with water or other liquid, turn off the circuit breaker and
remove the product immediately.
3. Never use products that have been dropped or damaged.
4. Do not use this product outdoors.
5. Do not cover this product with any material when in use.
INSTALLATION
The KP Series are designed for indoor use. Simply plug the DKT
into any 120V power outlet. To install the KPT in a wall box
follow these instructions:
1. Before installing the Keypad Transmitter into a wall box,
ensure that power to the wall box has been disconnected by
removing the fuse or turning the circuit breaker off.
Installing products while the power is on may expose you to
dangerous voltage and may damage the product.
KPT4 DKT4

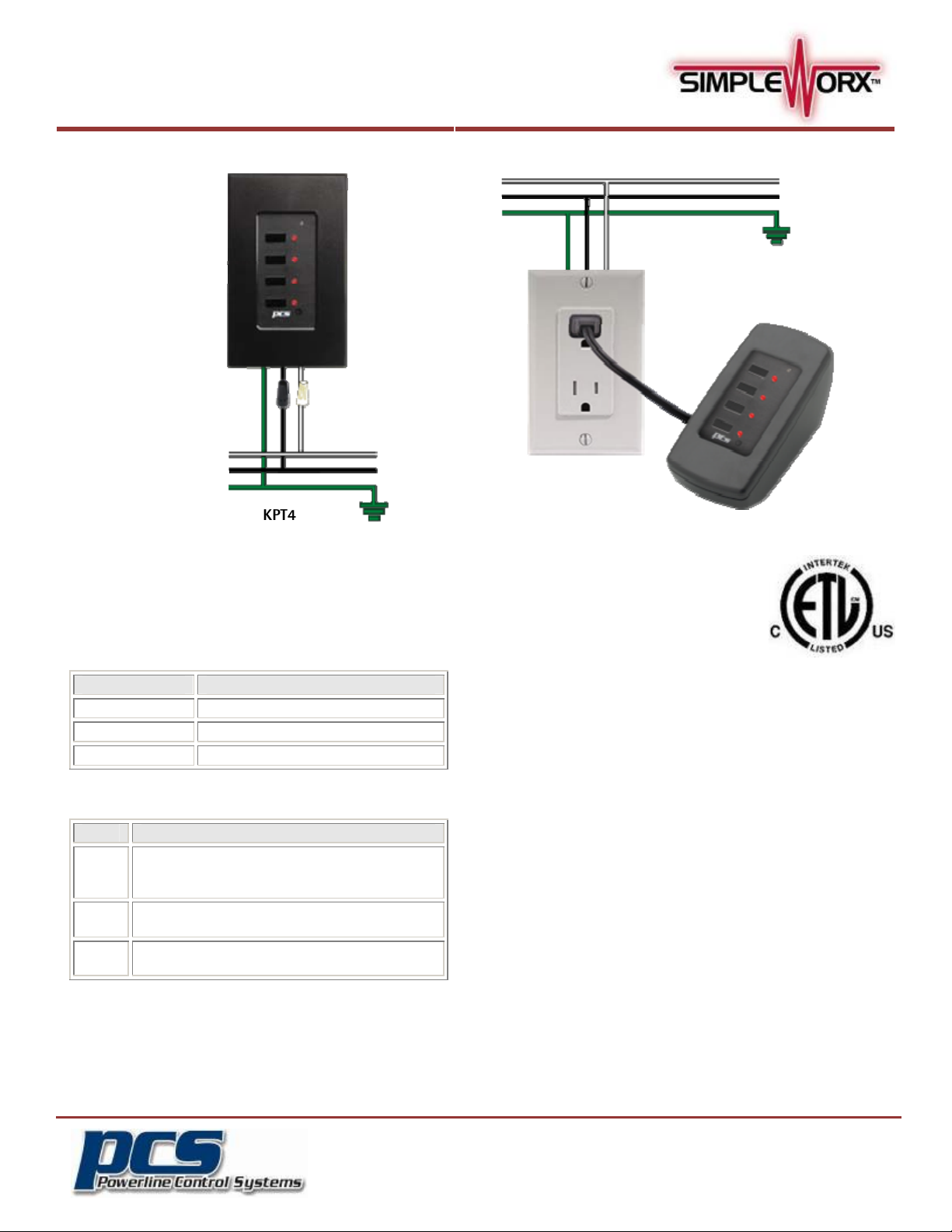

Figure 1 Figure 2
2. Remove any existing wall plate and device from the existing wall
box.
3. Wire the SimpleWorx Keypad Transmitter connecting wires per
wiring configuration shown in Figure 3. Cap off any unused
wires from the device
4. Gently place the wires and Keypad into the wall box, with light
emitting diode (LED) on the right of the device. Screw in place.
5. Before installing the faceplate, restore power to the circuit and
test the device for proper local operation.
6. After testing, re - install the faceplate cover(s).
OPERATION
Linking a Transmitter Button to a Receiver
Any SimpleWorx transmitter can remotely control one (or more)
SimpleWorx Receiver(s) by following the steps below to “LINK” the
two together:
1 On the Keypad; Press and hold the button for 6
seconds. The Indicator LED will flash GREEN and
Status LED will flash RED.
2 At the SimpleWorx Receiver; Press and hold the
rocker switch or link button for 6 seconds. The LED
will flash GREEN and flash its load (if a load is
connected)
3 The Receiver will indicate (within 30 seconds) the
two devices have automatically “LINKED” to one
another when the LED stops flashing and then
flashes its load once.
4 The Transmitter may be taken out of “LINK” mode by
tapping its rocker switch or link button once. The
LED will stop flashing.
Note: The TX will automatically timeout after 5
minutes
