Paselec E-PAS PX6 Series User manual
Preface
Dear friends, thank you for choosing paselec, we wholeheartedly provide you with quality products and
services. We uphold the principle of customer satisfaction first to provide you with high-quality design,
technology and products. We are committed to do a good job in each product,
if you have any questions about the product, please feel free to contact our customer service team.
TECHNOLOGY
Intelligent
electric bicycles
E.PAS. Technology,
It is double the duration of regular ebike under the same battery
capacity and motor usage. It also allows the battery to get
recharged when it is at high speed or downhill.
What is Paselec’s most
advanced technology?
All the parts and accessories on the ebikes are the known brand,
for example, Samsung battery. Every bike is fully inspected under
QC standards. Paselec’s mission is to address all the customer
issues in the fastest manner. All the issues or concerns will be
solved within 24 hours
How does the brand Paselec
ensure the stability?
The fact that our battery is equivalent to two batteries in
other ebikes makes it super attractive.
What makes Paselec most attractive?
1
2
Manual’s Page
E-PAS
Technology
Introduction of
PASELEC Series
Usage guidance TroubleshootingBattery charging and
maintenance
Warranty Return policy Maintenance cost policy
03 04-05
08 09 10-12
Assembly
06-07
13-15 16 17
Notes on cycling Warning
19
Service
18 20
www.paselecbikes.com
E·pas·
Technology
E-PAS Technology is a patented technology of Paselec , which has the
characteristics of ultra-long mileage, energy saving loss, prolonging
the service life of transmission system and so on.
Paselec Bikes
+45%
Other Bikes
+0%
3
www.paselec-ebikes.com
4
www.paselec-ebikes.com
PX6 Series
27.5*2.1
8
Mechanical front suspension
180mm hydraulic brake
18
4'4"-6'4"
24kmh
48v 14AH
35-50
750
Intelligent Controller
Product
Specification

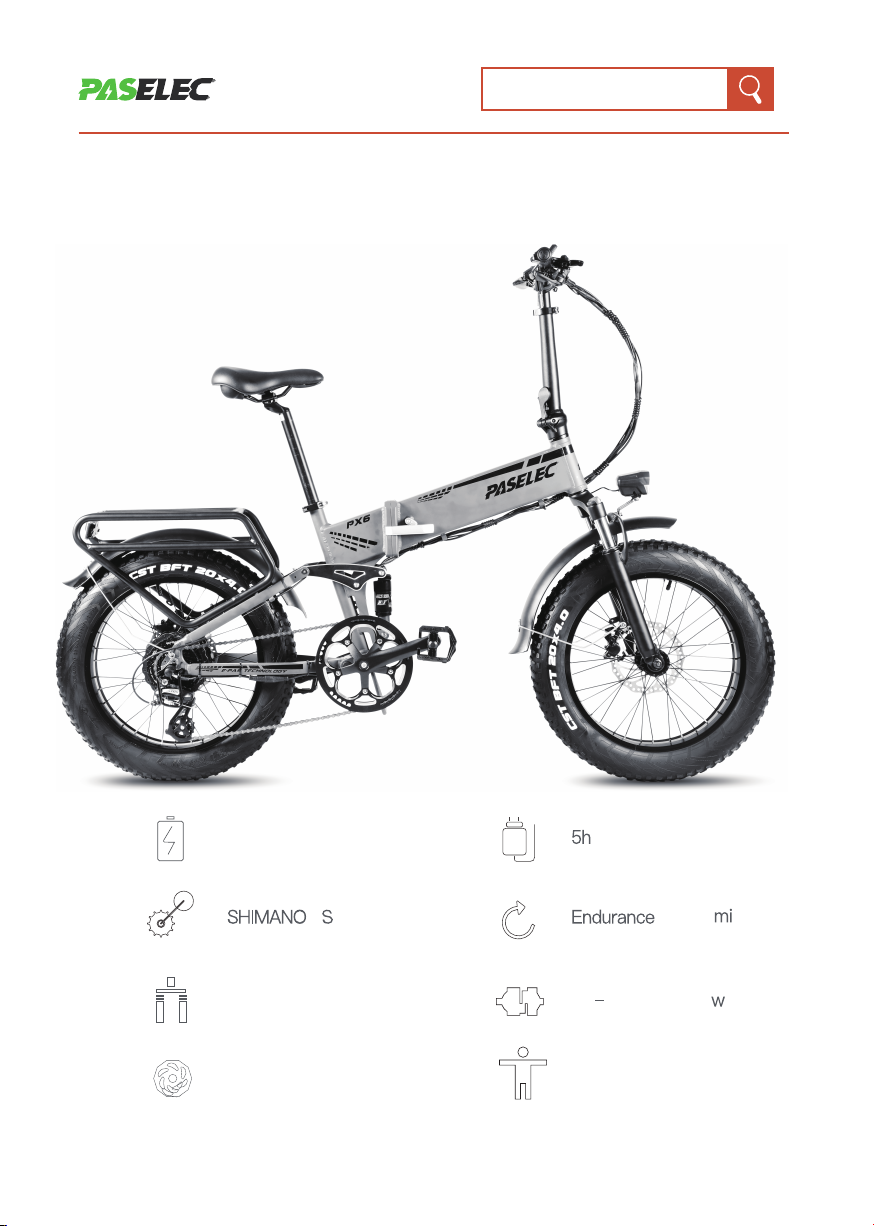

E-BIKE: Paselec PX6 series
Frame: Paselec 20inch aluminum alloy frame
Front suspension: Alloy Lock-out suspension
Brake：Hydraulic Disc Brake
Tire: CST/Chaoyang 20*4.0''
Throttle Type: Thumb throttle
E-DRIVE: 750W
Speed: 18kmh to 24kmh depends on power, PAS level, load, terrain and weather
.
Battery: 48v 14Ah
Range: 50 miles to 70 miles depends on riding mode, load, terrain and weather.
Charger: 54.6V 2A DC charging Time: 4 to 5 hours
Display: LCD dashboard, waterproof, password-protected (Can be upgraded to a color display)
Freewheel: SHIMANO 8-speed
Maximum load: 330 lbs
Rider’s height: 4'4"-6'4"
5
www.paselec-ebikes.com
6
www.paselec-ebikes.com

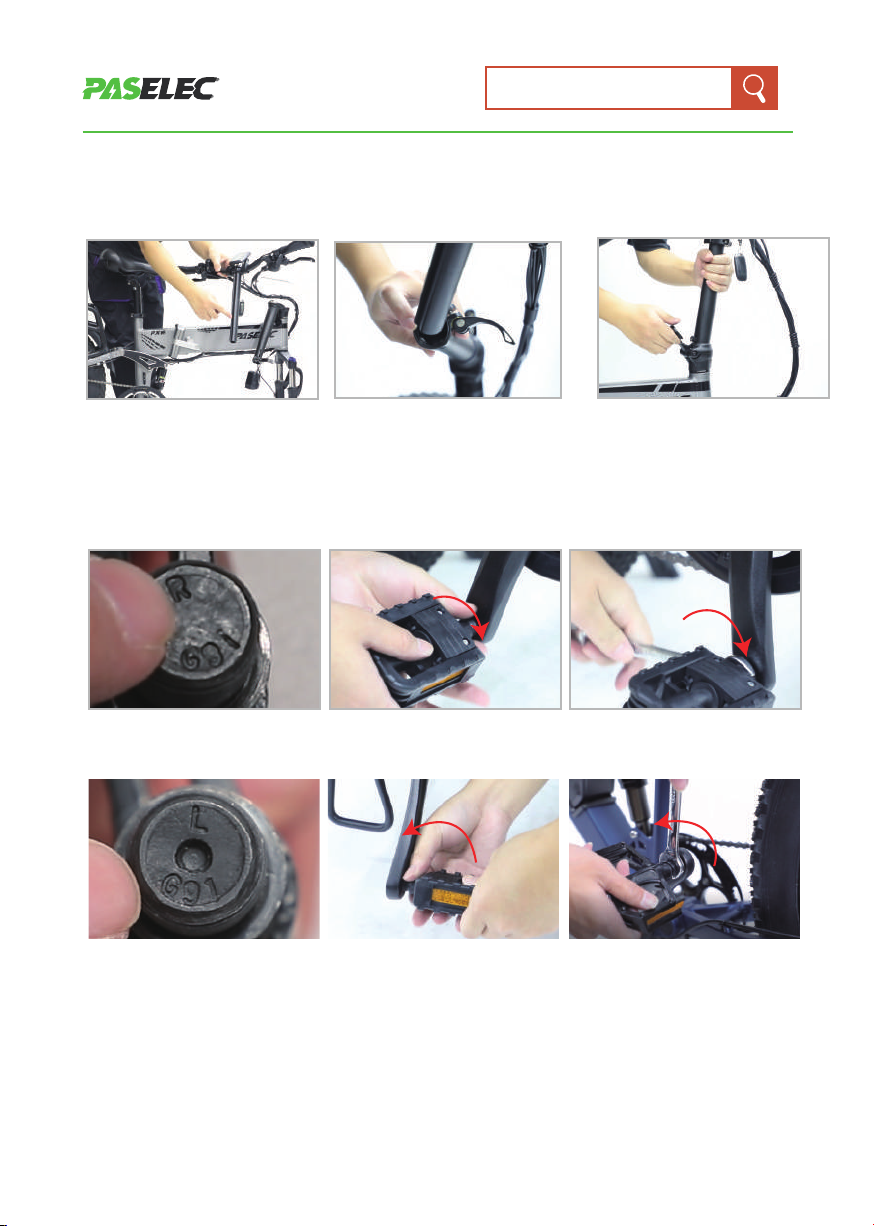

Put the handlebar on the stem Move in the right direction
Screw on and Tighten
Handlebar installation
Install the pedals
Looking for "R" mark Installed on the chainwheel
side crank
Rotate clockwise to tighten
Looking for "L" mark Rotate counterclockwise Tighten
7
Assemble video
http://www.paselecbikes.com/video
www.paselec-ebikes.com

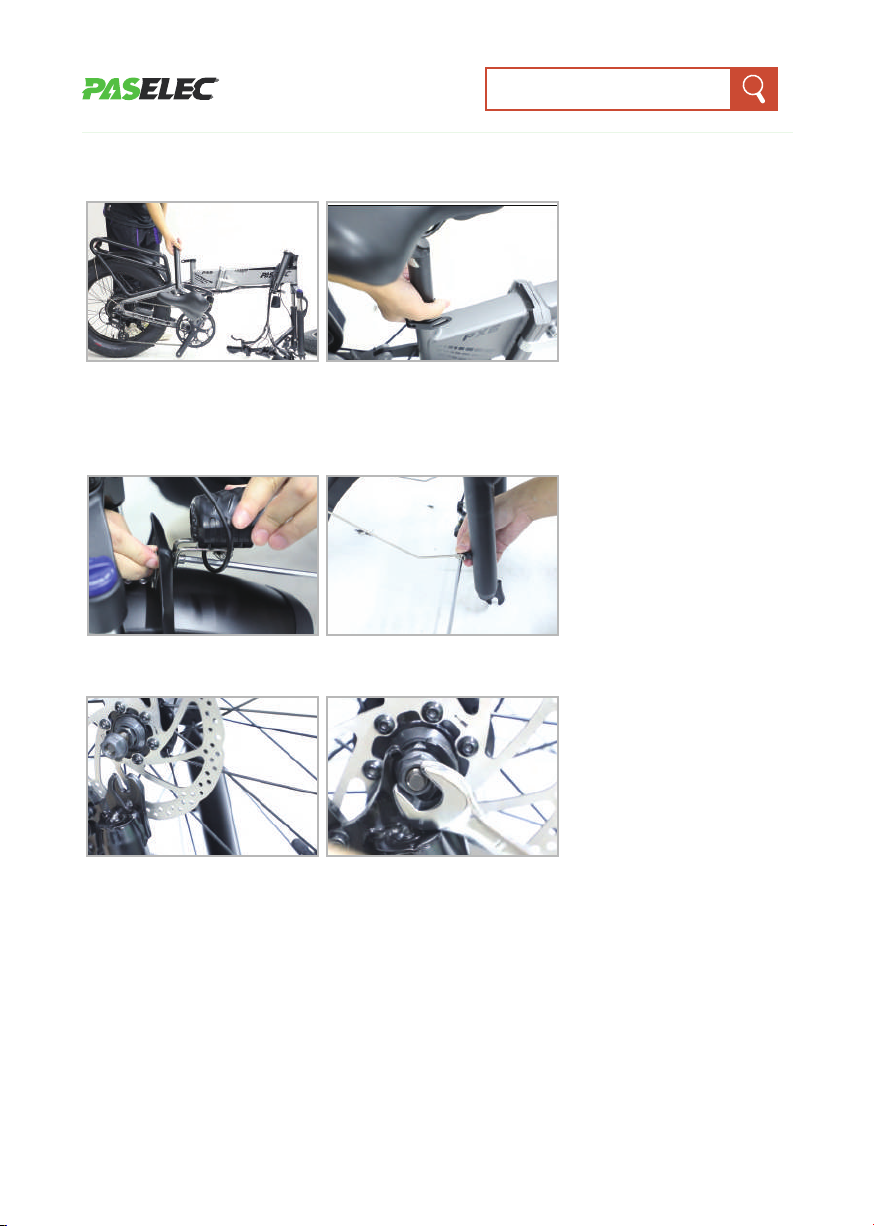

Seat installation
Open the clamp and put
the stem into the tube
Adjust the height and lock
Front wheel installation
Flip the frame Release the rod
Put it in the wheel Both sides must be tightened
Power switch on/off
The power button locates on the button pad on the left handlebar. Pressing and holding
the button to switch on/off.
Power assist level setting
Setting a power assist level 1,2 or 3 by pressing "+" or "-" button.
Thumb throttle
The thumb throttle locates on the button pad on the right handlebar. The thumb throttle is
valid in 1,2 or 3. The deeper you press down the throttle, the much power you can get.
You can set power assist level 0 to turn off the throttle.
Head light switch on/off
Press the head light switch/up button on the button pad on the left handlebar.
Multi-function button
Press the multi-function button to change the display index of riding.
The shifter
Push the lever to let gear up. Press the button to let gear down. (Notice: please shift the gear when
the rear wheel is rotating. Gear shifting when the rear wheel stops may damage the components.)
The pedals
Setting power assist level 0 or 1 with the speed of 14mph made by pedal can charge the
battery manually.
Cruise control system and walk-power assist
Holding "+" button for 5-8 seconds, cruise control system will start.
Press and hold "-" button, the bike will keep in the speed of 3.7mph to help you easily
to walk with the bike.
8
Usage Guidance
www.paselec-ebikes.com
Battery
Charging
and
Maintenance
Warning!
Two keys are provided to lock or unlock the battery.
The battery can be charged in the compartment or taking off.
Please do not use any other chargers. Select a suitable charger based on applicable voltage.
The charging environment should be cool, dry and non-conductive.
Unplugging the socket immediately as soon as the battery gets charged fully (Green light on).
Do not store the battery at the temperature above 60°C or below -20°C.
In winter, the effective power of the battery can decrease by 1/3 when working in 0°C.
The power volume will return to normal after the environment temperature raise to 20°C or higher.
In summer, heat dissipation is important to keep the battery healthy. The battery should not be
charged immediately after exposure to the strong sunshine.
The battery contactor cannot touch metals. Many cases shows the battery can be burned
out if the customers use metals to touch the battery contactor.
Charging battery immediately after cycling or power consumption can to a large extent avoid the
loss of battery capacity and lifetime.
9
