1
Hotwirer6321/6322 IDSL Routers
Installation Instructions
Document Number 6321-A2-GN10-00
March 2000
Contents
Hotwire 6321/6322 IDSL Routers Overview 2. . . . . . . . . . . . . . . . . . . . . . . . . . .
Wiring and Cables Needed 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installing the DSL Access Wiring 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connecting to the DSL Access Wiring 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installing the Hotwire 6321/6322 IDSL Router 6. . . . . . . . . . . . . . . . . . . . . . . . .
Troubleshooting 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cables & Connectors 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Important Safety Instructions 18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product Documentation on the World Wide Web
We provide complete product documentation online. This lets you search the
documentation for specific topics and print only what you need, reducing the waste of
surplus printing. It also helps us maintain competitive prices for our products.
Complete documentation for this product is available at www.paradyne.com.
Select Library →Technical Manuals →Hotwire DSL and MVL Systems.
Select the following document:
6371-A2-GB20
Hotwire DSL Routers User’s Guide
To order a paper copy of a Paradyne document:
HWithin the U.S.A., call 1-800-PARADYNE (1-800-727-2396)
HOutside the U.S.A., call 1-727-530-8623
Product-Related Documents
Document Number Document Title
8000-A2-GB26 Hotwire MVL, RADSL, IDSL, and Packet SDSL Cards,
Models 8310/8312, 8510/8373/8374, 8323/8324, and
8343/8344, User’s Guide
2
Hotwire 6321/6322 IDSL Routers Overview
The Hotwirer6321 and 6322 ISDL (Integrated Services Digital Network Digital
Subscriber Line) Routers are components in the Hotwire DSLAM (Digital Subscriber
Line Access Multiplexer) system. Both Hotwire IDSL Routers interoperate with either
the Hotwire 8323 or 8324 IDSL Card:
HHotwire 6321 IDSL Router with one Ethernet port
HHotwire 6322 IDSL Router with a 4-port Ethernet hub
Both the Hotwire 6321 and the Hotwire 6322 IDSL Routers operate as an IP router
connecting a DSL link to an Ethernet network. The Hotwire IDSL packet-based system
provides high-speed Internet or corporate LAN access over a combination of traditional
twisted-pair copper telephone wiring and ISDN transport, such as T1 or fiber. These
products have three data channels that are configurable for a total of 144 kbps.
Network Overview with a Hotwire 6321 IDSL Router
00-16667
Punchdown
Block or NID
DSL
Jack 6321
IDSL
Router
Customer Premises (CP)
DSL Ethernet
Crossover
Cable Ethernet
Cable
or
Central
Office
(CO)
Demarcation
Point
Local
Loop
Hub
End-user
Systems
DSL – Digital Subscriber Line New Wiring Connections
NID – Network Interface Device
Service
Provider
Remote
Terminal
(RT)
Digital
Loop
Carrier
(DLC)
NOTES:
In this document:
— End-user system is used to represent any host with an Ethernet connection.
— Service provider is used to represent any Internet Service Provider (ISP) or
remote LAN provider.
3
Network Overview with a Hotwire 6322 IDSL Router
00-16668
Punchdown
Block or NID
DSL
Jack 6322
IDSL
Router
Customer Premises (CP)
DSL
Ethernet
Crossover
Cable
Ethernet Straight
Through Cables
Demarcation
Point
Hub
End-user
Systems
DSL –Digital Subscriber Line New Wiring Connections
NID –Network Interface Device
Central
Office
(CO) Local
Loop
Service
Provider
Remote
Terminal
(RT)
Digital
Loop
Carrier
(DLC)
NOTE:
For Ethernet cabling details, refer to Installing the Hotwire 6321/6322 IDSL Router
on page 6.
Package Checklist
Verify that your package contains the following:
-Model 6321 or Model 6322 IDSL Router
-DSL interface cable with RJ11 modular plugs
-Power cord with power transformer
Wiring and Cables Needed
You will need the following wiring and standard connectors with this product:
-Standard RJ11 wall jack for the DSL cabling.
-DSL cabling: New or existing unshielded twisted-pair wiring (CAT3 or better). The
CAT3 wiring must meet EIA/TIA-568 specifications with 24 AWG (.5 mm) or
26 AWG (.4 mm).
-Ethernet cabling: New or existing shielded twisted-pair wiring (CAT5 or better). The
CAT5 wiring must meet EIA/TIA-568 specifications with 24 AWG (.5 mm) or
26 AWG (.4 mm). A straight-through or crossover Ethernet cable is used.
Refer to Installing the Hotwire 6321/6322 IDSL Router on page 6 for cabling details.
4
Optional Cable
The Hotwire 6321/6322 IDSL Routers are typically configured remotely by the service
provider. The following optional cabling and adapter are only used with this product to
configure the router locally:
-Console cabling: Straight-through cable with 8-pin non-keyed modular plugs
(Part No. 035-0276-1431)
-Console adapter:
—8-pin modular to DB9 adapter plug (Part No. 002-0093-0031), or
—A configurable RJ to DB9 adapter wired as shown in Cables & Connectors
on page 13.
Installing the DSL Access Wiring
The local loop terminates at the punchdown block or NID. Wiring must be connected
from the customer premises side of the punchdown block or the NID to an RJ11 jack.
Typically, the punchdown block is installed in commercial locations and the NID is
installed in residential locations.
"Procedure
1. Access the punchdown block or NID.
!WARNING:
Do not continue unless the DSL access line from the local loop has been
disconnected at the NID or punchdown block. Refer to Important Safety
Instructions on page 18.
2. Disconnect the DSL access pair from the local loop. A punchdown block is used in
the following example.
ABCD
DSL
Access
from Local
Loop
Wiring to
DSL Jack
Bridge Clip
Punchdown Block
97-15348
Demarcation Point
Customer Premises
5
3. Locate the DSL pair of T1/R1 connectors on the customer premises side of the
NID or punchdown block. Attach the wiring that will be connected to the DSL jack.
Connecting to the DSL Access Wiring
The Hotwire 6321 or 6322 IDSL Router connects to the local loop via wiring from the
demarcation point to an RJ11 wall jack. The DSL twisted-pair wiring from the local loop
terminates at a new or existing wall jack. It may be necessary to install a standard
single RJ11 jack or replace a single jack with a double RJ11 jack.
99-16589
DSL
RJ11
Jack
Central
Office
Punchdown
Block or NID
Customer Premises
DSL
Local Loop
Demarcation Point DSL
Twisted-pair
Wiring
DSL
Router
"Procedure
1. Wiring can be run from the punchdown block or NID to a new or existing wall jack.
Match the pair colors on both ends.
2. Label the DSL jack.
3. Reconnect the DSL access pair at the punchdown block or NID. Tighten both
terminal screws with a flat-blade screwdriver.
The RJ11 6-pin jack uses the center two pins. For pin assignments, refer to Cables &
Connectors on page 13.
6
Installing the Hotwire 6321/6322 IDSL Router
Place the Hotwire 6321/6322 IDSL Router on a flat surface with clearance for the rear
connectors.
NOTE:
The following illustrations show the Hotwire 6322 IDSL Router with a 4-port
Ethernet hub. The Hotwire 6321 IDSL Router is identical except that it has one
Ethernet port.
"Procedure
1. Use the RJ11 6-pin cable for the DSL connection. Insert one end of the cable into
the jack labeled DSL. Insert the other end into the wall jack labeled DSL.
00-16669
DSL
Jack
POWER
CONSOLE DSL
2
1ETHERNET
34
6322 IDSL Router
If you are installing a . . . Then go to . . .
Hotwire 6321 IDSL Router page 7
Hotwire 6322 IDSL Router page 8
7
2. Use an 8-pin Ethernet cable for the Ethernet connection. Insert one end of the
cable into the jack labeled ETHERNET.
If you are installing the Hotwire 6322 IDSL Router, go to page 8.
HFor a 6321 IDSL Router, use a straight-through cable to connect the other end
to an Ethernet hub. Do not connect a straight-through cable to the external
hub’s UPLINK connection (this connection requires a crossover cable).
POWER
CONSOLE
DSL
ETHERNET
00-16670
Ethernet
Line
Ethernet
Hub
Ethernet
Straight-through
Cable
87654321
6321 IDSL Router
-or-
HFor a 6321 IDSL Router, use an Ethernet crossover cable and connect the
other end to a PC with an Ethernet Network Interface Card (NIC) installed.
POWER
CONSOLE DSL
ETHERNET
00-16671
PC with Ethernet
Network Interface
Card (NIC) Ethernet
Line
Ethernet
Crossover
Cable
6321 IDSL Router
8

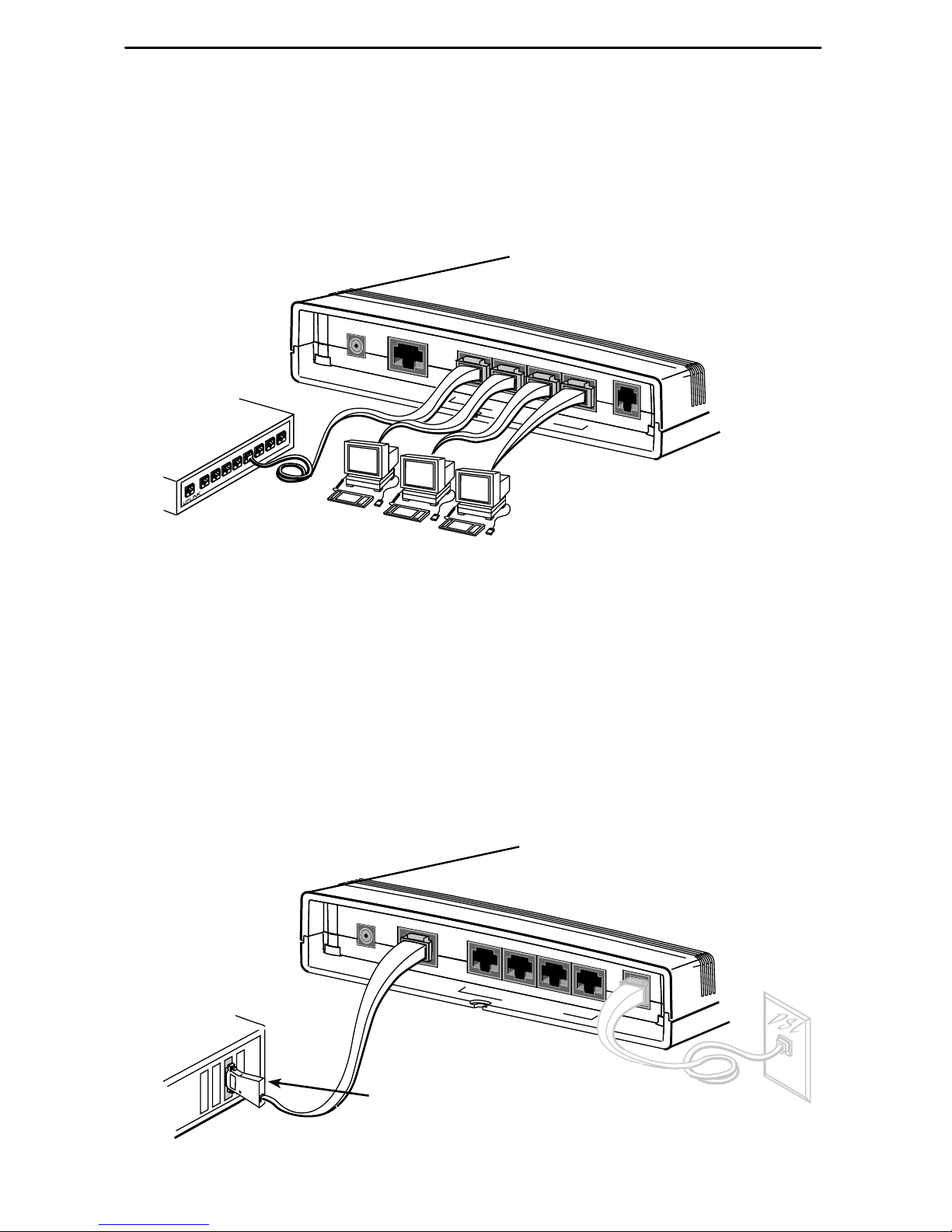

If you are installing the Hotwire 6321 IDSL Router, go to page 7.
HFor a 6322 IDSL Router, use a straight-through cable to connect the other end
to a PC with an Ethernet Network Interface Card (NIC) installed.
-and/or-
HUse an Ethernet crossover cable to connect the other end to an external hub.
00-16672
Ethernet
Crossover
Cable
Ethernet
Hub
87654321
Ethernet
Line
POWER
CONSOLE DSL
2
1ETHERNET
34
6322 IDSL Router
For the IDSL router cable pin assignments, refer to Cables & Connectors on
page 13.
3. The Console port acts as a DCE and uses an 8-pin straight-through cable for the
connection to a VT100-compatible terminal or a PC running a terminal emulation
program.
This is an optional connection used only for local configuration of the DSL router.
For details, refer to Local Console Access on page 12.
Connect the DB9 adapter to the PC and connect the cable to a PC or laptop. lnsert
one end of the straight-through cable into the jack labeled CONSOLE. Insert the
other end into the DB9 adapter for the serial port of the VT100 terminal or PC.
POWER
CONSOLE DSL
2
1ETHERNET
34
6322 IDSL Router
VT100 Terminal
or PC
(9-pin Adapter)
00-16673
Console
Serial Line
9
4. Insert the supplied power cord’s round end into the jack labeled POWER. Plug the
transformer into an ac outlet.
POWER
CONSOLE
DSL
2
1ETHERNET
34
00-16674
18 Vdc
800 MA
Transformer
Power
Jack 6322 IDSL Router
The Hotwire 6321/6322 IDSL Router hardware installation is now complete. When the
power cord is installed, the IDSL router goes through a power-on self-test.
Power-On
When power is applied, the Hotwire 6321/6322 IDSL Router performs self-diagnostics
and the PWR LED is on. The self-diagnostics includes a power-on self-test. During the
power-on self-test, all of the LEDs turn on for one second.
TST DSL ETHERNET
ALMPWR
TM
00-16675
Power –green
Alarm –red
Test –yellow
Digital Subscriber Line –green
Ethernet Link 1 to 4 –green
6322
1234
Refer to Troubleshooting on page 11 for LED indications requiring action.
10
Status LEDs
All of the LEDs turn on and off during the power-on self-test. After a successful
self-test, the LEDs should appear as indicated in BOLD in the Condition column below.
LED Condition Status
PWR ON The IDSL router has power.
ALM Blinking
OFF
ON
The IDSL router has detected a system failure.
No active alarms.
An alarm condition exists.
TST OFF
ON
No active tests.
The TST LED is on during the power-on self-test and
during a test initiated by the service provider.
DSL Blinking
ON
OFF
The IDSL router is establishing the active DSL link. The
LED blinks on and off about five times per second.
The DSL link is now active and ready to transmit and
receive data.
The DSL link has not been established.
ETHERNET
LINKS 1–4ON
OFF
The Ethernet connection is active.
No Ethernet 10/100BaseT device is detected.
This manual suits for next models
2
Table of contents
Other Paradyne Network Router manuals
Paradyne
Paradyne FrameSaver 9783 User manual
Paradyne
Paradyne Hotwire 6381 Quick start guide
Paradyne
Paradyne 6382 User manual
Paradyne
Paradyne 1740 SHDSL User manual
Paradyne
Paradyne FrameSaver DSL 9783 CSU/DSU User manual
Paradyne
Paradyne 6212-I1 User manual
Paradyne
Paradyne 6381-A3 User manual
Paradyne
Paradyne Hotwire 7995 Original operating instructions
Paradyne
Paradyne 1740 SHDSL User manual
Paradyne
Paradyne 6212-A2 User manual
Paradyne
Paradyne FrameSaver DSL 9783 CSU/DSU User manual
Paradyne
Paradyne Hotwire 6321/6322 IDSL Router User manual
Paradyne
Paradyne Hotwire 7995 User manual
Paradyne
Paradyne Hotwire 6371 User manual
Paradyne
Paradyne iMarc 9550 DS3 User manual
Paradyne
Paradyne Hotwire 6302 User manual
Paradyne
Paradyne FrameSaver 9123 User manual
Paradyne
Paradyne framesaver 9623 User manual
Paradyne
Paradyne iMarc SLV User manual
Paradyne
Paradyne Hotwire 6301 User manual
