Paradyne FrameSaver SLV 9664 User manual

FrameSaverrSLV 9664

Installation Instructions

Document Number 9664-A2-GN10-00

March 2000

Product Documentation on the World Wide Web

We provide complete product documentation online. This lets you search the

documentation for specific topics and print only what you need, reducing the waste of

surplus printing. It also helps us maintain competitive prices for our products.

Complete documentation for this product is available at www.paradyne.com.

Select Library →Technical Manuals →FrameSaver Frame Relay Devices.

Select the following document:

9664-A2-GB20

FrameSaver SLV 9664 User’s Guide

To order a paper copy of a Paradyne document:

HWithin the U.S.A., call 1-800-PARADYNE (1-800-727-2396)

HOutside the U.S.A., call 1-727-530-8623

Package Checklist

Verify that your package contains the following:

-FrameSaver SLV unit

-Universal power supply, with an attached cable and ferrite choke

-Power cord appropriate for the wall-plug standard in your country (depends on

model ordered).

-(NT1) network cable

-FrameSaver SLV 9664 Quick Reference (Document No. 9664-A2-GL10)

Additional cables may be ordered. See Cables You Can Order on page 3 when

ordering cables.

Be sure to register your warranty at www.paradyne.com/warranty.

Before You Begin

If you ordered a wall mounting kit (Feature No. 9001-F1-891) for your FrameSaver unit,

install the wall mounting before you start installing the unit. Follow the same guidelines

below when installing the wall mounting. Contact your sales representative to order this

feature.

Before starting the installation, make sure you have:

-A dedicated, grounded power outlet that is protected by a circuit breaker within

6 feet of the FrameSaver unit.

-A clean, well-lit, and ventilated site that is free from environmental extremes.

-One to two feet of clearance for cable connections.

-A physical connection to the ISDN Network Termination (NT1). The cable is

provided with the FrameSaver unit.

-An asynchronous (async) terminal or PC (personal computer) to set up the unit.

-Node IP Addresses and Subnet Masks (see your network administrator).

See the User’s Guide for additional information on:

HTroubleshooting

HTechnical Specifications

HConnectors, Cables, and Pin Assignments

Cables You Can Order

If connecting to . . . Order a . . . Feature

Number Part

Number

LAN adapter Adapter DB25

plug-to-8-position

modular receptacle

3100-F1-920 002-0069-0031

COM Port-to-LAN

adapter cable

(14 feet –4.3 meters)

3100-F2-910 035-0315-1431

Equipment with

X.21 interfaces,

DB15 connectors

X.21 DTE adapter cable,

EIA-530A-to-X.21

(1 foot –.3 meters)

3100-F1-571 035-0302-0131

Equipment with

V.35 interfaces,

MS34 connectors

V.35 DTE adapter,

EIA-530A-to-V.35 3100-F1-570 035-0244-0031

Contact your sales representative to order cables.

Safety Instructions

Please refer to the Important Safety Instructions beginning on page 17.

Installing the Power Supply and Cord

1. Insert the power supply’s 4-prong plug into the POWER jack.

When inserting the plug at the rear of the FrameSaver unit, align the plug with the

notch above the POWER jack. Make sure the locking tab snaps securely into the

jack.

00-16655

Power Cord /

Transformer

ALM

Locking

Tab Grounded

Power

Outlet

2. Insert the socket end of the power cord into the power supply’s receptacle.

3. Plug the power cord into the grounded power outlet.

If any LEDs light, you have power. If not, refer to Troubleshooting in the User’s

Guide for possible explanations.

Connecting the COM Port to an Async Terminal or PC

The FrameSaver unit must first be directly connected to a PC or asynchronous terminal

(providing VT100 terminal emulation) to set up access and management of the unit.

1. Configure the VT100-compatible terminal or PC to be compatible with the

access unit:

–Baud Rate set to 19.2 kbps.

–Character length set to 8 data bits.

–Parity set to none.

–Stop bit set to 1.

–Flow Control set to None.

2. Insert the DB25 end of the EIA-232 cable into the FrameSaver unit’s COM port.

00-16656

To Connect to a PC

or Async Terminal

COM

Port

3. Insert the other end of the cable into the PC or VT100-compatible terminal.

4. Tighten the screws on each side of the connector to secure them.

5. Press Enter (or Return, depending on your keyboard) to display the Main Menu.

If the Main Menu does not appear, recheck the terminal or PC settings (see

Step 1), or press the Enter key. Refer to Troubleshooting in the User’s Guide for

other possible explanations.

A Quick Guide to Configuration

The FrameSaver unit should operate using the default (factory-set) configuration

options, with exception to the changes specified in these installation instructions. Refer

to the following table for help in navigating through the menus.

Press the . . . To . . .

Esc key Go back one screen or menu level. To see a visual

representation of the menu levels, see Menu Hierarchy in

the Quick Reference.

Tab key, or

Up (↑), Down (↓),

Left (←) and Right (→)

arrow keys

Move the cursor from one menu item to the next.

Enter or Return key Complete the menu or option selection.

Spacebar Display the next available setting when changing a

configuration option. All the available settings for an

option appears at the bottom of the screen.

As an example, follow these steps to go to the Configuration Edit/Display menu so you

can start setting up the unit.

To load a configuration for editing:

1. From the Main Menu, press the down arrow key twice so the cursor is on

Configuration.

2. Press Enter to display the Configuration menu. The Load Configuration From

menu appears.

3. Press Enter to select Current Configuration (the cursor is already on this

selection). The Configuration Edit/Display menu appears.

This sequence of steps would be shown as the menu selection sequence:

Main Menu →Configuration

To save a configuration option change:

1. Press Ctrl-a to switch to the function keys area at the bottom of the screen.

2. Type sor S(Save) and press Enter. The Save Configuration To menu appears.

3. Press Enter again to save your changes to the Current Configuration.

4. Press Esc until the Configuration Edit/Display menu reappears to continue

configuring the unit.

Press Ctrl-a, type m(MainMenu), and press Enter to return to the Main Menu.

In the sections that follow, only the minimum option changes required are included so

you will have a quick and trouble-free installation. See the configuration option tables in

the User’s Guide for more information about configuration options.

Installing and Setting Up the 9664 FrameSaver Unit

The following sections guide you through installation and setup of a FrameSaver unit.

It is assumed that the FrameSaver unit is configured for factory default settings at the

start of installation.

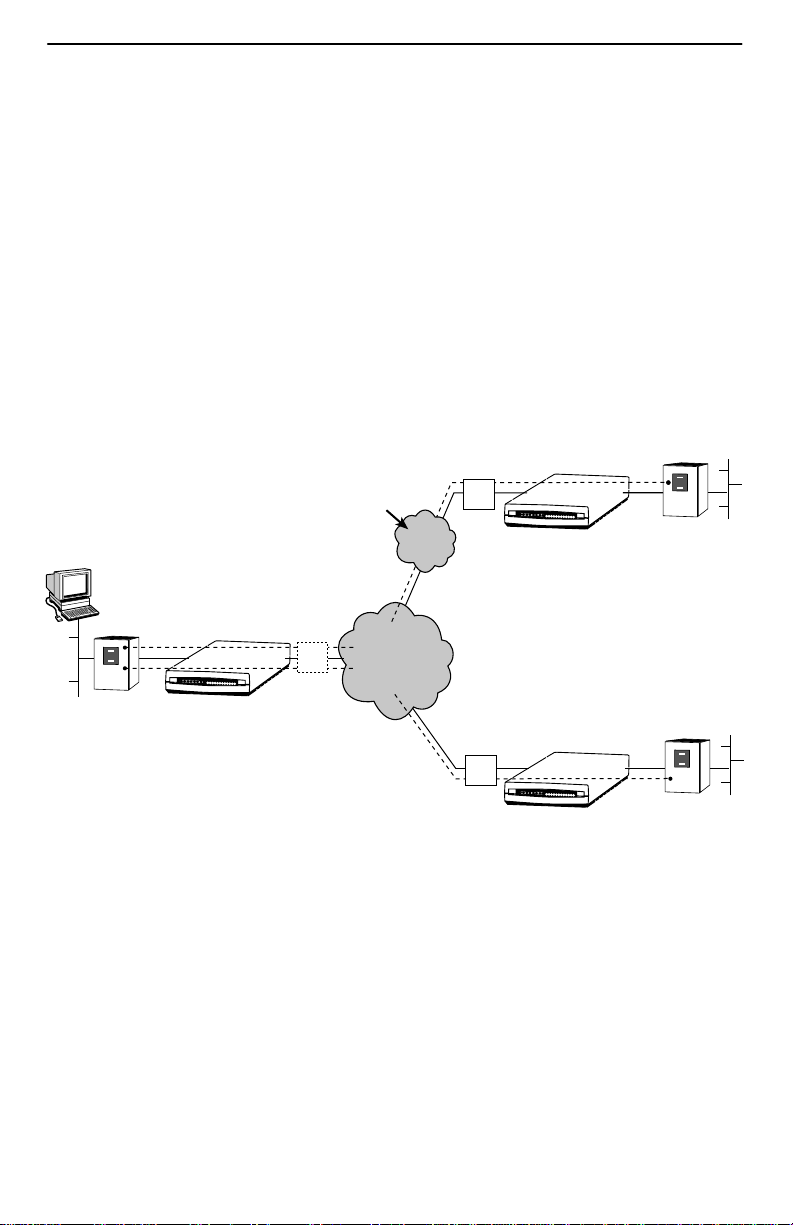

A typical multinational application is shown in the following illustration. This example

shows a network that includes FrameSaver units at the central site (e.g., the company’s

headquarters in City A) and the remote sites (e.g., branch offices in City B and City C).

User data PVCs provide LAN-to-LAN connectivity between the central site and the

remote sites. Depending upon your application, the central site may or may not need an

external DSU when accessing the frame relay network.

Frame

Relay

Router Central Site

FrameSaver

9820 or 9128

NMS

Headquarters

in City A

Port NET

NT1 NET Port

Frame

Relay

Router

Remote Site

FrameSaver

9664

DLCI/EDLCIs:

100/0 User Data

100/2 Management Data

Branch Office

in City B

NTU NET Port

Frame

Relay

Router

Remote Site

FrameSaver

9820-2M

Branch Office

in City C

DLCI/EDLCIs:

200/0 User Data

200/2 Management Data

Frame

Relay

Network

100

200

DLCI/EDLCIs:

100/0 User Data for City B

200/0 User Data for City C

100/2 Management Data for City B

200/2 Management Data for City C

00-16683

DSU

Nailed-Up

ISDN

From a network management perspective, the central site FrameSaver unit should be

configured for management from a Network Management System (NMS), through

either the attached router, as shown in the above figure, or through the Network

Operations Center (NOC) router (for management by the Network Service Provider).

Multiple management PVCs then connect the central site unit to the remote site units

using Paradyne’s proprietary PVC multiplexing method (embedded DLCIs).

Verifying that Self-Test Passed

1. Follow this menu selection sequence from the Main Menu and press Enter after

each selection:

Main Menu →Status →System and Test Status

2. Check the Self-Test Results column (in the center of the System and Test Status

screen).

–If Passed appears, the FrameSaver unit successfully completed the self-test.

–If any failure messages appear in this column, reset the unit by disconnecting,

then reconnecting the power cord. The unit will perform the self-test again. If the

failure reappears, call your service representative for assistance.

Setting the System Clock

To set up the system clock:

1. Select System Information.

Main Menu →Control →System Information

2. Move the cursor to the Date, then the Time field to enter:

–Date in the mm/dd/yyyy format (month/day/year)

–Time in the hh:mm:ss format (hours:minutes:seconds)

3. Save the settings.

Assigning the Node IP Address

1. Set up the node.

Main Menu →Configuration →Management and Communication →Node IP

2. Minimally, enter the following options:

–Node IP Address

–Node Subnet Mask

3. Save the configuration.

Configuring Physical Interfaces

The network connection supports leased-line service with a BRI S/T interface via an

8-position unkeyed modular jack that is connected to an external NT1.

The data port interface supports three different port types: EIA-530, V.35 and X.21. If

your application does not use a V.35 interface, then the Port Type setting needs to be

changed. The port type is specified in the physical configuration options.

To configure the physical interfaces:

1. Select the Network physical configuration options.

Main Menu →Configuration →Network →Physical

2. Select the appropriate Port Type.

3. Press Ctrl-a and Save your change(s).

4. Return to the Configuration Edit/Display menu.

5. Repeat Steps 2 through 4 for the data port.

Main Menu →Configuration →Data Ports →Physical

6. Return to the Configuration Edit/Display menu.

Setting Up Local Management at the Central Site

1. Create a DLCI for the data port.

Configuration →Data Ports →DLCI Records

2. Save the configuration.

3. Create a Management PVC using the data port DLCI just created.

Configuration →Management and Communication →Management PVC

Minimally, enter the following options:

–Name for the management PVC

–Interface IP Address and Subnet Mask, if different from the Node’s

–Primary Link for this Management PVC (the user data port)

–Primary DLCI (i.e., the data port DLCI)

4. Save the configuration.

Automatic Configuration

The FrameSaver unit provides several automatic configuration features. Frame Relay

Discovery and configuration is one of these features.

Main Menu →Auto-Configuration

The default discovery mode is 1MPort. In this mode, for each DLCI discovered on the

network, a multiplexed network DLCI and a standard data port DLCI will be configured

and connected, and a Management PVC will be embedded in the network DLCI.

NOTE:

When auto-configuration creates a multiplexed DLCI, but a standard DLCI is

needed, change the DLCI to standard from the network DLCI Records screen:

Configuration →Network →DLCI Records

Other modes can be selected. See Setting Up Auto-Configuration in Configuration of

the User’s Guide for information about other modes and how the Frame Relay

Discovery Mode can be changed.

No automatic configuration occurs until the network cable is connected. If you do not

want management links configured or automatic configuration, change the default

setting for the Frame Relay Discovery feature.

Other manuals for FrameSaver SLV 9664

Table of contents

Other Paradyne Network Router manuals

Paradyne

Paradyne FrameSaver 9783 User manual

Paradyne

Paradyne Hotwire 6212 Original operating instructions

Paradyne

Paradyne 6211-I1 User manual

Paradyne

Paradyne Hotwire 6341 User manual

Paradyne

Paradyne Hotwire 6371 User manual

Paradyne

Paradyne Hotwire 6211 Installation instructions

Paradyne

Paradyne 1740 SHDSL Original operating instructions

Paradyne

Paradyne iMarc 9550 DS3 User manual

Paradyne

Paradyne FrameSaver DSL 9783 CSU/DSU User manual

Paradyne

Paradyne 6212-A2 User manual

Paradyne

Paradyne 6381-A3 User manual

Paradyne

Paradyne Hotwire 6381 User manual

Paradyne

Paradyne 6211-I1 User manual

Paradyne

Paradyne Hotwire 6212 User manual

Paradyne

Paradyne BitStorm 6211 CPE User manual

Paradyne

Paradyne FrameSaver DSL 9788 Router User manual

Paradyne

Paradyne JetFusion 2100 Series User manual

Paradyne

Paradyne iMarc SLV User manual

Paradyne

Paradyne iMarc SLV 9126 User manual

Paradyne

Paradyne 1740 SHDSL User manual

Paradyne

Paradyne Hotwire 6341 User manual

Paradyne

Paradyne FrameSaver 9720 User manual

Paradyne

Paradyne Hotwire 6211 Original operating instructions

Paradyne

Paradyne Hotwire 7995 User manual

Popular Network Router manuals by other brands

Allnet

Allnet ALL0333AU user guide

HomeSeer

HomeSeer HT-SEL Getting started guide

Sercomm

Sercomm Genesis OC3505D Quick installation guide

Billion

Billion BIPAC 5102 Series user manual

TP-Link

TP-Link TD-8817 QIG

Motorola

Motorola MR1900 user guide

Digi

Digi IX14 user guide

Cisco

Cisco NCS 540 Hardware installation guide

XAVi

XAVi X8821e user manual

BEC

BEC 6200WZL Quick installation guide

MikroTik

MikroTik hAP ac3 Series quick start

Korenix

Korenix JetNet 5428G Series user manual

NETGEAR

NETGEAR FS526T - Switch installation guide

Korenix

Korenix JetNet 5710G Series user manual

Automated Logic

Automated Logic ZN551 Technical instructions

Cisco

Cisco ASR 1000 Series Installation and configuration guide

EnGenius

EnGenius ESR-9710 quick start guide

Cisco

Cisco 805 Series Product overview
