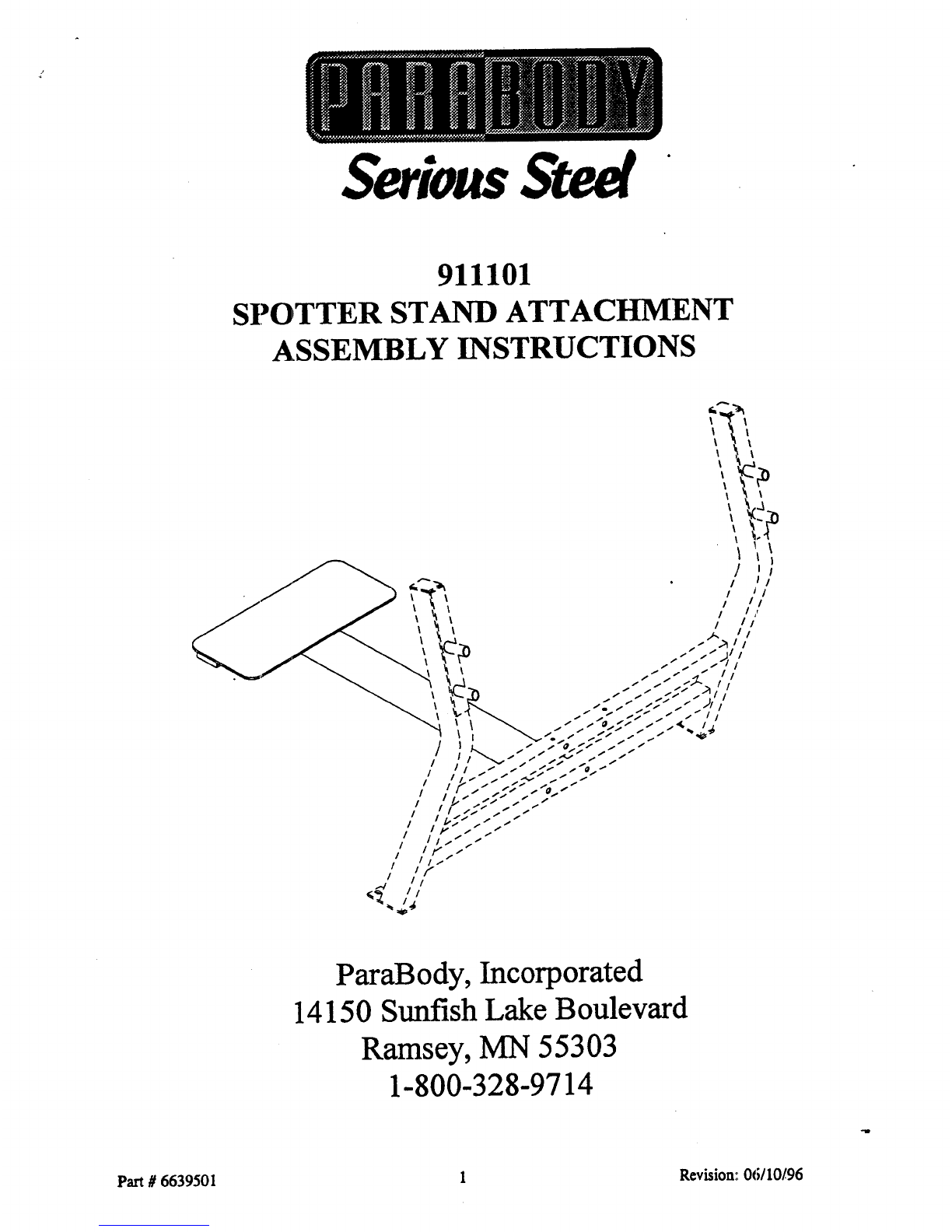

ParaBody 911101 User manual

SeriousSteel

911101

SPOTTER STAND ATTACHMENT

ASSEMBLY INSTRUCTIONS

ParaBody, Incorporated

14150 Sunfish Lake Boulevard

Ramsey, MN55303

1-800-328-9714

Part # 6639501 1Revision: 06/10196

911101 SPOTTER STAND ATTACHMENT ASSEMBLY PARTS ]LIST

SORT ANDCOUNTALL PARTS BEFORE BEGINNING ASSEMBLY

HARDWARE:

ITEM NAME/DESCRIPTION QTY

1/2X3-1/4INBOLT.......................................................................................................... 2

3X2INENDCAP............................................................................................................. 2

WELDMENTS/PARTS:

ITEM NAME/DESCRIPTION QTY

NOTE: BOLTLENGTHIS MEASUREDFROM~ UNDERSIDEOF THE I:I~AD OF ’rE[:E BOLT.

BOLT LENGTH

BOLTLENGTHRULER:’,

45 6

0 1 2 [ I I I

Part# 6639501 2Revision:06,/10/96

911101 SPOTTER STAND ATTACHMENTASSEMBLYINSTRLICTIONS

Loosen and remove hardware that attaches the BENCHFRAMEWELDMENTto the LOWER

CROSS SUPI[’ORT of the UPRIGHT FRAMEWELDMENT.

Insert two (2) 3 X 2 IN ENDCAPSinto the ends of the SPOTTERSTANDATTACHMENTas shown

on drawing.

SECURELYassemble the SPOTTER STANDATTACHMENTto the LOWERCROSS SUPPORT

of the UPRIGHTFRAMEWELDMENTusing the two 1/2 X 3-1/4 IN REPLACEMENTBOLTS, and

the two (2) existing 1/2 IN LOCKNUTSas shown on drawing. (THE1/2 IN WASHEI~;ARE

NEEDED FOR THIS ASSEMBLY)

Part # 6639501 3Revision: 06/10/96
