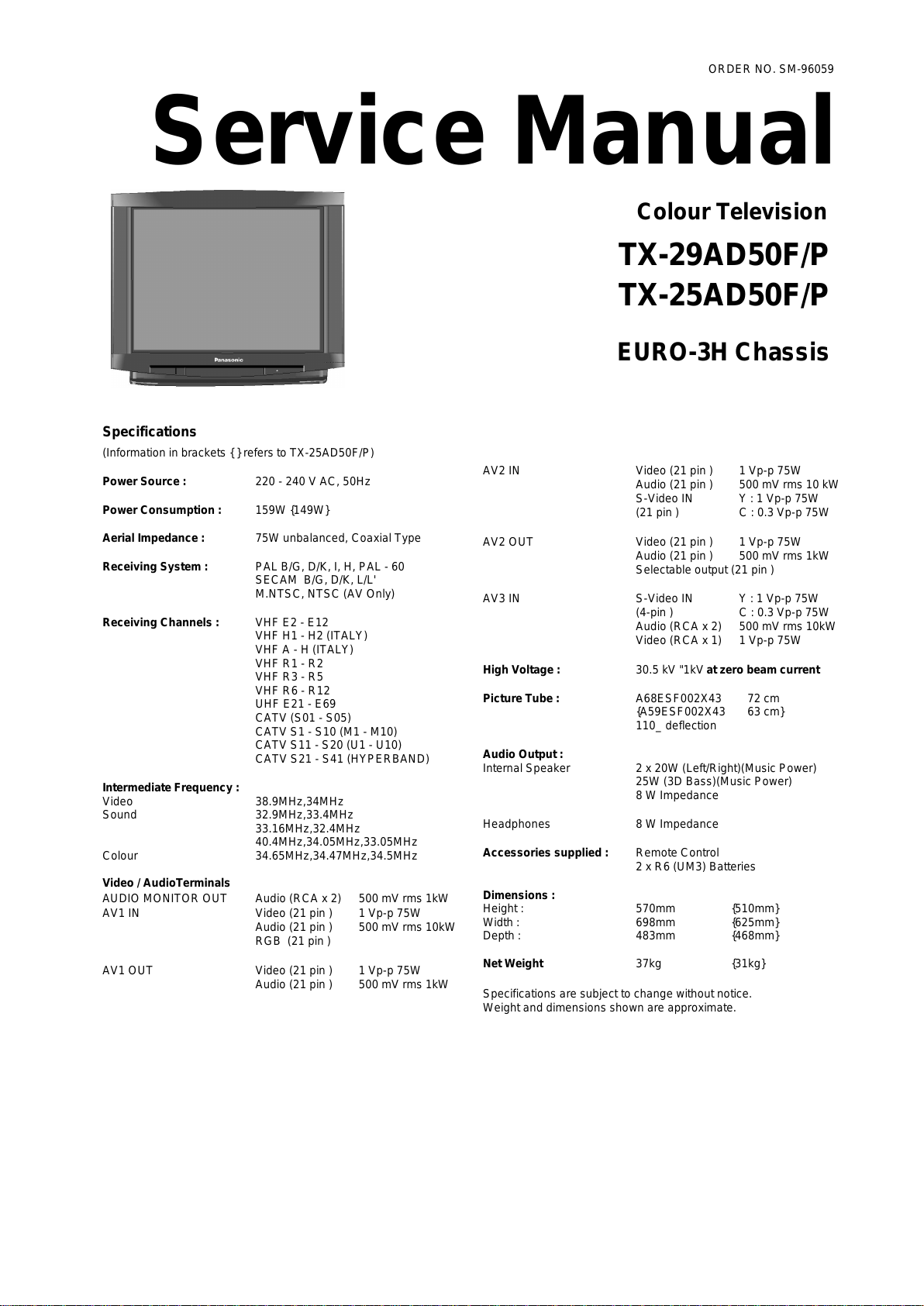

ORDER NO. SM-96059

Service Manual

Colour Television

TX-29AD50F/P

TX-25AD50F/P

EURO-3H Chassis

Specifications

(Information in brackets { } refers to TX-25AD50F/P)

Power Source : 220 - 240 V AC, 50Hz

Power Consumption : 159W {149W}

Aerial Impedance : 75Wunbalanced, Coaxial Type

Receiving System : PAL B/G, D/K, I, H, PAL - 60

SECAM B/G, D/K, L/L'

M.NTSC, NTSC (AV Only)

Receiving Channels : VHF E2 - E12

VHF H1 - H2 (ITALY)

VHF A - H (ITALY)

VHF R1 - R2

VHF R3 - R5

VHF R6 - R12

UHF E21 - E69

CATV (S01 - S05)

CATV S1 - S10 (M1 - M10)

CATV S11 - S20 (U1 - U10)

CATV S21 - S41 (HYPERBAND)

Intermediate Frequency :

Video 38.9MHz,34MHz

Sound 32.9MHz,33.4MHz

33.16MHz,32.4MHz

40.4MHz,34.05MHz,33.05MHz

Colour 34.65MHz,34.47MHz,34.5MHz

Video / AudioTerminals

AUDIO MONITOR OUT Audio (RCA x 2) 500 mV rms 1kW

AV1 IN Video (21 pin ) 1 Vp-p 75W

Audio (21 pin ) 500 mV rms 10kW

RGB (21 pin )

AV1 OUT Video (21 pin ) 1 Vp-p 75W

Audio (21 pin ) 500 mV rms 1kW

AV2 IN Video (21 pin ) 1 Vp-p 75W

Audio (21 pin ) 500 mV rms 10 kW

S-Video IN Y : 1 Vp-p 75W

(21 pin ) C : 0.3 Vp-p 75W

AV2 OUT Video (21 pin ) 1 Vp-p 75W

Audio (21 pin ) 500 mV rms 1kW

Selectable output (21 pin )

AV3 IN S-Video IN Y : 1 Vp-p 75W

(4-pin ) C : 0.3 Vp-p 75W

Audio (RCA x 2) 500 mV rms 10kW

Video (RCA x 1) 1 Vp-p 75W

High Voltage : 30.5 kV "1kV at zero beam current

Picture Tube : A68ESF002X43 72 cm

{A59ESF002X43 63 cm}

110_ deflection

Audio Output :

Internal Speaker 2 x 20W (Left/Right)(Music Power)

25W (3D Bass)(Music Power)

8 WImpedance

Headphones 8 WImpedance

Accessories supplied : Remote Control

2 x R6 (UM3) Batteries

Dimensions :

Height : 570mm {510mm}

Width : 698mm {625mm}

Depth : 483mm {468mm}

Net Weight 37kg {31kg}

Specifications are subject to change without notice.

Weight and dimensions shown are approximate.

Video and Audio Block Diagram
