Panasonic TC-29KL03A User manual

Service Manual

Order DCS - NOV2003 - 001 - MS

TC-20KL03A

TC-29KL03A

Panasonic

Color Television

MX5ZB CHASSIS

CS Division

Technical Support

TELEVISION

Power source

Consumption

Antenna input jack

Color systems

Tuning system

Channel capability

Picture tube (Diagonal Visual)

Audio system

Video input jack

Audio input jack

Video Outlet

Audio Outlet

Dimension (width, height, depth)

Weight

TC-20KL03A

110/220 V AC, 50/60 Hz automatic switch

79 W

75 ohms - VHF/UHF/CATV

PAL-M/NTSC/PAL-N

F.S.T.

2 to 13 (VHF)

14 to 69 (UHF)

1 to125 (CATV)

Panablack 48 cm

50 W PMPO

1 (back) + 1 (front)

1 (back)

1 (back) + 1 (earphone)

600 x 473 x 487 (mm)

17.7 kg

Supplied Accessories:

• 1 Remote Control Transmitter

• 1 300Ω/75ΩBalum

• 2 “AA” (or R6) batteries (1.5V; ABNT/IEC)

• 1 Internal antenna (for TC-20KL03A only)

Speci ications

Specifications are subject to change without notice. Weight and dimensions shown are approximate.

Remote Control Transmiter:

Power Source 3V (2 AA type batteries)

Infrared Length 9500 A (Angstron)

Number of Buttons 29 keys

Dimensions (W x H x D) (54 x 27 x 135) mm

TC-20KL03A

110/220 V AC, 50/60 Hz automatic switch

120 W

75 ohms - VHF/UHF/CATV

PAL-M/NTSC/PAL-N

F.S.T.

2 to 13 (VHF)

14 to 69 (UHF)

1 to125 (CATV)

Panablack 68 cm

82 W PMPO

1 (back) + 1 (front)

1 (back)

1 (back) + 1 (earphone)

760 x 579 x 512 (mm)

34 kg

- 15 -

TC-20KL03A / TC-29KL03A

SCHEMATIC DIAGRAMS

CRT BOARD SCHEMATIC DIAGRAM (L)

- 16 -

TC-20KL03A / TC-29KL03A

DVD CONNECTION SCHEMATIC DIAGRAM (D BOARD)

- 17 -

TC-20KL03A / TC-29KL03A

AV FRONTAL SCHEMATIC DIAGRAM (G BOARD)

REMOTE CONTROL RECEIVER SCHEMATIC DIAGRAM (R BOARD)

- 18 -

TC-20KL03A / TC-29KL03A

MAIN BOARD SCHEMATIC DIAGRAM (1/10)

Power Supply

- 19 -

TC-20KL03A / TC-29KL03A

MAIN BOARD SCHEMATIC DIAGRAM (2/10)

Power Supply

- 20 -

TC-20KL03A / TC-29KL03A

MAIN BOARD SCHEMATIC DIAGRAM (3/10)

Microprocessor / YUV / Syntony

- 21 -

TC-20KL03A / TC-29KL03A

MAIN BOARD SCHEMATIC DIAGRAM (4/10)

Microprocessor / YUV / Syntony

- 22 -

TC-20KL03A / TC-29KL03A

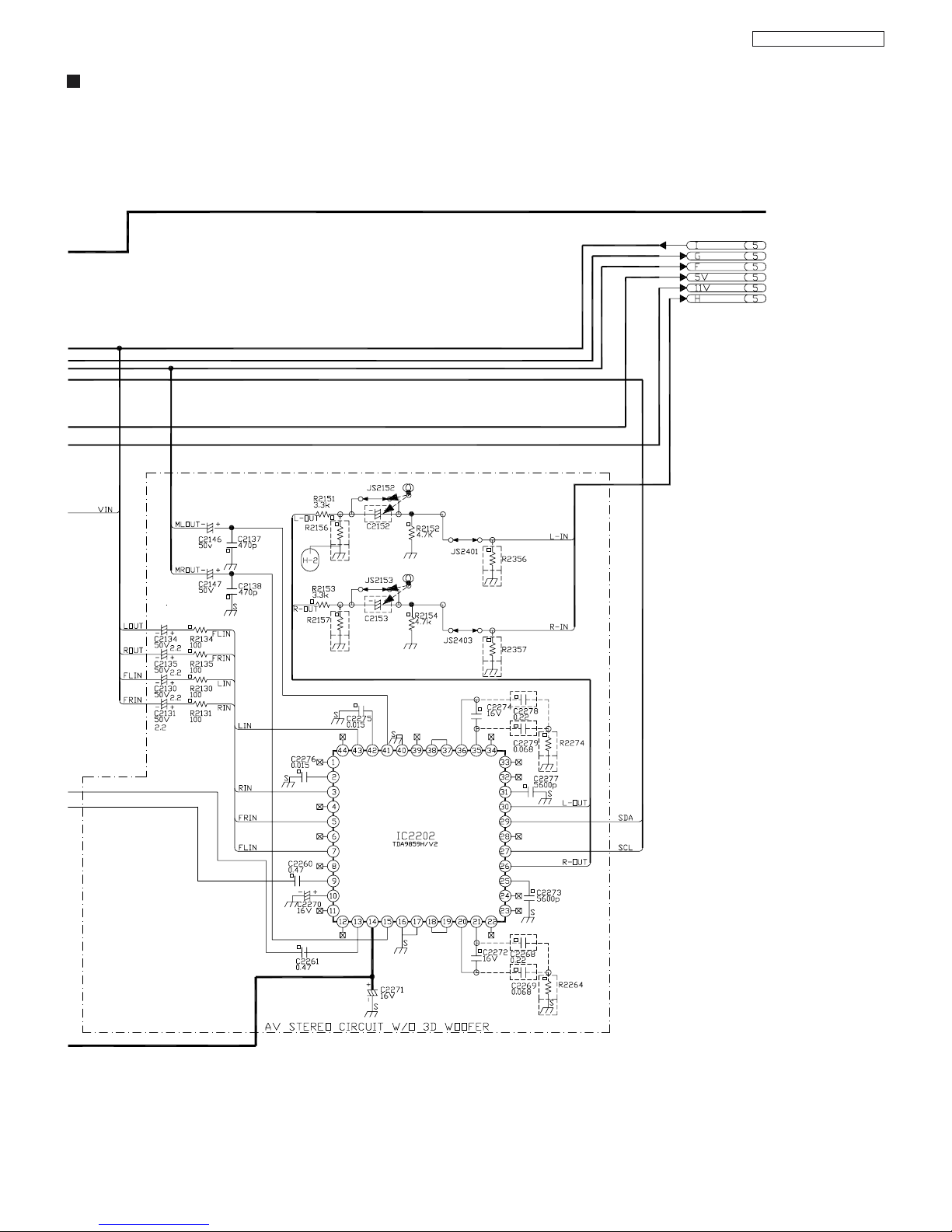

MAIN BOARD SCHEMATIC DIAGRAM (5/10)

Audio signal process

- 23 -

TC-20KL03A / TC-29KL03A

MAIN BOARD SCHEMATIC DIAGRAM (6/10)

Audio signal process
