Panasonic TY-WK6P1RW User manual

© Panasonic Corporation 2009.

Unauthorized copying and distribution is a violation

of law.

ORDER NO. ITD0909114CE

Plasma TV wall-hanging bracket (Adjustable angle type)

Model No. TY-WK6P1RW

TTAABLEBLE

OFOF

CONTENTSCONTENTS

PAGE

1 Safety Precautions ----------------------------------------------- 2

2 Specifications ----------------------------------------------------- 3

2

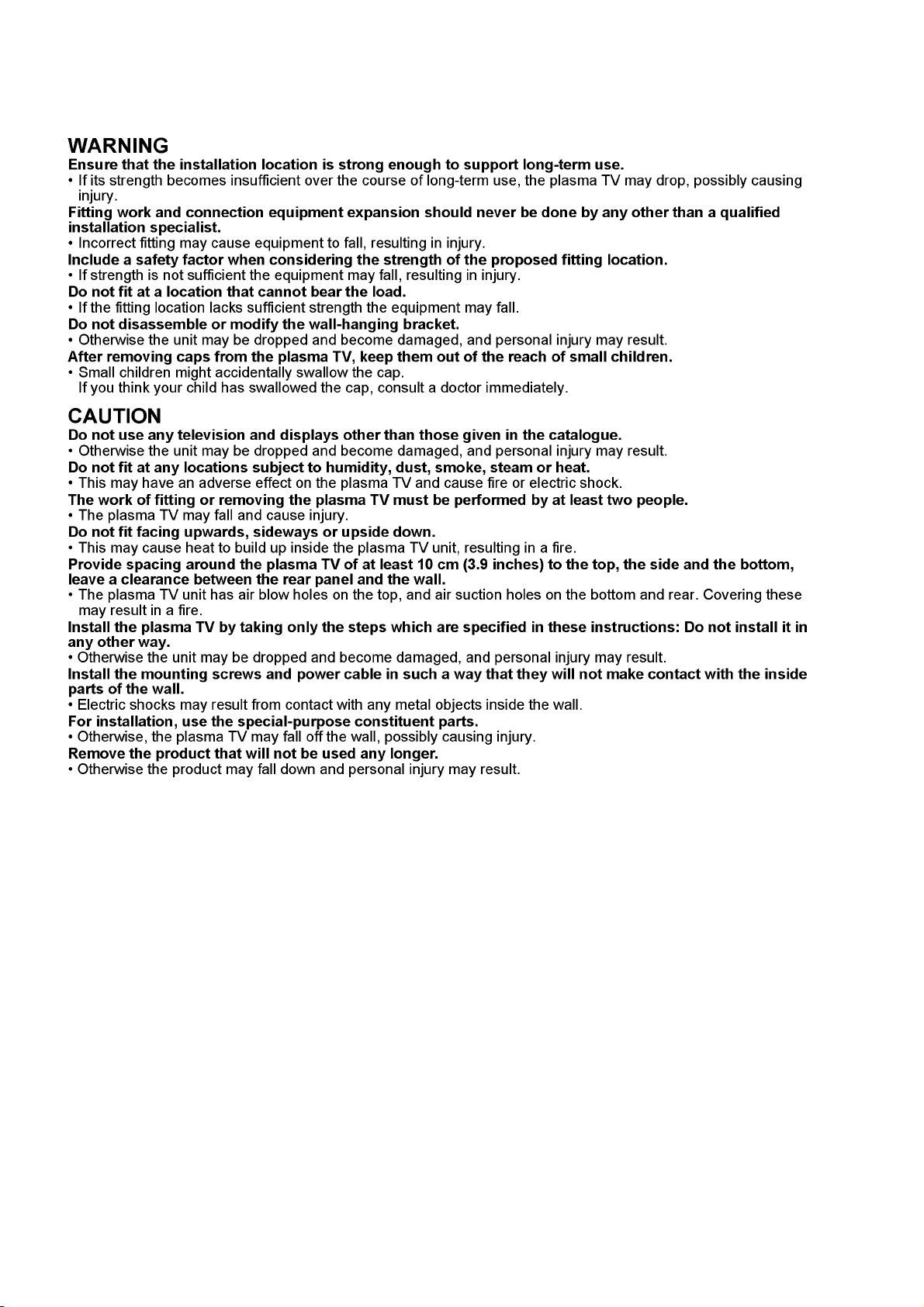

1 Safety Precautions

3

2 Specifications

Model Name TY-WK6P1RW

Type Plasma TV wall-hanging bracket (Adjustable angle type)

Angle Adjustment 3 settings (No incline, 5°, 10°)

Dimensions 31 1/2” (800 mm) (W) x 2 55/64 (725 mm) (D) x 17 11/64 (436 mm) (H)

Weight 8.5 lb (3.84 kg)

Dimensions with Packaging 38 25/64” (975 mm) (W) x 5 3/64 (128 mm) (D) x 4 39/64 (117 mm) (H)

Weight with Packaging 10.9 lb (4.95 kg)

Material Steel (SGHC-F06)

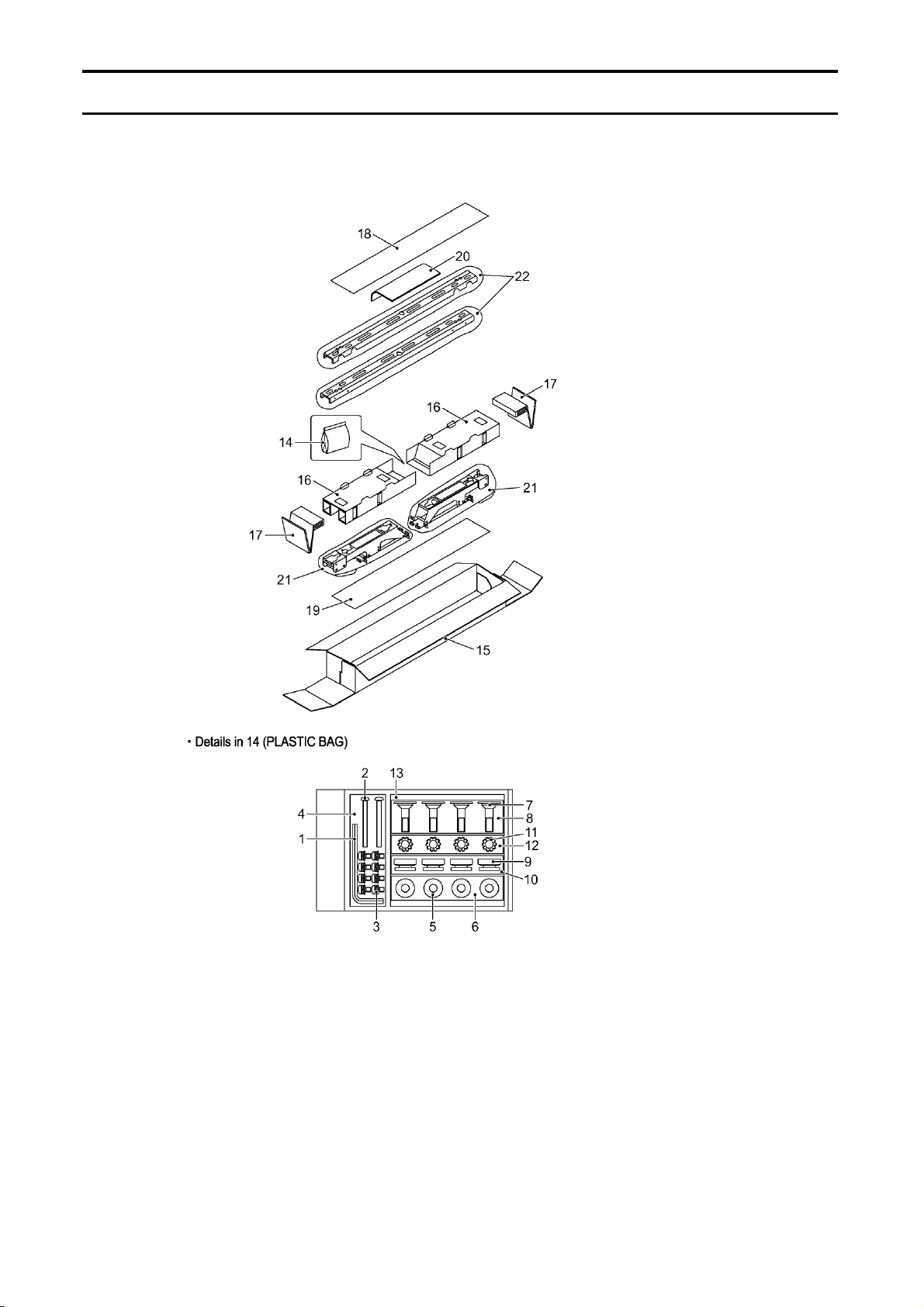

Model No. : TY-WK6P1RW Packing Summary

Model No. : TY-WK6P1RW Parts List

Safety

Ref.

No. Part No. Part Name & Description Q'ty Remarks

1 TKKX0010-1 HEX KEY (WRENCH) 1

2 XSN5+50FJW SCREW 2

3 XYN5+F10FJK SCREW 8

4 XZB8X12C06 BAG (FOR HEX KEY/SCREW) 1

5 XWG85J20FJ SPACER 4

6 XZB6X7C06 BAG (FOR SPACER) 1

7 THEA196J HEX SOCKET SCREW(M8X32) 4

8 XZB10X12C05 BAG (FOR HEX SOCKET SCREW) 1

9 TMMX090 INSULATING SPACER 4

10 XZB7X10C06 BAG (FOR INSULATING SPACER) 1

11 XWC8DFJK WASHER 4

12 XZB6X7C06 BAG (FOR WASHER) 1

13 XZB10X15C06 BAG (FOR HEX KEY/ALL SCREW) 1

14 XZB14X20C08 PLASTIC BAG 1

15 TPCC70501 CARTON BOX 1

16 TPDF2373 PROTECTION PAD 2

17 TPDF2383 PROTECTION PAD 2

18 TPDF2386 PROTECTION PAD (TOP) 1

19 TPDF2385 PROTECTION PAD (BOTTOM) 1

20 TQZJ157 INSTRUCTION BOOK 1

21 TPEH433 PLASTIC BAG 2

22 TPEH467 PLASTIC BAG 2
