Panasonic TY-WK3L2RW User manual

©Panasonic Corporation 2009.

Unauthorized copying and distribution is a violation

of law.

ORDER NO. ITD0902007CE

LCD TV wall-hanging bracket (Adjustable angle type)

Model No. TY-WK3L2RW

TABLE OF CONTENTS

PAGE PAGE

1 Safety Precautions----------------------------------------------- 2

2 Specifications ----------------------------------------------------- 3

3 Disassembly and Assembly Instructions ---------------- 3

3.1. Precautions for wall-hanging bracket fitting--------- 3

3.2. Disassembly and Assembly Instructions ------------ 4

4 Dimensions--------------------------------------------------------- 8

5 Requests regarding handling -------------------------------10

2

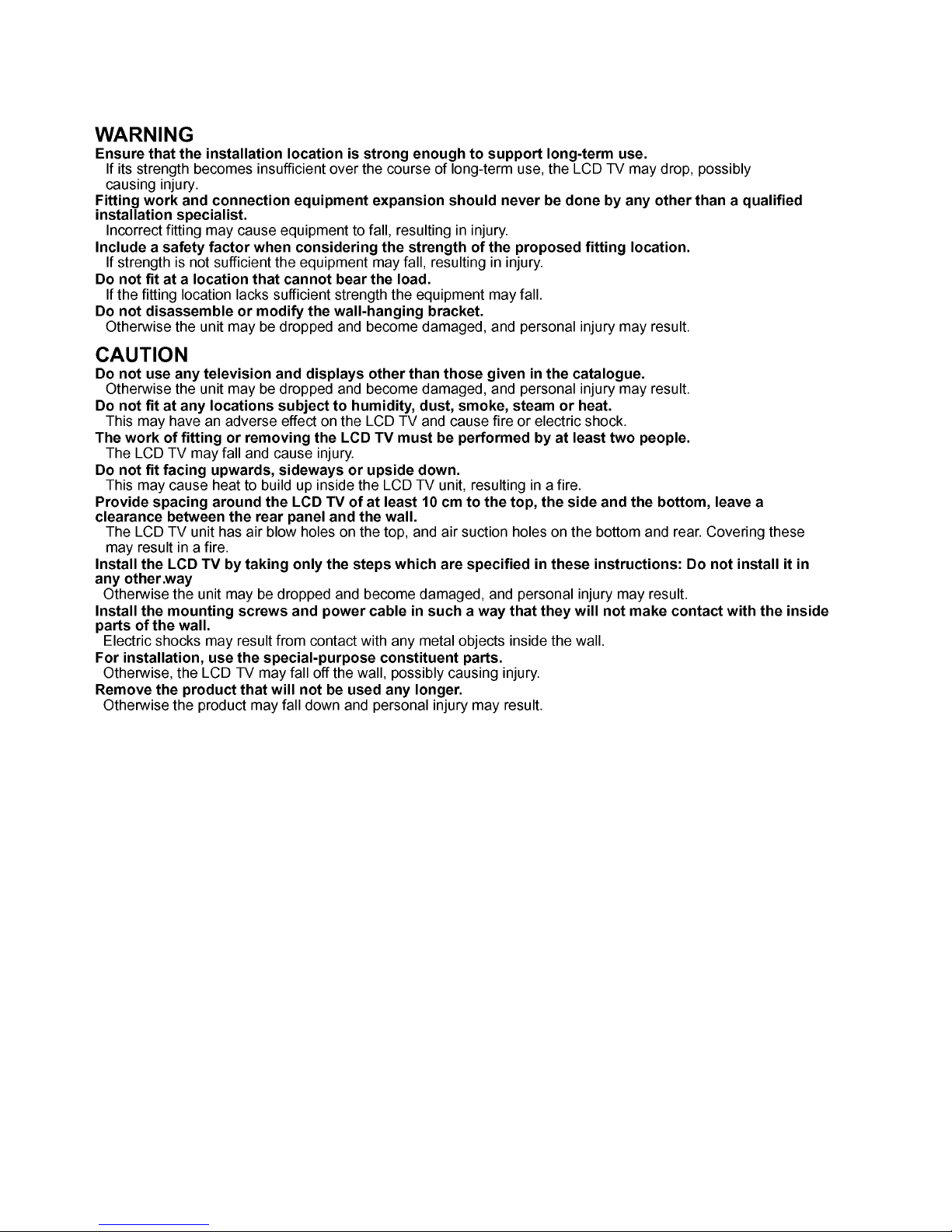

1 Safety Precautions

3

2 Specifications

3 Disassembly and Assembly Instructions

3.1. Precautions for wall-hanging bracket fitting

Model Name TY-WK3L2RW

Type LCD TV wall-hanging bracket (Adjustable angle type)

Angle Adjustment 5 settings (No incline, 5°, 10°, 15°, 20°)

Dimensions 21 21/32” (55.0 cm) (W) x 2 61/64 (7.5 cm) (D) x 14 11/64 (36.0 cm) (H)

Weight 6.1 lb (2.8 kg)

Dimensions with

Packaging

23 45/64” (60.2 cm) (W) x 6 21/64 (16.1 cm) (D) x 4 3/32 (10.4 cm) (H)

Weight with Pack-

aging

11.0 lb (5.0 kg)

Material Steel (SGHC-F06)

4

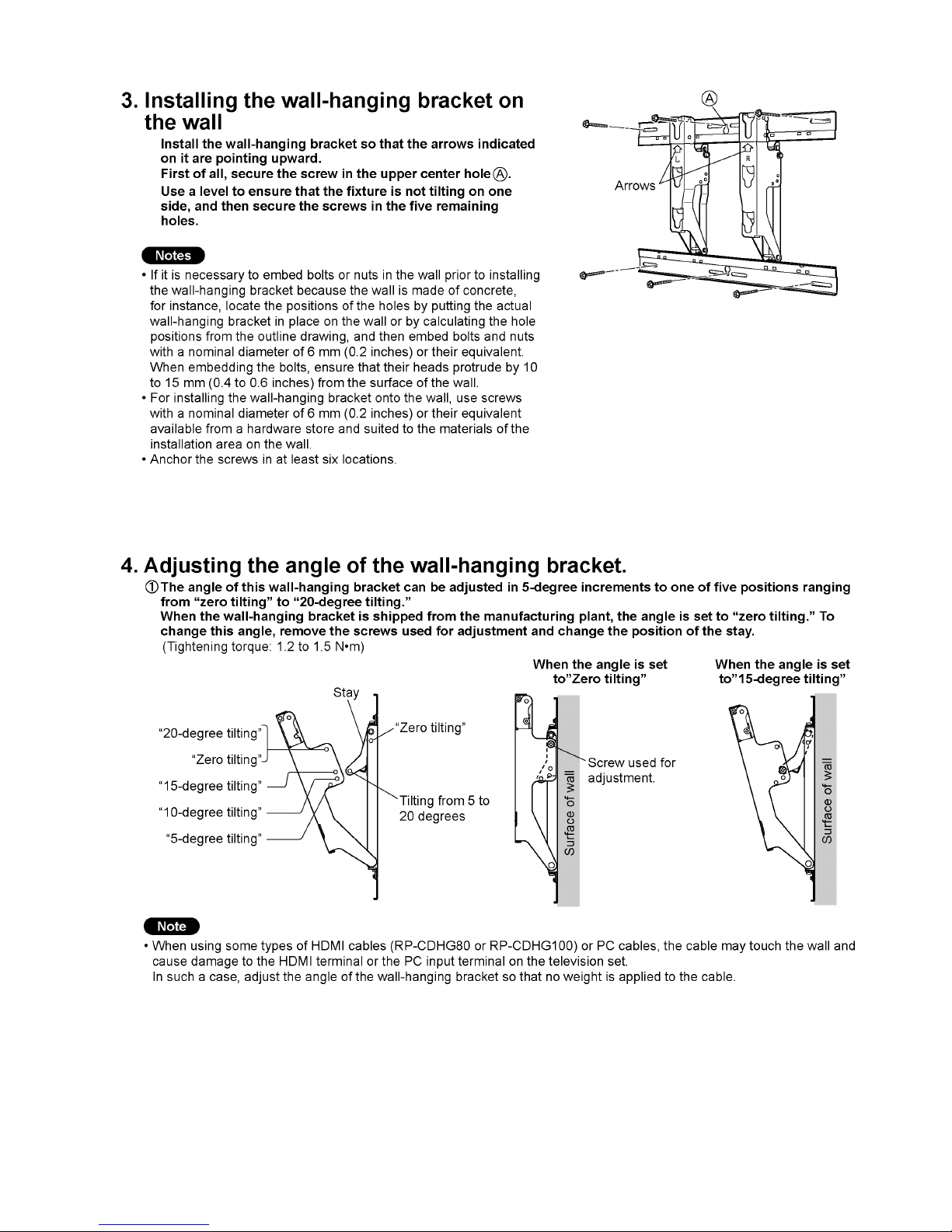

3.2. Disassembly and Assembly Instructions

Please assemble and install the stand according to the following procedures.

5

6

7

8

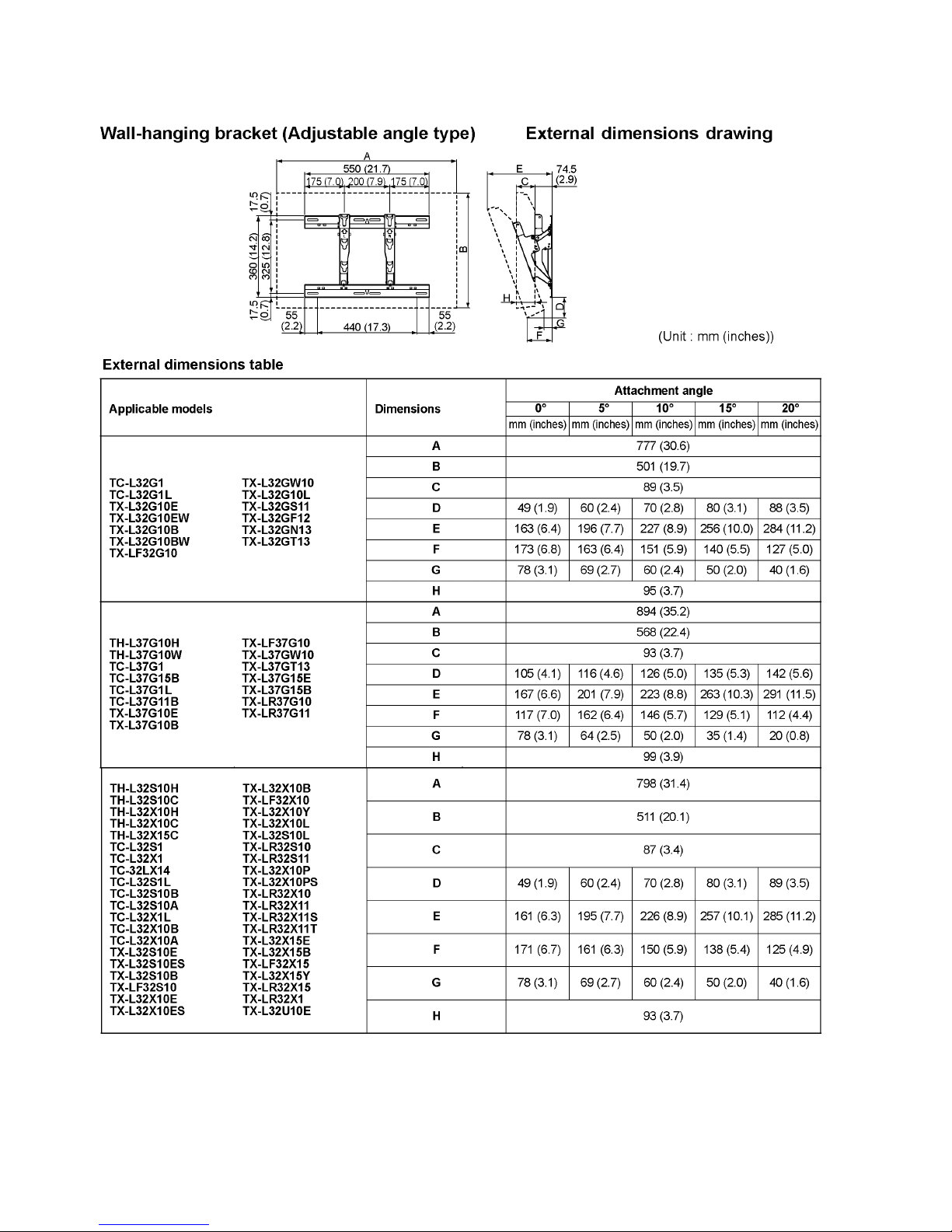

4 Dimensions

9

10

5 Requests regarding handling
