Panasonic KX-TCD540NZM User manual

ORDERNO. KM40311283C3

TelephoneEquipment

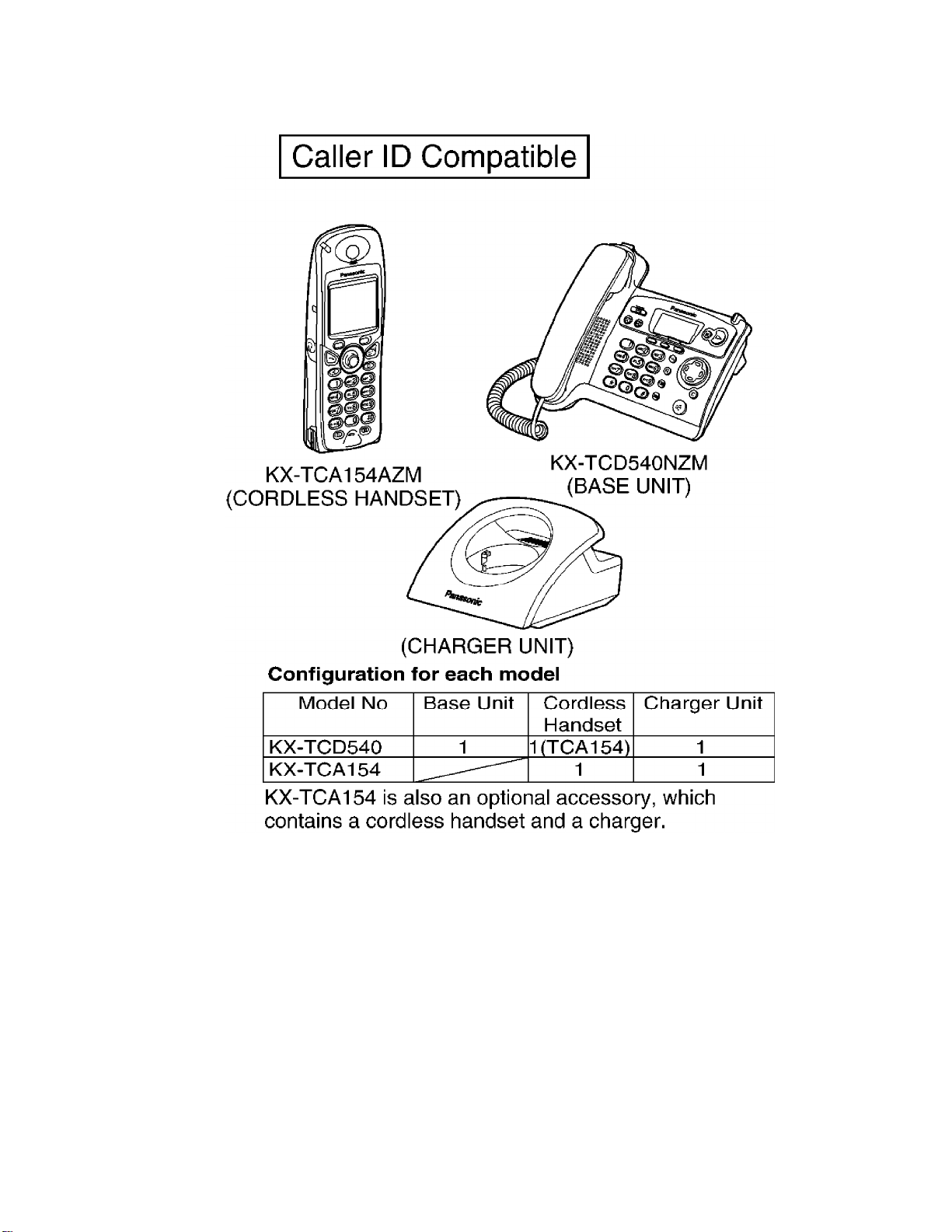

KX-TCD540NZM

KX-TCA154AZM

Digital Cordless Answering System

MetallicGreyVersion

(forNew Zealand)

SPECIFICATIONS

1. ABOUTLEADFREE SOLDER (PbF:Pbfree)

Note:

Intheinformation below, Pb, thesymbol for leadintheperiodictableofelements,

will refertostandard solderor solderthat containslead.

Wewill use PbF solderwhendiscussing theleadfree solderusedinour

manufacturing process whichismadefromTin(Sn), Silver(Ag), and Copper(Cu).

Thismodel, and otherslike it, manufacturedusing leadfree solderwill have PbF

stampedon thePCB. For service and repairworkwesuggest using thesametype

ofsolderalthough, withsomeprecautions, standard Pbsoldercanalsobeused.

Caution

- PbF solderhas amelting pointthat is50°F~70°F(30°C~ 40°C) higherthanPb

solder. Please use asoldering iron withtemperaturecontrol and adjust itto

700°F±20°F(370°C±10°C). Incase ofusing high temperaturesoldering iron,

please becareful nottoheat too long.

- PbF solderwill tend tosplashifitisheatedmuchhigherthanits melting point,

approximately1100°F(600°C).

- Ifyou must use Pbsolderon aPCB manufacturedusing PbF solder, remove as

muchoftheoriginal PbF solderas possibleand besurethat anyremaining is

meltedprior toapplying thePbsolder.

- Whenapplying PbF soldertodoublelayeredboards, please check the

componentsidefor excess whichmay flowontotheopposite side(See thefigure

below).

1.1. Suggested PbF Solder

Thereareseveral types ofPbF solderavailablecommercially. Whilethisproduct is

manufacturedusing Tin, Silver, and Copper

(Sn+Ag+Cu), you canalsouse Tinand Copper(Sn+Cu)or Tin, Zinc, and Bismuth

(Sn+Zn+Bi). Please check themanufac

turer’sspecificinstructionsfor themelting points oftheirproducts and any

precautionsfor using theirproduct withother

materials.

Thefollowing leadfree (PbF)solderwiresizes arerecommendedfor service ofthis

product:0.3mm, 0.6mm and 1.0mm.

1.2. Howto recognizethatPb Free solder isused

1.2.1. Base UnitPCB

1.2.1.1. Main

(ComponentView)

(FlowSolderSideView)

1.2.1.2. Operation

(ComponentView)

(FlowSolderSideView)

Note:

Thelocation ofthe“PbF“markissubject tochangewithoutnotice.

1.2.2. Cordless Handset PCB

(ComponentView)

(FlowSolderSideView)

Note:

Thelocation ofthe“PbF“markissubject tochangewithoutnotice.

1.2.3. ChargerUnitPCB

Note:

Thelocation ofthe“PbF“markissubject tochangewithoutnotice.

2. FORSERVICE TECHNICIANS

ICsand LSIsarevulnerabletostaticelectricity.

Whenrepairing, thefollowing precautionswill helppreventrecurring malfunctions.

1. Covertheplasticparts boxes withaluminumfoil.

2. Ground thesoldering irons.

3. Use aconductive mat on theworktable.

4. DonottouchICor LSIpinswithbarefingers.

3. CAUTION

Dangerofexplosion ifbatteryisincorrectlyreplaced. Replace onlywiththesame

or equivalenttyperecommendencedbythemanufacturer.

Dispose ofusedbatteries according tothemanufacture’sInstructions.

4. BATTERY

4.1. BatteryInstallation

Please ensurethebatteries areinsertedas shown. partshouldbeinsertedfirst.

Close thecoveras indicatedbythearrow.

- Whenyou replace thebatteries, partshouldberemovedfirst.

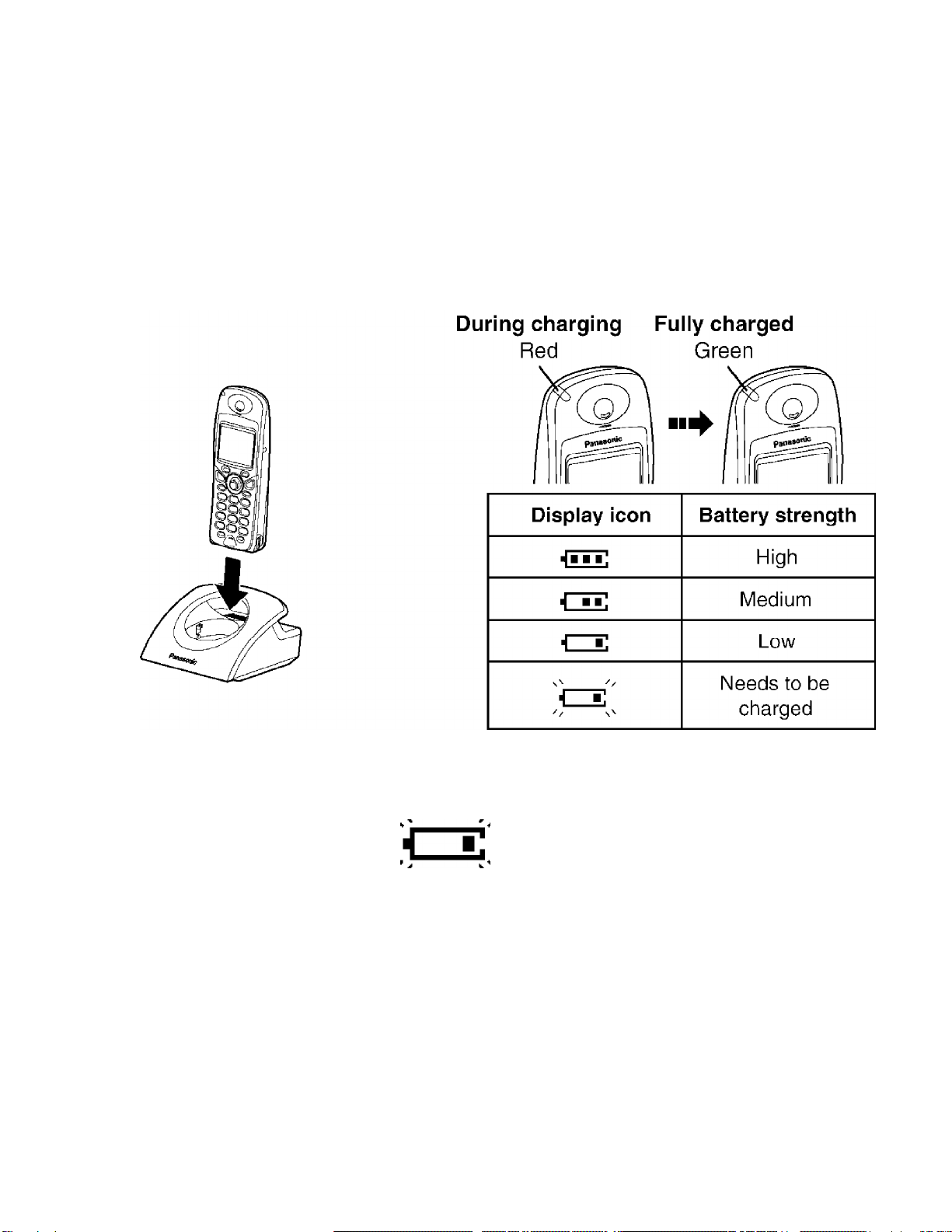

4.2. BatteryCharge

At thetimeofshipment, thebatteries arenotcharged. To charge, place the

cordless handset on thecharger.

Please chargethebatteries for about7hoursbeforeinitial use. During charging,

thechargeLEDwill lightas shownbelow.

Thecordless handset, evenwhenswitchedoff, will beturnedon automatically

whenitisplacedon thecharger.

Thecordless handset will notoperate whileitison thecharger.

Ifthehandset display flashes whenthecordless handset isliftedoff the

charger, please chargethecordless handset batteries at least 15 minutes.

Note for Service:

- Thebatterystrengthmay notbeindicatedcorrectlyifthebatteryisdisconnected

and connectedagain, evenafteritisfullycharged.

Inthat case, byrecharging thebatteryas mentionedabove, you will get acorrect

indication ofthebatterystrength.

- Confirmation ofAntennaPict ( ) indication:

IfAntennaPict isindicated, chargetimeisabout7hours.

However, ifAntennaPict isflashing, chargetimebecomes long.

4.3. BatteryInformation

Afteryour Panasonicbatteryisfullycharged:

Ni-MHBatteries (typical 700 mAh)

Operation Operating Time

Whileinuse (TALK) 10 hrsapprox.

Whilenotinuse (Standby) 180 hrsapprox.

Ni-CdBatteries (typical 250 mAh)

Operation Operating Time

Whileinuse (TALK) 4hrsapprox.

Whilenotinuse (Standby) 60 hrsapprox.

- Times indicatedarefor peak performance.

- Thebatteryoperating timemay beshorteneddepending on usageconditionsand

ambienttemperature.

- Cleanthechargecontacts ofthecordless handset and thechargerwithasoft,

drycloth. Cleaniftheunitissubject togrease, dust or high humidity.

Otherwise thebatterymay notchargeproperly.

- Thebatteries cannotbeoverchargedunless they arerepeatedlyremovedand

replaced.

- For maximumbatterylife, itisrecommendedthat thecordless handset notbe

rechargeduntil thebatteryicon flashes .

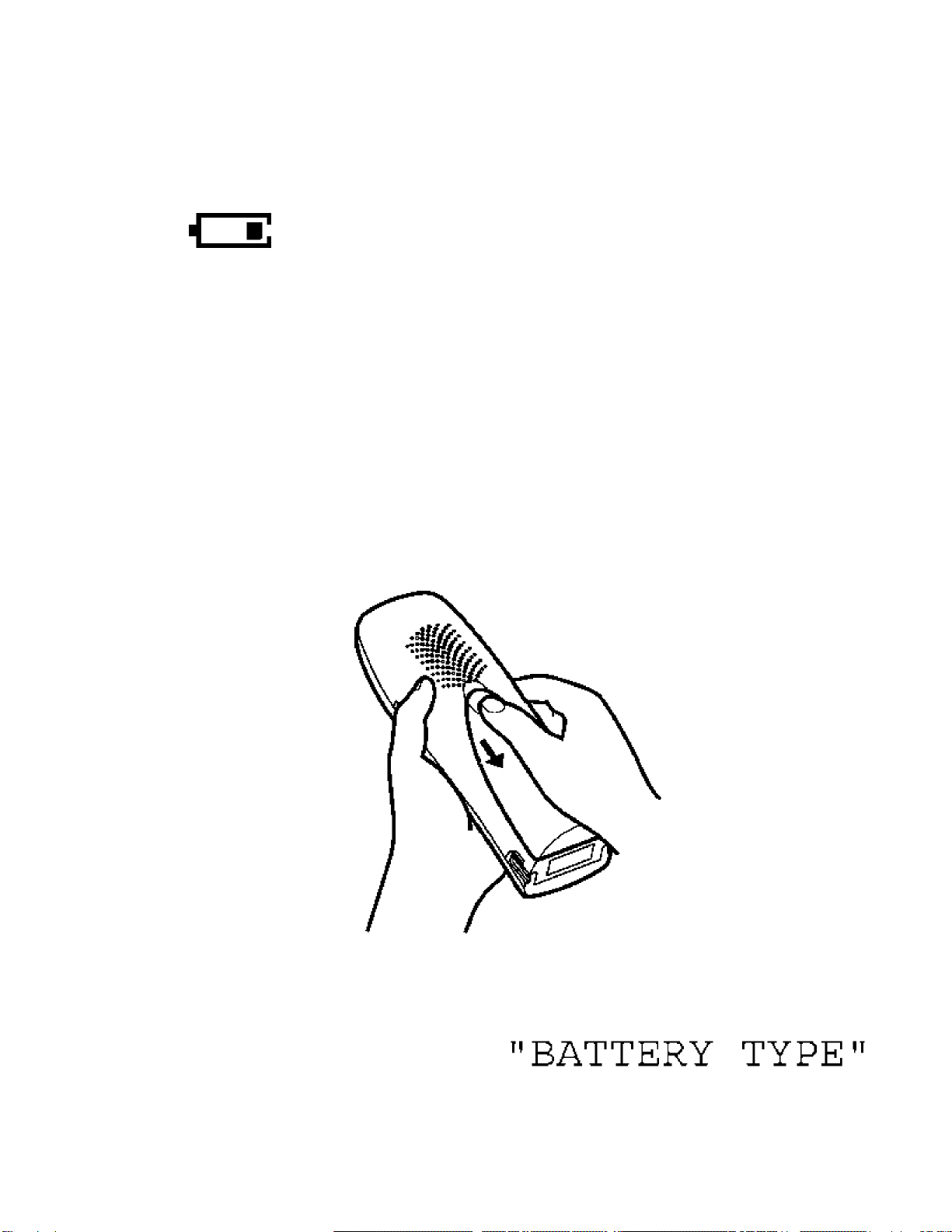

4.4. Replacing theBatteries

Ifthe icon flashes afterafewtelephonecallsevenwhenthecordless

handset batteries have beenfullycharged, bothbatteries must bereplaced.

- Chargenewbatteries for approximately7hoursbeforeinitial use.

- Whenreplacing thebatteries, besuretoset up thebatterytypeevenifyou install

thesametypeofbatteries toinitialise batteryremaining memoryofyour cordless

handset.

- Donotuse non-rechargeablebatteries. Ifnon-rechargeablebatteries areinstalled

and startcharging, batteryelectrolyte may leak fromtheunit.

- Openthebatterycoverbypressing downfirmlyon thenotchand sliding itas

indicatedbythearrowbelow.

Replace bothbatteries and close thecover. Chargethecordless handset for about

7hours.

Please orderPanasonicHHR-4EPT(Ni-MH) or P-4NPT(Ni-Cd)batteries.

Note for Service:

- WhenNi-Cdbatteies arelittledwiththe
