PANASONIC&HS-6000&SYSTEM&USER’S&GUIDE& &
This&guide&contains&specific¬es®arding&equipment&in&the&EMG&Panasonic&HS-6000&
Switching&Rack.&
It&is&meant&as&a&reference&for&troubleshooting&and&initial&orientation&of&the&system.&
All&diagrams&and&photos&are&the&property&of&Evolve&Media&Group&and&cannot&be&duplicated&or&
distributed&without&express&written&consent.&
I. OVERVIEW(
• Panasonic&HS-6000&Switcher&
o 2ME&with&4&keyers&each&
o Separate&DSK&with&4&keyers&
o Supports&HD/3G/4K&Operating&modes&
§ HD&1080i&Mode&!"#$%&'()*+,#)&-'#..)+(/#012.#).3#42$2#,5&
• 32&Inputs&
• 16&Outputs&
• 4&MVR’s&(Assignable&to&Outputs)&
• 8&Auxes&(Assignable&to&Outputs)&
• 2&DVI-D&Inputs&
§ 3G&1080p&Mode&
• 16&Inputs&(Odd&numbered,&White&labels)&
• 8&Outputs&(Odd&numbered,&Light&Blue&labels)&
• 2&MVR’s&(Assignable&to&Outputs)&
• 4&Auxes&(Assignable&to&Outputs)&
• DVI-D&Inputs&Disabled&
§ 4K&2160p&Mode&
• 8&Inputs&
• 4&Outputs&
• 1&MVR&(Assignable&to&an&Outputs)&
• 2&Auxes&(Assignable&to&Outputs)&
• DVI-D&Inputs&Disabled&
&
[TYPE&HERE]&[TYPE&HERE]&[TYPE&HERE]&
2&
o Four&up-converter&(UC)&inputs&
§ Inputs&27,28,31,32&
§ 1080i&to&1080p&when&in&3G&mode&
§ 720p&to&1080i&when&in&HD&mode&
§ Input&31&is&Bars&pattern&from&Ross&signal&generator&
o Two&down-converter&(DC)&outputs&
§ Outputs&14&and&16&
§ 1080i&to&720p&
§ 1080p&to&1080i/720p&
• Ross&OpenGear&Trays&
o 1-&Analog&DA&for&Timecode&from&the&Ross&TSG-2200&
o 3-&Analog&DA’s&for&Reference&(Analog&Black)&from&the&Ross&TSG-2200&
o 8-&3G-SDI&DA’s&that&are&user&patchable&on&the&back&of&the&patch&bay&
o 4-&Black&Magic&3G-SDI&to&HDMI&converter&cards&
o 4-&Apantec&Genlockable&Scaler&cards&
o 1-&SDI&audio&embedder&card&
&
II. PRE-PATCHED(ITEMS(
Input(31&
The&test&pattern&output&from&the&Ross&TSG-2200&is&connected&to&input&31.&&This&allows&for&the&
pattern&to&be&available&in&both&HD&1080i&and&3G&1080p&modes&since&input&31&has&an&up-
converter.&
MVR(1(and(2&
In&the&Output&assignment,&MVR&1&and&2&are&assigned&to&outputs&11&and&13&respectively.&Outputs&
11A&and&13A&are&wired&directly&to&the&two&17”&monitors&in&the&bridge.&The&“B”&sides&of&those&
outputs&are&available&on&the&main&patch&bay&and&are&labelled&in&green.&
In&HD&1080i&mode,&there&are&four&MVR’s&available.&The&user&can&assign&these&to&any&of&the&
output&connectors.&
REF(IN&
The&REF(IN&on&the&patch&bay&allows&for&an&external&sync&source&to&be&run&to&the&Ross&TSG-2200’s&
reference&input.&This&allows&the&entire&system&to&be&synchronized&to&an&external&source.&
&
[TYPE&HERE]&[TYPE&HERE]&[TYPE&HERE]&
3&
III. APANTEC(SCALER(CARDS(
The&output&resolution&and&settings&for&the&Apantac&cards&can&be&adjusted&through&the&Ross&
Dashboard&interface&which&is&loaded&on&the&system&laptop&PC.&
The&cards&can&accept&single&link&DVI,&HDMI&(with&adapter)&and&VGA&analog&(with&adapter)&
signals.&The&input&is&default&for&HDMI&input&with&1080i&as&the&HD-SDI&output&signal.&&
Genlock&for&these&cards&is&provided&through&the&Ross&OpenGear&frame&which&is&referenced&to&
the&Ross&TSG.&

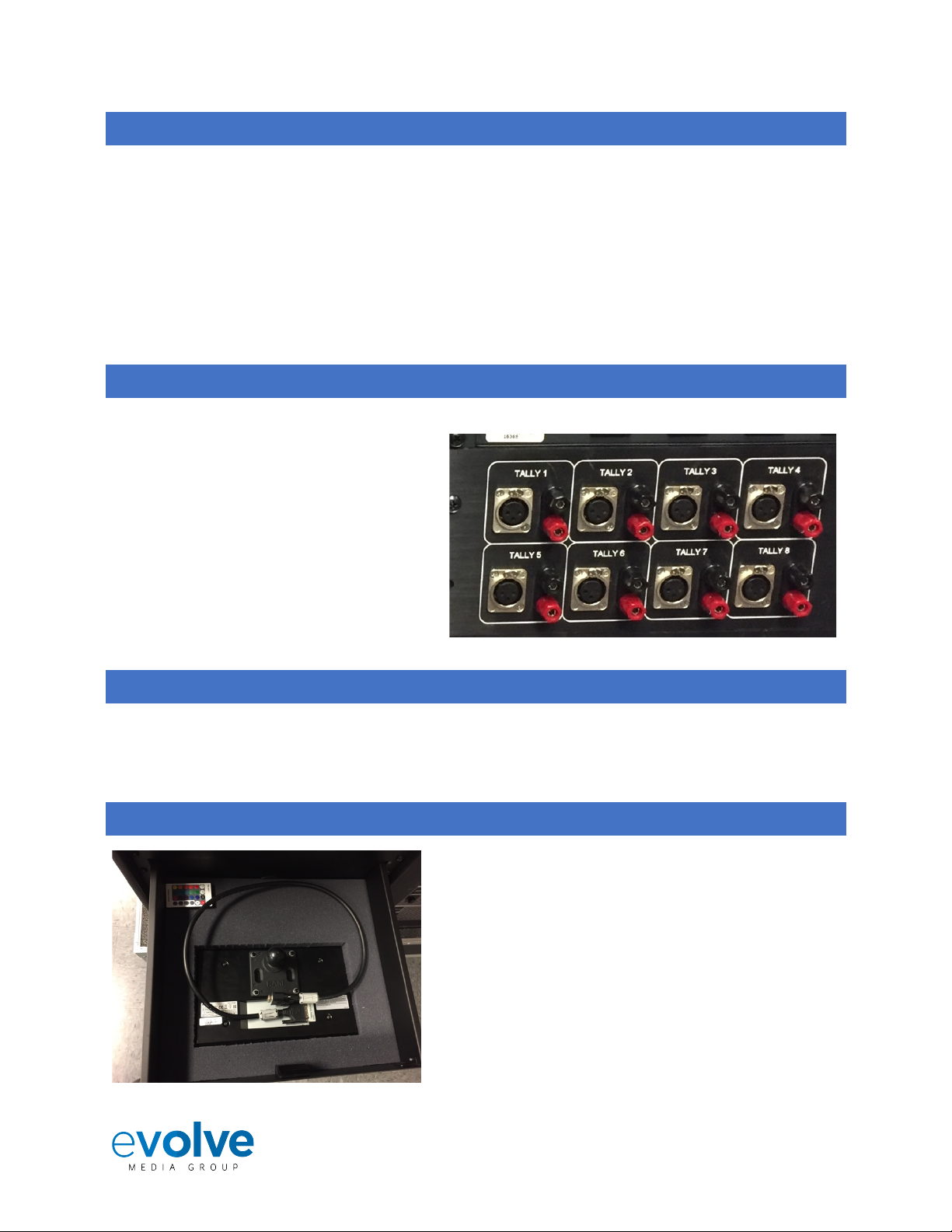

IV. TALLY(
&&
Eight&tallies&from&the&Panasonic&switcher&
are&available&on&the&patch&panel.&Refer&to&
the&Panasonic&HS-6000&User&Guide&on&how&
to&assign&tallies&to&cross-points.&
DO(NOT&use&both&the&XLR&and&terminal&
post&connectors&at&the&same&time.&Pick&
one&or&the&other&for&tally&connection.&
V. POWER(
The&rack&has&a&single&120V&input&line.&Amp&draw&for&the&system&is&2-3&s.&
There&are&no&redundant&power&supplies&for&any&of&the&components.&
VI. TOUCH(SCREEN(GUI(FOR(SWITCHER(
The&GUI&stores&in&the&second&drawer&of&the&system.&
The&Vesa&plate&and&DVI&inter-connect&cable&stay&
attached&to&the&back&of&the&monitor.&
DO&NOT&CONNECT&THE&MONITOR&TO&THE&SWITCHER&
WITH&THE&POWER&ON.&
Make&sure&the&control&power&is&off&when&attaching&
the&DVI.&
&
[TYPE&HERE]&[TYPE&HERE]&[TYPE&HERE]&
4&
VII. SYSTEM(LAPTOP(
In&the&top&drawer,&is&a&pre-configured&touchscreen&PC&laptop.&It&contains&the&Ross&Dashboard&
application&and&PDF’s&of&the&manuals&loaded&on&the&Desktop.&
Also&loaded&is&the&Panasonic&switching&application&which&allows&you&to&switch&the&ME’s&via&the&
laptop.&
The&system&IP&scheme&is&192.168.2.XXX.&
&
APANTAC LLC www.apantac.com 5
US-3x00 User Manual
Control and Configuration:
Software:
The Apantac OG-US-3x00 models are controlled and configured through the openGear frame’s
control software ‘Dashboard’ by Ross Video inc. Dashboard can be acquired through the Ross
Video website; https://www.rossvideo.com/control-systems/dashboard/products/dashboard/#download
Dashboard software runs on PC’s and connects to the openGear frame’s control card via Ether-
net. The IP address of the openGear frame is displayed on the LCD panel on the front of the
frame. The openGear frame may have a fixed IP address or use DHCP.
The openGear frame’s control card communicates to the individual openGear cards via the
frame’s internal CANBUS (Controlled Area Network). CANBUS communicates to the frame’s
slots, the Apantac OG-US-3x00 cards do not possess an IP address. All control and configura-
tion of the OG-US-3x00 cards is through the Dashboard-CANBUS channels.
The Apantac OG-US-3x00 Dashboard interface is shown above. Each Apantac OG-US-3x00 card
should be recognized by Dashboard and displayed by the installed slot number.
APANTAC LLC www.apantac.com 6
US-3x00 User Manual
Signal Tabs:
Unit Status Indicators:
Card State: Indicates whether Dashboard software detects an error state from the card.
Connection: Indicates whether Dashboard software is communicating via CANBUS with the card.
Signal Status Indicators:
Input Signal: Indicates whether the OG-US-3x00 has detected and locked-on to the incoming video signal.
SDI Output: Indicates whether the OG-US-3x00 is generating an SDI video signal on the outputs. Requires a
successful Input Video Signal lock.
Reference:
(OG-US-3500 only)
Indicates the OG-US-3x00 is receiving a valid genlock reference signal.
Lock Status:
(OG-US-3500 only)
Indicates whether the SDI output video signal is locked to the genlock refer-
ence signal.
APANTAC LLC www.apantac.com 7
US-3x00 User Manual
Input Format:
The OG-US-3x00’s video input is not auto-detecting. The card must be configured for the type of video.
OG-US-3x00 accessories include adapters for connecting the various video sources.
The input video choices are:
HDMI/DVI
VGA
YPbPr (component video)
CVBS (composite video)
Output Format:
This option configures the SDI video output signal.
Options are:
1080p
1080i
720p
576i (PAL)
480i (NTSC)
Output Frequency:
This option configures the SDI video output signal. Options are restricted according to the Output Format
chosen. Options include:
50 Hz
60 Hz
59.94 Hz
Mode:
(VGA sources only)
This option configures the SDI video output signal. This option can aid in maintaining the aspect ratio of
the incoming video signal. Options are:
Fullscreen (the input video is stretched to fill the output screen)
1:1 (the input video aspect ratio is maintained and the remainder of the output screen is
drawn black)
Embedded Audio:
This option configures the SDI video output signal. Options are:
Enabled
Disabled (outputs SDI video without audio)
Genlock:
(OG-US-3500 only)
This option configures the SDI video output signal. Options are:
Enabled
Disabled
Signal Tab:
(continued)
APANTAC LLC www.apantac.com 8
US-3x00 User Manual
VGA Input Tab:
VGA Position:
VGA video sources will typically require timing sync adjustments. This tab only applies when the video input format
is configured to ‘VGA’ on the Signal tab.
Auto Adjust:
When the Auto Adjust button is clicked, the system attempts to lock to and adjust the incoming VGA signal. The Au-
to Adjust action can be repeated if necessary. If the Auto Adjust fails the adjustments can be performed manually
with the Vertical and Horizontal shift buttons.
Vertical:
The Vertical ’Shift Up’ and ’Shift Down’ buttons allow manual alignment of the VGA input video within the SDI video
output screen.
Horizontal:
The Horizontal ’Shift Left’ and ’Shift Right’ buttons allow manual alignment of the VGA input video within the SDI vid-
eo output screen.
APANTAC LLC www.apantac.com 9
US-3x00 User Manual
Genlock Tab:
(OG-US-3500 only)
Genlock:
(OG-US-3500 only)
The OG-US-3500 model includes the feature of locking the SDI output video signal timing to the openGear frame’s
reference signal.
Notes:
The feature is enabled or disabled on the ‘Signal’ tab. (see the previous sections)
Genlock adjustments require the use of external test equipment.
Genlock Position - Vertical:
The vertical offset can be adjusted using either moving the slider bar control with a mouse, or by the up or down
arrow buttons adjacent to the number on the right of the slider bar.
Genlock Position - Horizontal:
The horizontal offset can be adjusted using either moving the slider bar control with a mouse, or by the up or down
arrow buttons adjacent to the number on the right of the slider bar.
APANTAC LLC www.apantac.com 10
US-3x00 User Manual
Display Tab:
Extended Display ID (EDID):
The video input port of the US-3x00 includes a programmable EDID. VGA, DVI. and HDMI sources will read this
EDID and detect the US-3x00 as a monitor. The US-3x00 EDID can be set to the generic, factory set EDID or it can
copy the EDID of any monitor.
To copy the EDID of a monitor:
Connect the US-3x00 video input port to an input of any monitor.
Power on the monitor.
Click the “Read EDID from current display” option on this tab page.
The EDID Status line will indicate the EDID is being copied, and then return to ‘ready’.
To reset the EDID to its factory default:
Click the “Reset to default” option on this tab page.
The EDID Status line will indicate the EDID is being reset, and then return to ‘ready’.
