Panasonic EVQWH User manual

Multi Function Switches/EVQWH

Design and speciﬁcations are each subject to change without notice. Ask factory for the current technical speciﬁcations before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

– ES64 –

5 6 789

Product Code Type Design No.

0.4max.

1.0±0.3

0.0+0.1

(0.15)

1.6

1.0

3.9

6.1

8.3

5.95

7.95

2.05

0.2

6.1±0.2

7.1±0.3

2-1.4±0.2

6.5±0.2

7.1±0.2

0.3±0.3

2-0+0.1

5.0±0.2

3.9±0.2

(2.25)

6-0.6±0.2

첸2.5 –0.1

C0.2

6-0.3±0.2

Prohibited area for

circuit pattern foil

(Height of bent part of cover)

than 0.1mm.

to all terminals have to be less

Distance from mounting surface

Mounting surface

Leaning direction

Shaft pivot

(Opposite side of

leaning direction)

(Reference)

Date code

PWB land pattern for reference

No. 1

EVQWHE

Without boss

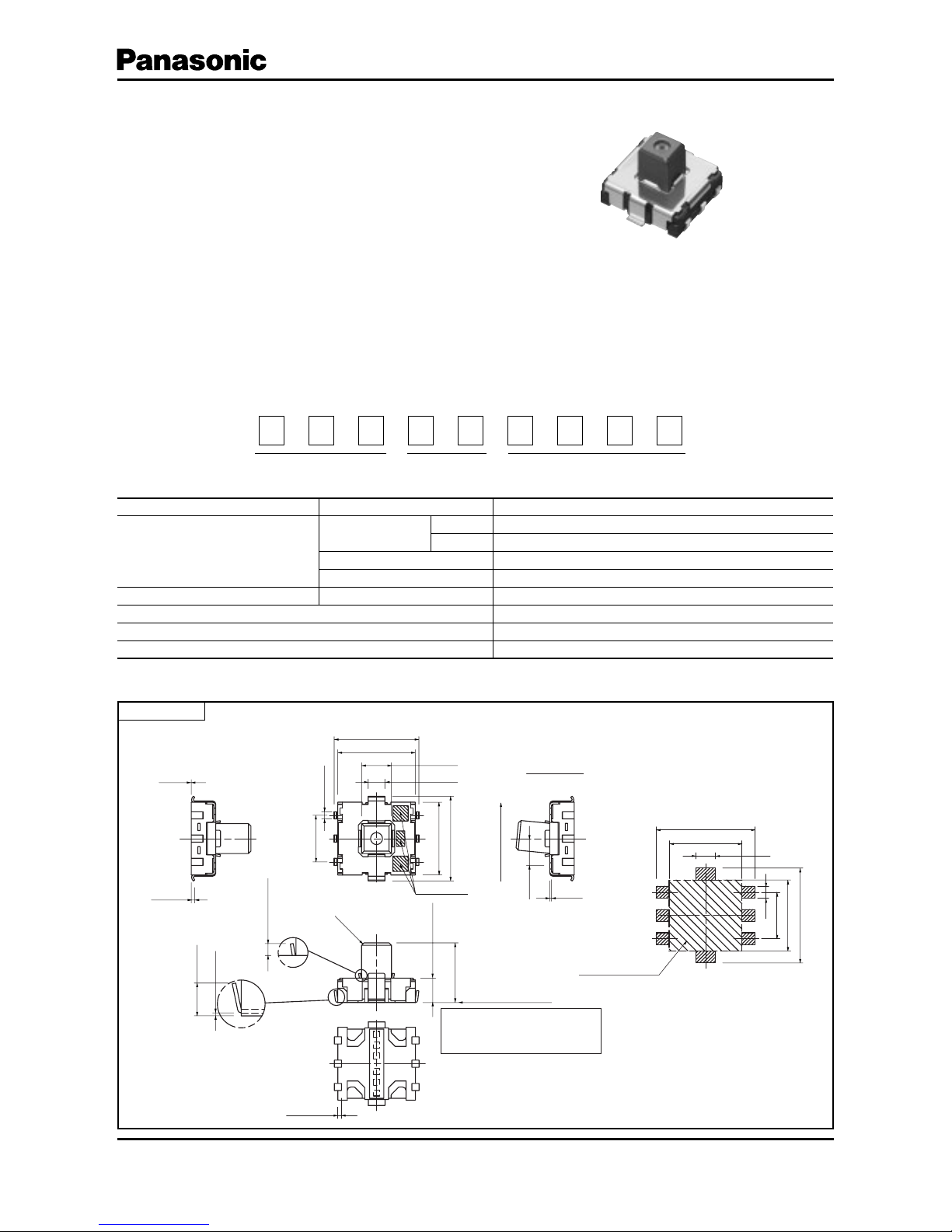

Micro Stick Switches

Type: EVQWH

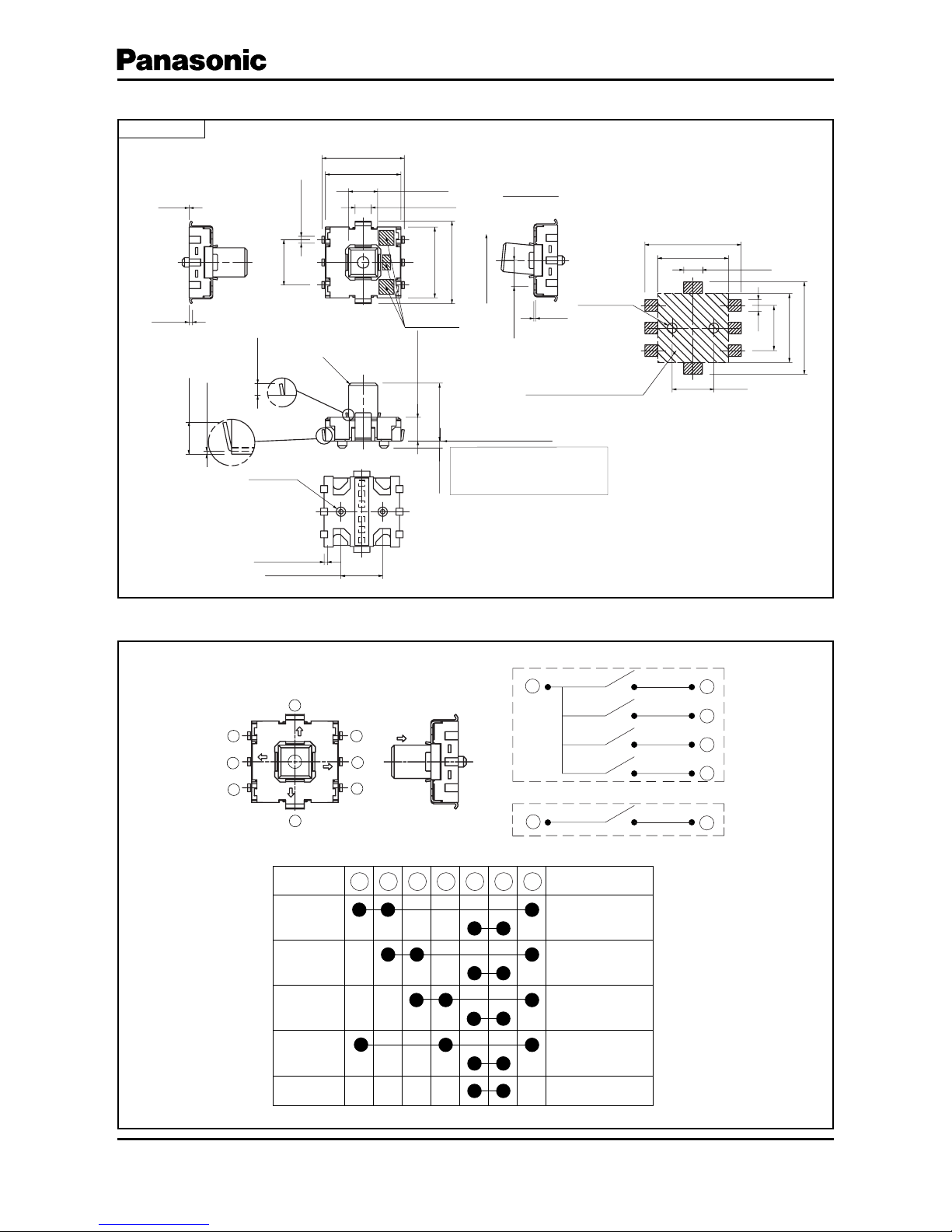

■Dimensions in mm (not to scale)

Electrical Rating 20 mA 15 Vdc

Mechanical

Operating force Push 2.7 N±1.0 N

Leaning 1.4 N±0.8 N ✽Note1

Travel 0.15 mm +0.2 mm

Leaning operation angle 5 °±2 °

EnduranceOperating life 300000 cycles min.

Temperature range –20 °C to +70 °C

Minimum Quantity/Packing Unit 1200 pcs. Embossed Taping (Reel Pack)

Quantity / Carton 6000 pcs.

✽Note1 : Leaning operation is that attach switch with φ8 knob and push edge of knob from upper side.

■Speciﬁcations

■Explanation of Part Numbers

■Features

●External dimensions: 6.1 mm҂6.5 mm, height 2.05 mm

●High operability: Tactile feedback ensured in all

ﬁve operating directions

●Ready for embossed taping and reﬂow soldering.

–0.1

■Recommended Applications

●Operation switches for menu scrolling and conﬁrmation

for portable electronic equipment

(Mobile phones, Digital cameras, and PDAs)

Sep. 201000

Multi Function Switches/EVQWH

Design and speciﬁcations are each subject to change without notice. Ask factory for the current technical speciﬁcations before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

– ES65 –

2-φ0.85 +0.05

1.6

1.0

3.9

6.1

8.3

5.95

7.95

3.6

2-φ0.8 0

-0.07

3.6±0.05

6-0.3±0.2

0.6 0

-0.07 5.0±0.2

0.4max.

2.05±0.2

C0.2

(0.15)

6.1±0.2

7.1±0.3

2-1.4±0.2

(2.25)

첸2.5 0

–0.1

6.5±0.2

7.1±0.3

3.9±0.2

6-0.6±0.2

0.3±0.3

2-0+0.1

1.0±0.3

0.0 +0.1

than 0.1mm.

to all terminals have to be less

Distance from mounting surface

Mounting surface

(Height of bent part of cover)

Date code (hole)

Shaft pivot

(Opposite side of

leaning direction)

(Reference)

Prohibited area for

circuit pattern foil

Leaning direction

PWB land pattern for reference

5432167

Remark

Direction

Leaning switch and

Center switch

Leaning switch and

Center switch

Leaning switch and

Center switch

Leaning switch and

Center switch

Only Center switch

Leaning switch

Center switch

No. 2

EVQWHA

With boss

■Dimensions in mm (not to scale)
