Panasonic SB-PC40P User manual

ORDER NO. MD0512472C7

Speaker System

SB-PC40P

Colour

(S)... Silver Type

SPECIFICATIONS

Specification

Type 1 way, 2 speakers (Bass-ref.)

Speaker unit Impedance 6

Full range 6.5 cm (2-1/2”) Cone type x 2

Input power (IEC) 220 W (Max)

Output sound pressure

level

82 dB/W (1.0 m)

Frequency range 110 Hz - 50 kHz (-16 dB)

140 Hz - 45 kHz (-10 dB)

Dimensions (W x H x D) 270 mm x 92 mm x 95.4 mm

10-5/8” x 3-5/8” x 3-3/4”

Mass 1.3 kg (2.9 lb.)

Notes :

1. Specifications are subject to change without notice. / Mass and

dimensions are approximate.

2. Total harmonic distortion is measured by the digital spectrum

analyzer.

System : SC-HT40P-S Music Center : SA-HT40P-S

Front Speaker : SB-PF40P-S

Surround Speaker : SB-PS40P-S

Center Speaker : SB-PC40P-S

Subwoofer : SB-W40P-S

System : SC-HT40PC-S Music Center : SA-HT40PC-S

Front Speaker : SB-PF40P-S

Surround Speaker : SB-PS40P-S

Center Speaker : SB-PC40P-S

Subwoofer : SB-W40P-S

System : SC-HT40EE-S Music Center : SA-HT40EE-S

Front Speaker : SB-PF41GN-S

Surround Speaker : SB-PS41GN-S

Center Speaker : SB-PC40P-S

Subwoofer : SB-W40P-S

System : SC-HT40GN-

Music Center : SA-HT40GN-S

Front Speaker : SB-PF41GN-S

Surround Speaker : SB-PS41GN-S

Center Speaker : SB-PC40P-S

Subwoofer : SB-W40P-S

Unauthorized copying and distribution is a violation of law.

1. Assembling and Disassembling

“ATTENTION SERVICER”

Some chassis components may have sharp edges. Be careful when disassembling and servicing.

1. This section describes procedures for checking the operation of the

major printed circuit boards and replacing the main components.

2. For reassembly after operation checks or replacement, reverse the

respective procedures.

Special reassembly procedures are described only when required.

3. Select items from the following index when checks or replacement are

required.

4. Refer to the Parts No. on the page of “Parts Location and Replacement

Parts List” (Section 5), if necessary.

Below is the list of disassembly sections

- Disassembly of Front Panel Assembly

- Disassembly of Woofer 1

- Disassembly of Woofer 2

- Disassembly of Network Assembly

1.1. Disassembly flow chart

The following chart is the procedure for disassembling the casing and inside parts for internal

inspection when carrying out the servicing.

To assemble the unit, reverse the steps shown in the chart as below.

1.2. Disassembly of Front Panel Assembly

Step 1: Remove 6 screws from the Rear Cabinet Assembly.

Step 2: Insert an Allen key into the top hole of the Front Panel Assembly as arrow shown.

1.3. Disassembly of Woofer 1

Follow (step 1) to (step 2) of Item 1.2.

Step 1: Detach the (+) yellow and (-) blue wires from the Woofer 1.

Step 2: Remove 4 screws from the Woofer 1.

1.4. Disassembly of Woofer 2

Follow (step 1) to (step 2) of Item 1.2.

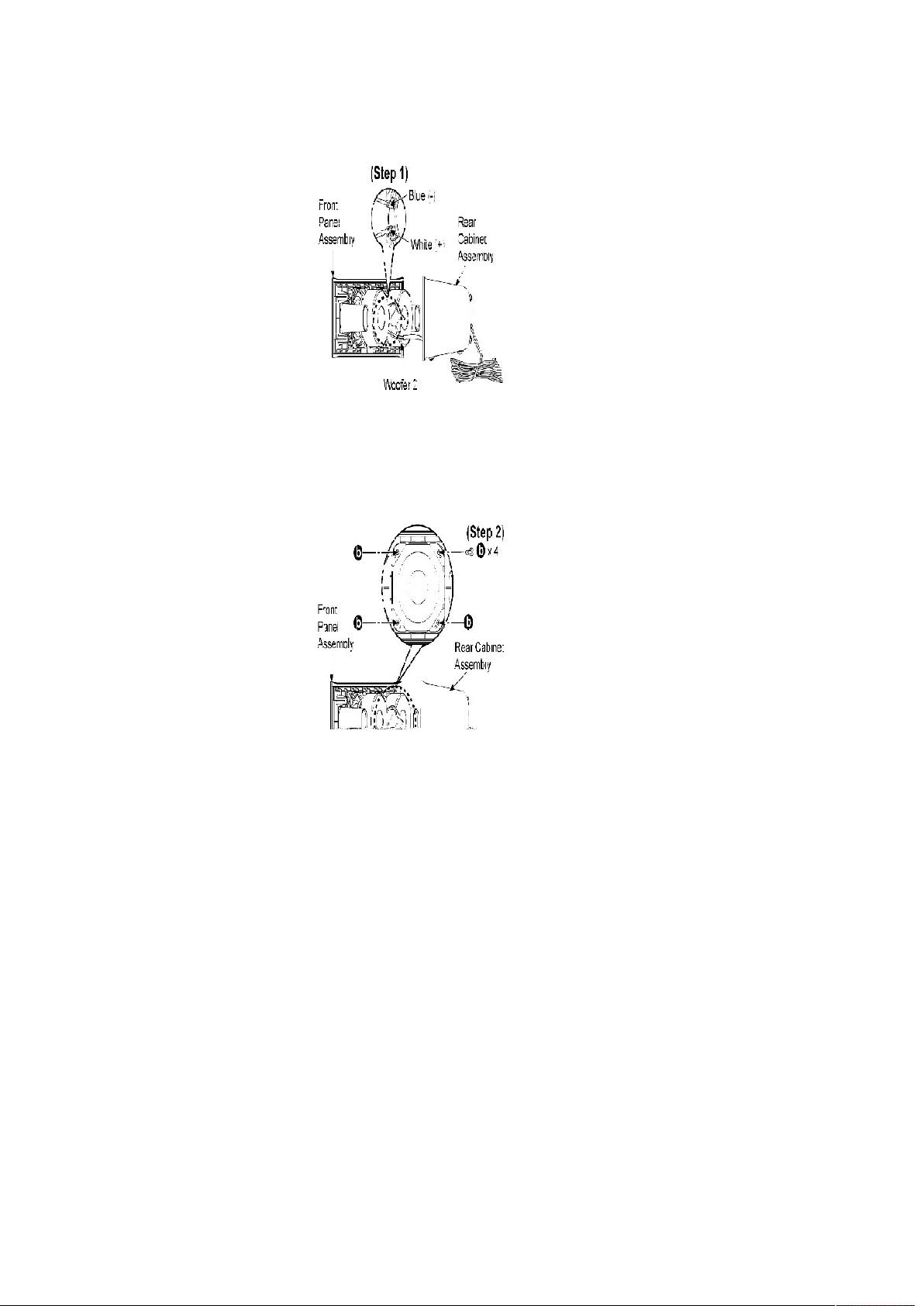

Step 1: Detach the (+) white and (-) blue wires from the Woofer 2.

Step 2: Remove 4 screws from the Woofer 2.

1.5. Disassembly of Network Assembly

Follow (step 1) to (step 2) of Item 1.2.

Follow (step 1) of Item 1.3.

Follow (step 1) of Item 1.4.

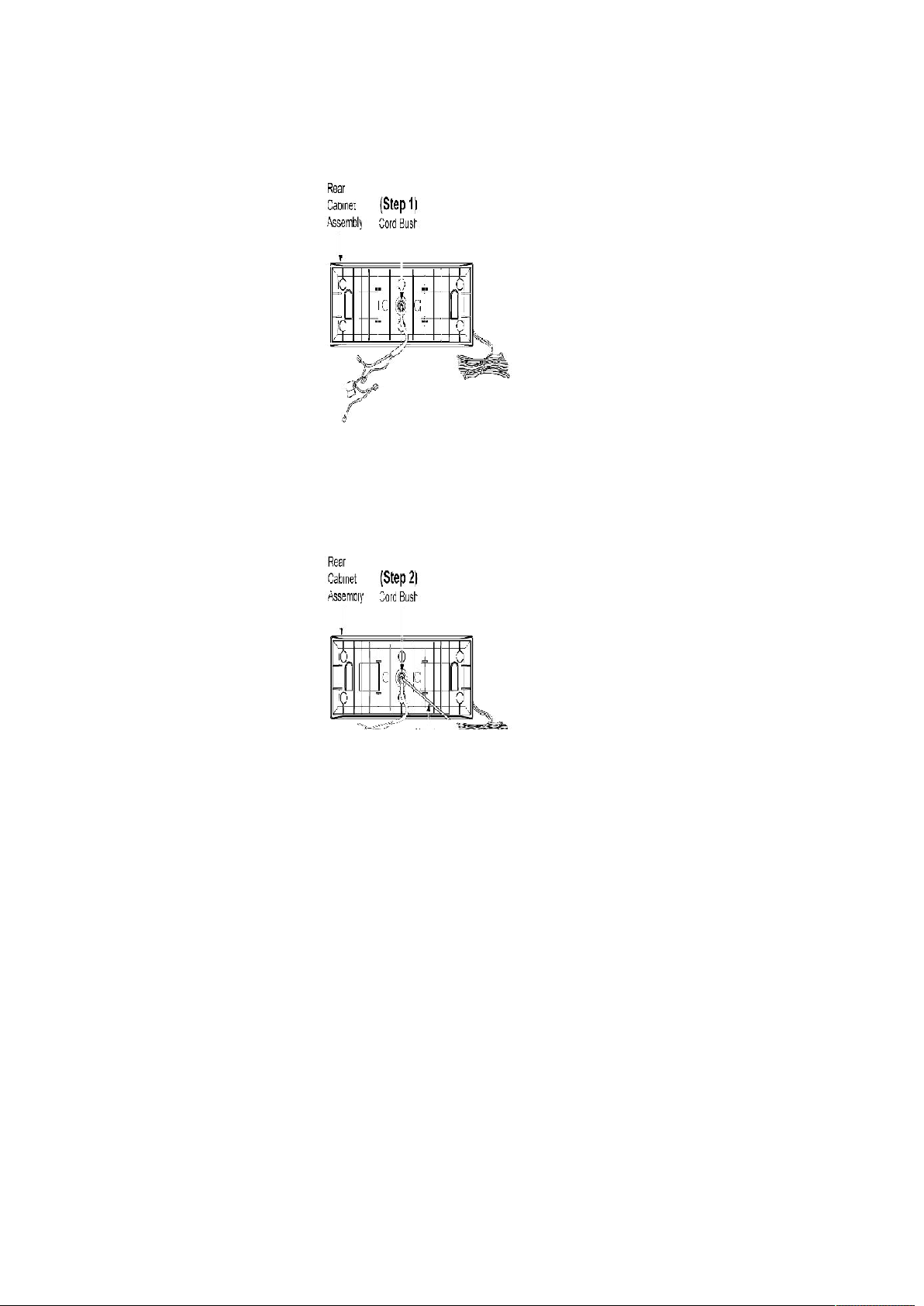

Step 1: Remove glue from Cord Bush.

Step 2: Remove Cord Bush by pushing out with an Allen key.

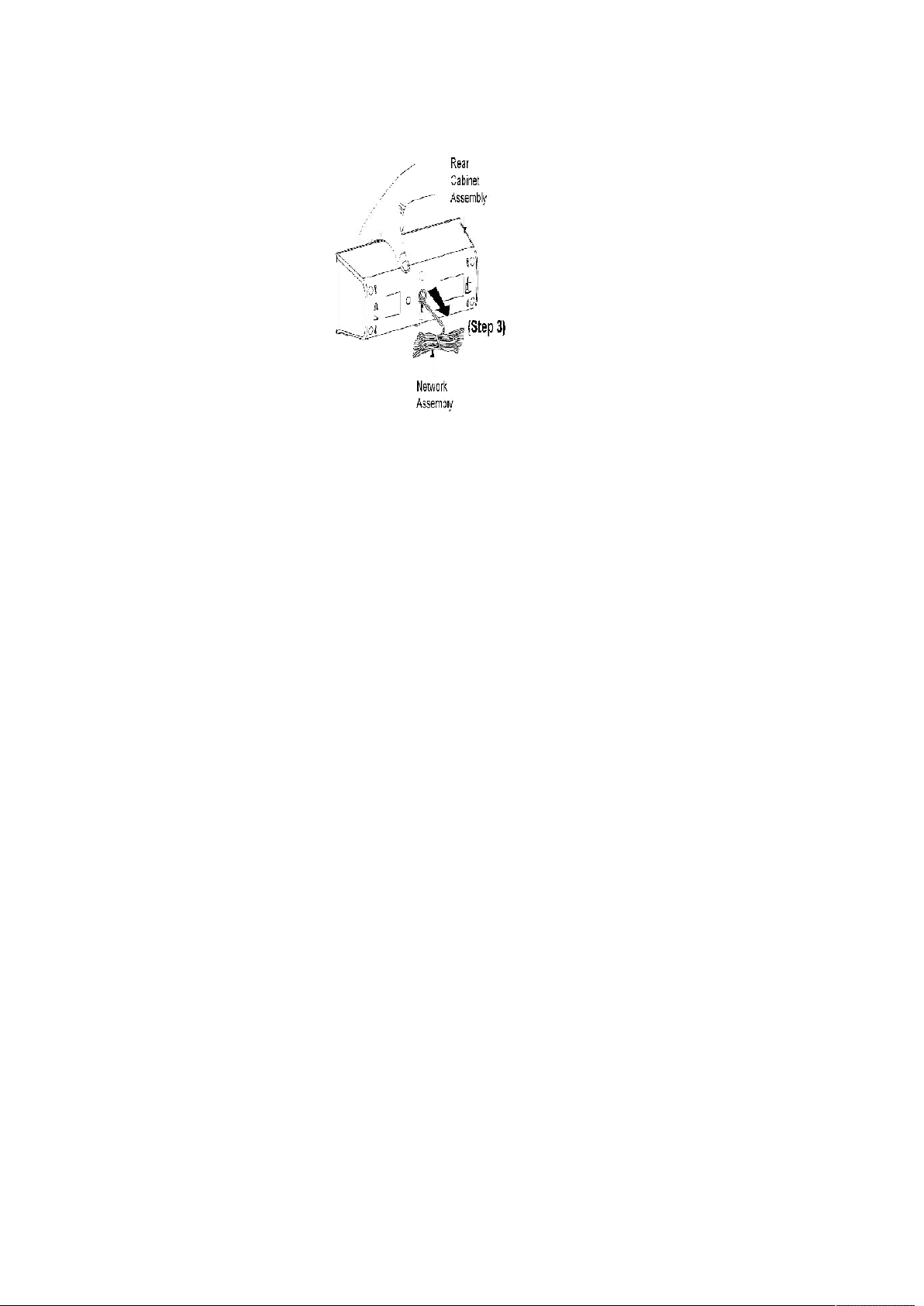

Step 3: Hold the Rear Cabinet Assembly and remove Network assembly as arrow shown.

2. Connection of the Speaker Cables

- Be sure to connect speaker cables before connecting the AC power

supply cord.

- The load impedance of any speaker used with this unit must be 6 .

- Be sure to connect the cable from the right speaker to the right terminal

and the cable from the left speaker to the left terminal.

1. Strip off the outer covering, and twist the center conductor. Make sure

the bare ends of the wires are not unravelled. (If they are, twist them

tight again.)

2. Insert the wire to the rear panel of the unit and close the lever.

Notes :

- To prevent damage to circuitry, never short-circuit positive (+) and

negative (-) speaker wires.

- Be sure to connect only positive (white) wires to positive (+) terminals

and negative (blue) wires to negative (-) terminals.

Incorrect connection can damage the speakers.

Positioning for best effect

How you set up your speakers can affect the bass and the sound field.

Note the following points.

- Place the speakers on flat secure bases.

- Placing speakers too close to floors, walls, and corners can result in

excessive bass. Cover walls and windows with a thick curtain.

Note

Keep your speakers at least 10 mm (13/32”) from the system for proper ventilation.

Place the front, center, and surround speakers at approximately the same distance from the seating

position. The angles in the diagram are approximate.

Front speakers (left, right)

Place on the left and right of the TV at seated ear height so that there is good coherency between the

picture and sound.

Center speaker

Place underneath or above the center of the TV. Aim the speaker at the seating area.

Surround speakers (left, right)

Place on the side of or slightly behind the seating area, higher than ear level.

The subwoofer can be placed in any position as long as it is a reasonable distance from the TV.

Note that some experimentation can yield the smoothest low frequency performance. Placement near a

corner can increase the apparent output level, but can result in unnatural bass.

Subwoofer

The subwoofer can be placed in any position as long as it is at a reasonable distance from the TV.

Note that some experimentation can yield the smoothest low frequency performance. Placement near a

corner can increase the apparent output level, but can result in unnatural bass.

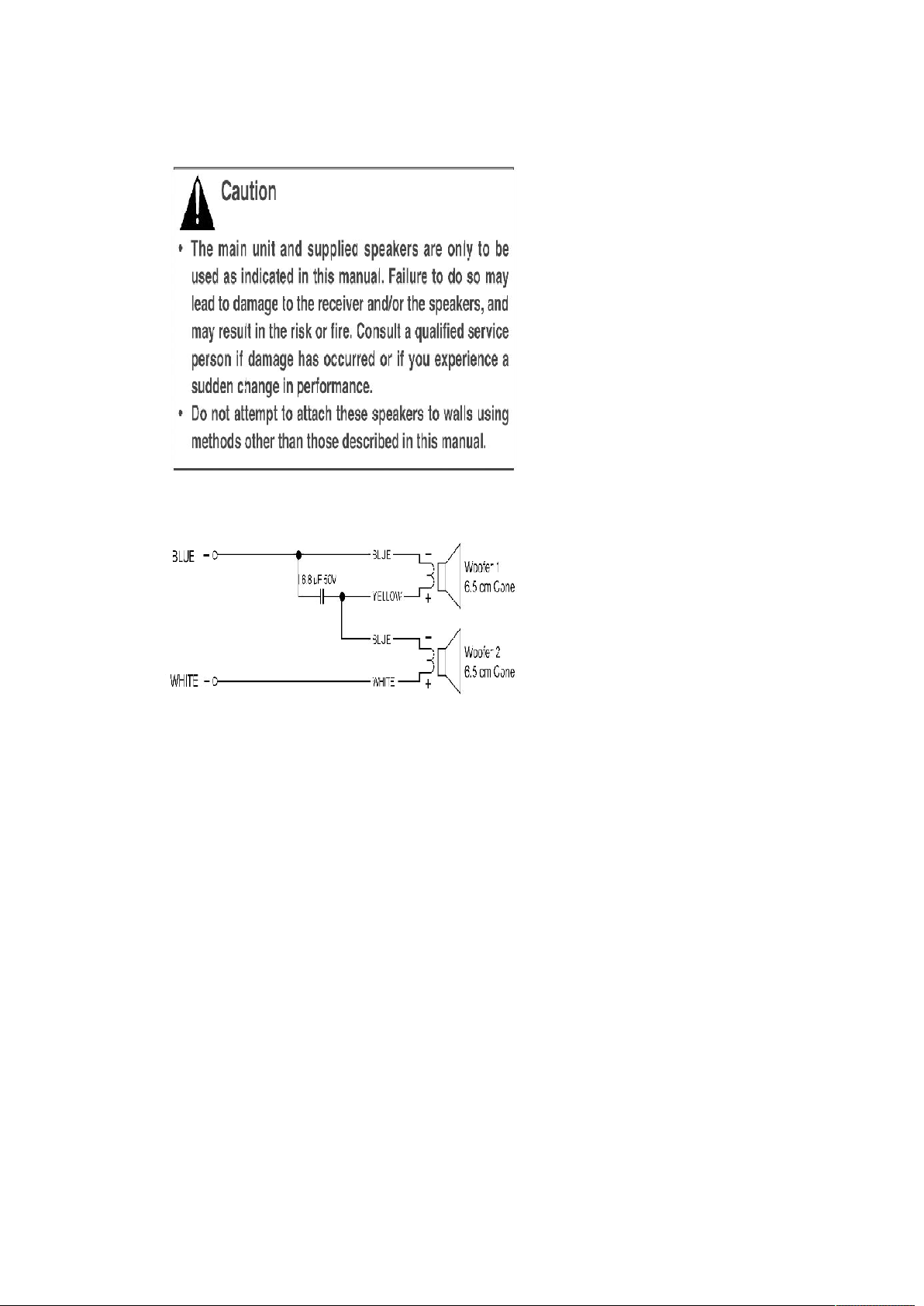

3. Connection of Wiring Diagram

4. Exploded view

4.1. Cabinet Parts Location
