Panasonic NR-A4U2 Specification sheet
Peltier Minibar
Operating and Installation Instructions
Model No. NR-A4U2 / AL4U2
NR-AK4U2/AKL4U2
NR-A6U2 / AL6U2
NR-AK6U2/AKL6U2
This technical information is provided for experienced technicians only and is not designed for use by the general public.
It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a
product. Products powered with electricity should be serviced or repaired only by experienced professional technicians.
Any attempt to service or repair the product described herein by anyone else could result in serious injury.
WARNING
NR-A6U2NR-A4U2
AK - K03391
SAFETY PRECAUTIONS
INSTALLATION
OPERATION
MAINTENANCE
BEFORE CALLING FOR SERVICE
OBTAINING SERVICE
LIMITED WARRANTY
SPECIFICATIONS
— 2 —
TABLE OF CONTENTS
SAFETY PRECAUTIONS
This appliance does not contain a compressor and once plugged securely into an active,
120 V, 60 Hz, grounded power outlet, it will begin the cooling process instantly without
producing a noise.
Make sure there is a sufficient and unobstructed air flow for ventilating purposes.
See INSTALLATION guideline on page 3.
This appliance should not be used as a freezer nor should it be used for storing products
that require temperatures lower than 40˚F (milk, ice cream, dairy products, raw meat, and
some medications).
Keep flammable materials, liquids or solids, away from this appliance.
Avoid placing articles on top of this appliance and do not apply excessive force to the door.
All repairs of this appliance must be performed by qualified personnel only.
Any unauthorized modification to this appliance will void the warranty and may cause
malfunction and/or injury.
Handle electrical cord with caution and disconnect power before replacing a light bulb.
Use this appliance in accordance with all applicable codes and regulations.
The use of an extension cord is not suggested. Extension cords are available and may be
used if care is exercised in their use. If an extension cord is used:
1) The marked electrical rating of the extension cord should be at least as great as the
electrical rating of the appliance;
2) The extension cord must be a grounding-type 3-wire cord; and
3) The longer cord should be arranged so that it will not drape over counter tops, tabletops,
etc., where it can be pulled on by children or tripped over unintentionally.
"Warning " or "Danger"
: Risk of child entrapment.Before you throw away your old refrigerator or freezer:
Take off the doors.
Leave the shelves in place so that children may not easily climb inside.
2
3
5
5
6
7
7
7
— 3 —
INSTALLATION

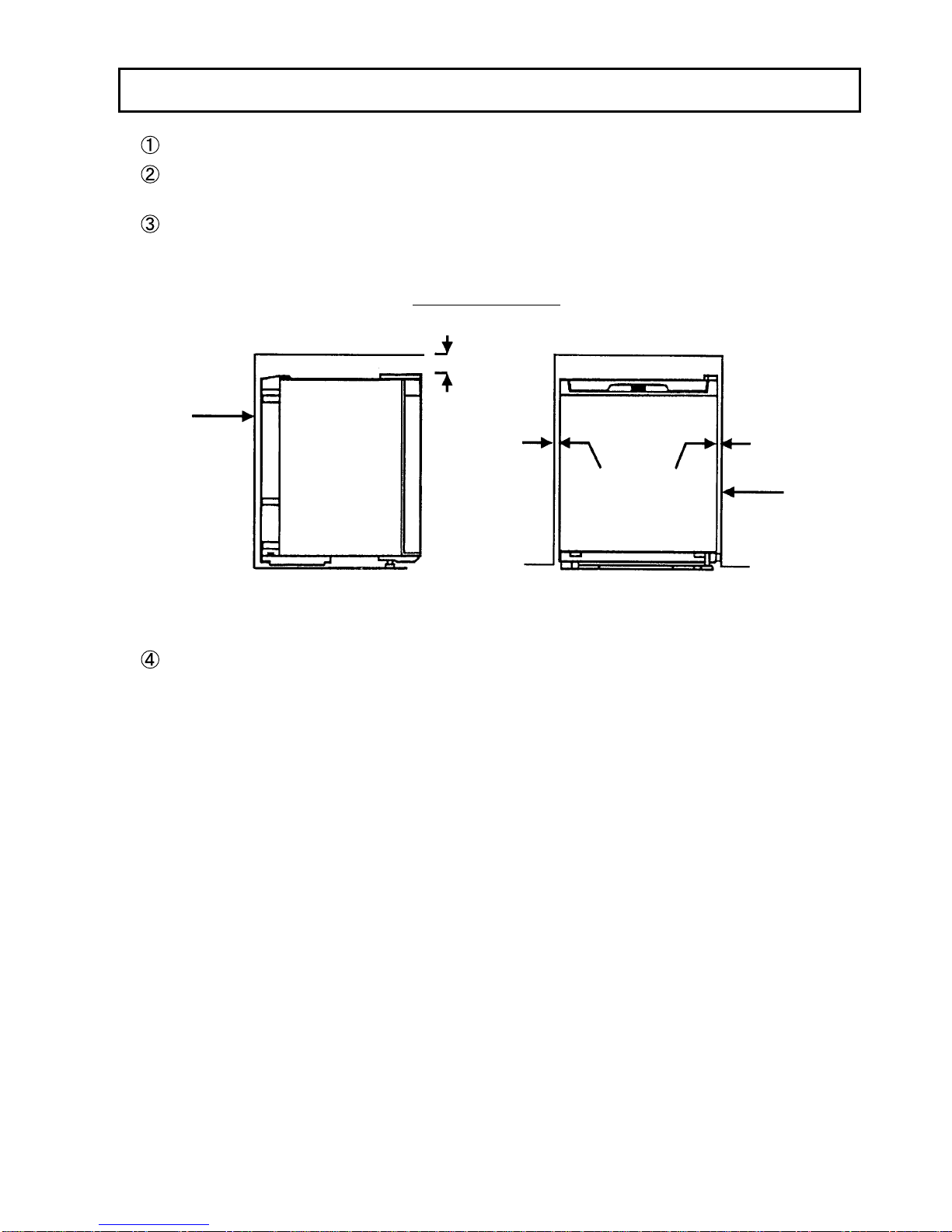

Fitting the door slide (In case of Fig. 1, Fig. 2 on page 3).
(This is an example of a door opening to the right. For openings to the left, follow
instructions asymmetrically.)
Free Standing
Flush
4″ Min.
Closest
Surface
1/4″Min.
Fig. 1 Fig. 2

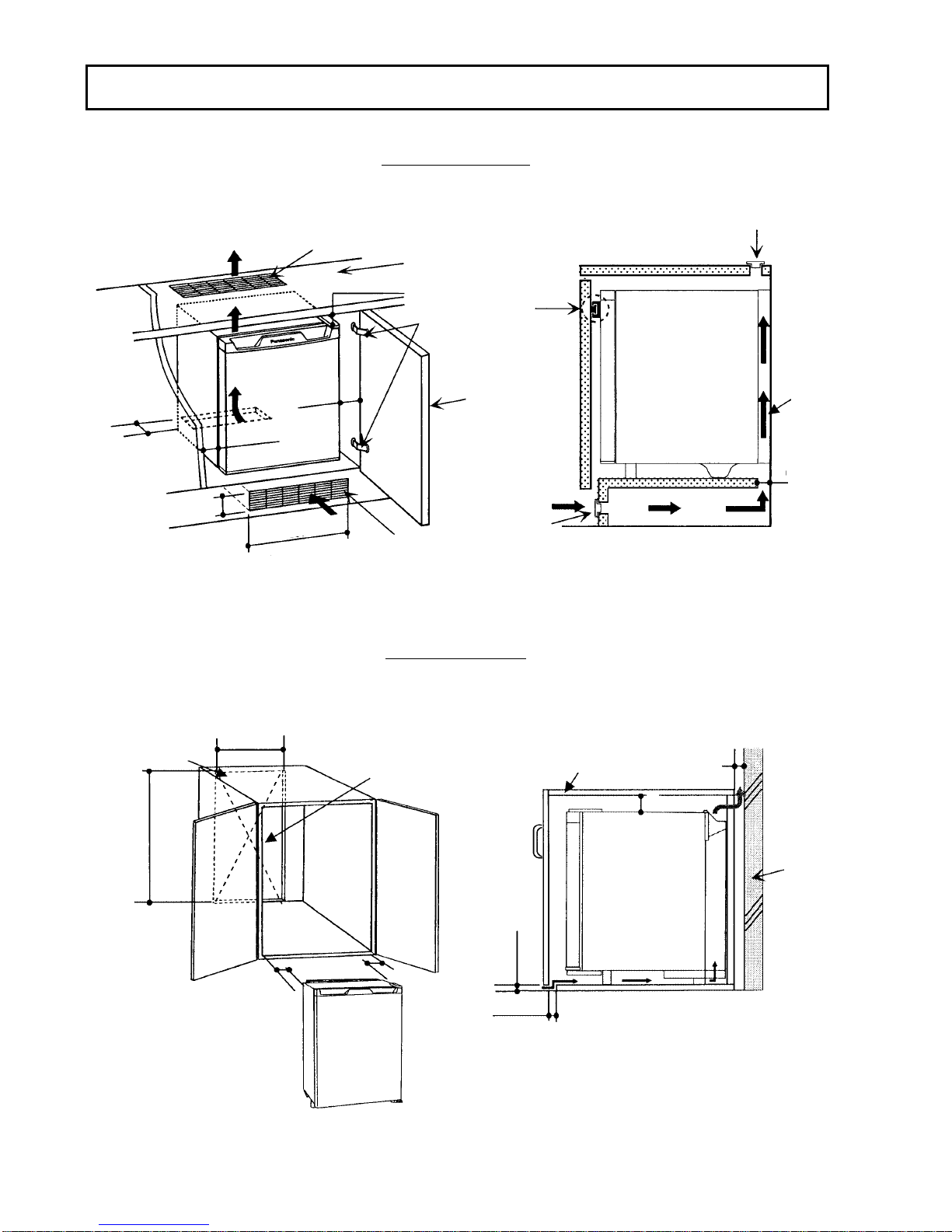

This appliance may be installed either "free-standing" or "in-cabinet".
To ensure optimum performance and sufficient air flow, make sure that all
clearances shown in figures below are strictly adhered to.
Do not install this appliance in a high humidity environment, direct sun, or in close
proximity to heat sources.
INSTALLATION (CONT.)
Fig. 3 Fig. 4
In Cabinet (1)
Furniture-1
Air exhaust
Air exhaust
Air flow
Furniture
surface
Furniture
Furniture door
Slide
connector
(optional)
Air intake Air intake
Hinge
more than 1″
Min.
1
″
Min. 1″
Minibar
In Cabinet (2)
Furniture-2
Fig. 5 Fig. 6
Minibar
Minibar
Furniture Furniture
Opening for exhaust Air
Wall
Min. 18″
Min. 22″
Min. 1″
Min. 1″
Min. 1″
Min. 1″
Min. 3″
11/2″
2″
14″
11/2″
4″
— 4 —
— 5 —
OPERATION
MAINTENANCE
1. Once plugged into an active power outlet, this appliance will begin to operate.
2. The temperature is controlled and maintained automatically.
1. Unplug AC cord.
2. Remove the lens (located in the upper right hand corner in the cavity).
3. Remove the lens and replace the light bulb (locally available).
4. Re-attach the lens and plug AC cord into power outlet.
Light bulb replacement
1. Wire and door shelves are removable and should be cleaned periodically.
2. Door gasket and the cavity should be kept clean and free of food particles.
3. Use only warm water and mild liquid detergent (dishwasher type) to clean this
appliance.
4. Make sure all washed surfaces are wiped dry.
5. Check the filter occasionally and if clogged with dust, clean it with vacuum
cleaner or wash it with water.
(Dust clogged filter will result in insufficient cooling performance.)
1. Internal fan will continue to operate as long as the appliance is plugged into power
outlet and regardless of whether the door is open or not.
2. Do not use any of the following agents for cleaning this appliance: strong, alkaline,
abrasive, or powder detergents, scrubbers, alcohol or petroleum based chemicals.
Cleaning
(1) Unplug AC cord.

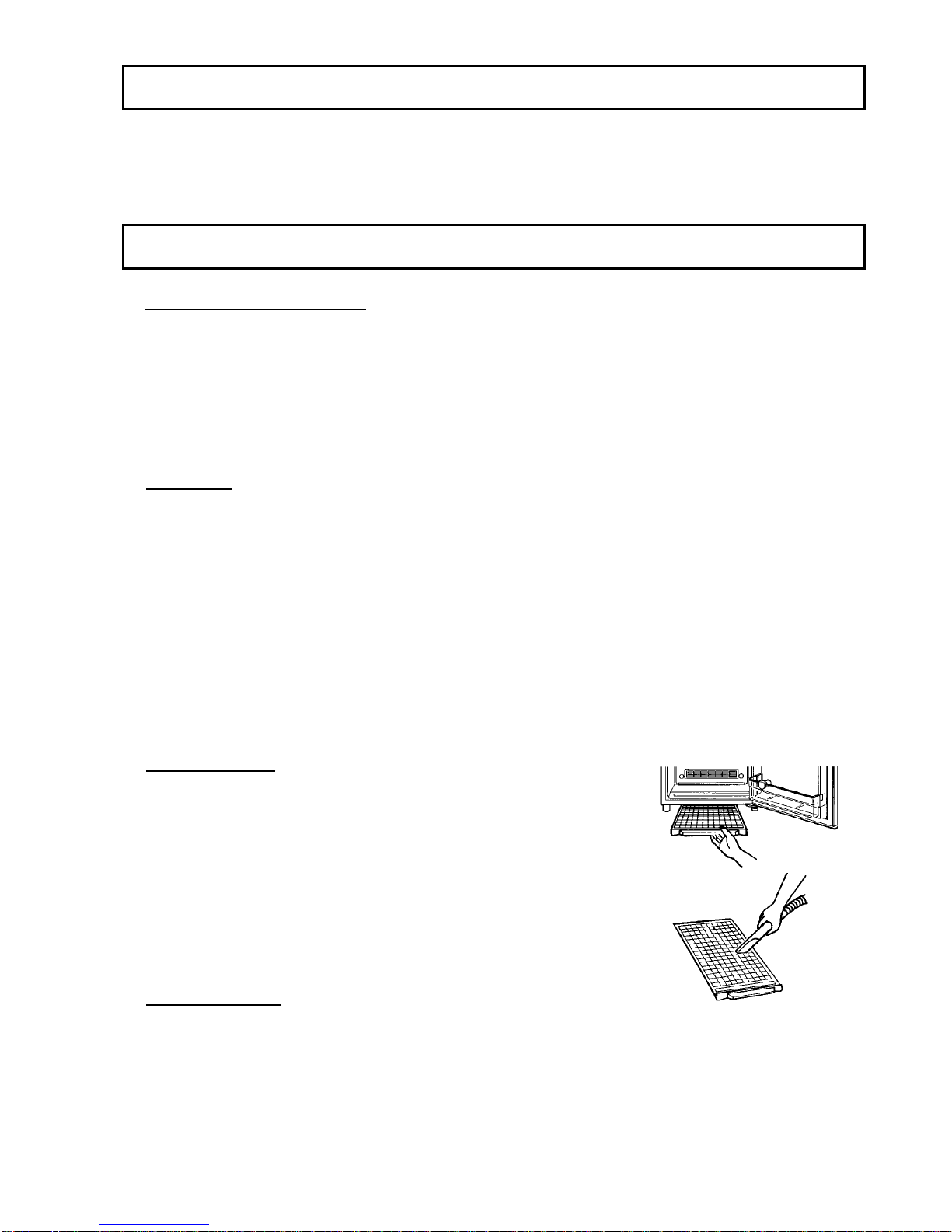

(2) Remove filter as shown.
(3) Clean dust with vacuum cleaner or wash filter
with neutral detergent.
(4) After cleaning, re-install filter.
(Make sure the stamped word "FACE" is upward.)
To clean filter
General notes
— 6 —
NOTE:The following ARE NOT considered a malfunction:
1. Low level humming sound produced by circulating pump.This low level sound may
vary depending on ambient temperature and pump's duty cycle.
2. Dew formation on the outer cabinet.
BEFORE CALLING FOR SERVICE
Symptom Check Points
Appliance does not operate (no fan, no
light, no cooling action)
Cooling performance unsatisfactory
Make sure that AC cord is not damaged
and is plugged into an active power outlet.
Excessive amount of food in the cavity
Hot or warm food in the cavity
Restricted air flow (poor ventilation)
Direct sun light or other sources of heat
Door being open too frequently
Dew formation Door not closed completely
Hot items in the cavity
Door being open too frequently
Noisy operation Positioned on uneven surface, wobbling
— 7 —
SPECIFICATIONS
OBTAINING SERVICE
NR-A6U2, NR-AL6U2
NR-AK6U2, NR-AKL6U2
Capacity
Weight
Width
Depth
Height
Power source
NR-A4U2, NR-AL4U2
NR-AK4U2, NR-AKL4U2
1.4 cu. Ft. ( 40 l )
26.4 lbs. ( 12 kg )
18 1/8 in. ( 460 mm )
18 1/2 in. ( 470 mm )
21 3/4 in. ( 550 mm )
120 VAC/60 Hz
1.9 cu. Ft. ( 54 l )
35.2 lbs. ( 16 kg )
18 1/8 in. ( 460 mm )
18 1/2 in. ( 470 mm )
28 3/4 in. ( 730 mm )
120 VAC/60 Hz
To locate nearest servicer please:
a) Refer to the enclosed list of Panasonic Factory Service Centers.
b) Visit our web at: www.panasonic.com
c) Call toll-free: 1-800-211-PANA
d) Contact Panasonic at the address overleaf.
LIMITED WARRANTY
This appliance is guaranteed for period of one (1) year from the date of original
purchase.
For specific terms and conditions of this limited warranty, please refer to the enclosed
Warranty Card.
Panasonic
Panasonic Consumer Electronics Company
Hospitality Enterprise Sales Group
One Panasonic Way. Panazip 4A-4, Secaucus, NJ 07094
www.panasonic.com
AK - K03391
