Panasonic NR-A191GW User manual

Order Number MRT0508021C3

Refrigerator

NR-A191G, NR-A191GW,

NR-A191GS,

NR-A221G, NR-A221D,

NR-A221DS, NR-A251D

Product Color

White (W), Pretty Gray (H), Silver (S),

Destination

Malaysia, Kuwait, Saudi Arabia, UAE, Oman, Qatar,

Bahrain, etc.

is a violation of law.

NR-A191G, NR-A191GW, NR-A191GS, NR-A221G, NR-A221D, NR-A221DS, NR-A251D

1 Specification

1.1. NR-A191G, NR-A191GW, NR-A191GS

Model NR-A191G NR-A191GW NR-A191GS

Plug C2P S3P C2P S3P S3D

Power Source AC 220V - 240V, 50Hz AC 220V, 50 / 60Hz

Specification

Capacity (L) 159

Outside dimention (mm.) Width x Depth x Height

572 x 570 x 1,144

Net weight (kg.) 28

Type Fresh food refrigerator

Temperature control Thermostat

Defrosting Push button off cycle (semi-automatic)

Defrost water disposal Auto forcibly evapored into the air

Exterior finish (cabinet / door) Acrylic enamel baked finish / PCM color

Inner liner Vacuum formed ABS resin

Insulation Polyurethane foam (cabinet and door) HCFC-141b used

Sealed Unit

Compressor SD35C65GAW5 SB35C80GAX0

(Winding resisitance at 20 °C) Main : 24.4 Ω, Aux : 39.8 ΩMain : 18.1 Ω, Aux: 35.1 Ω

Evaporator Roll-bonded aluminum sheet type

Condenser Wrapper type (concealed condenser)

Refrigerant charge HFC-134a, 90 ± 5g

Oil charge 195ml (freol α-22)

Electric Parts

Thermostat MM1-8632F / 250V / 3A

Door switch MM7-331(F),

250V / 0.5A D3D-121, 250V / 0.5A

Lamp Socket E12, 250V /

1A E14 / 22, 250V / 0.5A

Lamp bulb E12 / 15, 240V

/ 15W E14 / 22, 240V / 10W

PTC relay PTH7M330MC1

Motor protector 5TM181NHBYY 5TM189NHBYY

* Specification subjects to change without notice

NR-A191G, NR-A191GW, NR-A191GS, NR-A221G, NR-A221D, NR-A221DS, NR-A251D

1.2. NR-A221G, NR-A221D, NR-A221DS

Model NR-A221G NR-A221D NR-A221DS

Plug C2P S3P C2P S3P S3D

Power Source AC 220V - 240V, 50Hz AC 220V, 50 / 60Hz

Specification

Capacity (L) 175

Outside dimention (mm.) Width x Depth x Height

572 x 570 x 1,214

Net weight (kg.) 29 30

Water tank capacity (L) 2.5

Type Fresh food refrigerator

Temperature control Thermostat

Defrosting Push button off cycle (semi-automatic)

Defrost water disposal Auto forcibly evapored into the air

Exterior finish (cabinet / door) Acrylic enamel baked finish / PCM color

Inner liner Vacuum formed ABS resin

Insulation Polyurethane foam (cabinet and door) HCFC-141b used

Sealed Unit

Compressor SD35C65GAW5 SB35C80GAX0

(Winding resisitance at 20 °C) Main : 24.4 Ω, Aux : 39.8 ΩMain : 18.1 Ω, Aux: 35.1 Ω

Evaporator Roll-bonded aluminum sheet type

Condenser Wrapper type (concealed condenser)

Refrigerant charge HFC-134a, 90 ± 5g

Oil charge 195ml (freol α-22)

Electric Parts

Thermostat MM1-8632F / 250V / 3A

Door switch MM7-331(F),

250V / 0.15A D3D-121, 250V / 0.5A

Lamp Socket E12, 250V /

1A E14 / 22, 240V / 10W

Lamp bulb E12 /15,240V

/ 15W E14 / 22, 240V / 10W

PTC relay PTH7M330MC1

Motor protector 5TM181NHBYY 5TM189NHBYY

* Specification subjects to change without notice

NR-A191G, NR-A191GW, NR-A191GS, NR-A221G, NR-A221D, NR-A221DS, NR-A251D

1.3. NR-A251D

Model NR-A251D

Plug C2P S3P

Power Source AC 220V - 240V, 50Hz

Specification

Capacity (L) 207

Outside dimention (mm.) Width x Depth x Height

572 x 570 x 1,368

Net weight (kg.) 34

Water tank capacity (L) 2.5

Type Fresh food refrigerator

Temperature control Thermostat

Defrosting Push button off cycle (semi-automatic)

Defrost water disposal Auto forcibly evapored into the air

Exterior finish (cabinet / door) Acrylic enamel baked finish / PCM color

Inner liner Vacuum formed ABS resin

Insulation Polyurethane foam (cabinet and door) HCFC-141b used

Sealed Unit

Compressor SD43C90RAY5

(Winding resisitance at 20 °C) Main : 18.92 Ω, Aux : 31.4 Ω

Evaporator Roll-bonded aluminum sheet type

Condenser Wrapper type (concealed condenser)

Refrigerant charge HFC-134a, 90 ± 5g

Oil charge 195ml (freol α-22)

Electric Parts

Thermostat MM1-8632F / 250V / 3A

Door switch MM7-331(F), 250V / 0.5A D3D-121, 250V / 0.5A

Lamp Socket E12, 250V / 1A E14 / 22, 250V / 0.5A

Lamp bulb E12 / 15, 240V / 15W E14 / 22, 250V / 0.5A

PTC relay PTH7M330MC1

Motor protector 5TM181NHBYY-53

* Specification subjects to change without notice

NR-A191G, NR-A191GW, NR-A191GS, NR-A221G, NR-A221D, NR-A221DS, NR-A251D

2 Electric circuit

2.1. NR-A191G, NR-A221G and NR-A251D (Non - Regulation Control)

WIRING DIAGRAM

WIRING CONNECTION

NR-A191G, NR-A191GW, NR-A191GS, NR-A221G, NR-A221D, NR-A221DS, NR-A251D

2.2. NR-A191G, NR-A191GW, NR-A221G, NR-A221D and NR-A251D

(IEC - Regulation Control)

WIRING DIAGRAM

WIRING CONNECTION

NR-A191G, NR-A191GW, NR-A191GS, NR-A221G, NR-A221D, NR-A221DS, NR-A251D

2.3. NR-A191GS and NR-A221DS (Saudi Arabia - Regulation Control)

WIRING DIAGRAM

WIRING CONNECTION

NR-A191G, NR-A191GW, NR-A191GS, NR-A221G, NR-A221D, NR-A221DS, NR-A251D

3 Disassembly Instruction for Water Dispenser

4 Disassembly Instruction for Evaporator

OWater dispenser disassembly

- Remove the water dispenser case.

(unlock the water dispenser case at bottom side by

the minus screwdriver) Fig. 1

- Push the water dispenser upward to remove.

- Remove the pin locate at the lever water dispenser.

Fig. 2 Fig. 1 Fig. 2

- Remove the screws of main pipe (2 Pcs) Fig. 3

To replace the water dispenser

- Be sure to set the water dispenser lever should be

locate in place.

- Be carefully the lib of water dispenser case and

water dispenser escutcheon are broken. Fig. 3

OEvaporator disassembly

- Remove the evapoator door

- Remove the screw of evapoator cover (2 Pcs) Fig. 4

(only model NR-A221D, NR-A221DS and NR-A251D)

- Remove the screw of evapoator trim (4 Pcs) Fig. 5

- Unlock between evaporator and trim, then pull the

trim toward you to remove carefully. Fig. 4 Fig. 5

- Replace the damage parts in the thermostat case,

the parts assembly evaporator portion as;

1. Evaporator 5. Thermostat Dial

2. Evaporator Trim 6. Defrost Button

3. Door Switch 7. Lamp

4. Thermostat 8. Lamp Socket Regulation Control Non-Regulation Control

To replace the evaporator Fig. 6 Fig. 7

- Be sure to set above parts should be locate in place.

- Be carefully the lib of evaporator trim for lock with evaporator are broken.

NR-A191G, NR-A191GW, NR-A191GS, NR-A221G, NR-A221D, NR-A221DS, NR-A251D

5 Identification

5.1. NR-A191G

Non - Regulation Control

IEC - Regulation Control

5.2. NR-A191GW

IEC - Regulation Control

NR-A191G, NR-A191GW, NR-A191GS, NR-A221G, NR-A221D, NR-A221DS, NR-A251D

5.3. NR-A191GS

Saudi Arabia - Regulation Control

5.4. NR-A221G

Non - Regulation Control

IEC - Regulation Control

This manual suits for next models

Table of contents

Other Panasonic Refrigerator manuals

Panasonic

Panasonic NR-BV360AS User manual

Panasonic

Panasonic NR-BD31ES1 User manual

Panasonic

Panasonic NR-D535XC User manual

Panasonic

Panasonic NR-BX46CWKAU User manual

Panasonic

Panasonic NR-BT223 SERIES User manual

Panasonic

Panasonic NR-BL302 User manual

Panasonic

Panasonic NR-B30FW1 User manual

Panasonic

Panasonic NR-D513X User manual

Panasonic

Panasonic NR-B181W User manual

Panasonic

Panasonic NR-BN31AS1 User manual

Panasonic

Panasonic NR-F510GT User manual

Panasonic

Panasonic NR-B570MW User manual

Panasonic

Panasonic NR-F657WX-X3 User manual

Panasonic

Panasonic INVERTER NR-BX471W User manual

Panasonic

Panasonic NR-E411GH-N3 User manual

Panasonic

Panasonic NR-BW414MN User manual

Panasonic

Panasonic NR-F610GT-N3 User manual

Panasonic

Panasonic NR-BC52MSSA User manual

Panasonic

Panasonic NR-B55VE1 User manual

Panasonic

Panasonic NR-BV360Q User manual

Panasonic

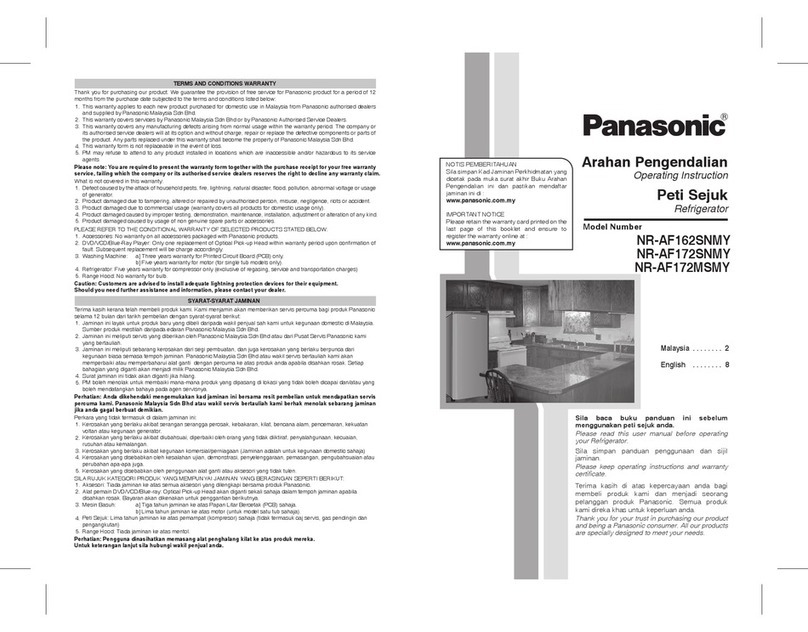

Panasonic NR-AF162SNMY User manual
