Panasonic A Series User manual

NR-BV288

NR-BV328

NR-BV368

Order No.PAPVN160520CE

Product Color

Destination

Singapore, Malaysia,

Philippines,

Indonesia

A SERIES X SERIES

Unauthorized copying and distribution is a violation of law.

Stainless color

Page

1. Safety caution for repairing 3

1.1 Warning

1.2 Caution

2. Specification and components 4

3. Schematic diagram 5

4. Performance data 6

5. Troubleshooting guide 7

6. Disassembly instruction 8-13

7. Parts exploded view and replacement parts list. 14-18

7.1 Parts exploded view: Body

7.2 Parts exploded view: Machine room & Door

7.3 Packing view

7.4 Replacement part list & packing list

CONTENT

1. SAFETY CAUTION FOR REPAIRING

When you repair the refrigerator, please kindly take care for the following cautions

1.1 arning

Before repairing unit, unplug supply cord

•

Before you repair the refrigerator, please unplug the supply cord

Use authentic parts when replacing

•

When you replace the parts, please use authentic parts to replace defecti e parts.

Caution during brazing

•

When you use touch for brazing, please ensure entilation.

Otherwise, you will be poisoned by carbon monoxide.

Pay attention to using refrigerant

•

If refrigerant touches fire, the gas becomes poisonous gas.

Pay attention to getting electricity shock

•

When you check the oltage of terminal, please do not touch the electricity part terminal.

•

When you replace the parts, please wait for 3 minutes at least for discharging capacitor.

Check safety after repairing

•

Check the screws, parts, lead wires to take in place.

•

Check the repairing portion whether circumferential parts are damaged or not.

•

Check insulation resistance between supply plug and earth.

•

When install refrigerator, check condition of supply cord and plug.

•

Wipe off the dust on plug.

•

Cutting and seal the electric de ice carefully.

1.2 Caution

atch the hot parts

•

During operation and after operation, compressor and pipes are hot.

•

Also, under these condition, heater are hot.

•

Do not burn your fingers when you touch it.

Pay attention to refrigerant

•

Do not touch liquid refrigerant. Otherwise your hands may be burnt.

Pay attention to edge of parts

•

Otherwise, your fingers may be cut.

Pay attention to fins of evaporator and condenser

•

Otherwise, your fingers may be cut.

Before transportation, adjust the bolt

•

Otherwise, the floor may be damaged.

Do not touch the pipe after brazing

•

Otherwise, your hands may be burnt.

NR-BV288 NR-BV328 NR-BV368

S3P (for Singapore) A2P (for Philippine) S3P (for Malaysia)

Total Volume 255 290 322

FC 85 85 85

PC 170 205 237

Internal Dimension FC 465 x 380 x 506.5 465 x 380 x 506.5 465 x 380 x 506.5

[ W x D x H ] (mm) PC 500 x 500 x 740 500 x 500 x 880 500 x 500 x 1020

Temperature FC

Control PC

Type

Rating

54 57 60

Type

Charging Amt.

Type

Charging Amt.

Door Switch Type

Rating

Fan Motor Type

Rating

Type

Rating

Type

Rating

Type

Rating

Type

Rating

Type

Rating

Type

Rating

Type

Rating

LED Lamp PCB / 12V, 60 mA

Motor protector

Light Irradiantion Device (PC)

MM3-20DCW, Open temp. :105±5°C

Close temp. : 61±8°C, Trip current : 2.0A

250V / 10A / 73°C

Defrost Thermal Fuse Micro Temp.

Color Model

System Spec.

HFC-134a

120 ± 5g

MM6-4400

(4) Power on 4h (Rated time)

Cyclo-Pentane / Cabinet and door

Vacuum formed HI-PS or ABS/ Cabinet and door

(1) Ambient temp. over 33°C, 8.5h

(2) Ambient temp. 25°C ~ 33°C, 8.5h

(3) Ambient temp. under 16°C, 13h

220V / 150W/ 323Ω±5%

Fin tube eva

Single wall steel tube (Zinc coat)

Inverter

PS= VCM

Model

Destination

Code Attached Model

Power Source

Plug

Singapore, Philippine, Malaysia, Indonesia

SG, PH, MY

220 ~ 240V

Material Spec.

Defrosting Control Defrost Cycle

Radiant Heater

Net capacity (L)

(TCVN 7829)

External Dimension (mm)

Installation Space

Compressor

(601 x 656 x 1505)

Side : 50 mm min. / Back : 100 mm min. / Top : 300 mm min.

Inner Liner

Insulation

Net Weight (Kg)

Evaporator

Condenser EEI57C13DFH-C0ECS

PAS-CONTROL PCB (INV)

Compressor winding resistance (at 20°C) 8.10Ω

Compressor Motor

PC Sensor (PCC)

Defrost Sensor (DFC)

DC9 / 0.1A / 0.9W / 1920 rpm

Brushless D.C.Motor

NTC

71W at 27rps/ 185W at 52rps

FC Sensor (FCC) NTC

B=3850K / -20/0°C, R-20=18.9KΏ ± 1.8 %

B=3808K / -20/0°C, Rₒ=6.409KΏ ± 1 %

NTC

B=3819K ± 2%, R10=3.899KΏ ± 3%

Ambient Temp. Sensor

(ATC)

Lubricating Oil

Refrigerant

α -10

215 ± 5 cm³

S.P. - S.T. / D3D - 121

250V / 0.5A

NTC

11338JE09KBA, Φ110 PROP FAN (BOX TYPE)

B = 3435K ± 1%, R25 = 10.0KΏ ± 3%

PF SENSOR(PFC) B=3808K / -20/0°C, Rₒ=6.409KΏ ± 1 %

NTC

Specification

Main parts for cooling system

Electric devices and parts

(601 x 656 x 1645)(601 x 656 x 1785)

XS SERIES (X SERIES)

QS SERIES (A SERIES)

①

Cooling performance at ambient temperature 32°C ± 1°C

Control setting FC/ PC/PF MIN MED

(ECO-OFF) MED

(ECO-ON) MAX

Mean fresh food compartment (°C) 6.0±2.5 3.5±2.5 4.0±2.5 1.0±2.5

Mean freezer compartment (°C) -15.0±2.5 -20.0±2.5 -20.0±2.5 -22.0±2.5

Vegetable case (°C) - 3.0±2.5 - -

PC door shelf top (°C) - 4.5±2.5 - -

Tray egg (°C) - - - -

PC door shelf bottom (°C) - 3.0±2.5 - -

PF case (°C) - -3.0±1.5 - -

Running ratio % 60±15 60±15 60±15 75±15

①Cooling performance at ambient temperature 32°C ± 1°C

Control setting FC/ PC/PF MIN MED

(ECO-OFF) MED

(ECO-ON) MAX

Mean fresh food compartment (°C) 5.0±2.5 3.5±2.5 3.5±2.5 1.0±2.5

Mean freezer compartment (°C) -15.0±2.5 -20.0±2.5 -20.0±2.5 -22.0±2.5

Vegetable case (°C) - 3.5±2.5 - -

PC door shelf top (°C) - 3.0±2.5 - -

Tray egg (°C) - 5.5±2.5 - -

PC door shelf bottom (°C) - 3.0±2.5 - -

PF case (°C) - -3.0±2.5 - -

Running ratio % 60±15 65±15 60±15 75±15

①

Cooling performance at ambient temperature 32°C ± 1°C

Control setting FC/ PC/PF MIN MED

(ECO-OFF)

MED

(ECO-ON)

MAX

Mean fresh food compartment (°C) 5.0±2.5 3.5±2.5 4.0±2.5 1.0±2.5

Mean freezer compartment (°C) -15.0±2.5 -20.0±2.5 -20.0±2.5 -22.0±2.5

Vegetable case (°C) - 3.5±2.5 - -

PC door shelf top (°C) - 3.0±2.5 - -

Tray egg (°C) - 4.5±2.5 - -

PC door shelf bottom (°C) - 3.5±2.5 - -

PF case (°C) - -3.0±2.5 - -

Running ratio % 60±15 65±15 60±15 75±15

4.1 NR- BV288

4.2 NR- BV328

4.3 NR- BV368

Cause: Not cool or insufficent cooling

5. TROUBLESHOOTING GUIDE

Does the compressor

operating? Check the start control circuit

Yes

Replace the defect of electric

parts (Control circuit, Motor

protector)

YES

Check resistance of the

motor compressor by

ohmmeter

Compressor's rotor lock

Check oil color of the

compressor

(Clean the pipe)

Replace the compressor

Rip/burn coil

Does the fan motor

operating?

Check the fan motor circuit,

the door switch

Check frost on the

evaporator Clog caused by moisture

Occasionally frosting

Check the resistance of Sensor

defrost, Temp. Fuse, Defrost

heater

Replace the faulty electric

parts.

Frosting too much

Does any oil leak out?

No frosting or

frosting at the inlet only

Cut cap tube out of the dryer

side then check gas smell

Có

Cannot repair

Plug out to stop the

compressor and check gas

spout out by cutting cap

tube around 5mm from

dryer

Defect compressorGas spout out at both side

Gas spout out at dryer side

only

Gas spout out at evaporator

side only

Clogged caused by solid

substance

(near outlet of dryer)

Clogged caused by solid

substance

(near inlet of evaporator)

Yes

No good

Yes

Good

Gas leakage

Bad smell

No smell

Yes

Check oil color of the

compressor

(Clean the pipe)

Replace the compressor.

khí.Kiểm tra dầu máy nén=>

làm sạch ống => thay thếMáy

nén khí.

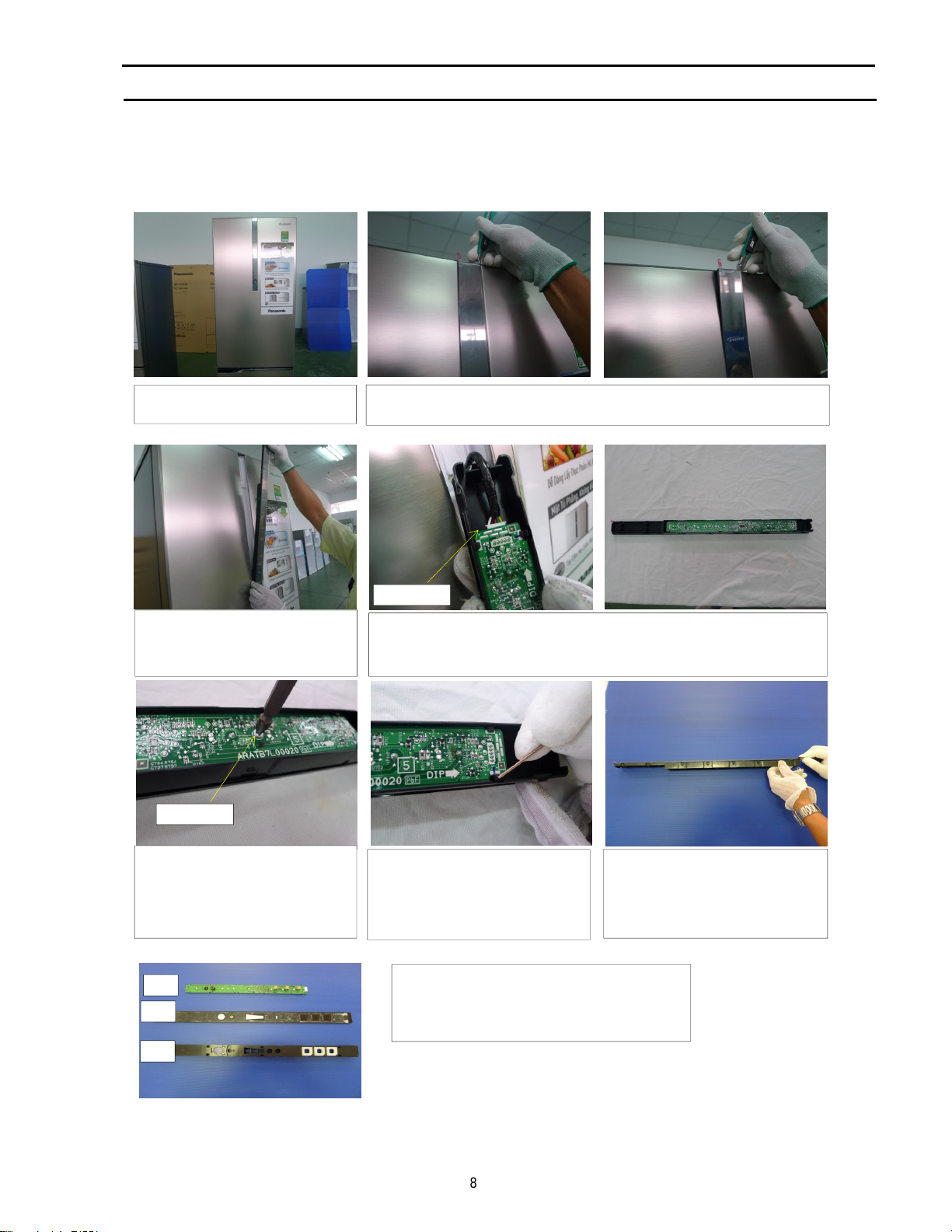

6.1. Disassemble DOOR CONTROL AS.- X series

①DOOR CONTROL AS. on ②Use small knife, take out from the upper right side of DOOR

CONTROL AS.

④Take out 1 connector then disassemble DOOR CONTROL AS.

③Take the hook along on

DOOR CONTROL AS. by

shaking well on both sides.

⑤Take out 1 screw on circuit

board

⑥Push on the open hook and

keep the circuit to take PAS-

OPERATION PCB(DOOR) out

Connector

screw

⑦Use small knife to separate

HOLDER BOARD and

ESCUTCHEON

1. PAS-OPERATION PCB(DOOR)

2. ESCUTCHEON CONTROL

3. HOLDER BOARD

6. DISASSEMBLY INSTRUCTION

6.2 Disassemble PC DOOR

6.3 Disassemble LED light

6.4 Disassemble COVER DUCT PC AS.

①

COVER HINGE TOP

hook

②Use flat head rod to pull

COVER HINGE TOP

out

③

Disassemble connector

④Remove 3 screws, take out

the HINGE TOP and then

disassemble the PC DOOR

screw

Notice: Apply grease to the areas

of circles of hinge center

①Use flat head rod to loosen

at 3 hook position to take

COVER LED out

②Undo connector and remove

PAS-

LED PCB at the position of

hook

3 hook

Connector

hook

①Position of COVER DUCT

PC AS.

screw cover

②

Use flat head rod to open

screw cover

③Take out 3 screw then

remove COVER DUCT PC AS.

Notice in operation:

6.5 Disassemble BARRIER PF AS.

6.6 Disassemble COVER DUMPER PC AS.

front side back side Air

guide installation

SEAL DUCT

SEAL DUCT layer on the back side of COVER DUCT PC As. has 1 sticky side. Avoid

deforming SEAL DUCT in operation. Air guide installation will be stucked if SEAL DUCT is

①Take out all the upper and

bottom tray of BARRIER PF

AS.

②Take out 4 screw above and

at the bottom as in the picture.

③Pull out BARRIER PF AS by

two hands at once as show in the

fingure. .

screw position

BARRIER PF AS. front side and back side

①Position of COVER

DUMPER PC AS.

screw position

②

Remove 2 screws

③Undo 2 connectors of

SENSOR PFC and PCC then

take COVER DUMPER PC AS.

This manual suits for next models

Table of contents

Other Panasonic Refrigerator manuals

Panasonic

Panasonic NR-C290GH-W3 User manual

Panasonic

Panasonic EverVolt Standard EVAC-105-4 Supplement

Panasonic

Panasonic NR-BS63VS User manual

Panasonic

Panasonic NR-BL302 User manual

Panasonic

Panasonic NR-BY602 User manual

Panasonic

Panasonic NR-BC752VSAE User manual

Panasonic

Panasonic NR-521XZ User manual

Panasonic

Panasonic ECONAVI NR-CY55CGKAU User manual

Panasonic

Panasonic NR-F654GT-X6 User manual

Panasonic

Panasonic NR-BY55BP User manual

Panasonic

Panasonic ECONAVI NR-BZ600 User manual

Panasonic

Panasonic NR-B32SX1 User manual

Panasonic

Panasonic NRC387BI User manual

Panasonic

Panasonic NR-YW590Y User manual

Panasonic

Panasonic NR-BC532VSAE User manual

Panasonic

Panasonic SRR-K1281-ME User manual

Panasonic

Panasonic NR-BN30PGW User manual

Panasonic

Panasonic NR-D700D User manual

Panasonic

Panasonic NR-BN34AX2 User manual

Panasonic

Panasonic NR-B53V2 User manual

Panasonic

Panasonic NR-B420M User manual

Panasonic

Panasonic inverter NR-CW530X User manual

Panasonic

Panasonic NR-BG341 User manual

Panasonic

Panasonic NR-A4U2 Specification sheet

Popular Refrigerator manuals by other brands

Bonnet Neve

Bonnet Neve SKYVIEW PLUS User instructions

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Instruction book

Sharp

Sharp SJ-BA31IEXW2-EU user manual

CORBERO

CORBERO CC2300MCW Instruction booklet

KitchenAid

KitchenAid 2205264 Use and care guide

Stengel

Stengel KU 1101 A++ user manual

NEFF

NEFF KI181 Series user manual

Hoshizaki

Hoshizaki Reach-In instruction manual

Amana

Amana ASD2524VES00 User instructions

BOMANN

BOMANN KGC 213 instruction manual

Danby

Danby DAR044A1SLDD Owner's use and care guide

Samsung

Samsung RF323TE user manual

Beko

Beko CSA31022 Instructions for use

IKEA

IKEA FROSTIG C 185 E manual

Electrolux

Electrolux ER 6821 D Instruction book

True

True TS-28 Specifications

Frigidaire

Frigidaire FSC23R5DW9 installation guide

Beko

Beko LSP4579W Instructions for use
