Panasonic TY-ST58-K User manual

1 Installation procedure 2

1.1. Precaution with regard to setting up 2

1.2. Assembling the pedestal / Setting up 3

1.3. Stopping the plasma display from falling over 4

©2007 Matsushita Electric Industrial Co., Ltd. All

rights reserved. Unauthorized copying and

distribution is a violation of law.

TY-ST58-K

2 Replacement Parts List 5

2.1. Parts List 5

2.2. Packing Summary 5

3 External dimensions drawing 7

Pedestal for Plasma Display

Dimension (W xDxH)

main body 3459/64” (887 mm) x 1659/64” (430 mm) x 753/64” (199 mm)

with packing 3949/64” (1010 mm) x 203/64” (509 mm) x 617/64” (159 mm)

Mass (weight)

main body 7.5 lb (3.4 kg)

with packing 15.4 lb (7 kg)

Note:

Design and Specifications are subject to change without notice. Weight and Dimensions shown are

approximate.

CONTENTS Page Page

ORDER No.ITD0707040CE

1 Installation procedure

1.1. Precaution with regard to setting up

2

TY-ST58-K

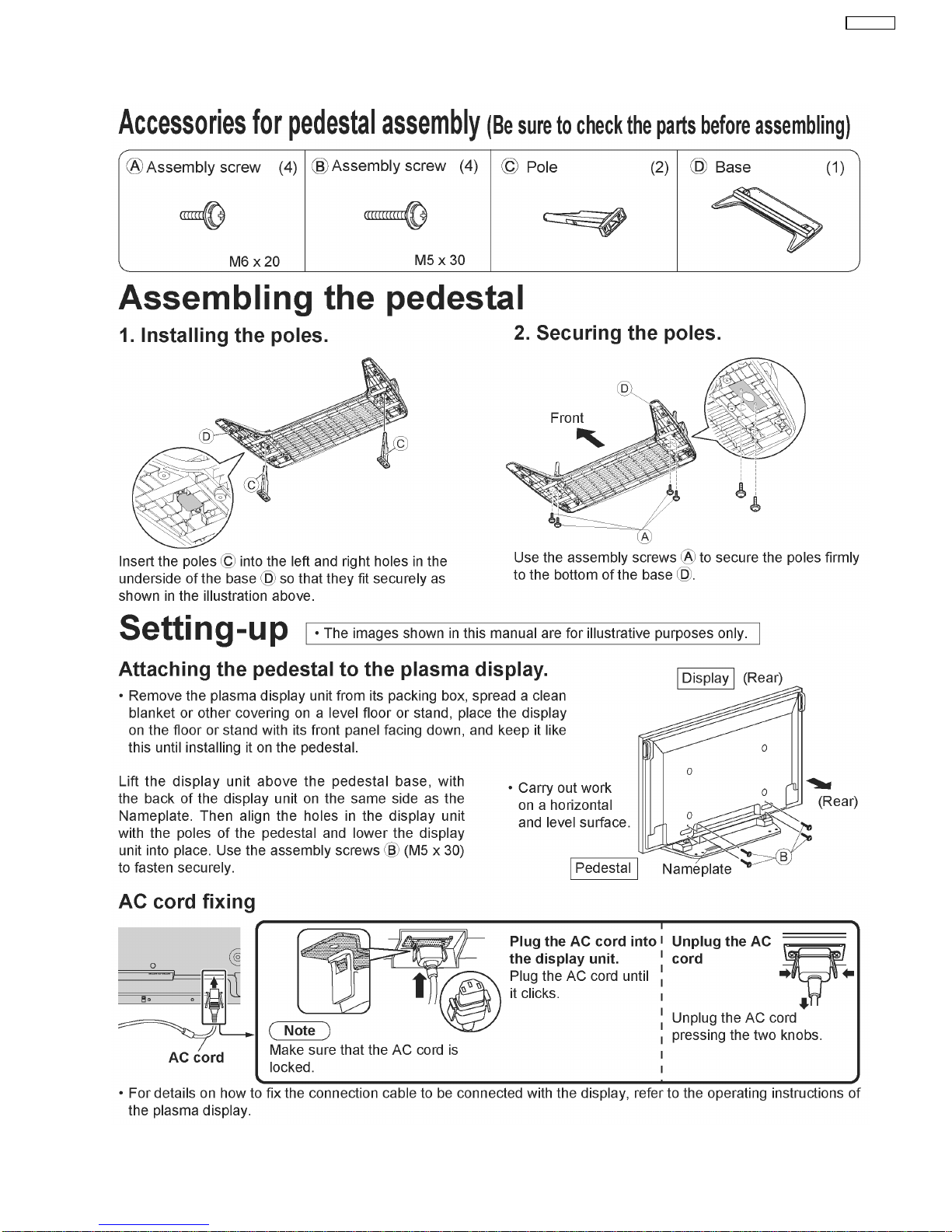

1.2. Assembling the pedestal / Setting up

3

TY-ST58-K

1.3. Stopping the plasma display from falling over

4

TY-ST58-K

2 Replacement Parts List

Ref.

No. Part No. Part Name & Description Pcs Remarks

1TBLA3526 STAND POLE 2

2TXFMM01WAT STOPPER 1

3XYN5+F30FNK SCREW (SET FASTENING) 4

4XYN6+F20FNK SCREW (POLE FASTENING) 4

5XZB12X25B03 POLY BAG (POLE) 2

6XZB7.5X9B03 POLY BAG (SCREW) 1

7TQZH831 INSTRUCTION SHEET 1

8TPCC16001 CARTON BOX 1

9TPDA1551 CUSHION (TOP/CENTER) 1

10 TPDA1552 CUSHION (BOTTOM/CENTER) 1

11 TPDA1623 CUSHION (TOP/LEFT) 1

12 TPDA1624 CUSHION (TOP/RIGHT) 1

13 TPDA1625 CUSHION (BOTTOM/LEFT) 1

14 TPDA1626 CUSHION (BOTTOM/RIGHT) 1

15 TPDF1872 BOTTOM PAD 1

16 TPEB296 PROTECT SHEET 1

17 TPEH338 PROTECT BAG 1

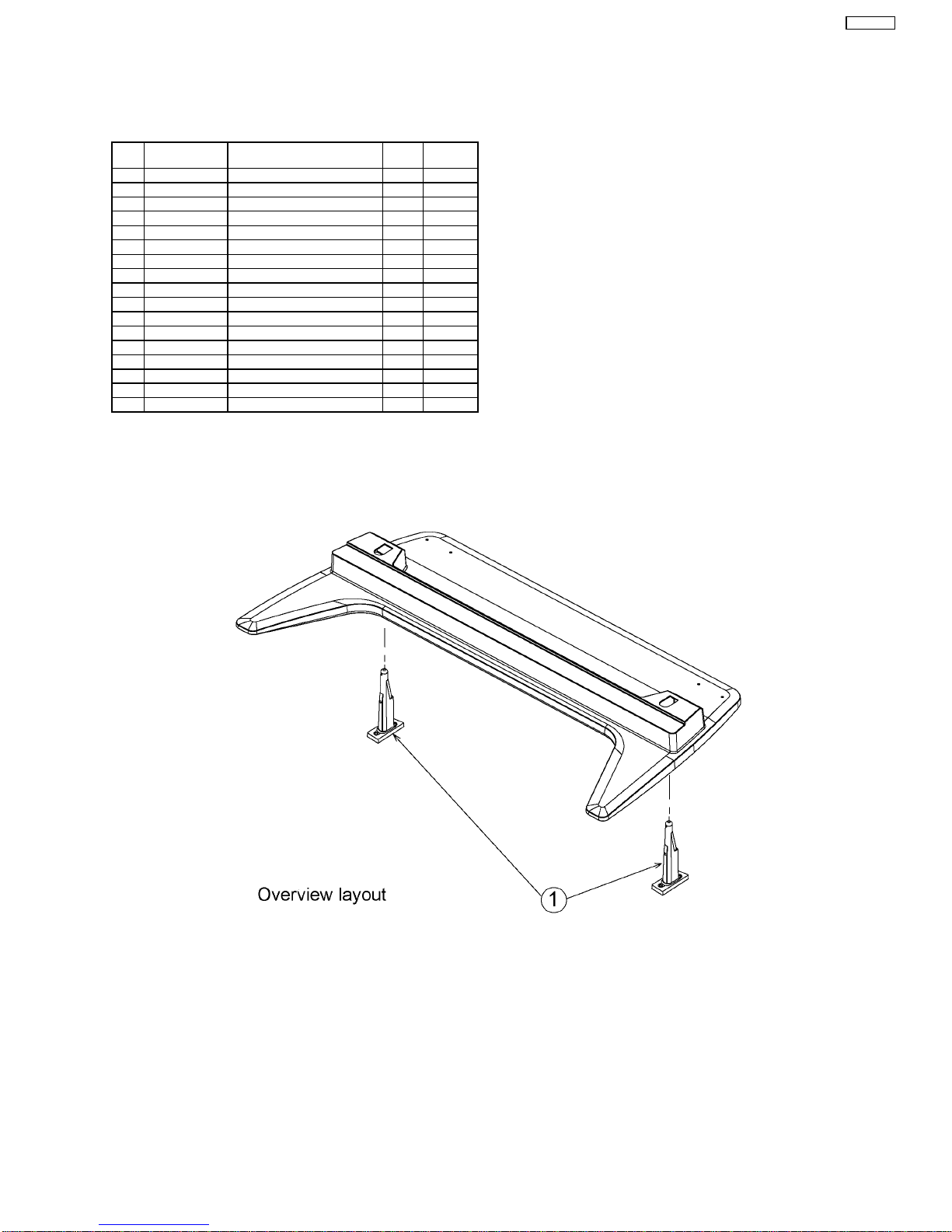

2.1. Parts List

2.2. Packing Summary

5

TY-ST58-K

6

TY-ST58-K

3 External dimensions drawing

7

TY-ST58-K

29 21/64 (745)

34 59/64 (887)

16 59/64 (430)

10 7/16 (265)

7 53/64 (198)

2 37/64 (65.5)

7 13/32

(188)

26 59/64 (684)

[ Unit : inches (mm)

]
