Panasonic PTL785U - LCD PROJECTOR UNIT User manual

TQBJ0158

Network Function Edition

(PT-L785U)

This projector has networking functions which allow it to be

controlled through a web browser on a PC.

The controlled items are:

• Projector’s settings and adjustment

• Projector’s status display

• Transmission of a E-mail message when the projector has a

problem

Contents

Connecting a PC ..................................................3

System requirements ...............................................3

Connection example ................................................3

Projector Settings ................................................4

Network settings screen ..........................................4

Network status screen .............................................5

Using Web Browser Control ...............................6

Access procedure ....................................................6

Basic control page ...................................................7

Detail control page ...................................................8

Status information page ..........................................9

Error information page...........................................10

E-mail setup page...................................................12

DNS server setup page ..........................................14

POP server setup page ..........................................15

Adjust clock page...................................................16

Network status page ..............................................17

Password change page..........................................18

Trademarks:

• Windows is a trademark or registered trademark of U.S.

Microsoft Corporation in the U.S. and other countries.

• Other company names, product names or other names noted in

this manual are trademarks or registered trademarks of the

respective companies. Note that ® and TM marks are not

indicated in the text of this manual.

Connecting a PC

Note:

Note that operation is not guaranteed when used with system environments

other than the above or on homemade computers.

Note:

Touching the LAN port with your hand (or body) when you are carrying a static

charge may damage the equipment due to a discharge of static electricity.

Therefore, be careful not to touch the LAN port or metal parts of the LAN cable.

Operation is not guaranteed for all computers that

meet the above conditions.

System requirements

The following system specifications are required in order to use the networking

functions.

Hardware requirements

OS: Windows XP/2000/Me (Millennium Edition)/98SE (Second Edition)

CPU: Pentium III or faster or compatible processor

(Celeron 633 MHz or faster is recommended)

RAM: 64 MB or more (128 MB or more for Windows XP/2000)

Hardware conditions: If you want to use the e-mail function, make sure the system

can handle e-mail.

Web browser: Internet Explorer 6.0 or newer, Netscape Communicator 7.0 or newer

LAN cable

Type: Category 5 compatible straight cable

Length: 100 meters or less

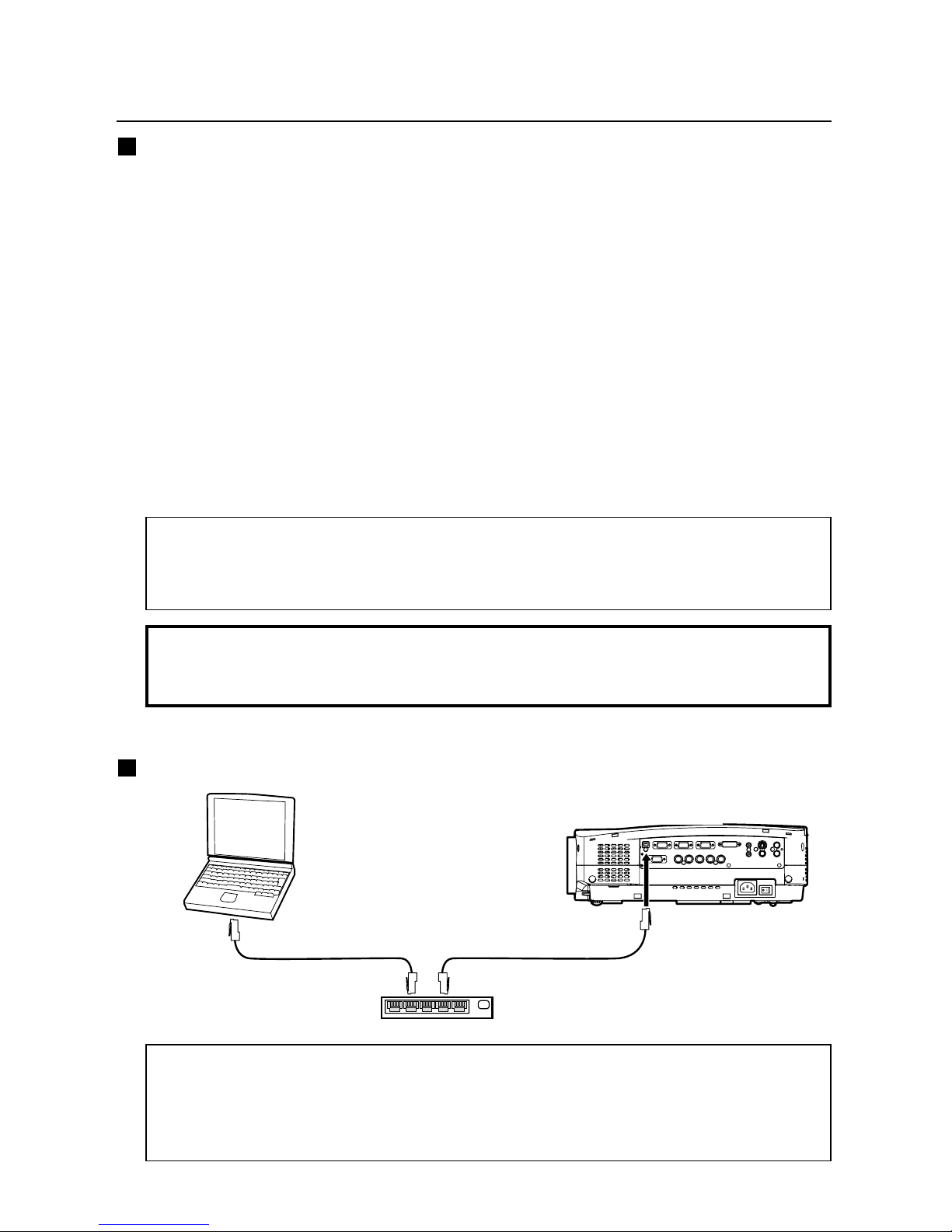

Connection example

Hub

LAN cable (straight)

Personal

computer

10 BASE-T or 100 BASE-TX

LAN cable (straight)

Projector

Projector Settings

Network settings screen

NETWORK

HOSTNAME

WEB CONTROL

WEB STANDBY

WEB PASSWORD

MAC ADDRESS

LAN1

PROJECTOR

OFF ON

00 : 0B : 97 : 41 : 00 : 00

SELECT : [ ] [ ] ENTER : [ENTER]

ESC : [MENU]

Press the [MENU] button.

The menu screen appears.

Use the [ ] buttons to display

the Network Settings screen, then

press the [ENTER] button.

Use the [ ] buttons to select a

parameter, then change its setting.

WEB

CONTROL

WEB

STANDBY

Use the [ ] buttons to toggle web control ON/OFF.

ON: Enables control through a web browser.

OFF: Disables control through a web browser.

Use the [ ] buttons to toggle web standby ON/OFF.

ON: During standby, the lamp in the projector can be turned on

through web browser controls.

OFF: During standby, the lamp in the projector cannot be turned

on through web browser controls.

The default setting is “panasonic”(all lower case). Use the

following procedure to change the password. This procedure

sets the password which is entered on page 6.

1. Select this parameter to set the password to be entered when

the projector is accessed through a web browser, then press

the [ENTER] button.

2. Use the [ ] buttons to select alphanumeric characters

(up to 16 characters), then press the [ENTER] button.

3. Select [OK], then press the [ENTER] button.

Parameter

NETWORK

HOSTNAME

1. Select this parameter and press the [ENTER] button in order

to set the name of the projector in the network.

2. Use the [ ] buttons to select alphanumeric characters

(up to 16 characters), then press the [ENTER] button.

3. Select [OK], then press the [ENTER] button.

Select this parameter and press the [ENTER] button in order to

set DHCP, IP address, subnet mask, and gateway settings.

(See the next page for detailed information.)

WEB

PASSWORD

MAC

ADDRESS

A MAC address (Media Access Control Address) which is unique

to the network equipment is displayed here. The MAC address

may be needed when, for example, a DHCP server is used.

Description

Network status screen

NETWORK

DHCP

IP ADDRESS

SUBNET MASK

GATEWAY

ENTER

LAN1

OFF ON

192.168.0.8

255.255.255.0

192.168.0.254

ESC

SELECT : [ ] [ ] ENTER : [ENTER]

ESC : [MENU]

Select [NETWORK] on the screen

discussed on the preceding page,

then press the [ENTER] button.

Use the [ ] buttons to select a

parameter, then change its setting.

ADDRESS

SUBNET

MASK

Enter settings in these parameters if you are not using a DHCP

server.

1. Select a parameter, then press the [ENTER] button.

2. Use the [ ] buttons to select numbers and periods, then

press the [ENTER] button.

3. Select [OK], then press the [ENTER] button.

Parameter

DHCP

Use the [ ] buttons to toggle this setting ON/OFF.

ON: Select this setting to automatically acquire an IP address

using a DHCP server.

OFF: Select this setting if you are not using a DHCP server.

IDs are identification numbers under which settings are stored.

Three different IDs can be stored (LAN1 through LAN3).

GATEWAY

Description

Notes:

•If you are using a DHCP server, make sure it is on and ready.

•IP address, subnet mask, and gateway settings should be obtained from your

network administrator.

Using Web Browser Control

Access procedure

Start the web browser on your PC, then enter the IP

address which was set in the projector.

Enter “user1” in the user name field, then enter the

password in the password field.

Click [OK].

The Basic Control page is displayed.

The default setting is “panasonic”(all lower case). If you have changed the

password, enter the new password here. If you forget your password, set a

new password using the procedure described on page 4.

The host name set in the projector is displayed in the “Realm”field.

Note:

Do not enter settings or perform controls with multiple web browser windows open at

the same time.

Basic control page

This page is the first page displayed when the projector is accessed through a web

browser.

To move from another page, click [Projector Control], then [Basic control].

Input channel switching

Video mode selection

Shutter control

Power ON/OFF control

Lamp power switching

Volume control

(+: increase volume;

–: lower volume)

Using Web Browser Control (continued)

Detail control page

Click [Projector Control], then [Detail control] to display the Detail control page.

AUTO SETUP start button

Picture adjustment

(contrast, bright, color, and

sharpness)

Rough adjustment,

fine adjustment

Position adjustment

(horizontal and vertical)

Rough adjustment,

fine adjustment

Keystone distortion correction

(horizontal and vertical)

Rough adjustment,

fine adjustment

Status information page

Click [Projector Control], then [Status information] to display the Status information page.

POWER: ON and OFF

VOLUME: 0 to 20

INTERNAL TEMPERATURE:

Good, Warning and Caution

LAMP RUNTIME: 0 to 1500 hours

PROJECTOR TYPE: L785

VERSION: Projector firmware

version display

INPUT: RGB1, RGB2, RGB3, DVI,

VIDEO and S-VIDEO

LAMP POWER: HIGH and LOW

SET RUNTIME: 0 to 2000 hours

SELF TEST: No Errors and Error

When

displayed, refer to the

next page.

Using Web Browser Control (continued)

Error information page

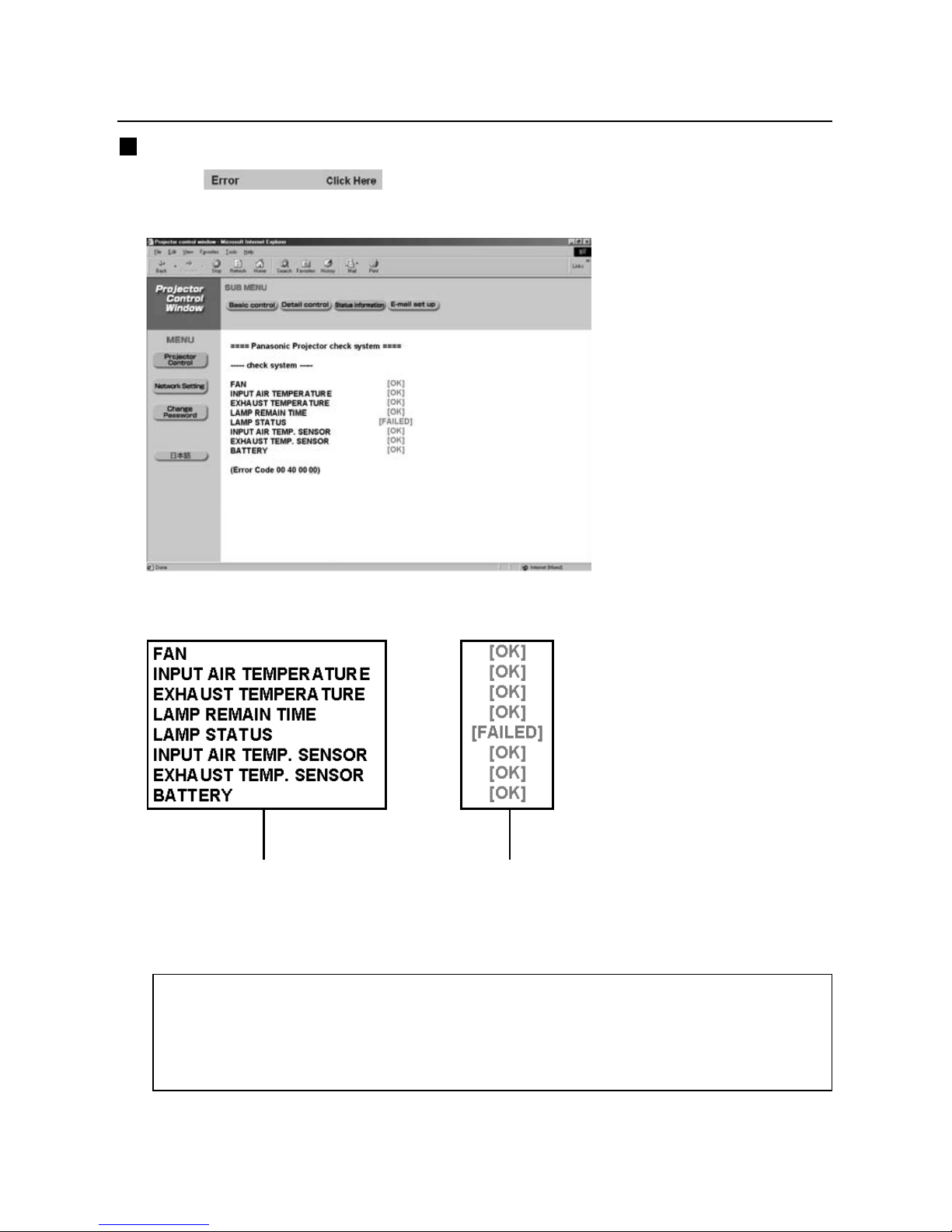

When is displayed on the status information screen, click it

to display the error details.

Items checked for errors [OK]: Normal

[FAILED]: Error

Note:

In the case of some errors, the standby status is established in order to protect the

projector. "WEB STANDBY" must be set to [ON] to display the error information

page. (See page 4.)
